Zinc Roofing Double Layer Roll Forming Machine
Zinc Roofing Double Layer Roll Forming Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Zinc Roofing Double Layer Roll Forming Machine
Zinc Roofing Double Layer Roll Forming Machine

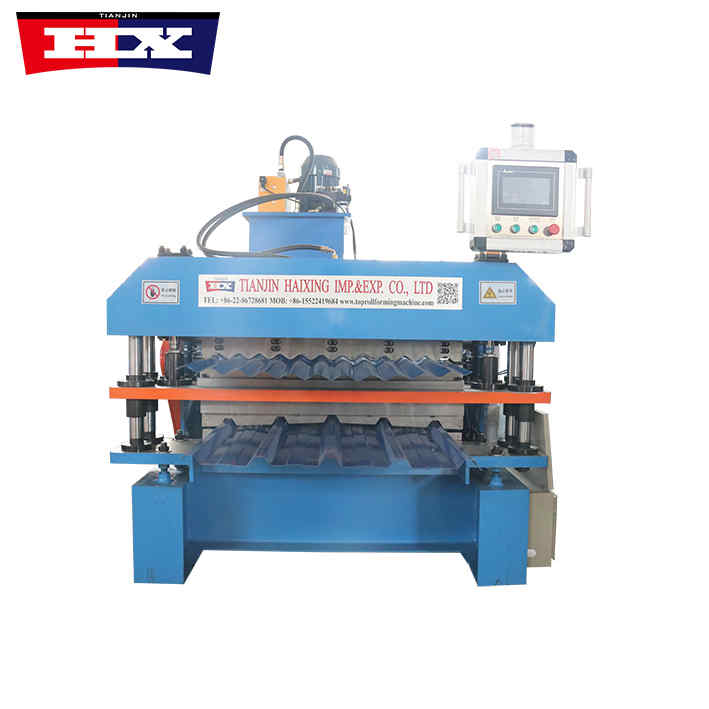

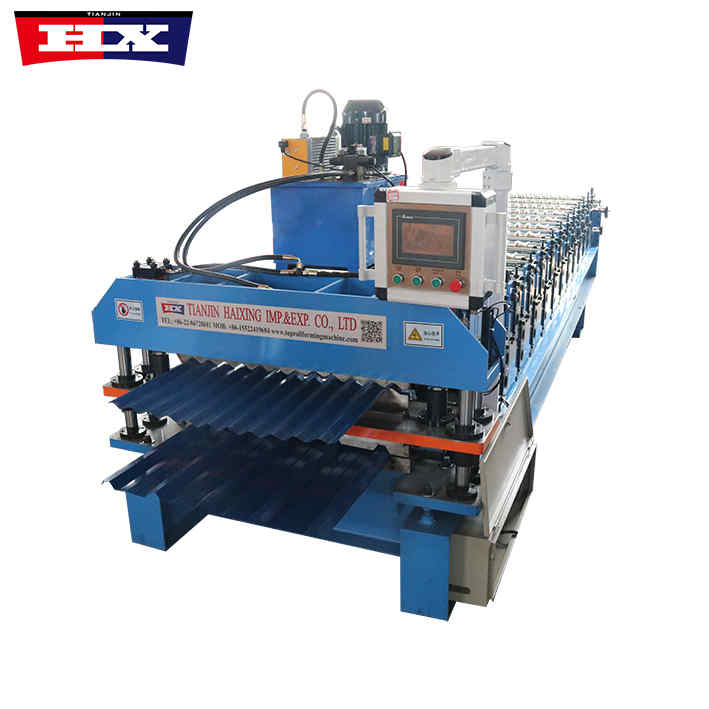

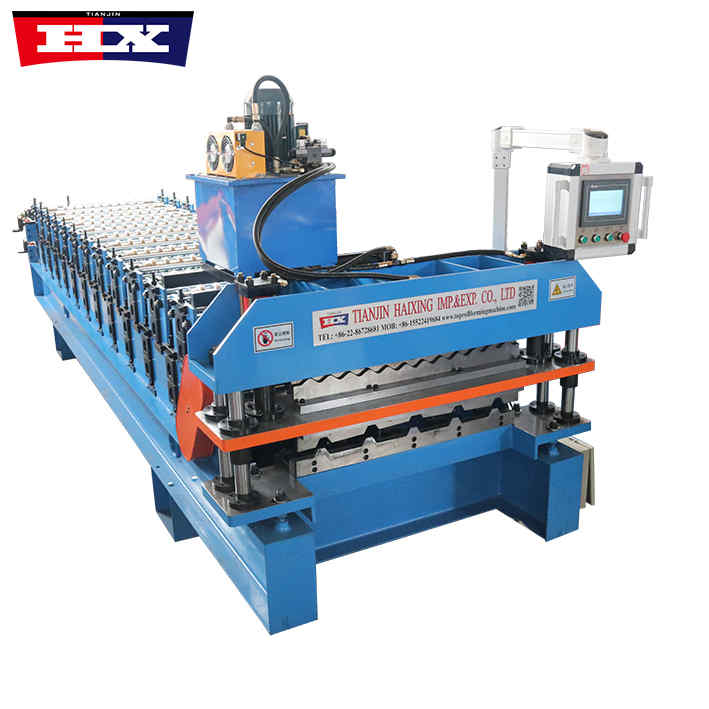

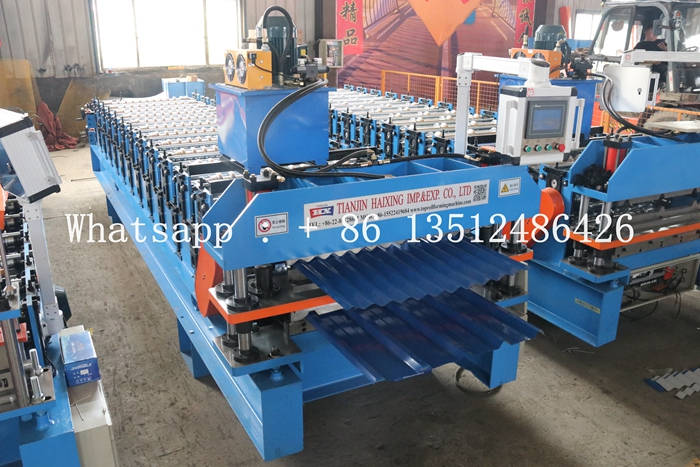

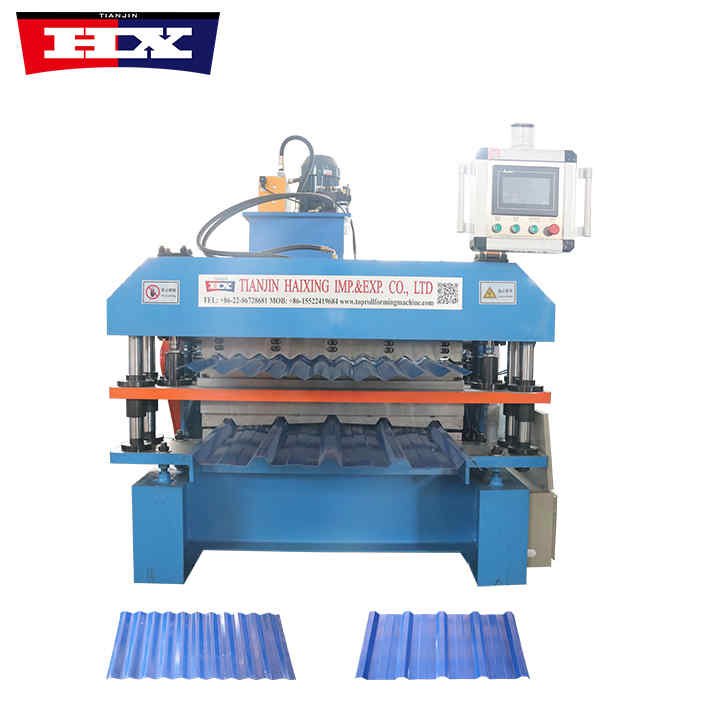

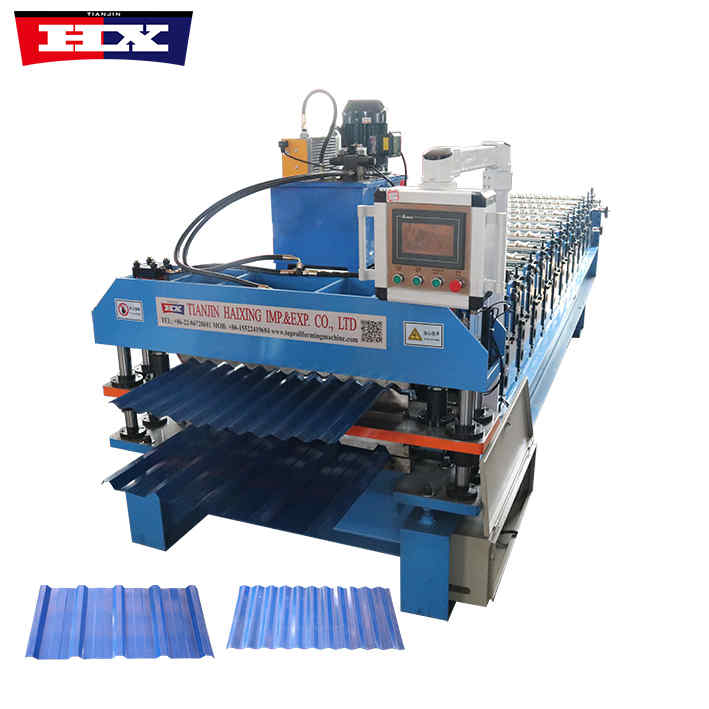

Zinc roofing double layer roll forming machine is mainly composed of feed introduction platform, molding host, molding and shearing device, hydraulic station, computer control system and other parts. The operation of switching between upper and lower floors is simple. You only need to use the conversion button on the electric control cabinet to switch and control each floor separately. The power can also be controlled through the clutch to control each floor separately. Optional configurations include ordinary unloading machine and hydraulic unloading machine.
Zinc Roofing Double Layer Roll Forming Machine
Specification
No. |
Number |
Zinc Roofing Double Layer Roll Forming Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows |
13 13 |
| 19. | Size | 6500mm*1500mm*1600mm |
| 20. | Weight | 6000kg |
Advantages
1. High-efficiency production: Being able to press two types of tiles greatly improves production efficiency and reduces production time.
2. Quality assurance: Advanced technology and craftsmanship ensure the quality of the tiles, giving them good durability and stability.
3. Diversified choices: Tiles of various shapes and specifications can be produced to meet various architectural design needs.
4. Cost saving: High-efficiency production methods reduce costs and save materials and human resources for users.
5. Easy to operate: The design is user-friendly, the operation is simple and easy to understand, and no professional skills are required, which reduces the training cost of operators.
6. Strong adaptability: suitable for various roof types and building structures, with high versatility.
7. Safe and reliable: Good safety performance ensures the safety of operators and reduces the risk of accidents.
