Aluminium Roofing Sheet Making Machine
Aluminium Roofing Sheet Making Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Aluminium Roofing Sheet Making Machine
Aluminium Roofing Sheet Making Machine

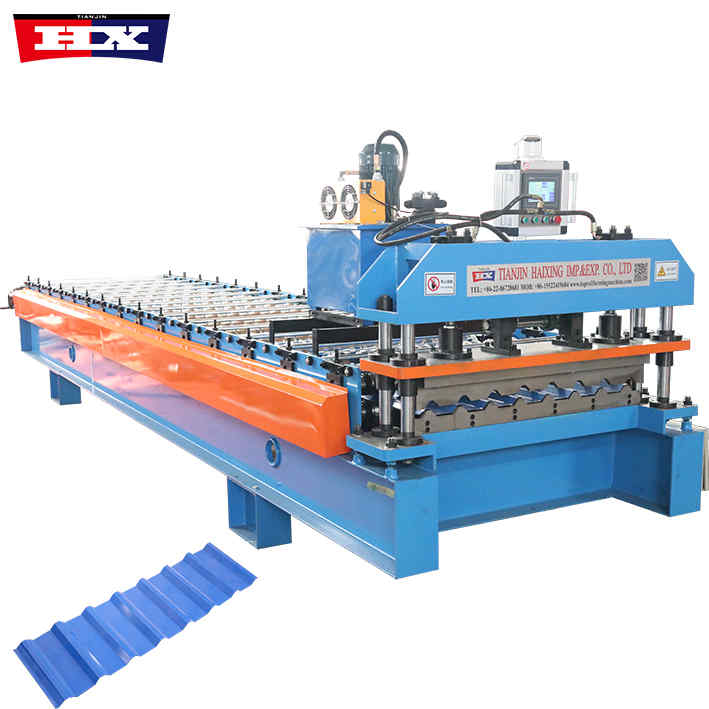

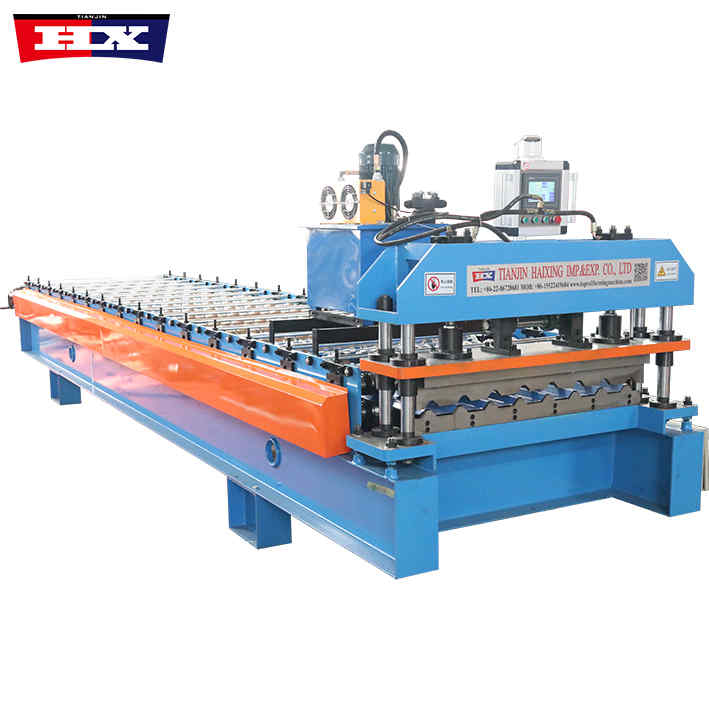

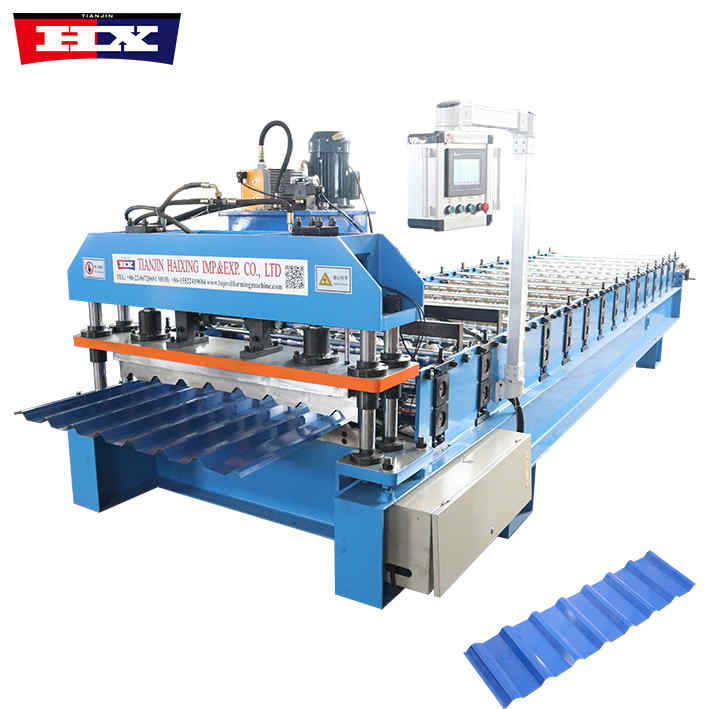

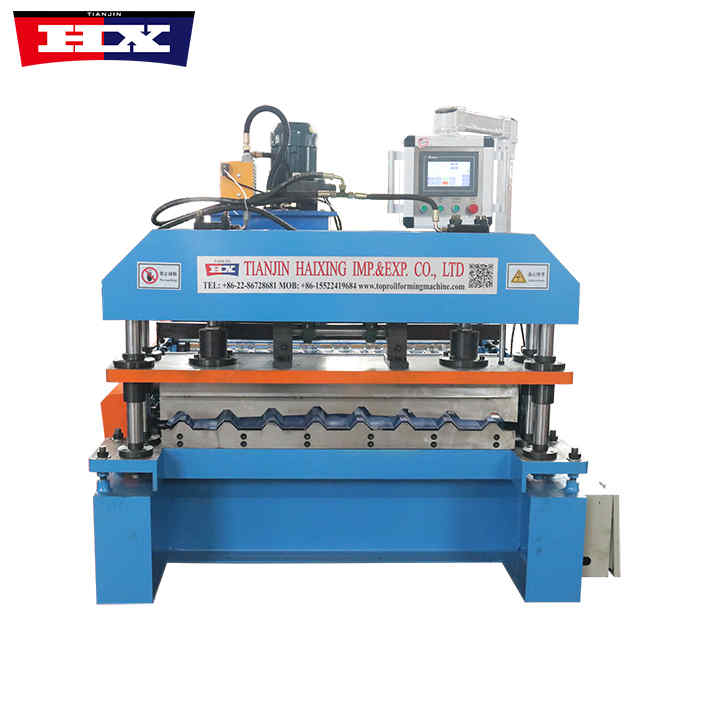

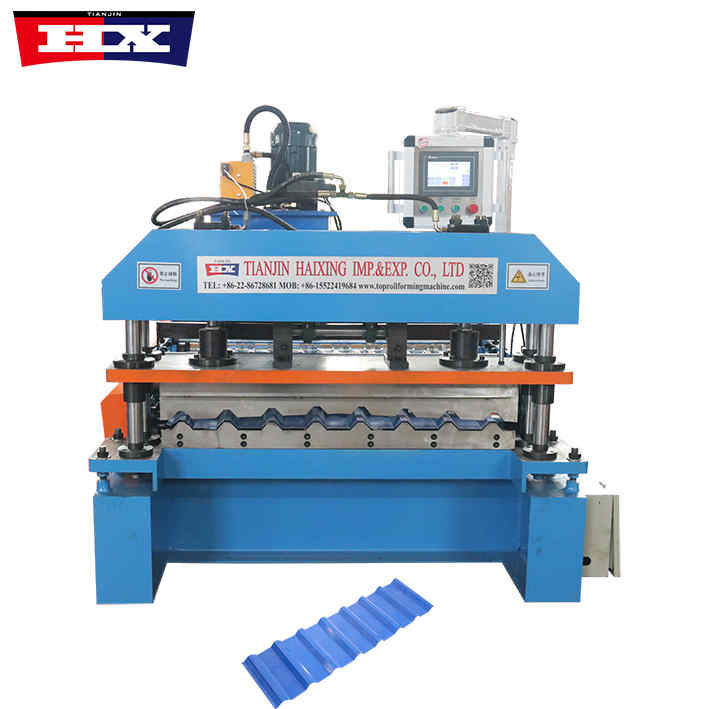

Aluminium roofing sheet making machine is mainly composed of fuselage, transmission system, pressure tile system, cutting system, electrical control system and other parts.
1. The fuselage is welded with high-strength steel, which has the characteristics of stable structure and strong earthquake resistance.
2. The transmission system consists of motor, reducer, sprocket, etc., which can provide stable and efficient transmission effect.

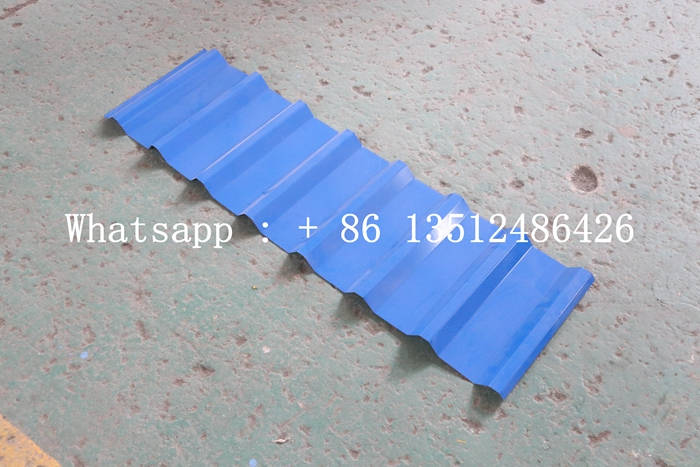

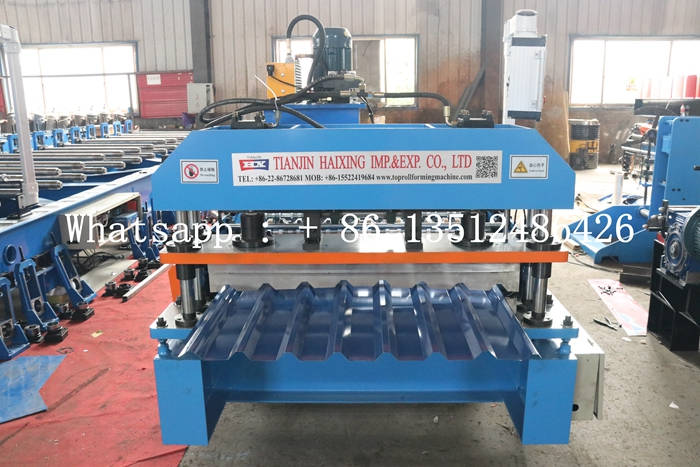

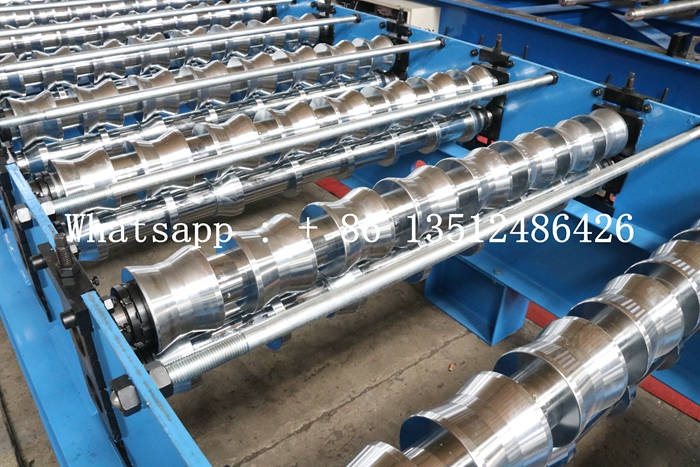

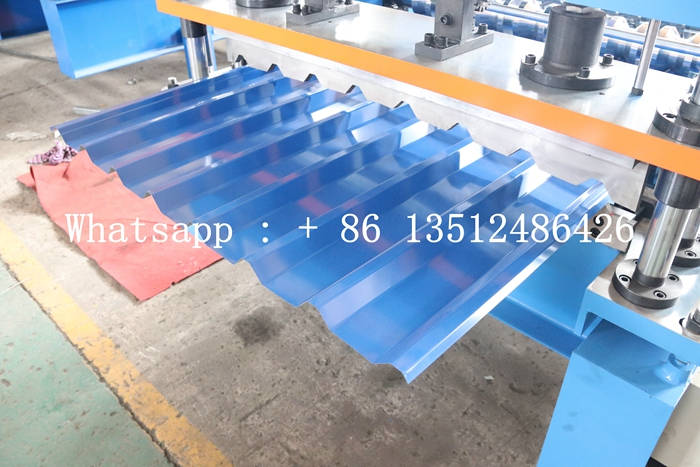

3. The tile pressing system includes an upper pressing roller, a lower pressing roller, a forming mold, etc. Through the synergy of the upper and lower pressing rollers, the metal sheet is pressed into corrugated sheets of the required shape.
4. The cutting system consists of blades, knife holders, cylinders, etc., which can achieve precise cutting functions.
5. The electrical control system is responsible for the overall control of the equipment, including starting, stopping, speed regulation, counting and other functions.
Aluminium Roofing Sheet Making Machine
Specification
No. |
Number |
Aluminium Roofing Sheet Making Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 15 |
| 19. | Size | 7500mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Application
1. Construction field: The corrugated roof sheet making machine can be used to produce corrugated sheets of various shapes and specifications, such as roof panels, wall panels, etc., and is widely used in industrial plants, warehouses, cold storages, residential buildings and other construction fields.
2. Decorative field: The corrugated sheets produced by the corrugated roof sheet making machine have good decorative effects and can be used for indoor and outdoor walls, ceilings, partitions and other decoration projects to enhance the beauty and practicality of the overall space.
3. Transportation field: The corrugated sheets produced by the corrugated roof sheet making machine can also be used in transportation facilities, such as highway guardrails, railway soundproof walls, etc., with good durability and stability.
4. Home appliance field: The corrugated roof sheet making machine can also be used to produce shells and parts for home appliances, such as refrigerators, air conditioners, washing machines, etc. It has good anti-rust and anti-corrosion properties.
