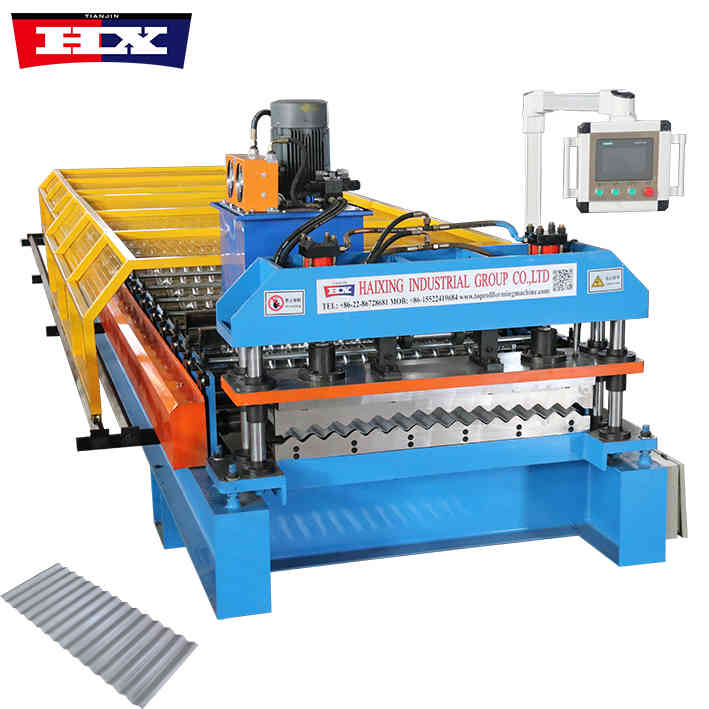

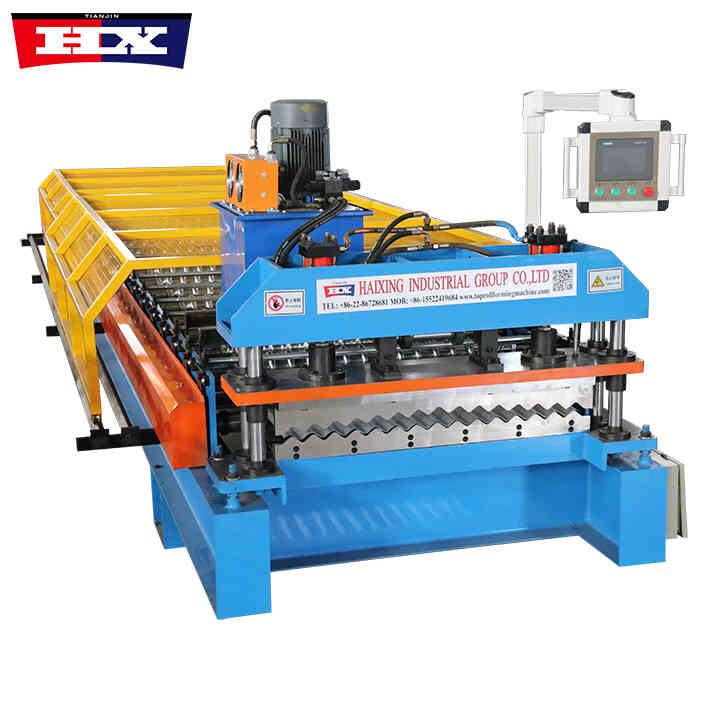

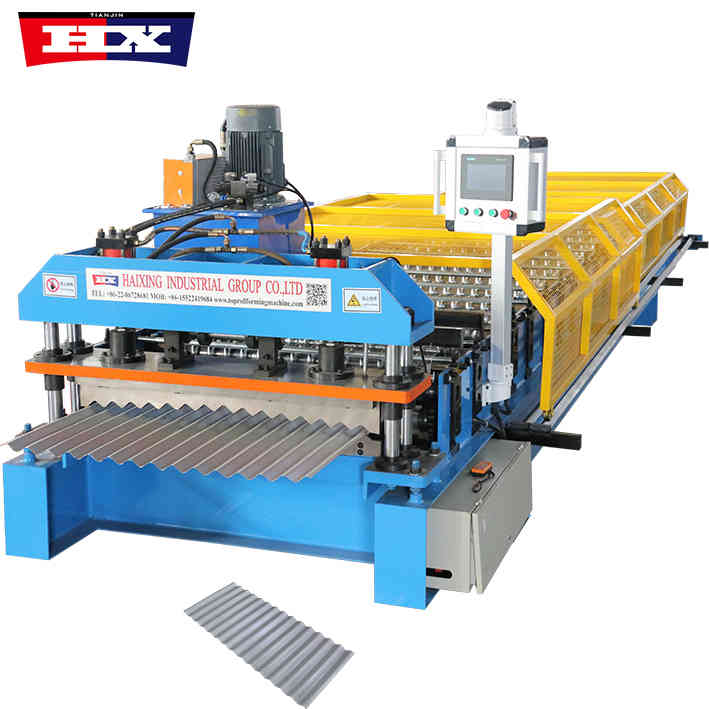

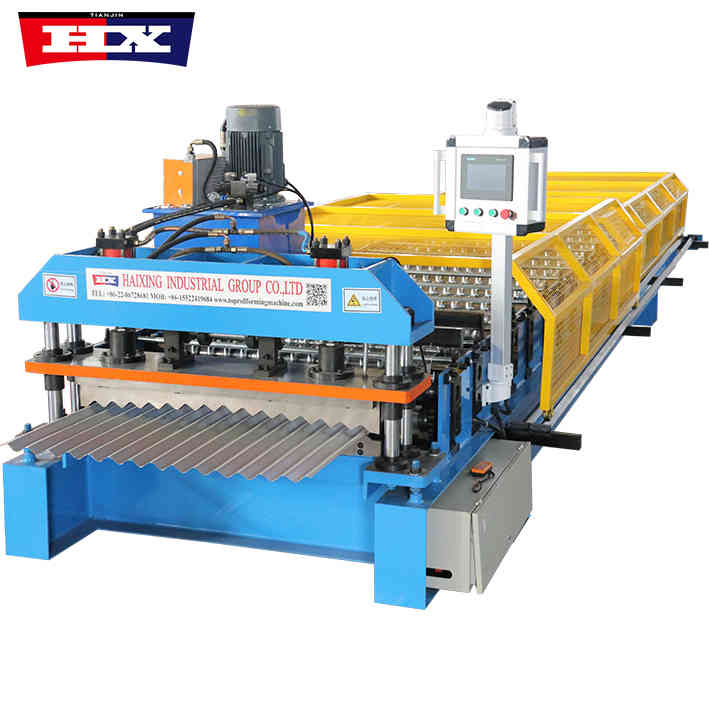

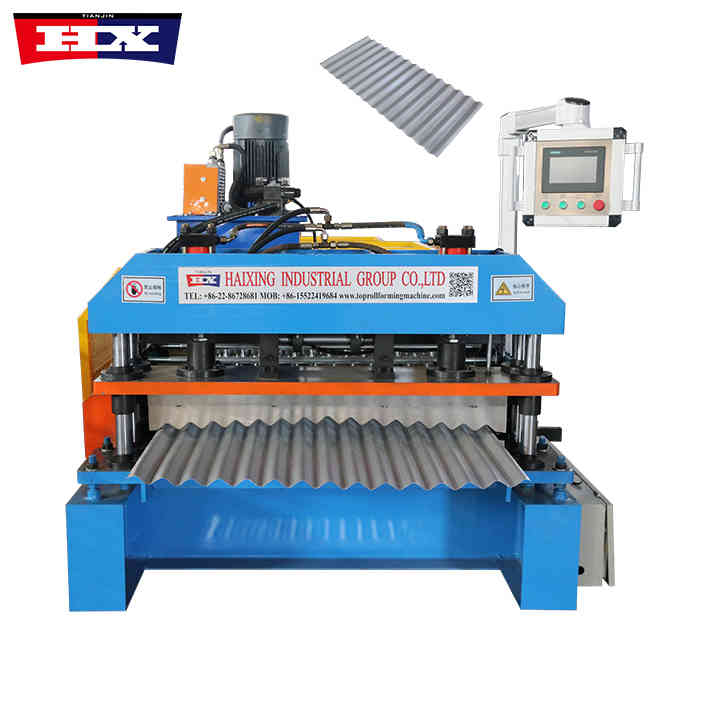

Corrugated Metal Machine
Corrugated Metal Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Corrugated Metal Machine
Corrugated Metal Machine

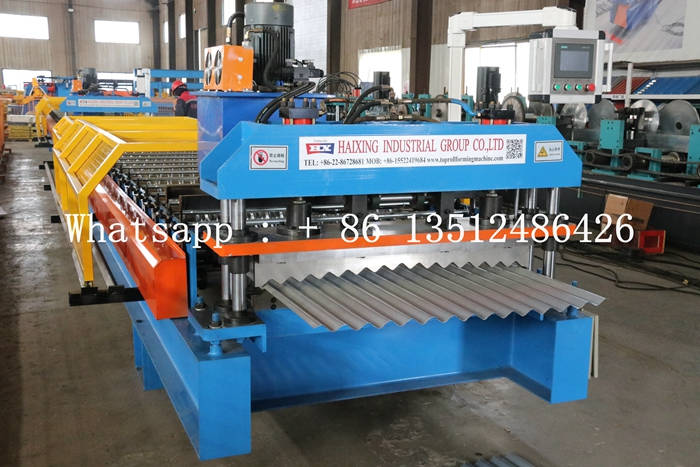

The corrugated metal machine is a machine that consists of unloading, forming, and post-forming and cutting. The tile shape is wavy. It has the advantages of light weight, uniform paint pattern, high strength, smooth appearance, and durability. It is different from ordinary roof panels. , wall panels have excellent anti-leakage properties.
Corrugated Metal Machine
Specification
No. |
Number |
Corrugated Metal Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |

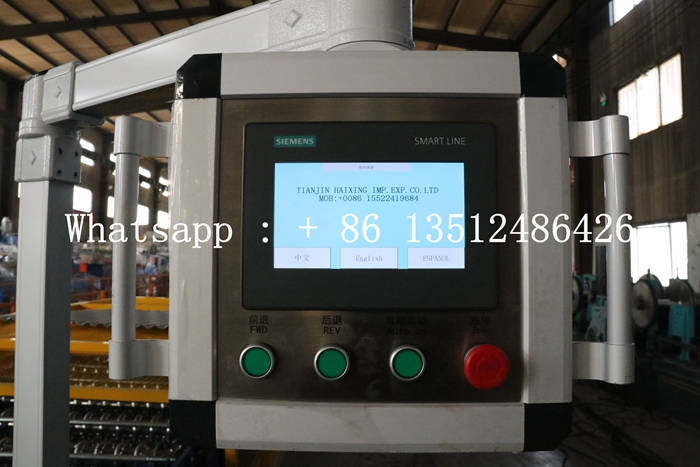

| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 13 |
| 19. | Size | 6500mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Parts Of Machine

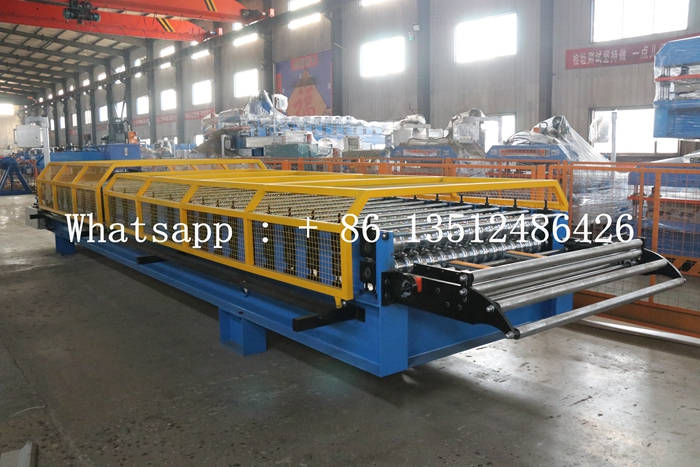

1. Feed guide
① Positioning plate: adjust the position of both ends to match the feeding width.
②Guide frame: plays a role in supporting the advancement of material roll transportation.
③ Feeding roller: The upper and lower round roller design makes the feeding process smoother.
④Hand-pull front cutting: Manually cut the front section according to the amount of material roll.

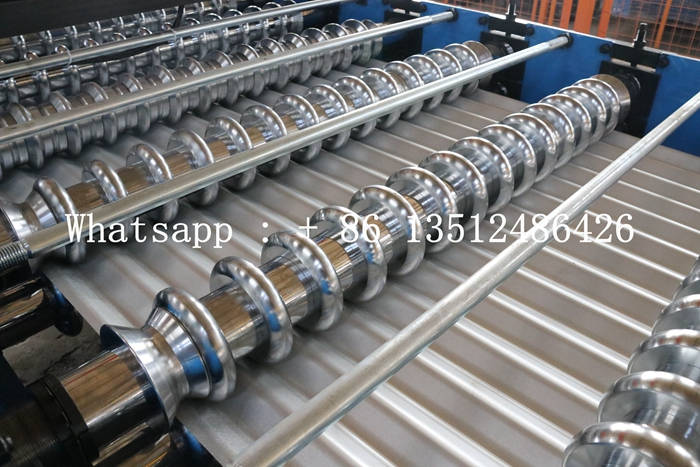

2. Roller
①Spindle diameter: φ70mm, 45# steel.
②Roller material: surface hard chrome plating, mirror polishing, heat treatment.
③ Base: 350H large frame 16mm middle plate to increase the rigidity on both sides of the wall panel.
④Cold bending: the process of cold bending the material roll one by one.
3. Forming shearing
① Guide mechanism: Double guide column slide rail, smooth shearing and no deformation of the cut.
② Cast iron knife holder: Cast iron has obvious shock absorption effect and strong impact resistance.
③Blade material: Cr12Mov.
Application
1. Construction field: The corrugated metal machine can be used to produce corrugated sheets of various shapes and specifications, such as roof panels, wall panels, etc., and is widely used in industrial plants, warehouses, cold storages, residential buildings and other construction fields.
2. Decorative field: The corrugated sheets produced by the corrugated metal machine have good decorative effects and can be used for indoor and outdoor walls, ceilings, partitions and other decorative projects to enhance the beauty and practicality of the overall space.
3. Transportation field: The corrugated sheets produced by the corrugated metal machine can also be used in transportation facilities, such as highway guardrails, railway soundproof walls, etc., with good durability and stability.
4. Home appliance field: The corrugated metal machine can also be used to produce shells and parts for home appliances, such as refrigerators, air conditioners, washing machines, etc. It has good anti-rust and anti-corrosion properties.
