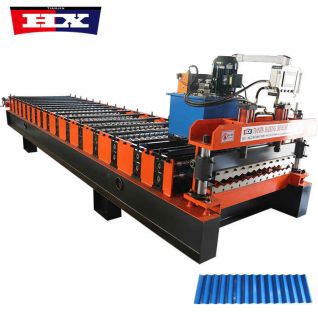

Corrugated Metal Roofing Machine
Corrugated Metal Roofing Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin

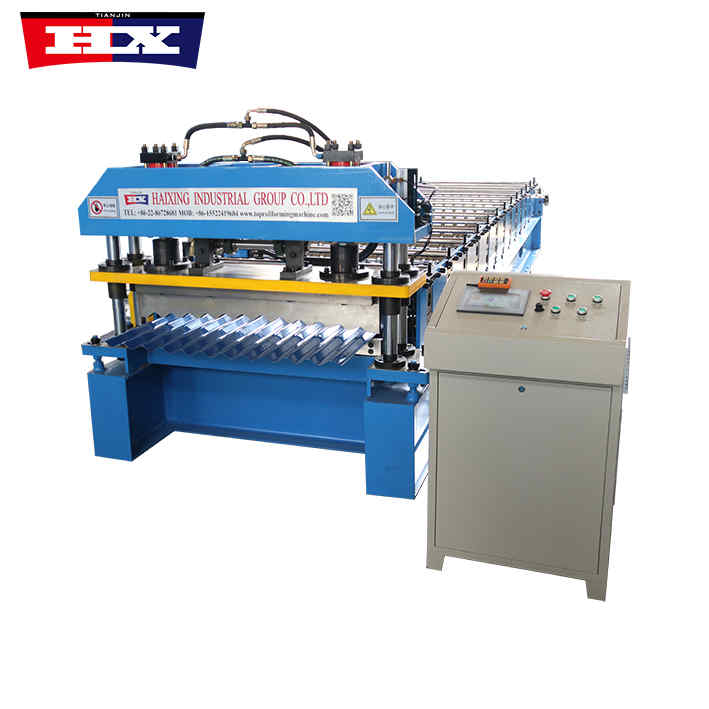

Corrugated Metal Roofing Machine
Corrugated Metal Roofing Machine
Corrugated metal roofing machine is mainly composed of fuselage, transmission system, hydraulic system, electrical control system and other parts. When working, the electric control system controls the transmission system to drive the hydraulic system, so that the upper and lower molds of the tile press are closed, and the metal plates placed between the molds are pressed and formed. After the pressing is completed, the mold is opened and the finished tiles automatically fall off, completing a pressing process.

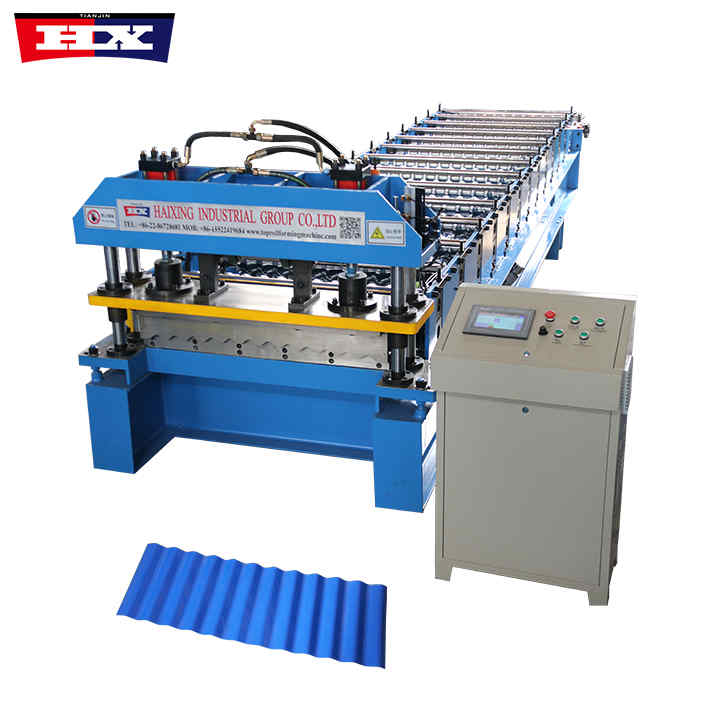

Corrugated Metal Roofing Machine
Specification
No. |
Number |
Corrugated Metal Roofing Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |

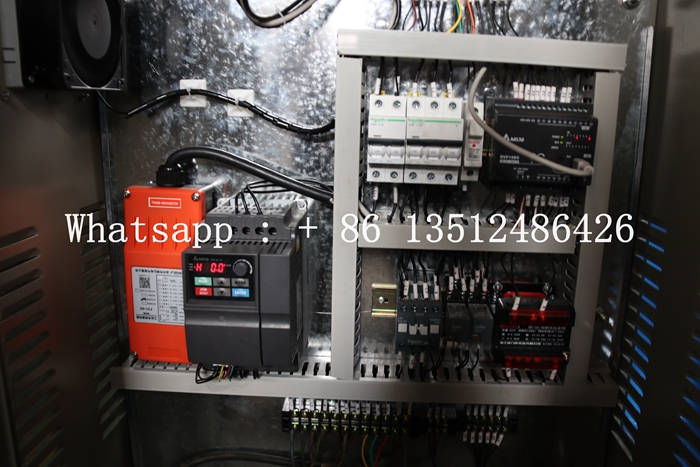

| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |

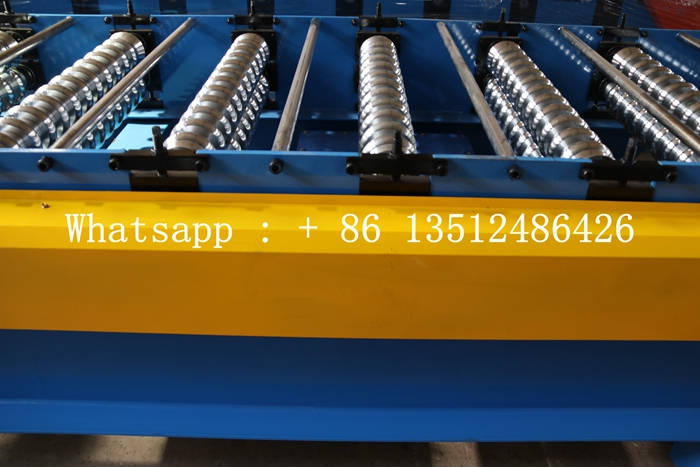

| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 13 |
| 19. | Size | 6500mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Advantages
1. Improve production efficiency: The corrugated metal roofing machine adopts an automated control system, which can achieve rapid and continuous production, greatly improving production efficiency.
2. Improve product quality: The corrugated metal roofing machine has high precision and stability, which can ensure product consistency and quality stability.
3. Reduce labor costs: The corrugated metal roofing machine can realize automated production, reducing reliance on manual operations and reducing labor costs.
4. Broaden application areas: The corrugated metal roofing machine is suitable for the forming and processing of a variety of metal sheets and can meet the needs of different industries.
Future development prospects
With the continuous advancement of science and technology and the increasing market expansion, the corrugated metal roofing machine will have broader prospects in future development.
1. First of all, with the promotion of green buildings and energy conservation and emission reduction policies, the market demand for high-quality, environmentally friendly roof tiles will continue to grow, providing greater market space for the corrugated metal roofing machine.
2. Secondly, with the continuous development of intelligent and automated technology, the corrugated metal roofing machine will further realize intelligent control and automated production, improving production efficiency and product quality.
3. In addition, with the continuous emergence of new materials and new processes, the corrugated metal roofing machine will also expand into more application areas to meet the diversified needs of the market.
In short, the corrugated metal roofing machine, as an advanced metal forming equipment, plays an important role in construction, decoration, metallurgy, chemical industry and other industries. Its high precision, high efficiency, high stability and wide range of application fields make it highly competitive in the market. With the continuous advancement of technology and the increasing market expansion, the 699 tile press will usher in broader prospects in the future development.
