Hydraulic Decoiler
Hydraulic Decoiler
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time:20 working days
Shipping Time : 40 days
Port : Tianjin

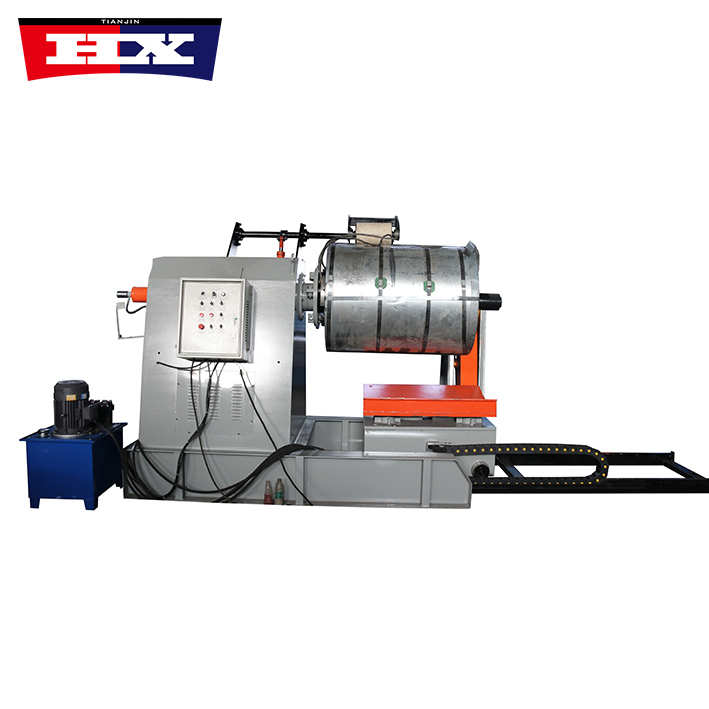

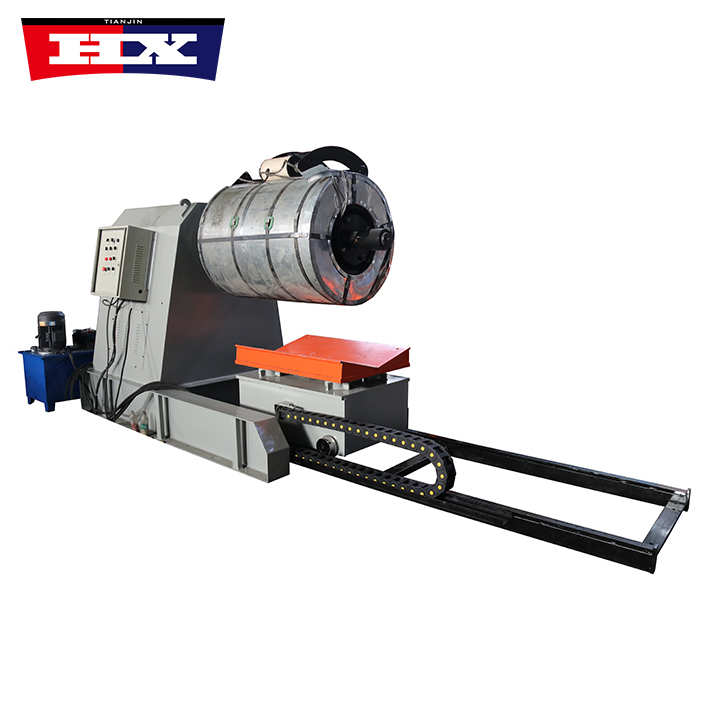

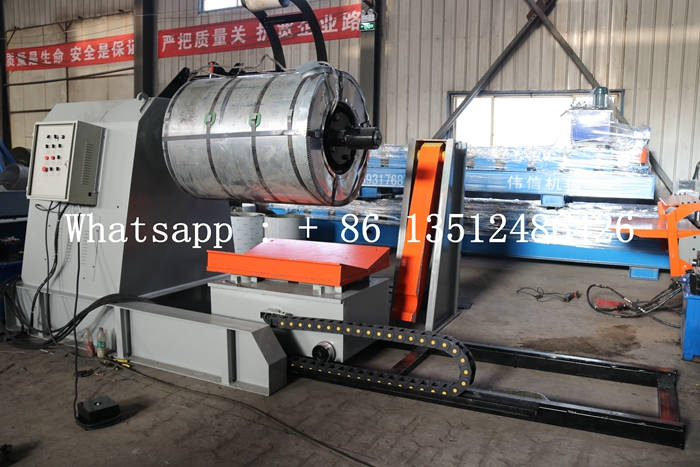

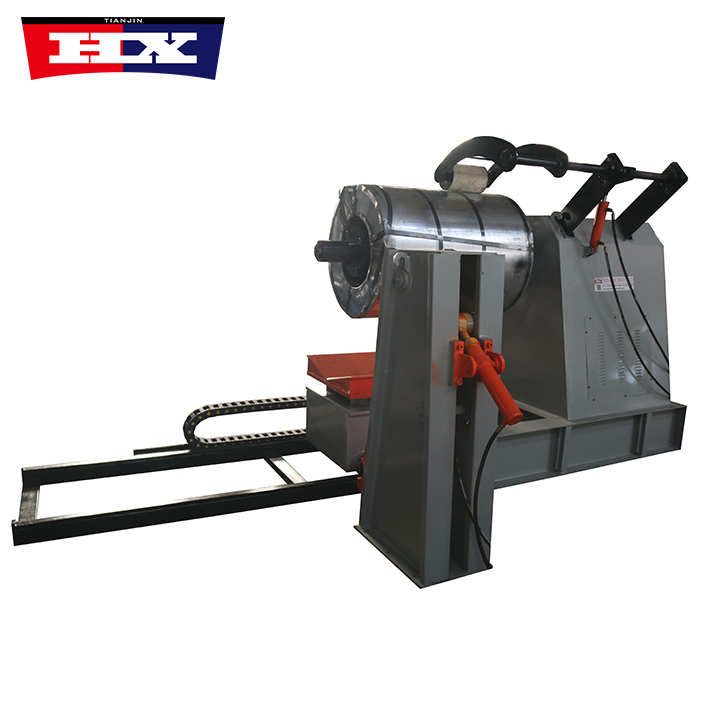

Hydraulic Decoiler
Hydraulic Decoiler
The decoiler is a machine that flattens, cuts, longitudinally, and cross-cuts coil materials (such as steel coils, aluminum coils, stainless steel coils, copper coils, etc.). Its basic function is to unfold the material into a flat plate to facilitate subsequent production and processing.
1. Continuous uncoiling: The uncoiler can realize continuous uncoiling of roll-shaped materials, ensuring the continuous and stable operation of the production line.
By precisely controlling the unwinding speed and tension, it can ensure that the material does not stretch or relax during the unwinding process, thereby improving the stability of product quality.
2. Tension control: The uncoiler is equipped with an advanced tension control system, which can accurately adjust the tension of the material according to production needs.
This not only prevents the material from wrinkles or stretch deformation during the unwinding process, but also ensures the stability and accuracy of the material during subsequent processing.
3. Material correction: For some materials, such as metal sheets, the decoiler also has a material correction function.
It can achieve horizontal and vertical correction of the material by adjusting the position and angle of the unwinding roller, ensuring that the material remains flat and accurate before entering the next process.
Specification
No. |
Number |
Hydraulic Decoiler |
| 1. |

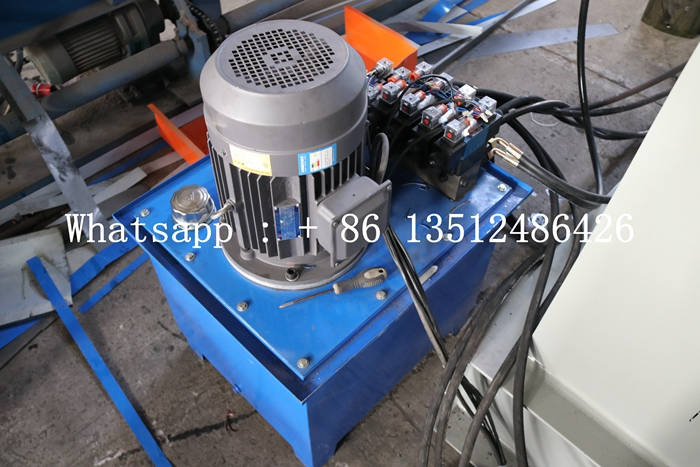

Hydraulic pump station |
4kw (Electromagnetic valves) |
| 2. | Main motor | 5.5kw |
| 3. | Main frame | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Main shaft | 203*55 seamless pipe |
| 7. | Coil inner diameter | 470-530±20mm |
| 8. | Cylinder | 1 Diameter 125mm |
| 9. |

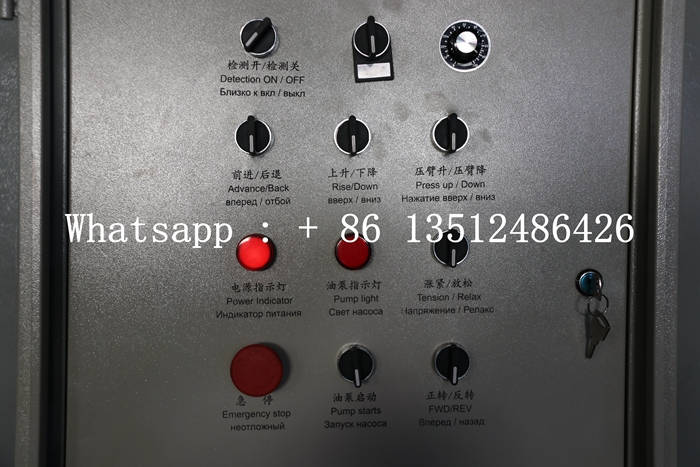

Electrical control system |
Delta Inverter(7.5kw) Domestic Electronic Control System |
| 10. | Feeding width | 0-1500mm |
| 11. | Weight capacity | 15 tons |

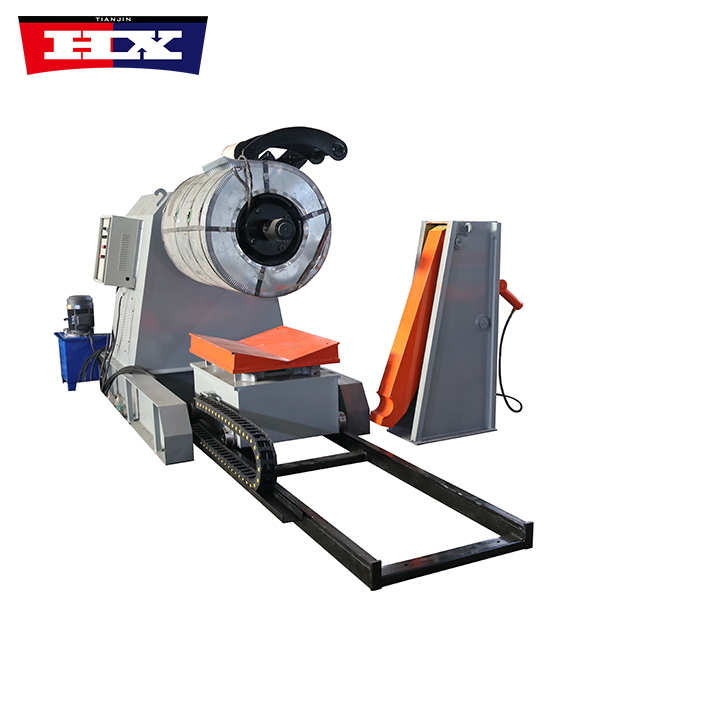

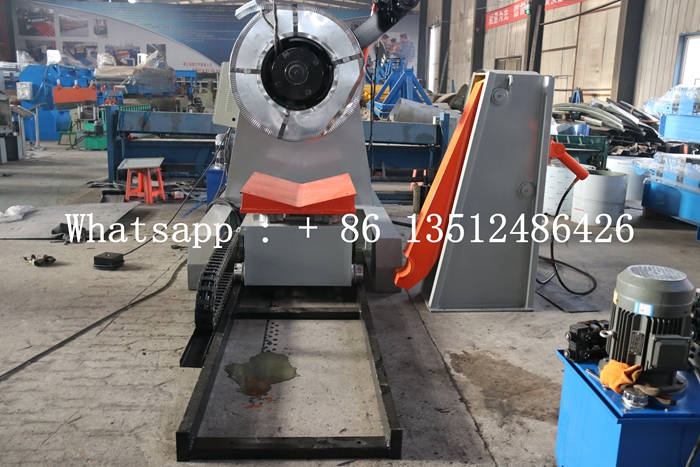

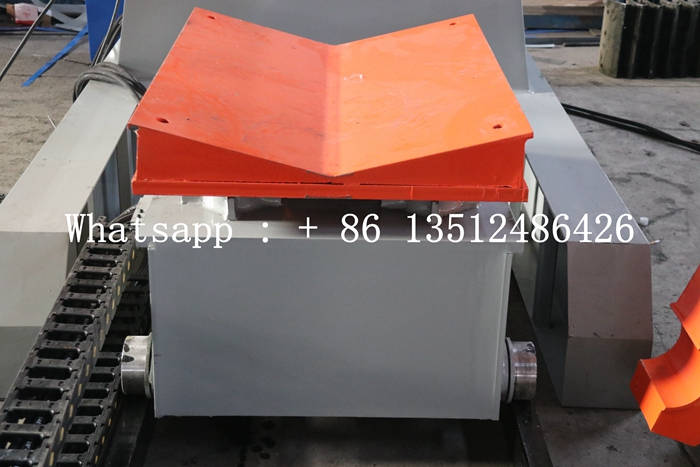

| 12. | Trolley |
Width : 1.1m Length : 0.9m |
| 13. | Trolley track |
Width : 1.15m Length : 2.5m |
| 14. | Trolley route |
High : 300mm Length : 2.5m |
| 15. | Trolley wight | 0.8 tons |
Application
Decoiler are widely used in railways, engineering, construction, manufacturing and other industries, especially in the steel manufacturing and metal product processing industries. The scope of application of decoilers generally includes the following aspects:
1. Development and processing of plates;
2. Pre-processing of welding, cutting and other processes of metal and non-metal plates;
3. Manufacturing and processing of large industrial products such as car bodies, ship hulls, machinery and equipment;
4. Sheet processing for various types of electronics, instruments, pharmaceutical packaging, etc.
Advantages
Decoiler play a very important role in industrial production processes. It plays a positive role in improving production efficiency, reducing production costs, and ensuring product quality. Through the processing of the decoiler, the rolled material can be unrolled into a flat plate, which can provide more convenient conditions for subsequent production and processing, making the production process more efficient and precise.
In steel manufacturing, metal product processing and other industries, decoilers can not only improve production efficiency and quality, but also significantly reduce production costs and improve corporate competitiveness and market share.
