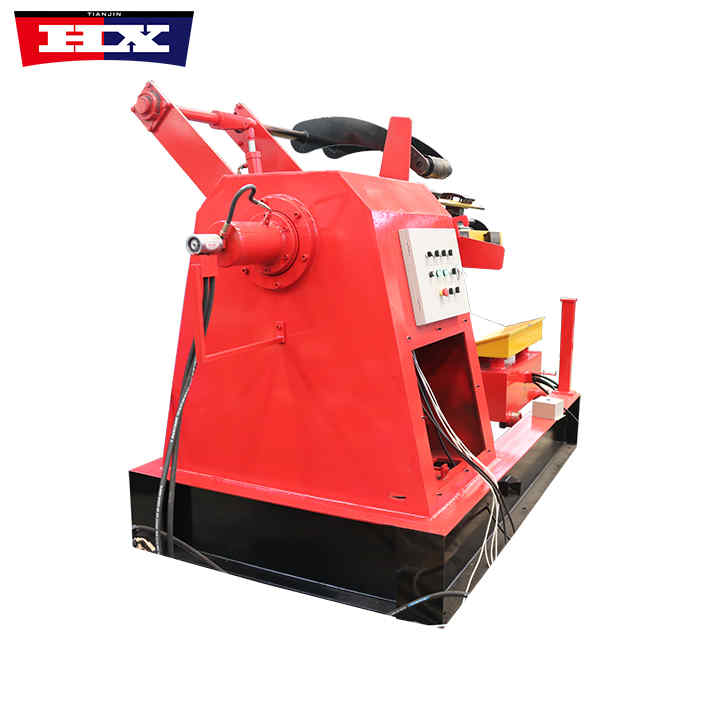

Decoiler Machine For Sale
Decoiler Machine For Sale
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time:20 working days
Shipping Time : 40 days
Port : Tianjin
Decoiler Machine For Sale
Decoiler Machine For Sale

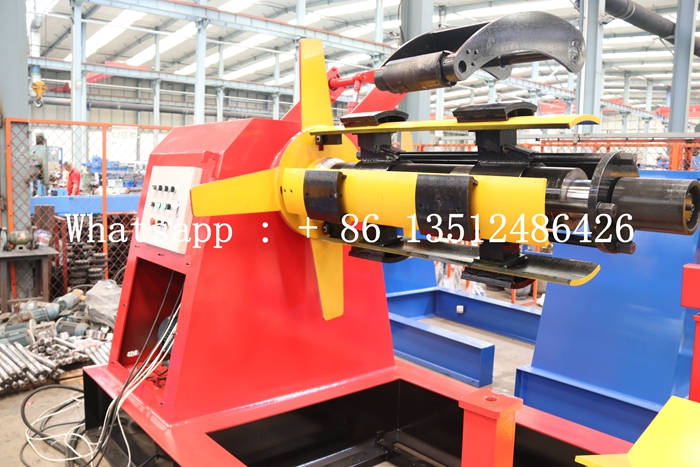

Working principle: Vertical expansion and contraction unwinding method, the roll material is placed vertically on the expansion and contraction drum. After being tensioned by the expansion and contraction drum, the motor drives the expansion and contraction drum to rotate, driving the material roll to unwind, and then the material tape is unrolled. Then it will sag naturally and stop automatically after touching the induction frame.
Specification
No. |
Number |
Decoiler Straightener |
| 1. |
Hydraulic pump station |
4kw (Electromagnetic valves) |
| 2. | Main motor | 5.5kw |
| 3. | Main frame | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |

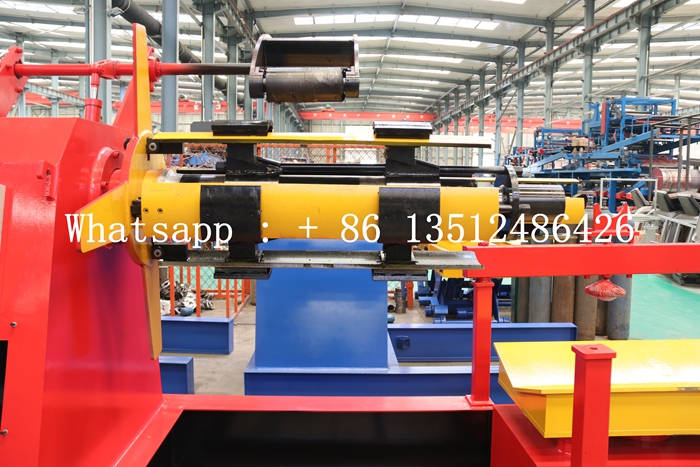

| 6. | Main shaft | 203*55 seamless pipe |
| 7. | Coil inner diameter | 470-530±20mm |
| 8. | Cylinder | 1 Diameter 125mm |
| 9. |

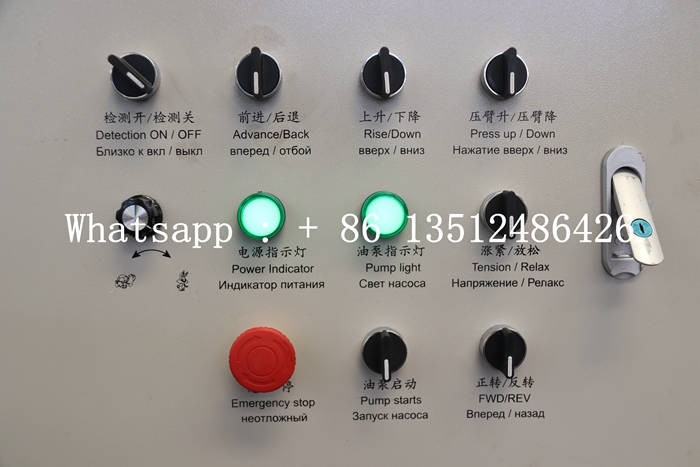

Electrical control system |
Delta Inverter(7.5kw) Domestic Electronic Control System |
| 10. | Feeding width | 0-1500mm |
| 11. | Weight capacity | 10 tons |

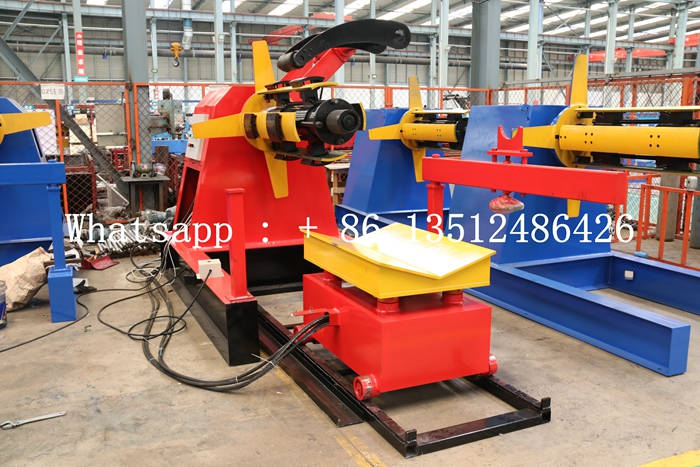

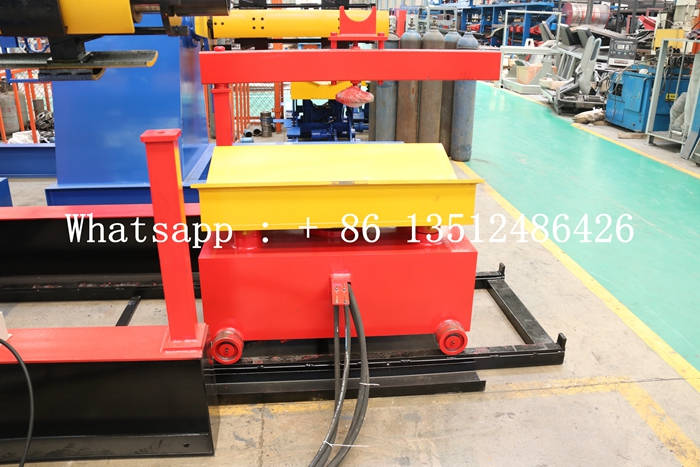

| 12. | Trolley |
Width : 1.1m Length : 0.9m |
| 13. | Trolley track |
Width : 1.15m Length : 2.5m |
| 14. | Trolley route |
High : 300mm Length : 2.5m |
| 15. | Trolley wight | 0.8 tons |
Advantages
1. Strong stability: The decoiler machine for sale is controlled by a hydraulic system, which has strong stability during operation and can avoid equipment failures caused by sudden changes in power supply voltage.
2. High degree of automation: The decoiler machine for sale can realize integrated hydraulic and electrical control, and actions such as uncoiling, lateral movement, lifting, and swinging can be completed automatically.
3. Simple operation: The decoiler machine for sale is controlled by a hydraulic system, which is stable and simple. It is easy to operate and is suitable for all kinds of workers.
Application
Decoiler machine for sale are widely used in unwinding various coil materials, such as petroleum, chemical industry, papermaking, printing, metal processing and other industries. It is characterized by a wide range of coil specifications and can handle coils of different sizes and weights. At the same time, the equipment's lifting, forward and backward movement, up and down swing and other movements are controlled by the hydraulic system to achieve precise operation and improve work efficiency.
