Decoiler Straightener
Decoiler Straightener
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time:20 working days
Shipping Time : 40 days
Port : Tianjin
Decoiler Straightener
Decoiler Straightener

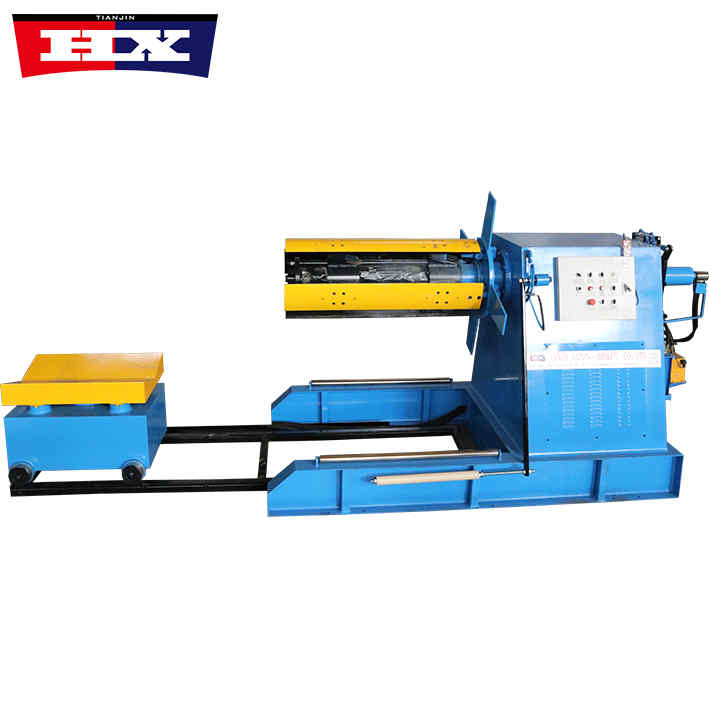

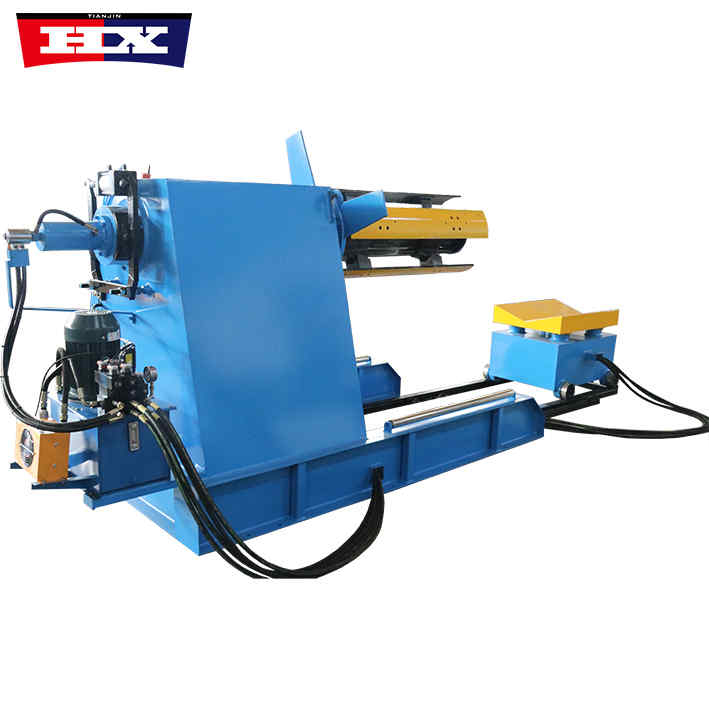

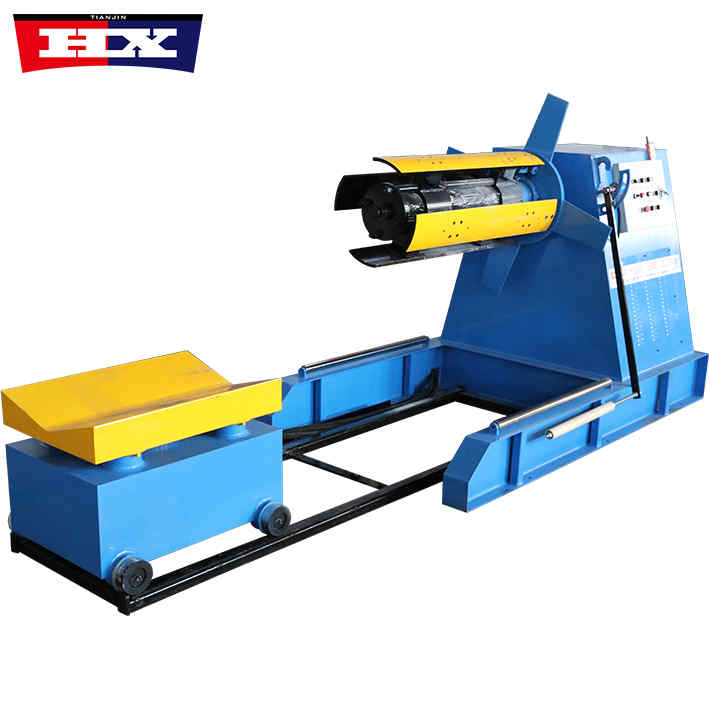

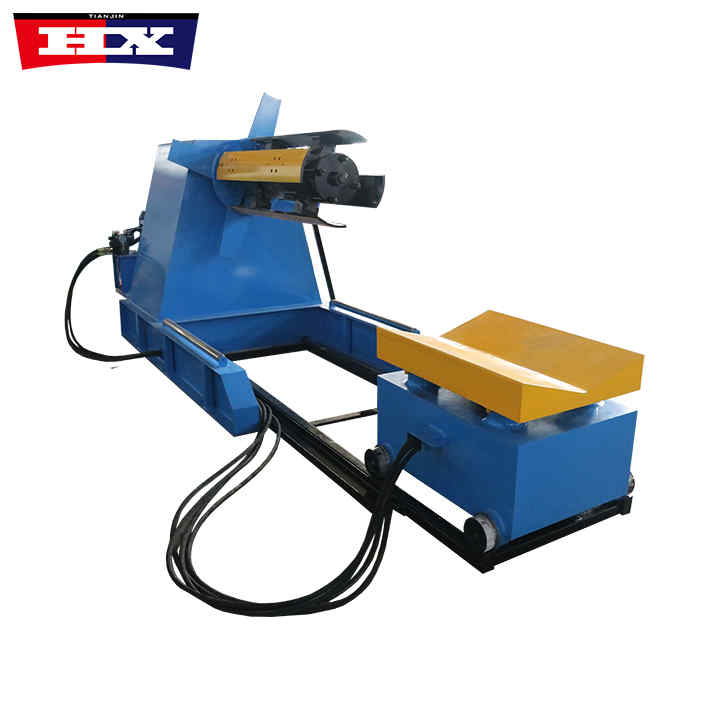

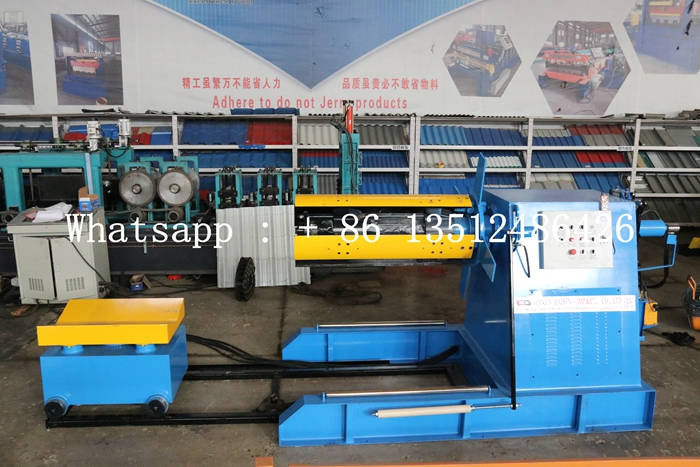

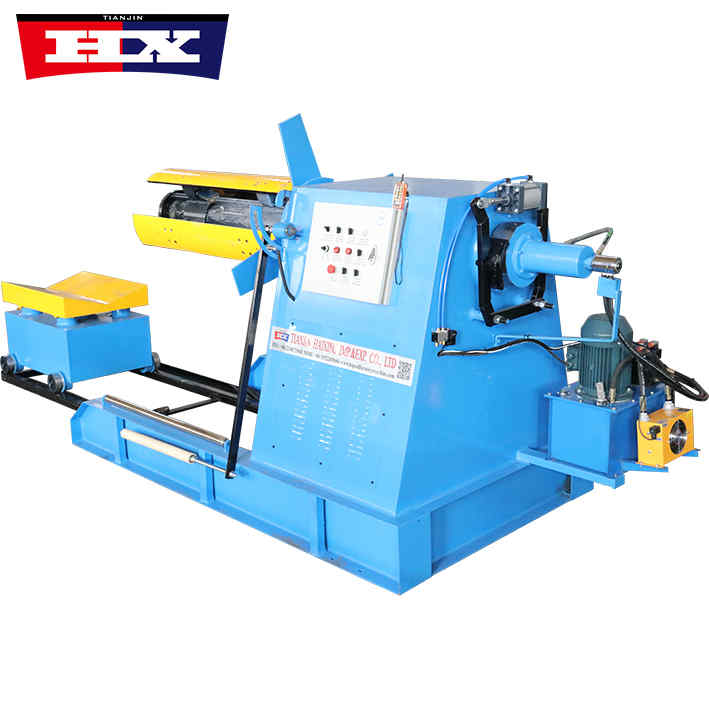

The decoiler straightener is a kind of electromechanical and hydraulic integrated equipment. Its main function is to unroll the curled steel or plate. The steel or plate with the reel is coiled and uncoiled through the hydraulic decoiler. The hydraulic decoiler has a large unloading speed adjustment range, high unloading precision, smooth and reliable action, and a certain degree of automation. Hydraulic decoiler can be widely used in metallurgy, light industry, chemical industry, shipbuilding, machinery manufacturing, transportation and other industries. It is a powerful electromechanical and hydraulic integrated equipment.
Specification
No. |
Number |
Decoiler Straightener |
| 1. |
Hydraulic pump station |
4kw (Electromagnetic valves) |
| 2. | Main motor | 5.5kw |
| 3. | Main frame | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Main shaft | 203*55 seamless pipe |
| 7. | Coil inner diameter | 470-530±20mm |
| 8. | Cylinder | 1 Diameter 125mm |
| 9. |
Electrical control system |
Delta Inverter(7.5kw) Domestic Electronic Control System |
| 10. | Feeding width | 0-1500mm |
| 11. | Weight capacity | 5 tons |
| 12. | Trolley |
Width : 1.1m Length : 0.9m |
| 13. | Trolley track |
Width : 1.15m Length : 2.5m |
| 14. | Trolley route |
High : 300mm Length : 2.5m |
| 15. | Trolley wight | 0.8 tons |
Principle
1.Hydraulic system

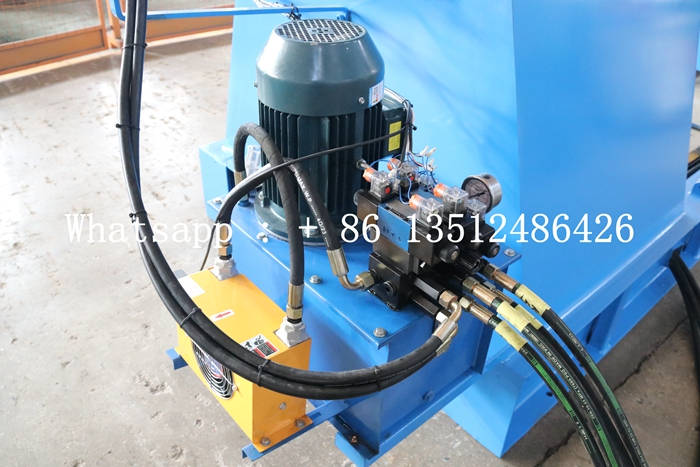

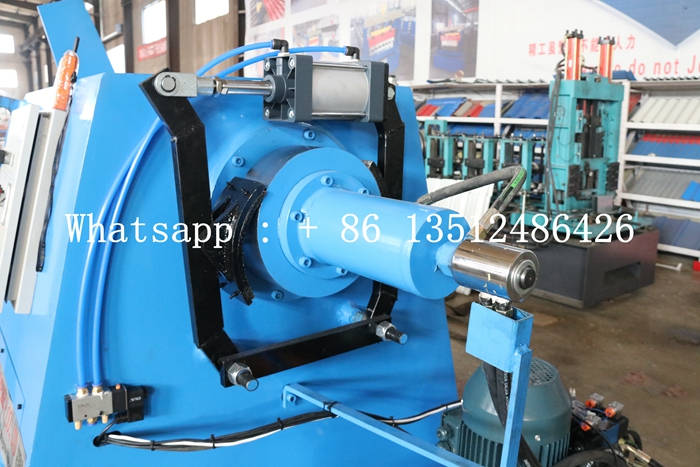

The hydraulic system is the power source of the hydraulic decoiler and consists of an oil tank, an oil pump, a solenoid valve, an oil cylinder, etc. Its working principle is to pressurize a certain amount of oil and transfer it to the oil cylinder or hydraulic motor to drive the mechanical components. The hydraulic system has the advantages of large transmission force, fast transmission speed, and long transmission distance.
2. Electrical system

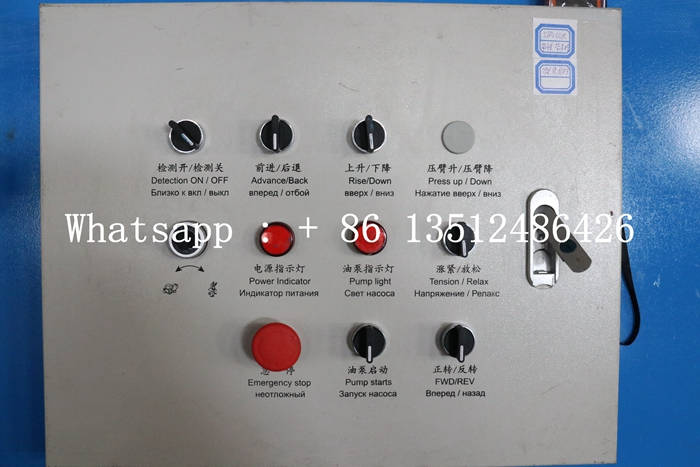

The electrical system is the control center of the hydraulic decoiler and consists of a controller, solenoid valve, motor, encoder, etc. Its working principle is that after receiving the signal, the controller controls the flow direction and pressure of the oil through the solenoid valve to control the unloading speed, tension and length. The electrical system has the advantages of high flexibility and high control accuracy.
3.Mechanical structure

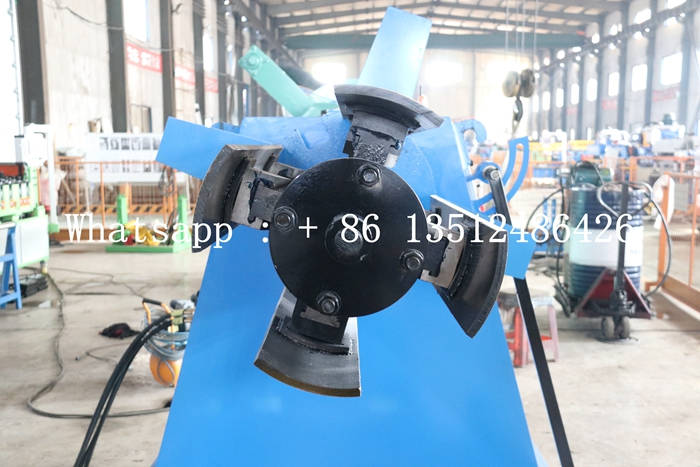

The mechanical structure is the transmission system of the hydraulic decoiler, which is composed of main shaft, reducer, rotor, reel, etc. Its working principle is to realize operations such as coiling and uncoiling of steel or plates through mechanical transmission. The mechanical structure has the advantages of simple structure and stable operation.
