Sheet Metal Decoiler For Sale
Sheet Metal Decoiler For Sale
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time:20 working days
Shipping Time : 40 days
Port : Tianjin

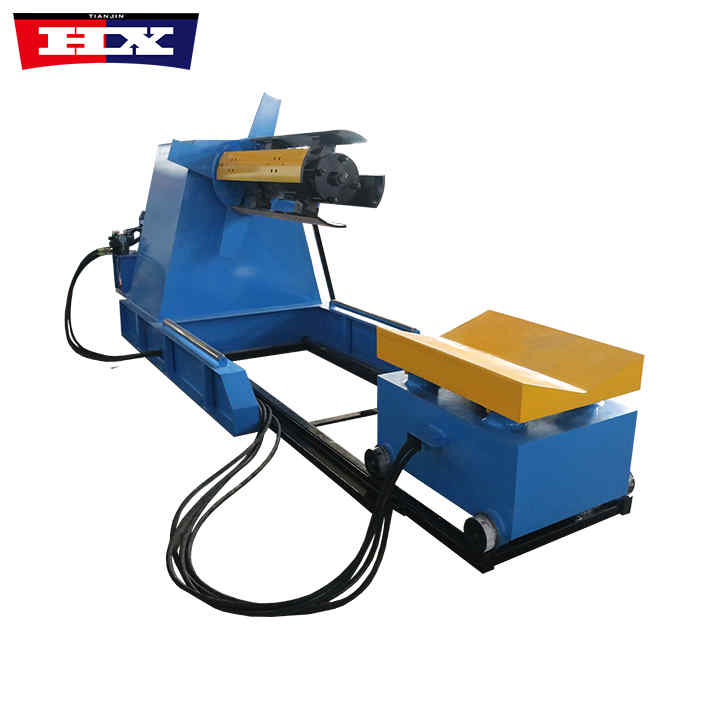

Sheet Metal Decoiler For Sale
Sheet Metal Decoiler For Sale

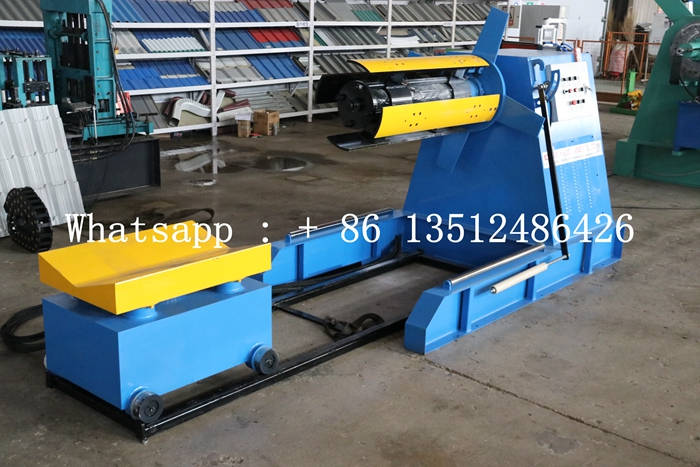

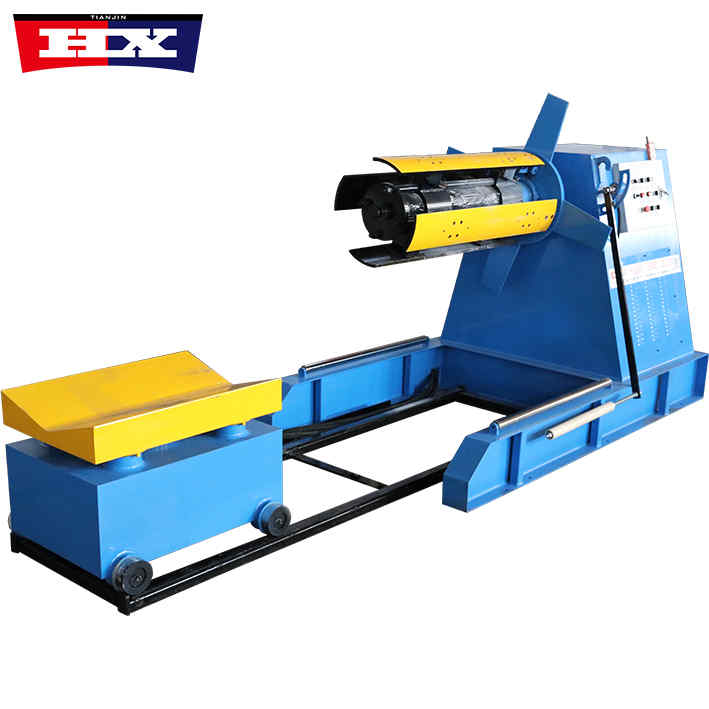

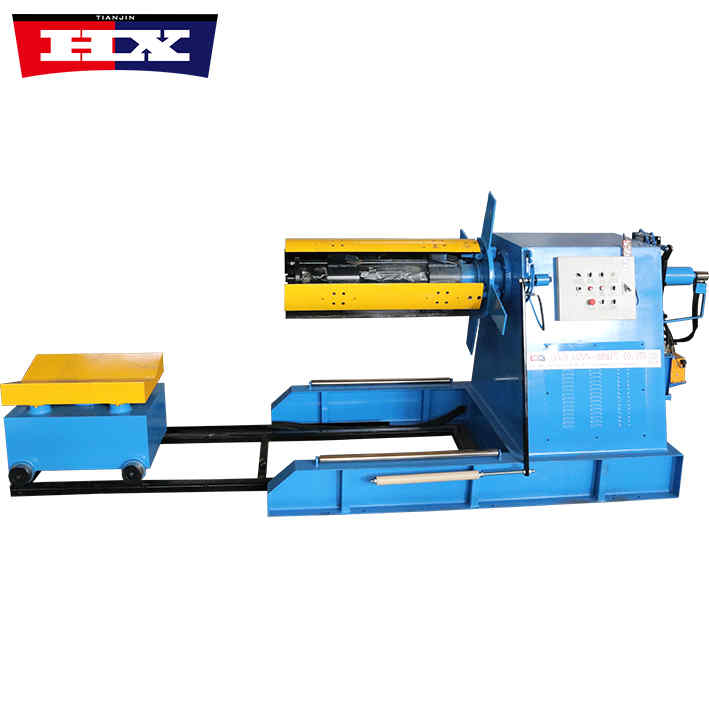

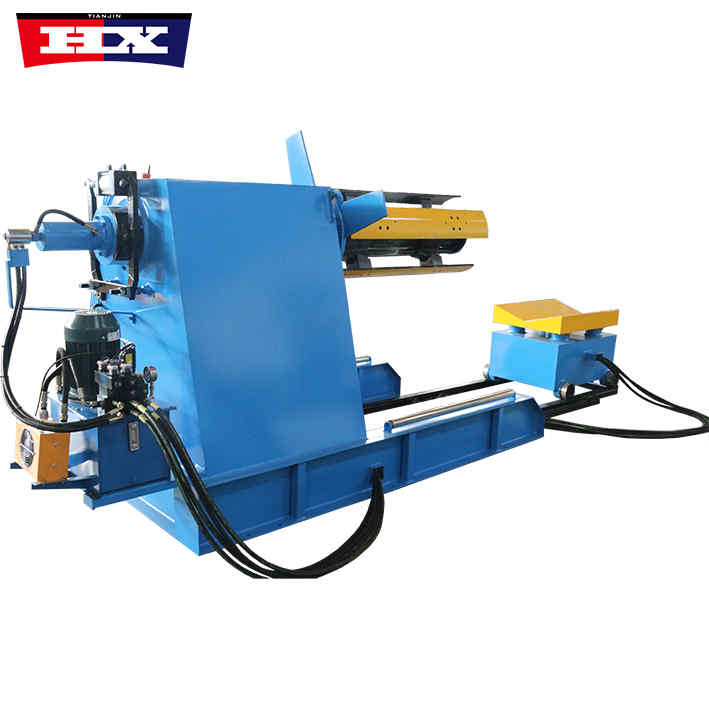

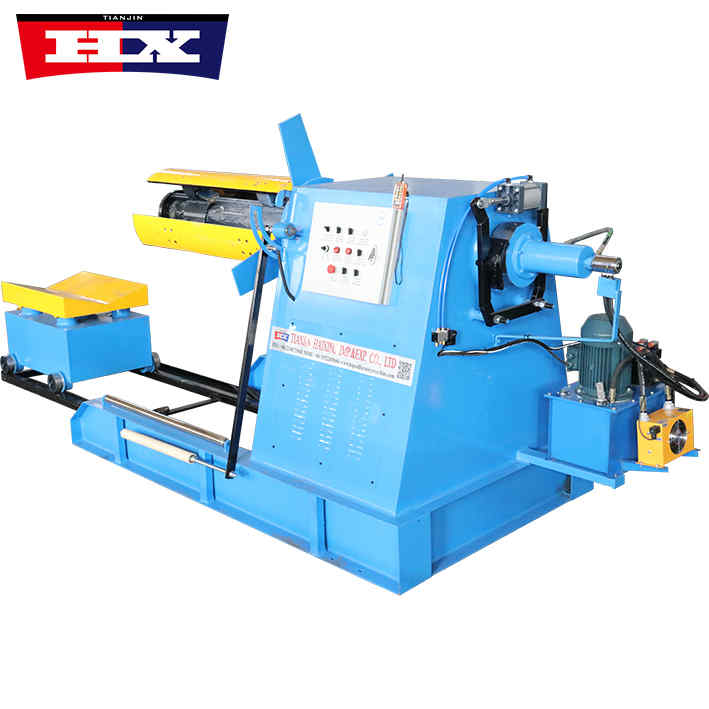

Sheet metal decoiler for sale is a mechanical equipment used for unwinding coil materials. It is mainly used for uncoiling metal, plastic, rubber and other coil materials to facilitate subsequent processing. The hydraulic decoiler is driven by a hydraulic system and has the advantages of fast speed, high strength and high efficiency, and is widely used in various industrial fields.
Specification
No. |
Number |
Sheet Metal Decoiler For Sale |
| 1. |

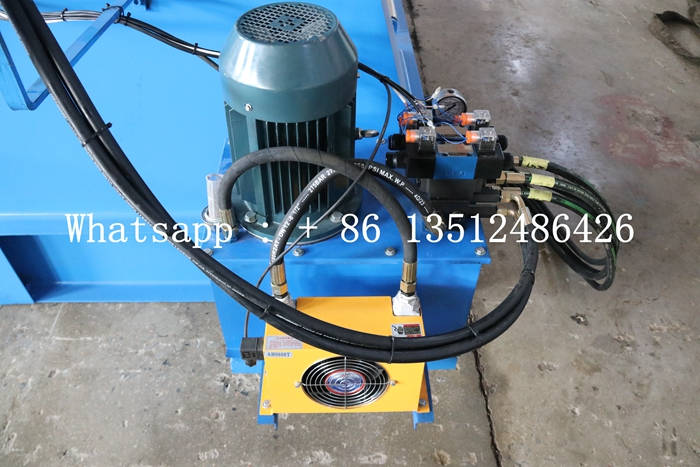

Hydraulic pump station |
4kw (Electromagnetic valves) |
| 2. | Main motor | 5.5kw |
| 3. | Main frame | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |

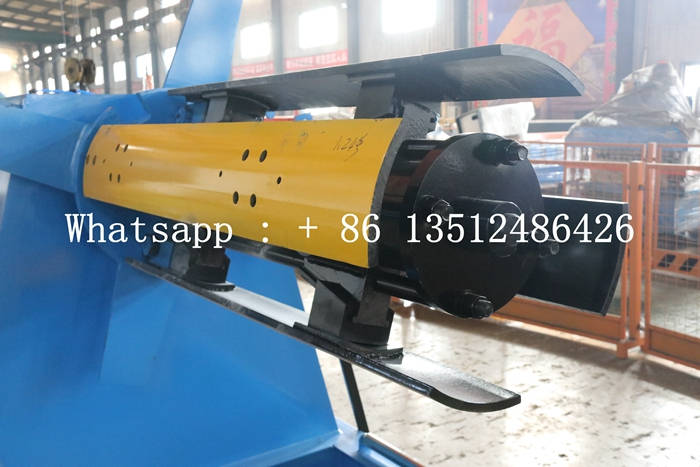

| 6. | Main shaft | 203*55 seamless pipe |
| 7. | Coil inner diameter | 470-530±20mm |
| 8. | Cylinder | 1 Diameter 125mm |
| 9. |
Electrical control system |
Delta Inverter(7.5kw) Domestic Electronic Control System |
| 10. | Feeding width | 0-1500mm |
| 11. | Weight capacity | 5 tons |

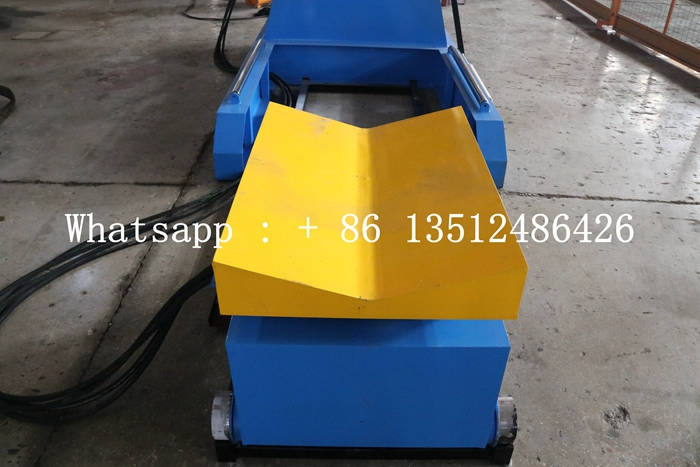

| 12. | Trolley |
Width : 1.1m Length : 0.9m |
| 13. | Trolley track |
Width : 1.15m Length : 2.5m |
| 14. | Trolley route |
High : 300mm Length : 2.5m |
| 15. | Trolley wight | 0.8 tons |
Features
1. Strong stability: The sheet metal decoiler for sale is controlled by a hydraulic system, which has strong stability during operation and can avoid equipment failures caused by sudden changes in power supply voltage.
2. High degree of automation: The sheet metal decoiler for sale can realize integrated hydraulic and electrical control, and actions such as uncoiling, lateral movement, lifting, and swinging can be completed automatically.
3. Simple operation: The sheet metal decoiler for sale is controlled by a hydraulic system, which is stable and simple. It is easy to operate and is suitable for all kinds of workers.
