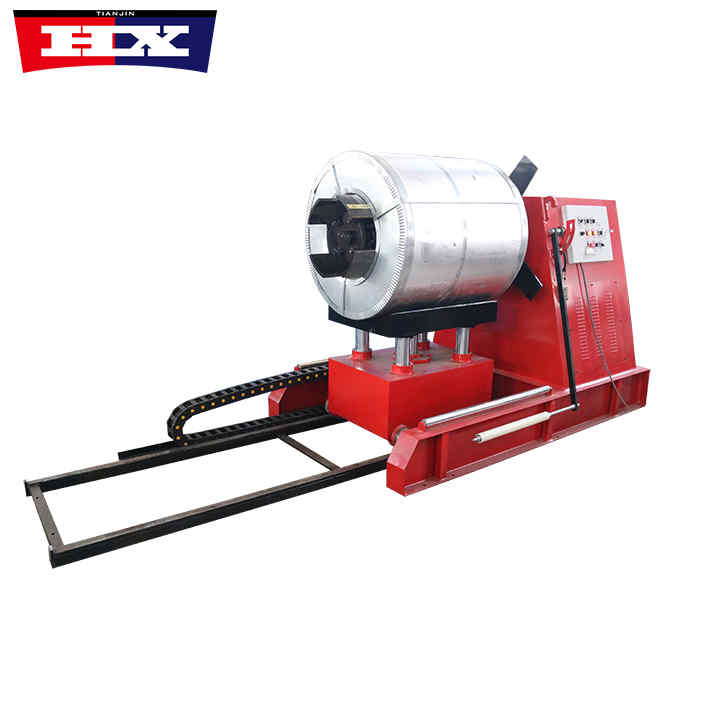

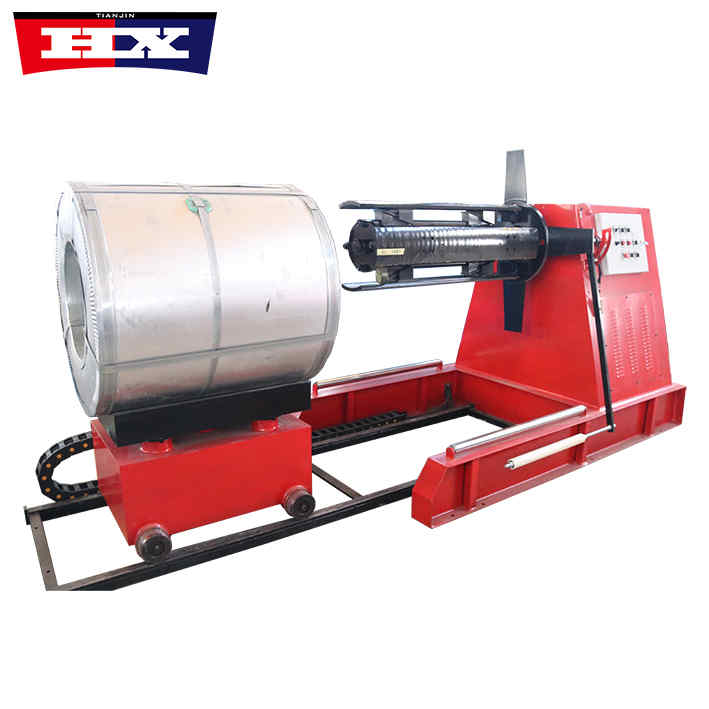

Uncoiler Machine
Uncoiler Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time:20 working days
Shipping Time : 40 days
Port : Tianjin
Uncoiler Machine
Uncoiler Machine
Working principle

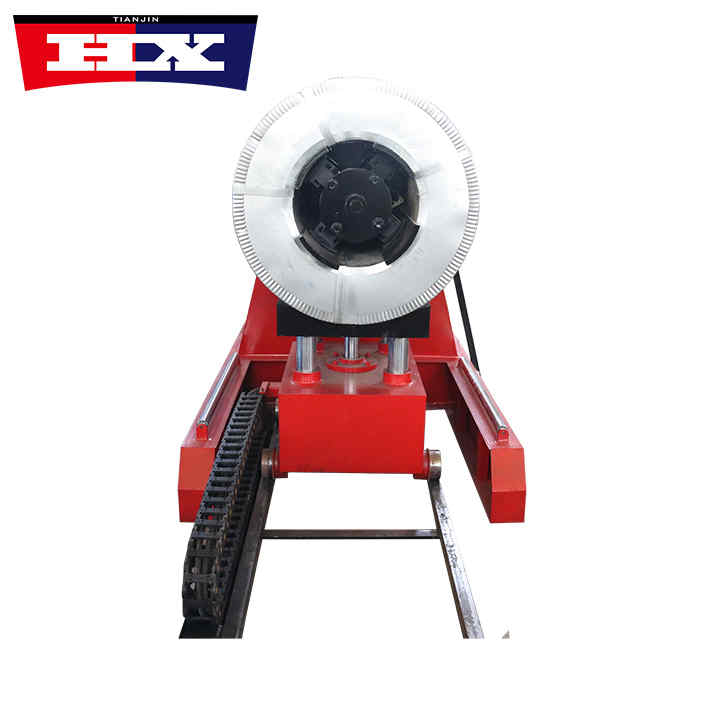

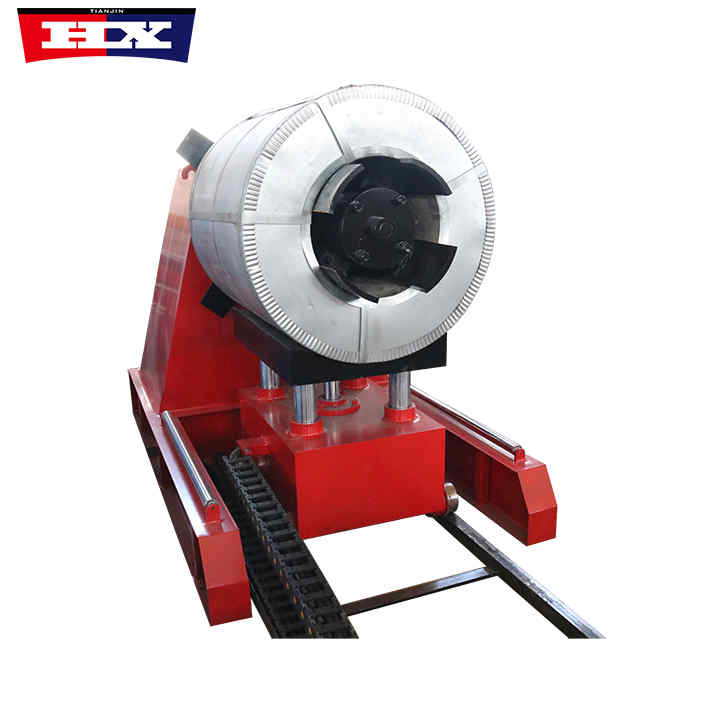

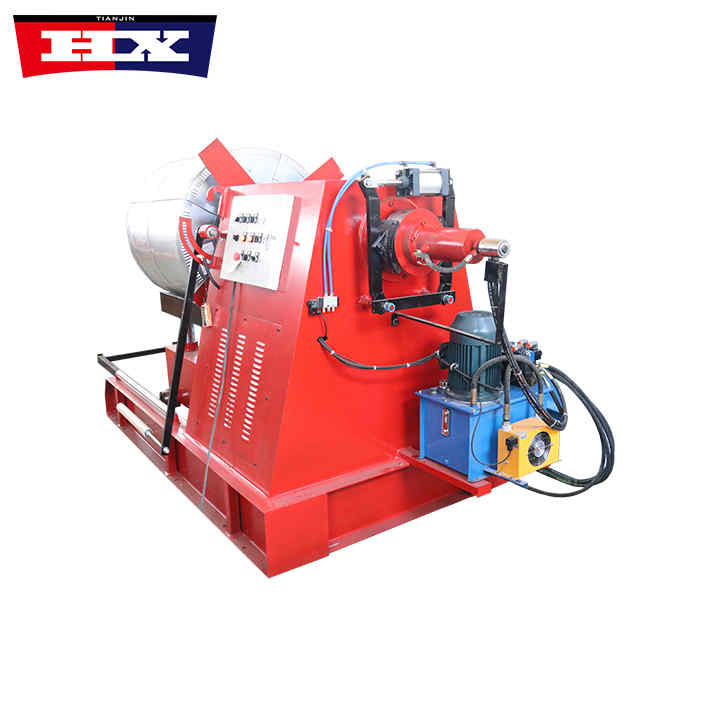

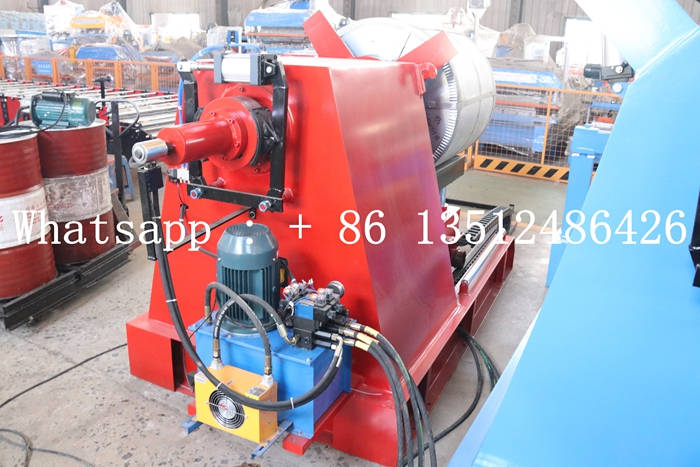

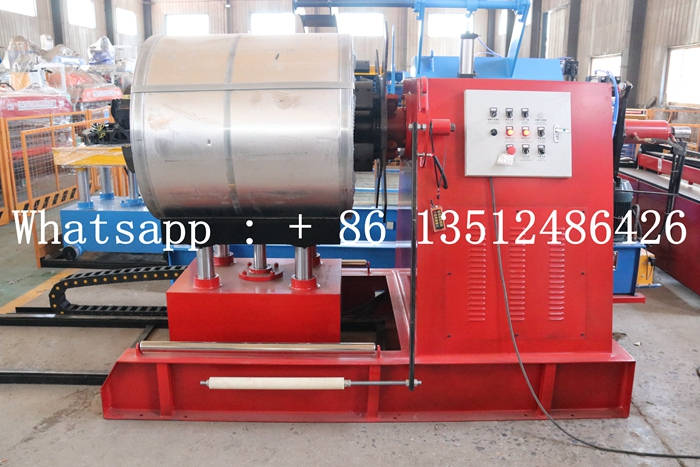

Hydraulic uncoiler is a device that is powered and controlled by a hydraulic system. It consists of a host machine, a hydraulic system, an electrical control system and other parts. The host part includes hydraulic cylinders, reel bearings, transmission systems, etc. The hydraulic system consists of a fuel tank, a pump station, oil pipes, oil pipe joints, etc., and controls the lifting, forward and backward movement, up and down swing, etc. of the uncoiler. The electrical control system is responsible for the interlocking, protection, and operation of each part of the machine.
Specification
No. |
Number |
Hydraulic Decoiler |
| 1. |

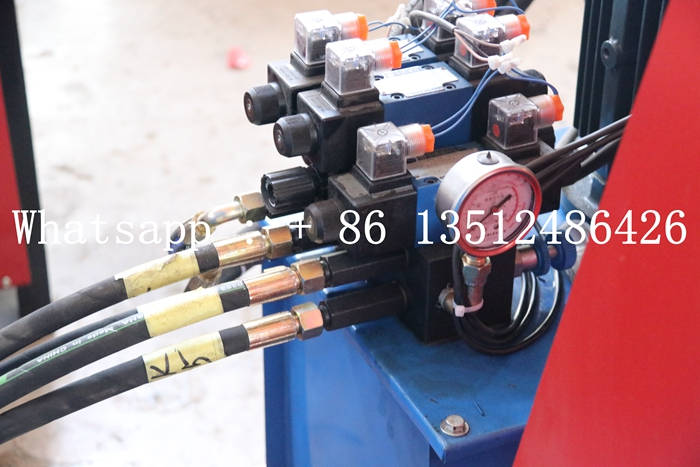

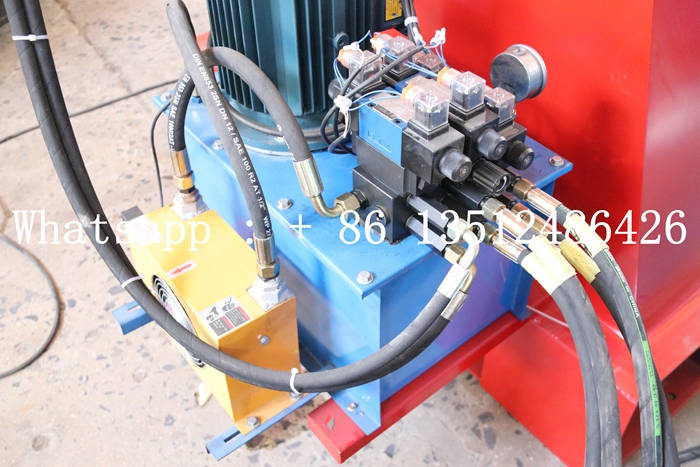

Hydraulic pump station |
4kw (Electromagnetic valves) |
| 2. | Main motor | 5.5kw |
| 3. | Main frame | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Main shaft | 203*55 seamless pipe |
| 7. | Coil inner diameter | 470-530±20mm |
| 8. | Cylinder | 1 Diameter 125mm |
| 9. |

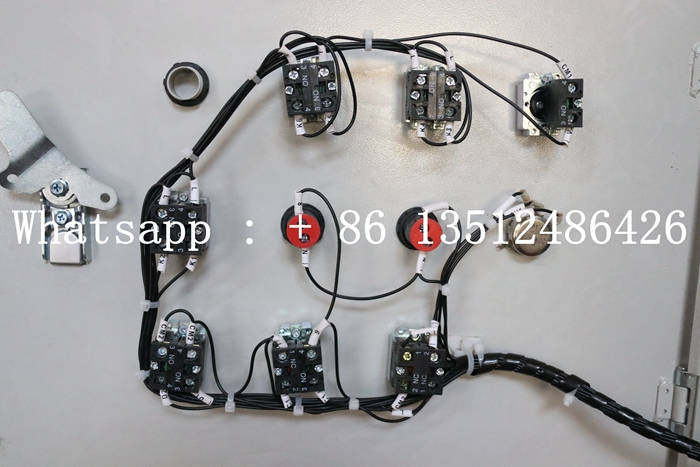

Electrical control system |
Delta Inverter(7.5kw) Domestic Electronic Control System |
| 10. | Feeding width | 0-1500mm |
| 11. | Weight capacity | 10 tons |
| 12. | Trolley |
Width : 1.1m Length : 0.9m |
| 13. | Trolley track |
Width : 1.15m Length : 2.5m |
| 14. | Trolley route |
High : 300mm Length : 2.5m |
| 15. | Trolley wight | 0.8 tons |
Advantages
1. Strong stability: The hydraulic uncoiler machine is controlled by a hydraulic system, which has strong stability during operation and can avoid equipment failures caused by sudden changes in power supply voltage.
2. High degree of automation: The hydraulic uncoiler machine can realize integrated hydraulic and electrical control, and actions such as uncoiling, lateral movement, lifting, and swinging can be completed automatically.
3. Simple operation: The hydraulic uncoiler machine is controlled by a hydraulic system, which is stable and simple. It is easy to operate and is suitable for all kinds of workers.
Application
Hydraulic decoilers are widely used in unwinding various coil materials, such as petroleum, chemical industry, papermaking, printing, metal processing and other industries. It is characterized by a wide range of coil specifications and can handle coils of different sizes and weights. At the same time, the equipment's lifting, forward and backward movement, up and down swing and other movements are controlled by the hydraulic system to achieve precise operation and improve work efficiency.
