Decoiler
Decoiler
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time:20 working days
Shipping Time : 40 days
Port : Tianjin

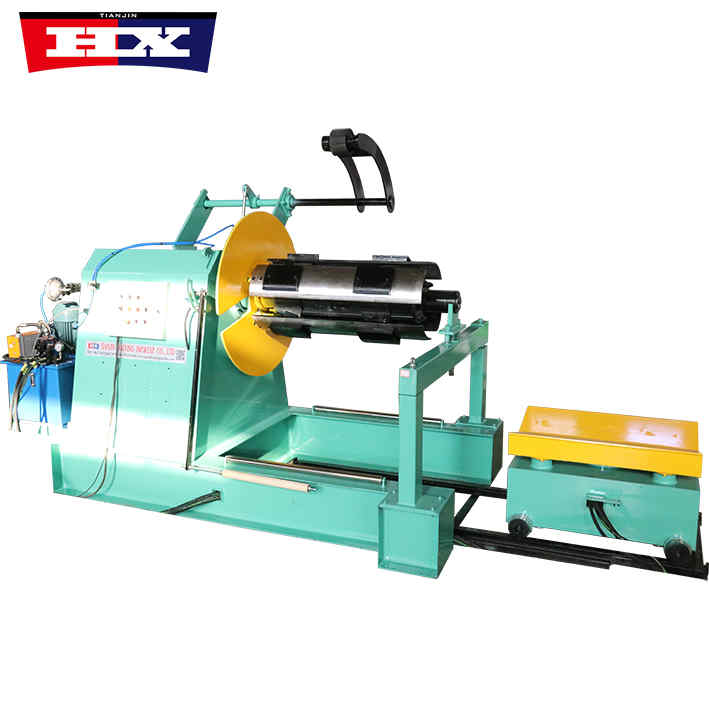

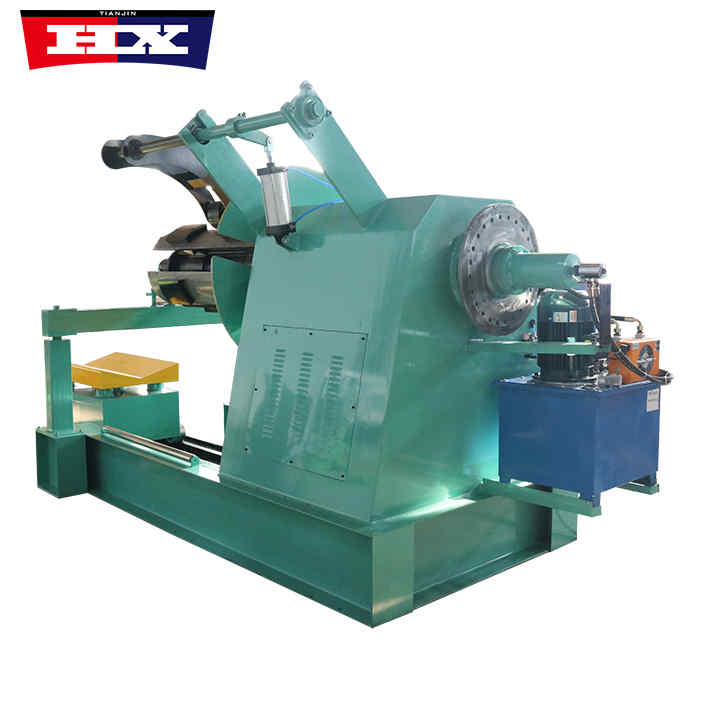

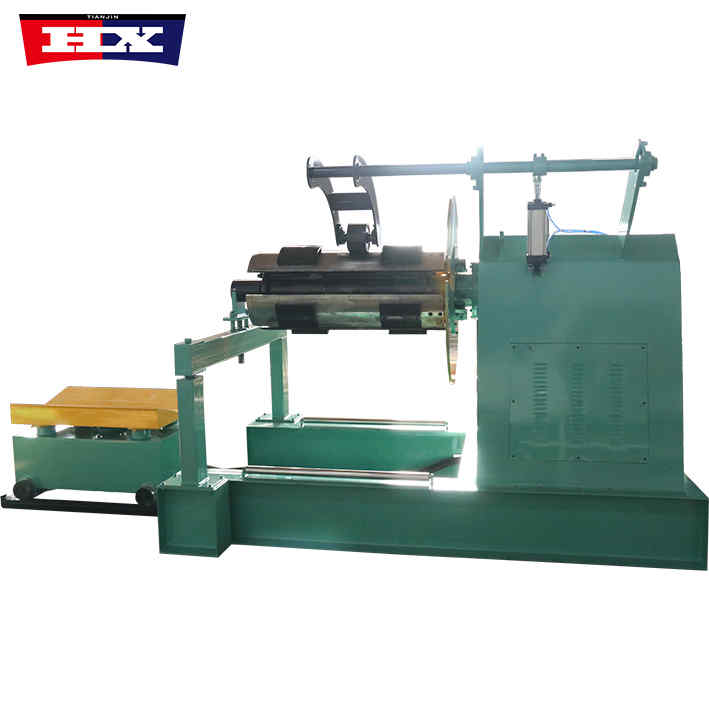

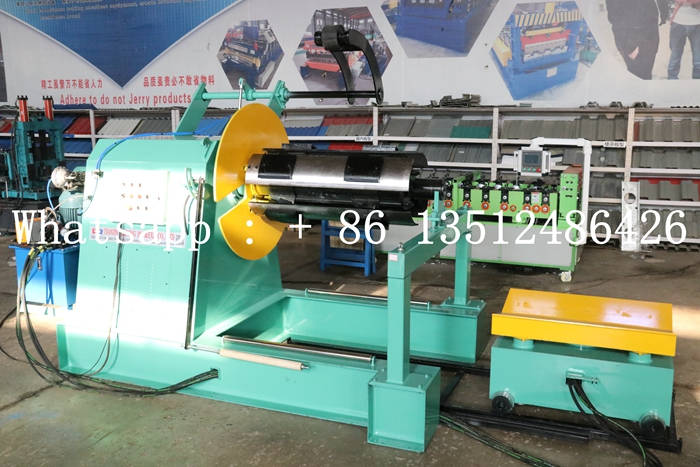

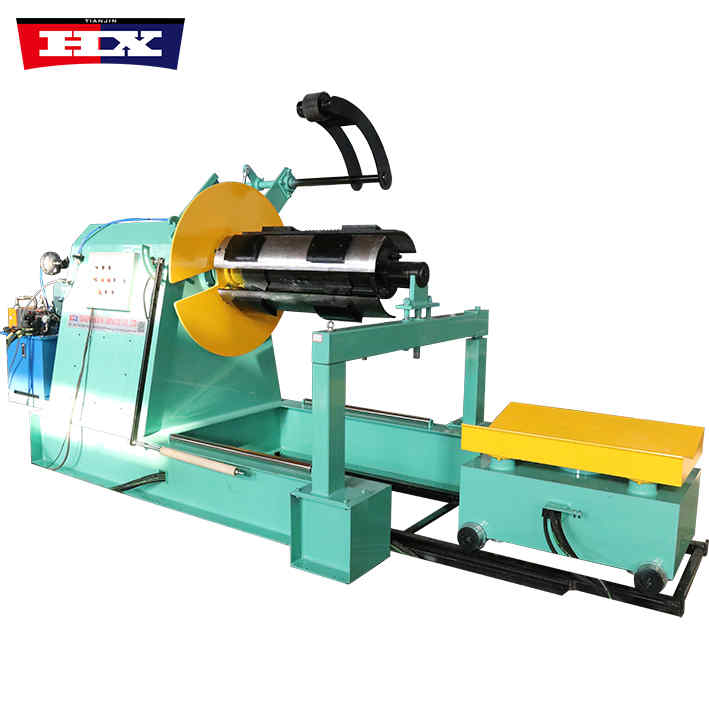

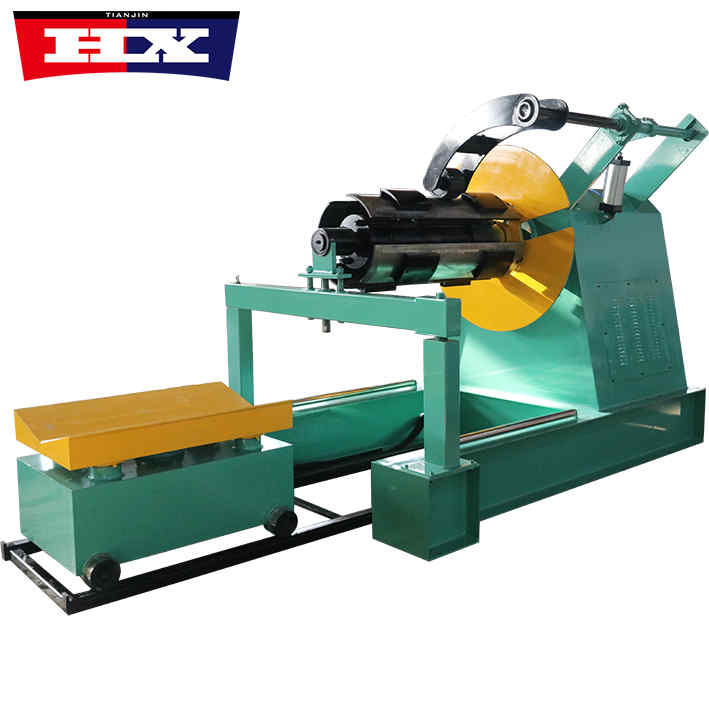

Decoiler
Decoiler for sale
The decoiler is a mechanical equipment that is usually used to decoil various coils such as steel coils, aluminum coils, copper coils, etc. It is a very important equipment in the processing of various metals, plastics, paper, cloth and other materials. It is widely used. Used in different industries.
The working principle of the decoiler is that first the coil is supported on the equipment through the coil support device, then the decoil head peels off the coil, the flattening device flattens the coil, the clamping device clamps the material, and the feeding device Sent to subsequent processing equipment. The control system controls the operation of the entire equipment and adjusts parameters such as unwinding speed and feeding speed as needed.
Specification
No. |
Number |
Hydraulic Decoiler |
| 1. |

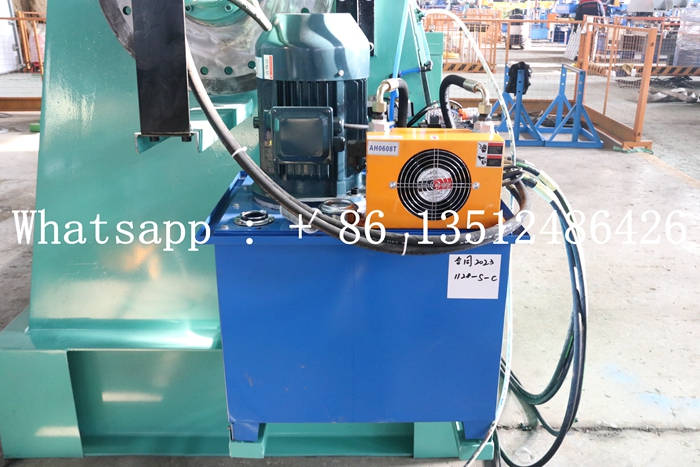

Hydraulic pump station |
4kw (Electromagnetic valves) |
| 2. | Main motor | 5.5kw |
| 3. | Main frame | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |

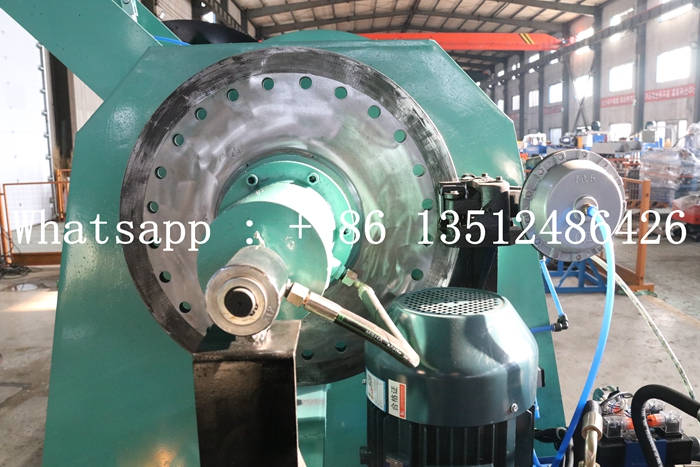

| 6. | Main shaft | 203*55 seamless pipe |
| 7. | Coil inner diameter | 470-530±20mm |
| 8. | Cylinder | 1 Diameter 125mm |
| 9. |

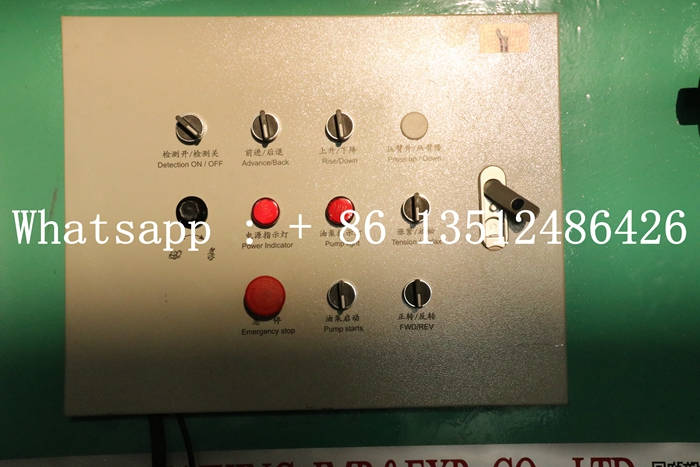

Electrical control system |
Delta Inverter(7.5kw) Domestic Electronic Control System |
| 10. | Feeding width | 0-1500mm |
| 11. | Weight capacity | 5 tons |

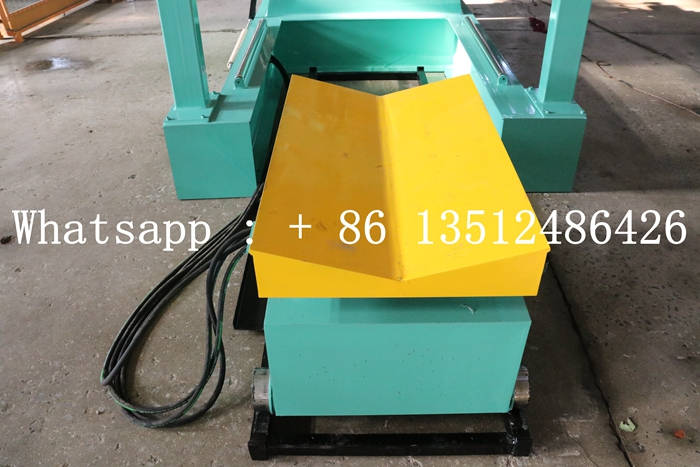

| 12. | Trolley |
Width : 1.1m Length : 0.9m |
| 13. | Trolley track |
Width : 1.15m Length : 2.5m |
| 14. | Trolley route |
High : 300mm Length : 2.5m |
| 15. | Trolley wight | 0.8 tons |
Advantages
1. Save labor and time costs
In the traditional uncoiling method, manual labor is required to peel off the coiled material layer by layer to complete the uncoiling process. This method is time-consuming, laborious, and uneconomical. The rolls can be easily layered using an uncoiler, which greatly reduces the manpower required and the time cost.
2. Improve production efficiency and quality
The use of the decoiler can quickly and accurately layer the coils, greatly improving production efficiency. In addition, the use of decoilers can also effectively reduce error rates and improve product quality. Using an uncoiler can layer the coils more evenly, reducing errors and waste in production.
3. More secure and reliable
The use of decoilers can make operations safer and more reliable, allowing operators to reduce risks during operations, thus improving production safety.
4. Wide range of application
Uncoilers can be used in many different industries, such as metal products, chemical products, construction materials, and many other industries. Regardless of the type of material, it can be uncoiled by using an uncoiler.
