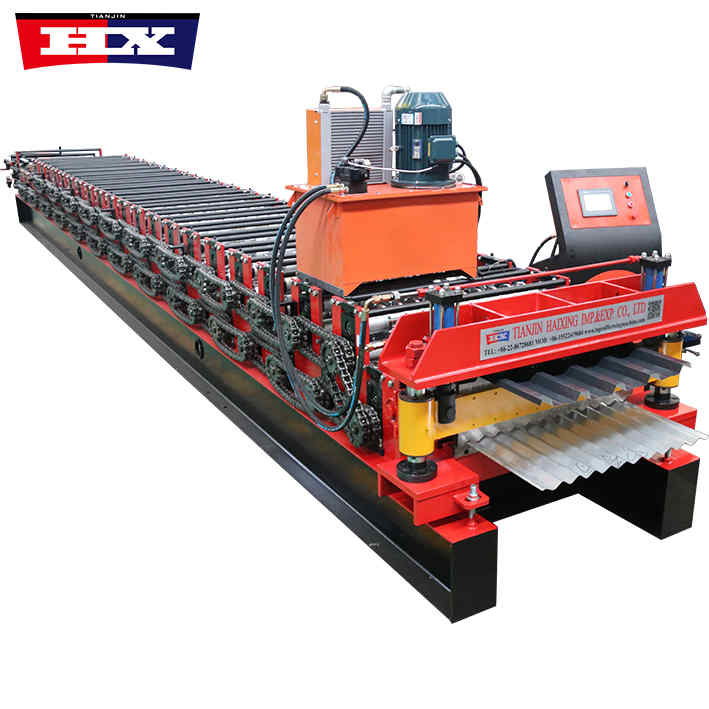

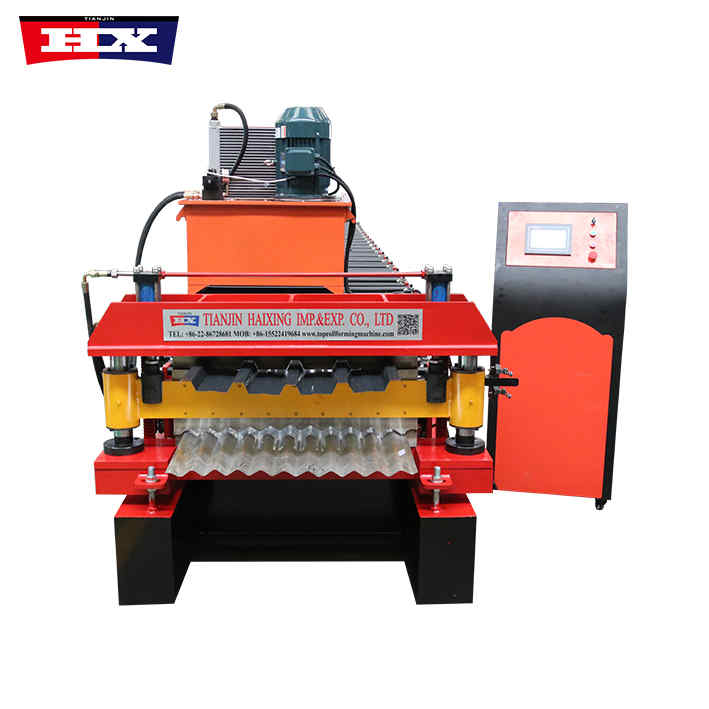

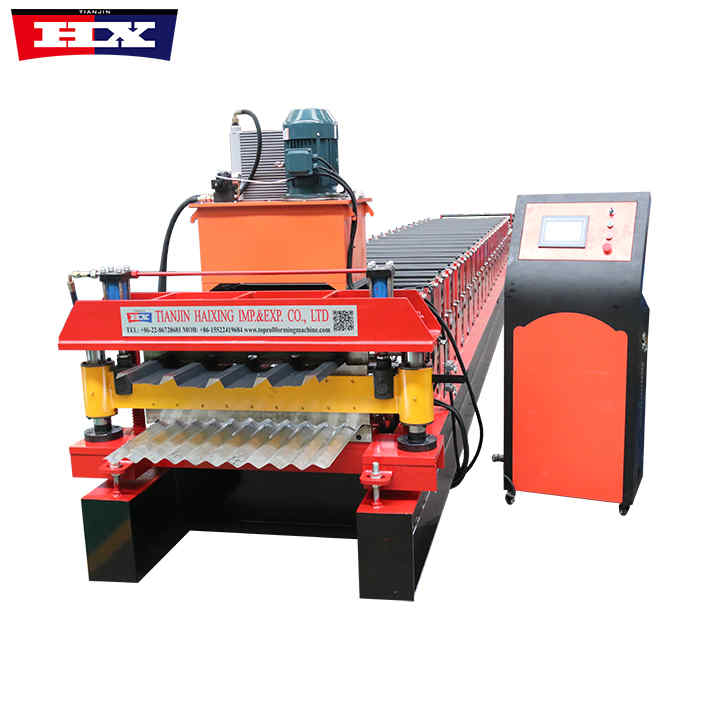

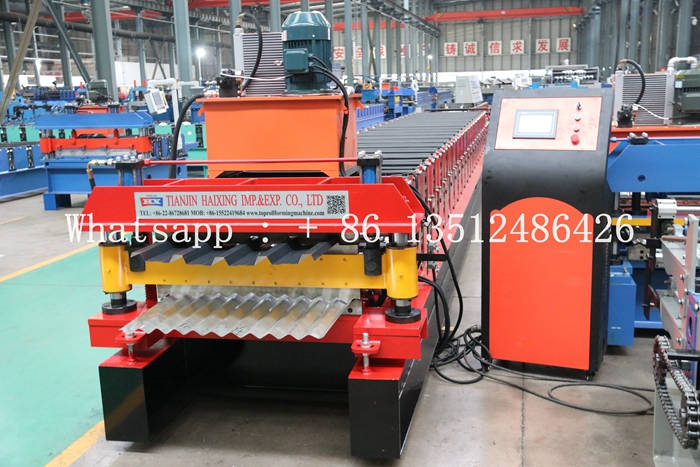

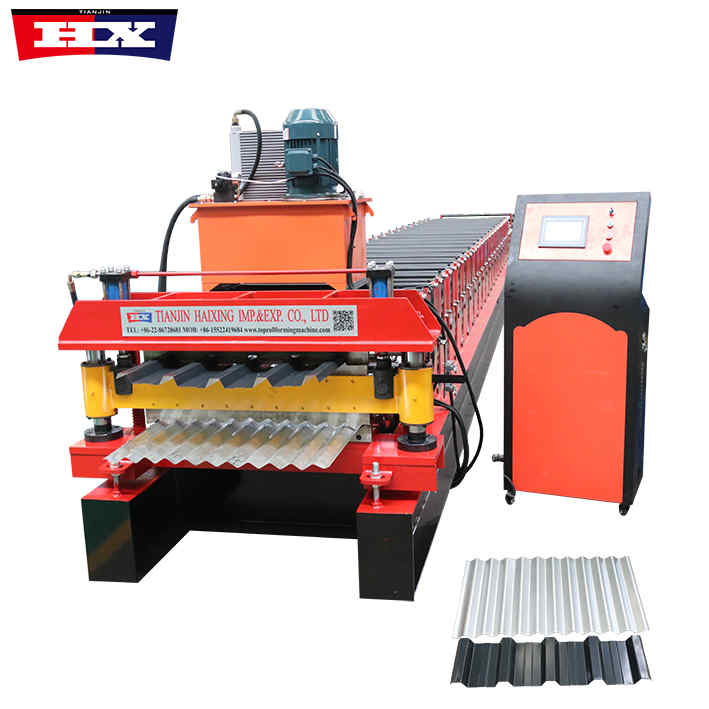

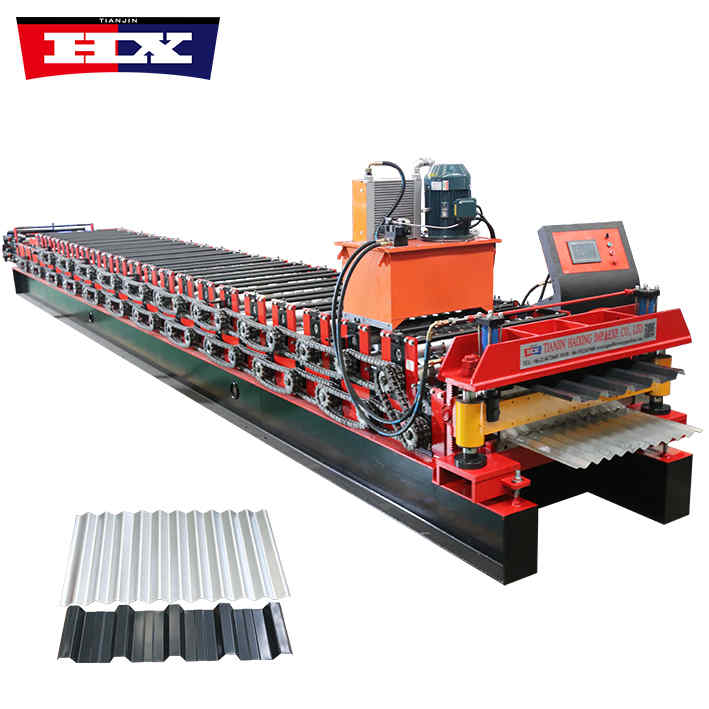

Double Layer Roofing Sheet Machine
Double Layer Roofing Sheet Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Double Layer Roofing Sheet Machine
Double Layer Roofing Sheet Machine
Specification
No. |
Number |
Double Layer Roofing Sheet Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |

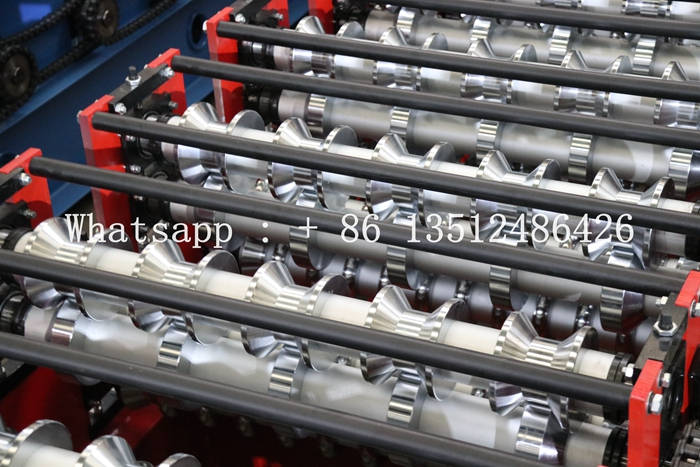

| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows |
18 13 |
| 19. | Size | 9000mm*1500mm*1600mm |
| 20. | Weight | 6000kg |
Machine Advantages

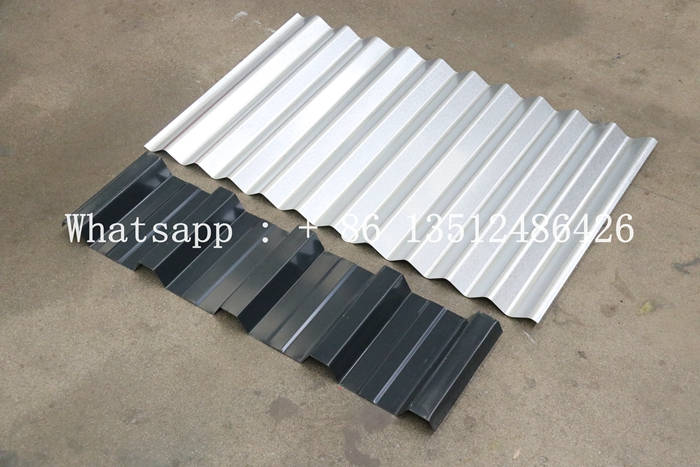

1. The double layer roofing sheet machine can produce double-layer or single-layer color steel tiles, roof panels and other products, and is suitable for larger construction projects.
2. Suitable for batch, rapid production, high efficiency, short delivery time; flexible and diversified production to fill market vacancies
3. Reduce costs, the double layer roofing sheet machine can also reduce production costs. Because the double-layer tile press uses advanced hydraulic technology and high-strength materials, its maintenance costs are very low. In addition, because the production efficiency of the double-layer tile press is very high, it can reduce production costs and labor costs. These reduced costs can make companies more competitive in the market and can also improve their economic benefits.
4. Improve safety, the double layer roofing sheet machine also has the advantage of improving safety. During the production process, the double-layer tile press can avoid safety accidents caused by operating errors or equipment failures. In addition, since the design and manufacturing of the double-layer tile press are very strict, it can also improve the safety of the equipment itself. These improved safety can ensure the safety and stability of the production process, while also protecting the safety and health of operators.
