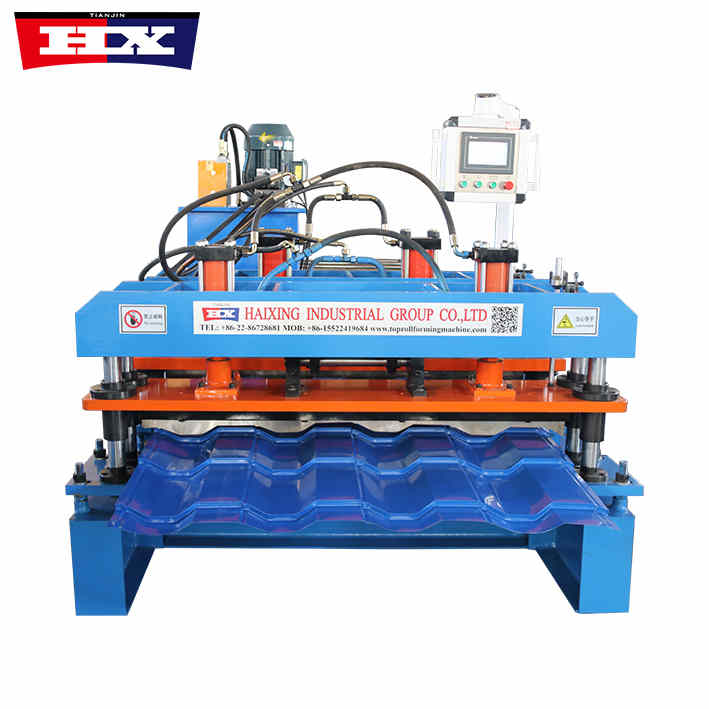

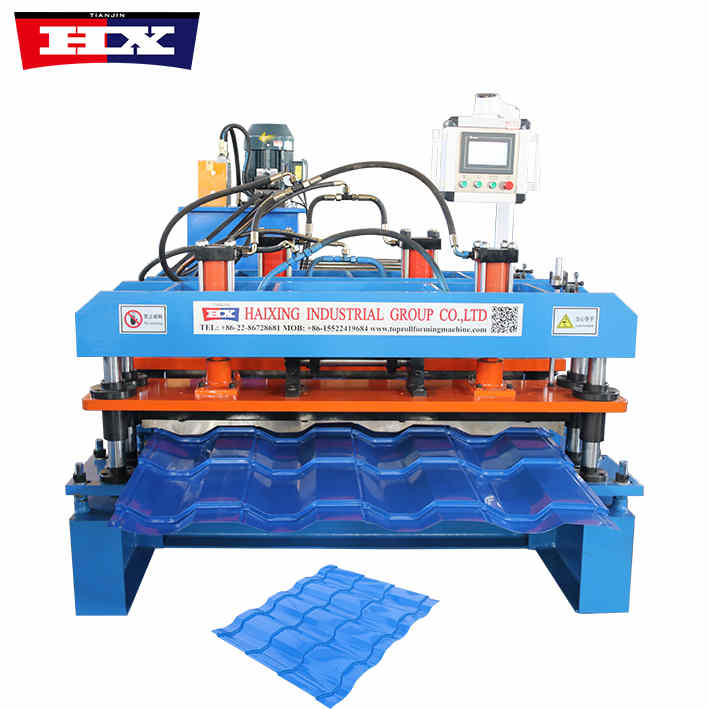

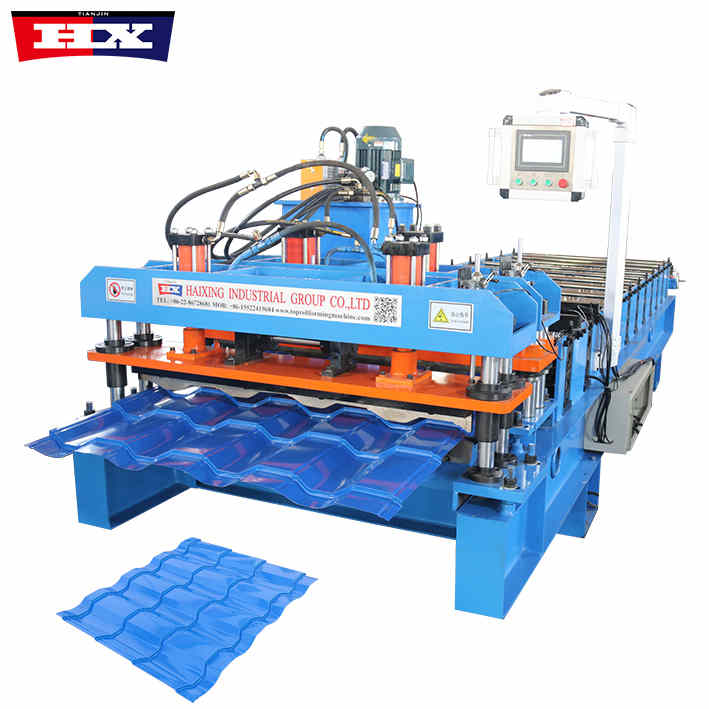

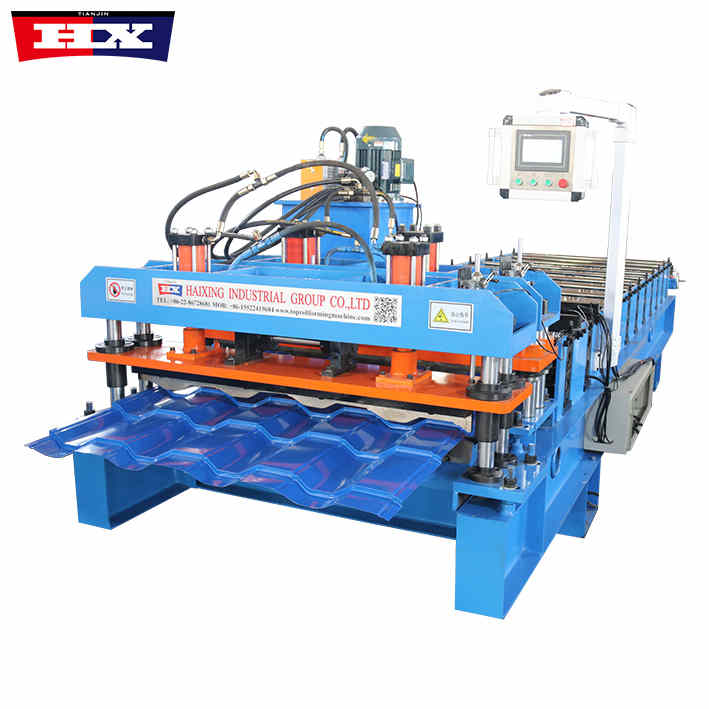

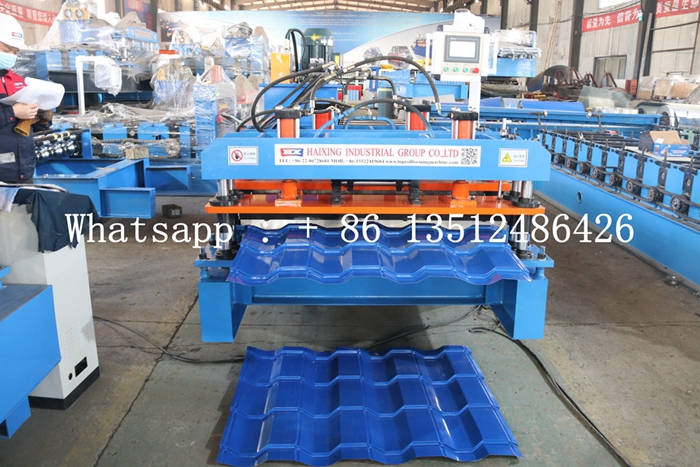

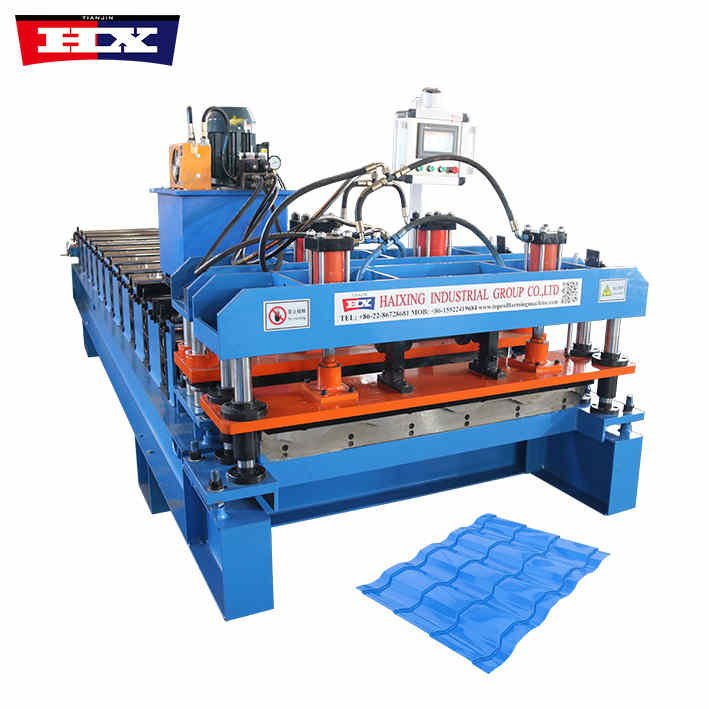

Roof Glazed Tile Machine
Roof Glazed Tile Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Roof Glazed Tile Machine
Roof Glazed Tile Machine

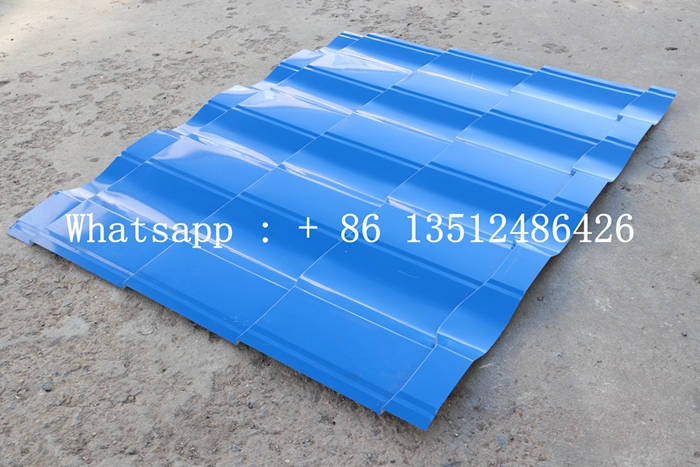

1. Pressed tiles and roof panels: The roof glazed tile machine can produce different types and shapes of tiles and roof panels. Different materials can be processed in a tile press, resulting in tiles and roof panels with different structures and uses.
2. Manufacturing wall panels and ceilings: The roof glazed tile machine can process wall panels and ceilings of various shapes and sizes. These products can be used in the construction of various types of buildings such as residential, commercial and industrial buildings.
3. Manufacturing pipes and channel steel: The roof glazed tile machine can process pipes and channel steel and other components of different sizes and shapes. These components can be used in various systems within the building, such as ventilation, drainage and heating systems.
Roof Glazed Tile Machine
Specification
No. |
Number |
Roof Glazed Tile Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |

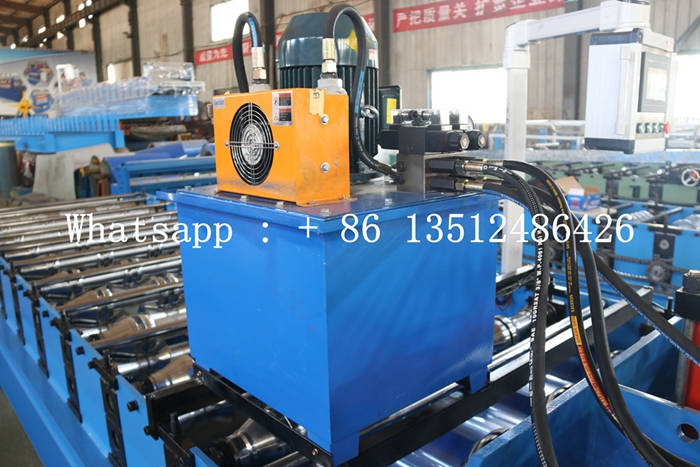

| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |

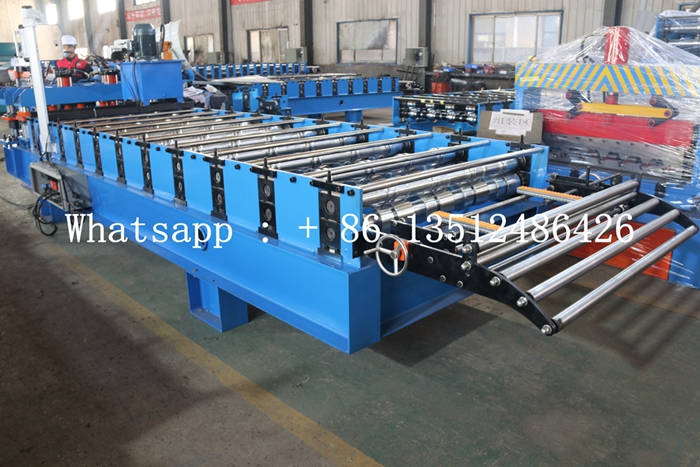

| 18. | Rows | 11 |
| 19. | Size | 6000mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Application
1. Residential construction: The tile press can be used to produce various types and shapes of roofs and wall panels, providing a beautiful and solid architectural appearance for residential buildings.
2. Commercial buildings: Commercial buildings are highly comprehensive and require a large number of pipes, channel steel and other components. The tile press can process pipes and channel steel of various specifications to meet the construction needs of shopping malls, supermarkets and other buildings.
3. Industrial buildings: Industrial buildings require various types of components. For example, a manufacturing workshop requires a large number of roofs and wall panels, while machinery and equipment require a large number of components such as pipes and channel steel.
