Glazed Sheet Metal Roofing Machine
Glazed Sheet Metal Roofing Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Glazed Sheet Metal Roofing Machine
Glazed Sheet Metal Roofing Machine

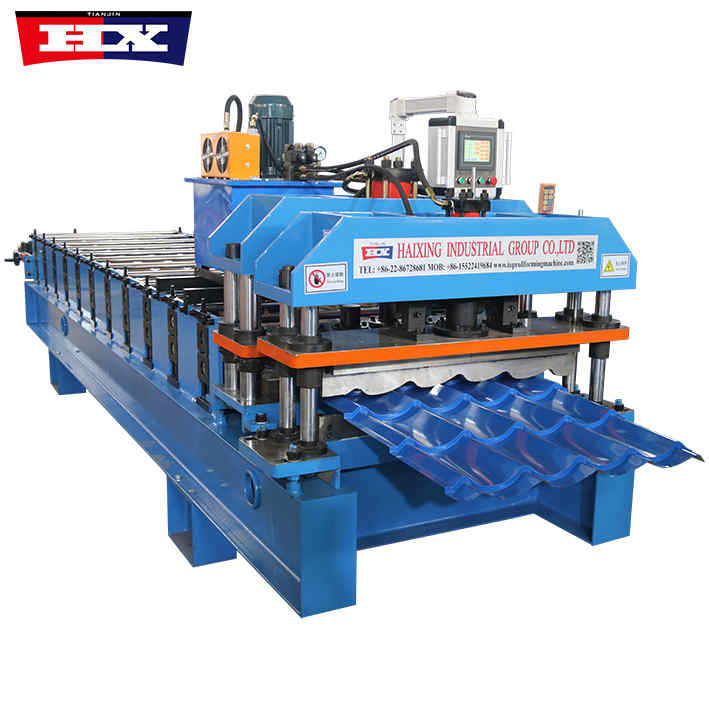

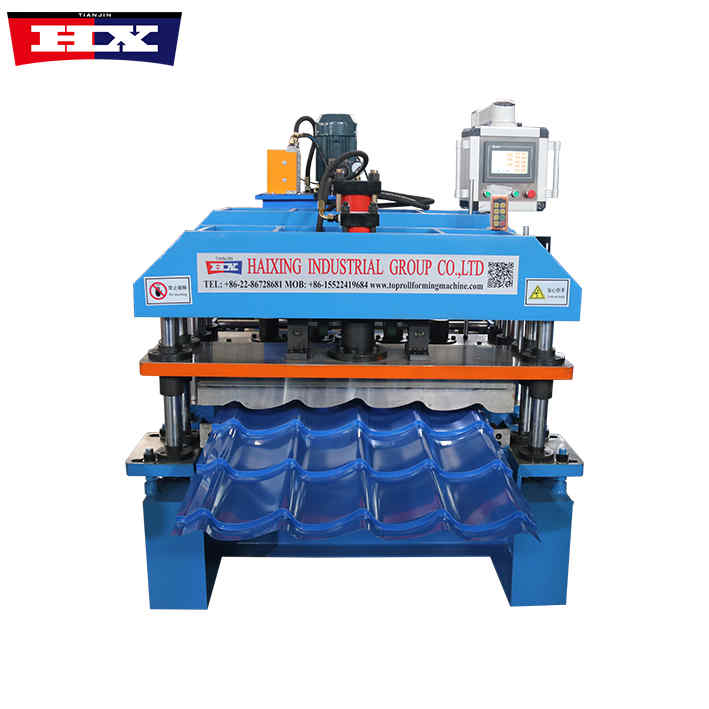

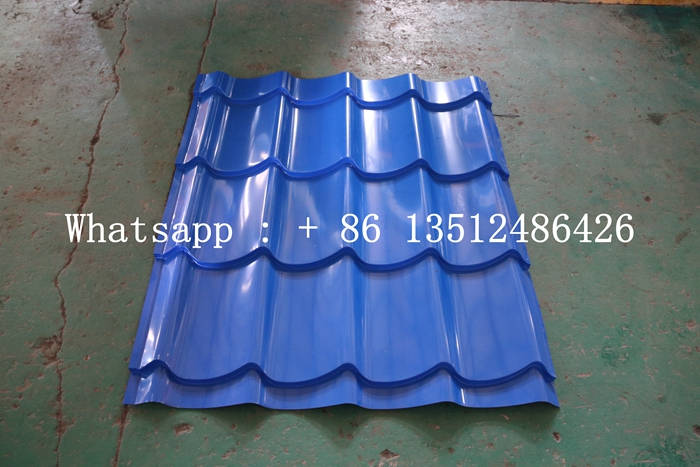

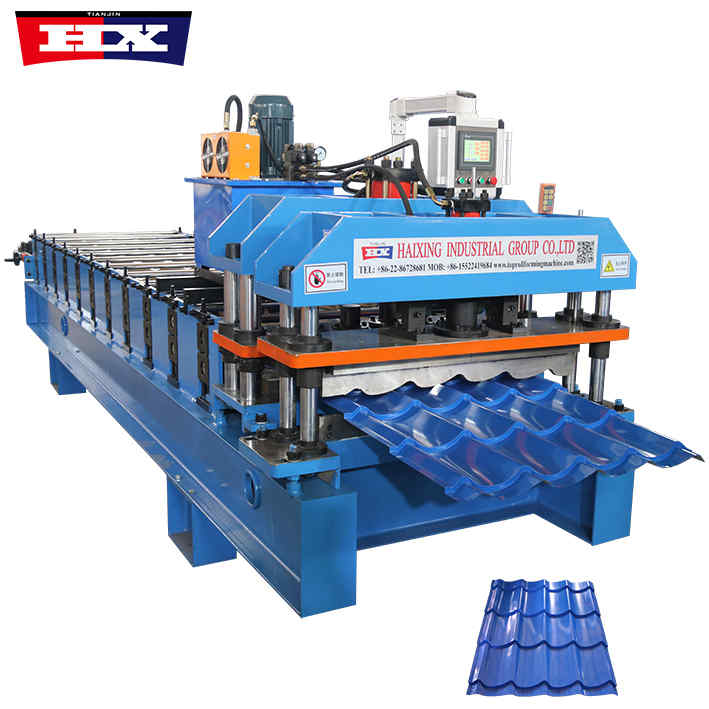

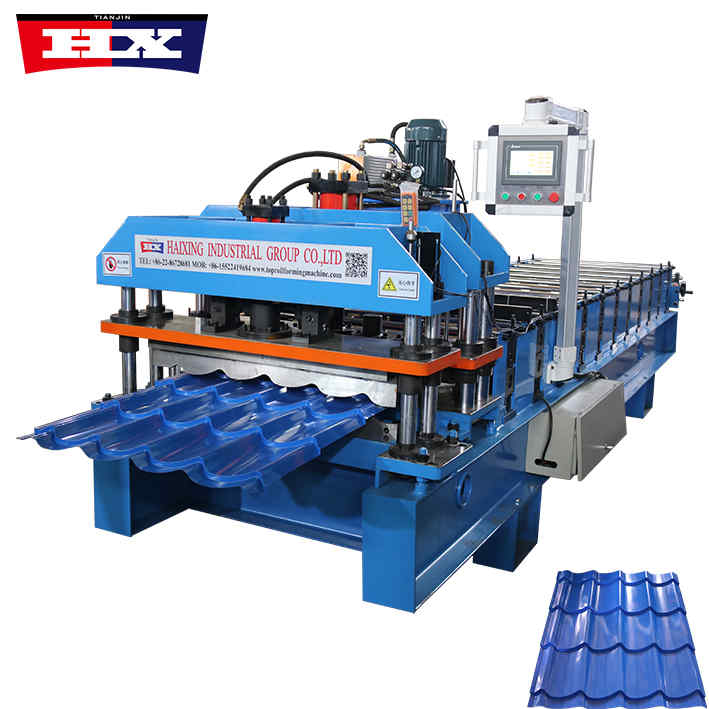

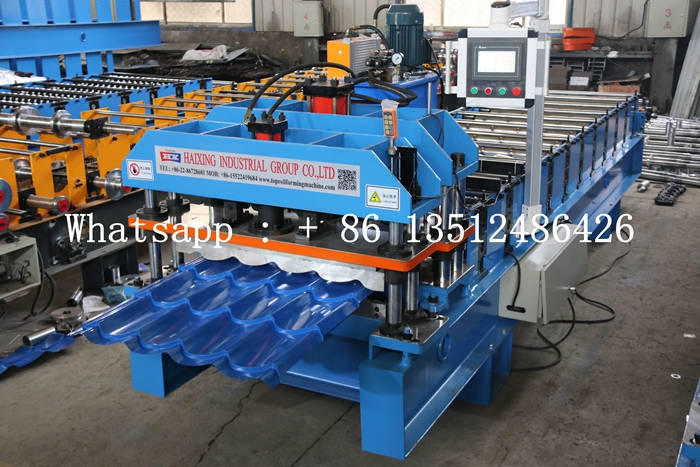

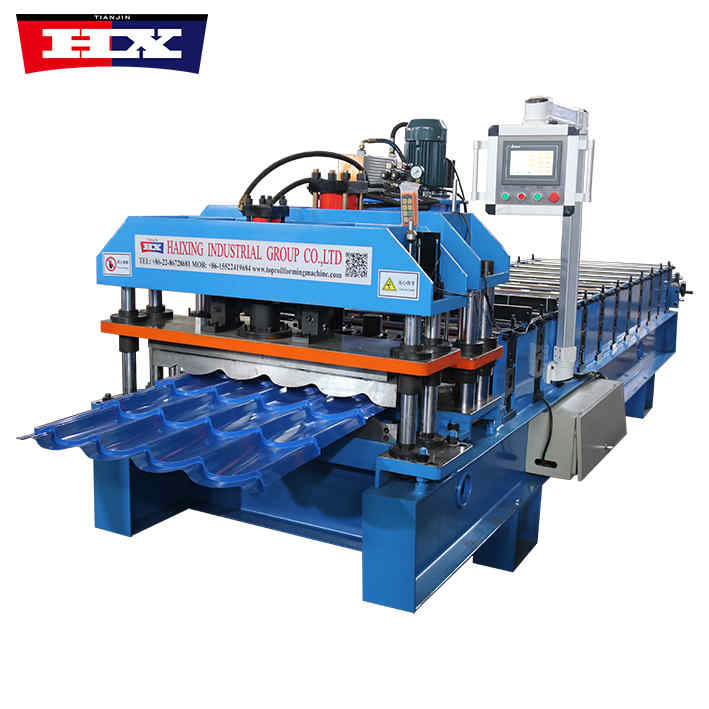

The glazed sheet metal roofing machine is a machine that consists of unloading, forming, and post-forming and cutting. The tile shape is wavy. It has the advantages of light weight, uniform paint pattern, high strength, smooth appearance, and durability. It is different from ordinary roof panels. , wall panels have excellent anti-leakage properties.
Glazed Sheet Metal Roofing Machine
Specification
No. |
Number |
Glazed Sheet Metal Roofing Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |

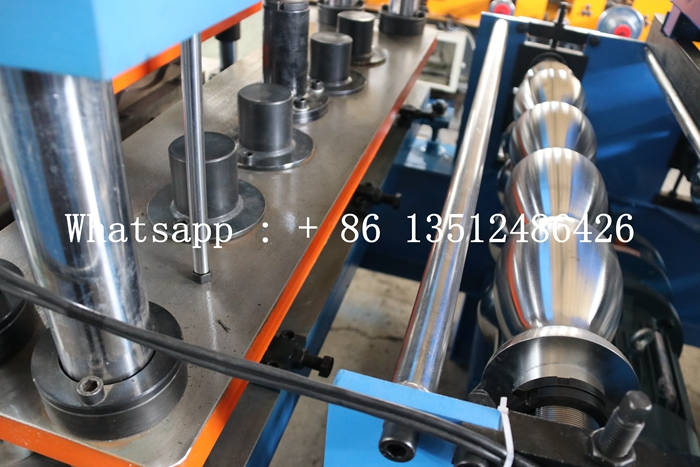

| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |

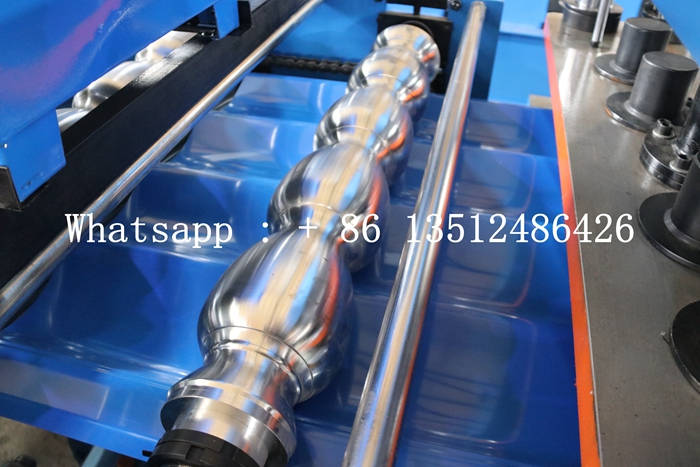

| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |

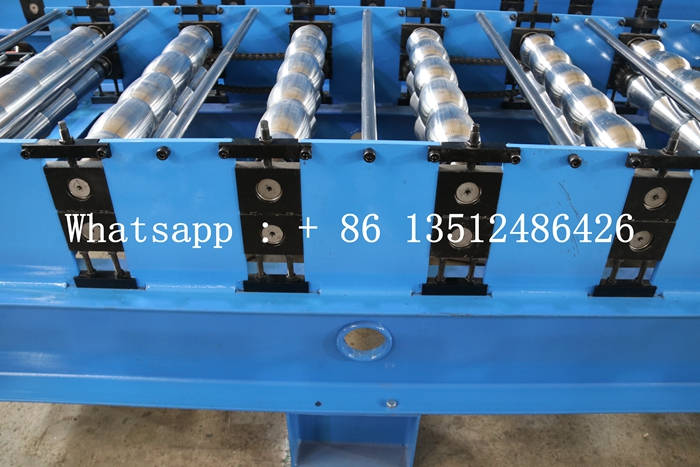

| 18. | Rows | 11 |
| 19. | Size | 6000mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Application
1. Construction field: The corrugated metal machine can be used to produce corrugated sheets of various shapes and specifications, such as roof panels, wall panels, etc., and is widely used in industrial plants, warehouses, cold storages, residential buildings and other construction fields.
2. Decorative field: The corrugated sheets produced by the corrugated metal machine have good decorative effects and can be used for indoor and outdoor walls, ceilings, partitions and other decorative projects to enhance the beauty and practicality of the overall space.
3. Transportation field: The corrugated sheets produced by the corrugated metal machine can also be used in transportation facilities, such as highway guardrails, railway soundproof walls, etc., with good durability and stability.
4. Home appliance field: The corrugated metal machine can also be used to produce shells and parts for home appliances, such as refrigerators, air conditioners, washing machines, etc. It has good anti-rust and anti-corrosion properties.
