Roof Sheet Forming Machine
Roof Sheet Forming Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Roof Sheet Forming Machine
Roof Sheet Forming Machine

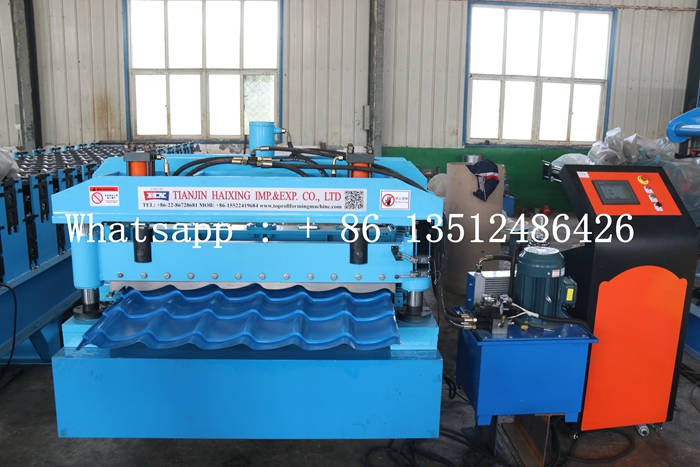

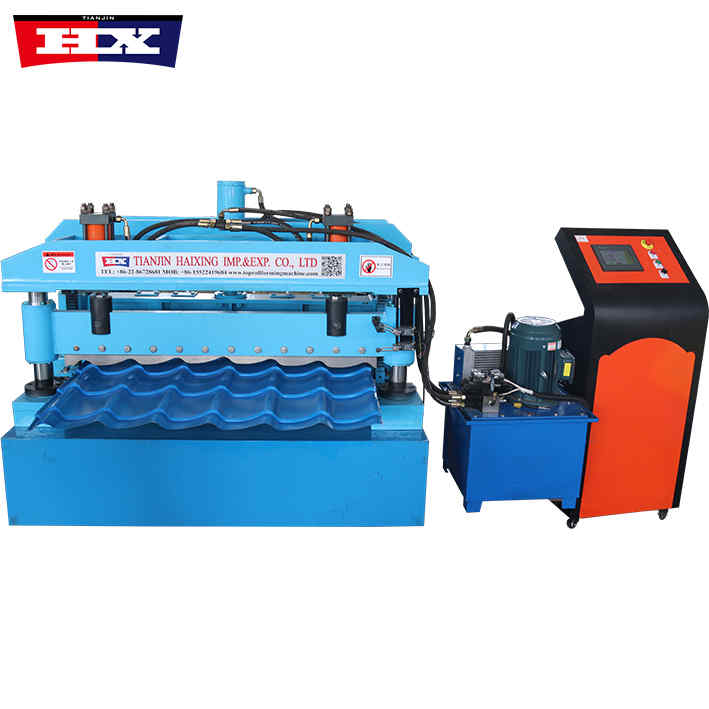

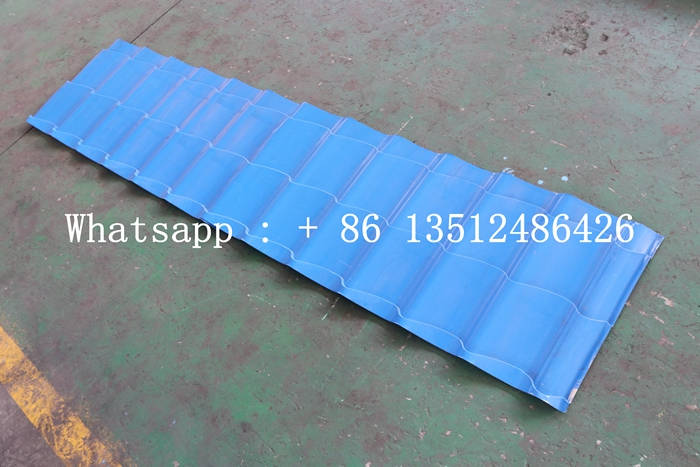

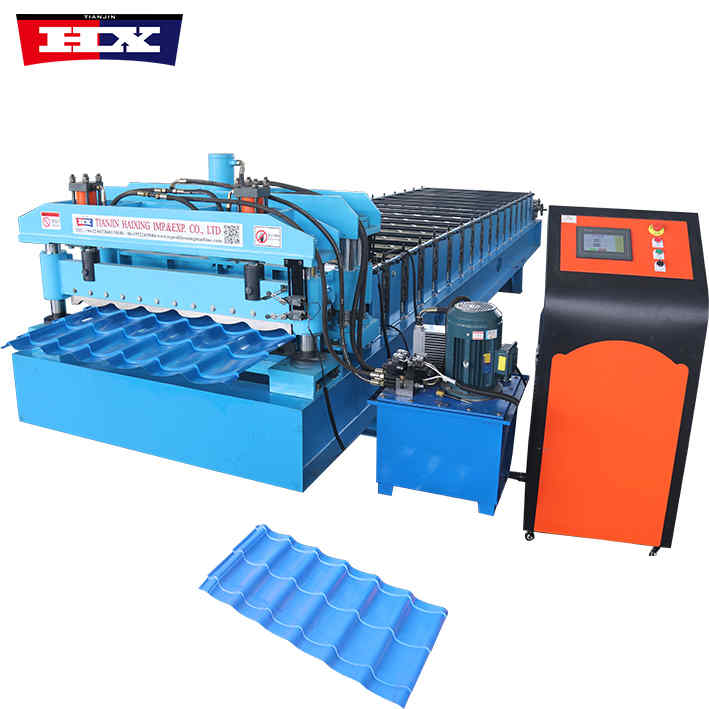

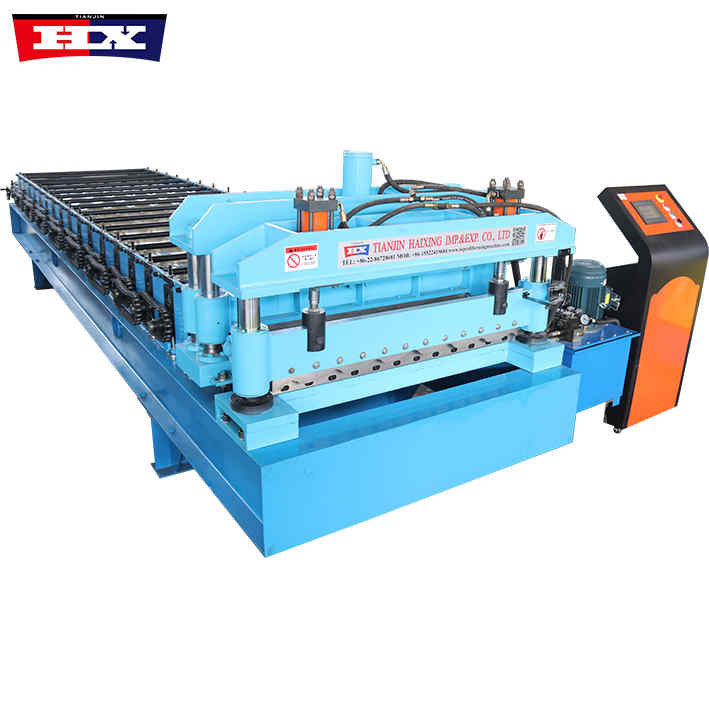

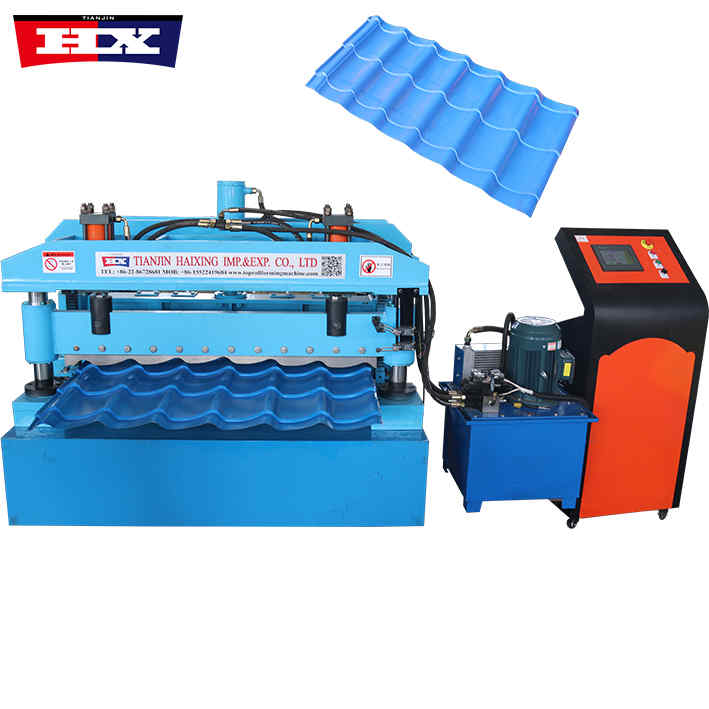

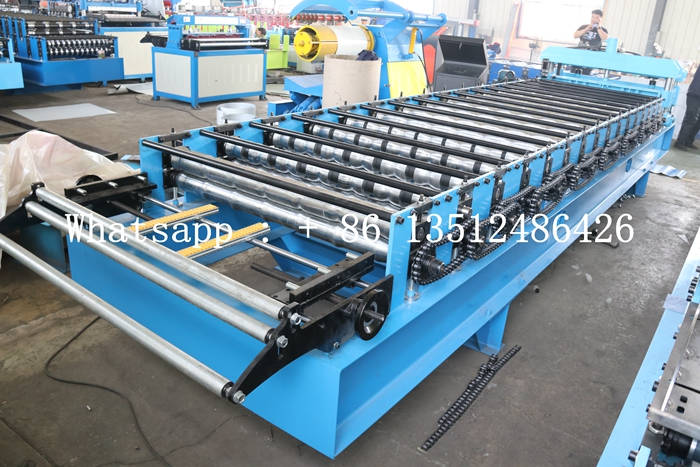

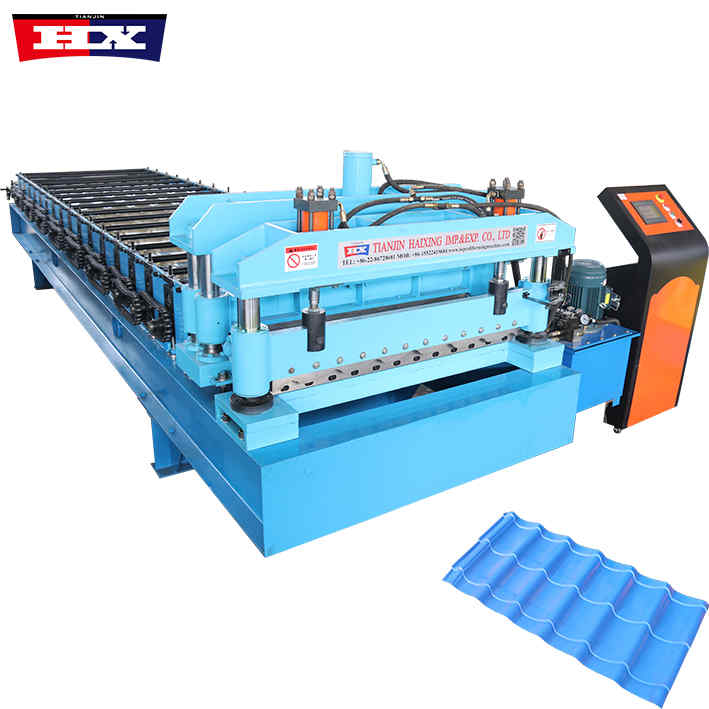

Roof sheet forming machine mainly used to produce corrugated profiled tiles. This equipment adopts advanced technology and structural design, has the characteristics of high efficiency, stability and easy operation, and has become one of the indispensable and important equipment in the field of modern construction.
Roof Sheet Forming Machine
Specification
No. |
Number |
Roof Sheet Forming Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |

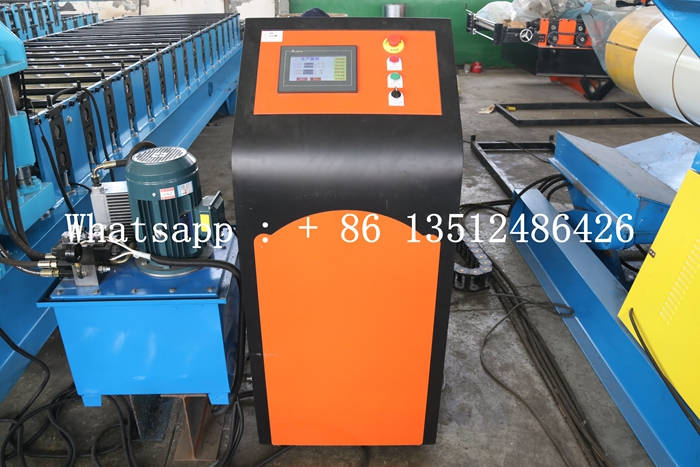

| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |

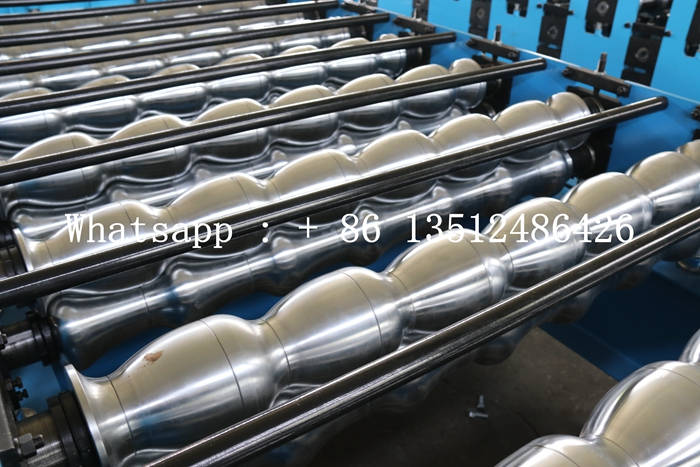

| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 16 |
| 19. | Size | 8000mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Notice
1. Safe operation: Before operating the equipment, you must be familiar with the structure, performance and safe operating procedures of the equipment to ensure personal safety and equipment safety.
2. Equipment maintenance: Carry out regular maintenance and care on the equipment, check whether the performance indicators of the equipment are normal, and discover and deal with potential problems in a timely manner.
3. Reasonable material selection: Select appropriate tile materials and specifications according to production needs to ensure product quality and production efficiency.
4. Comply with regulations: During the production process, equipment usage regulations and operating procedures must be strictly observed to avoid equipment damage or safety accidents caused by illegal operations.
