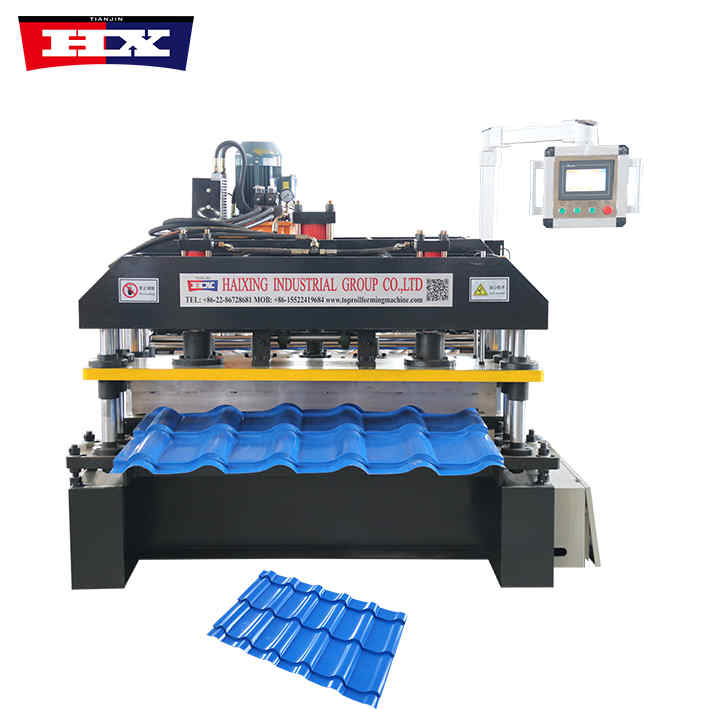

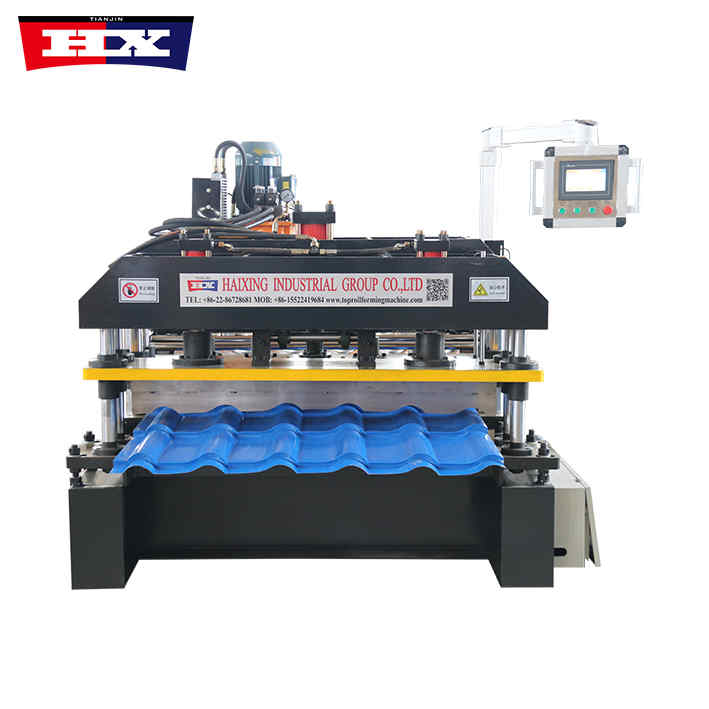

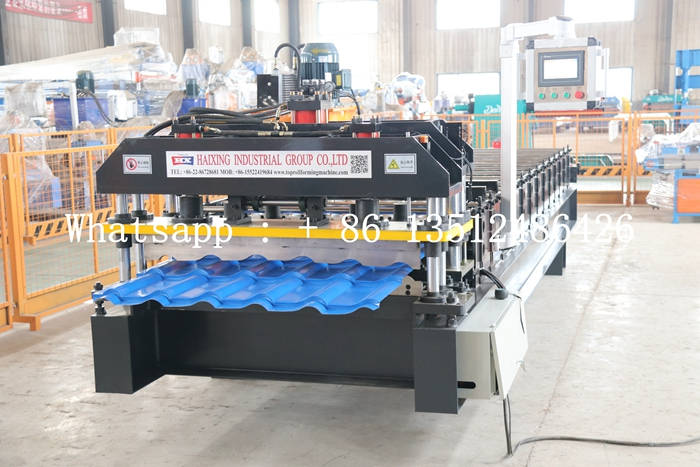

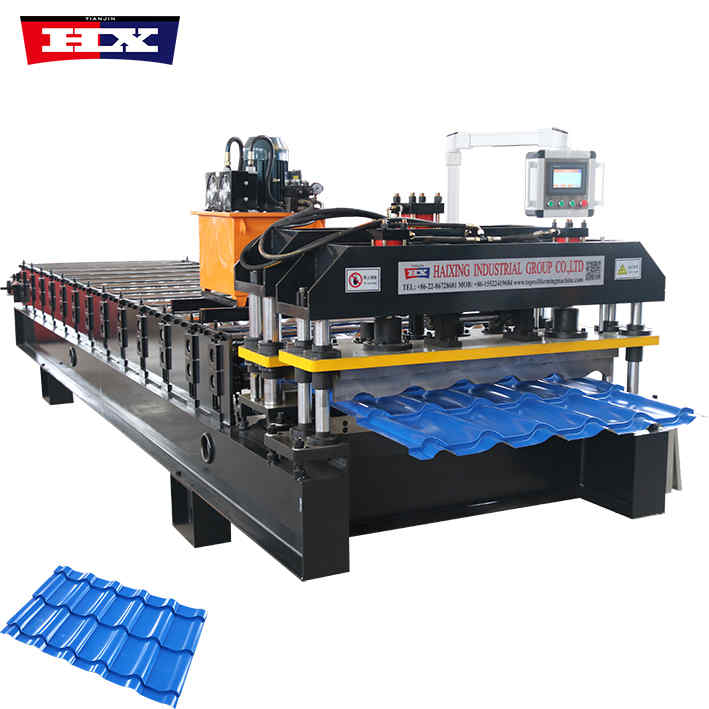

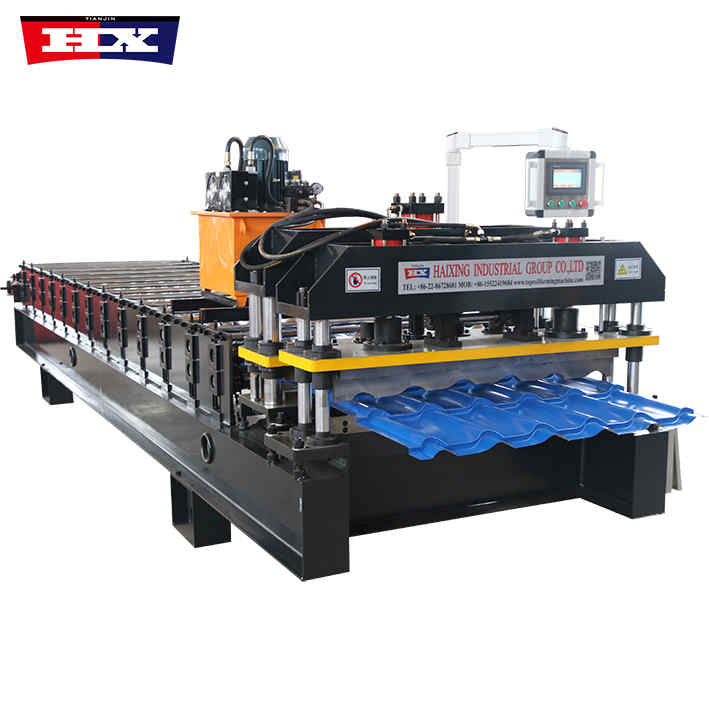

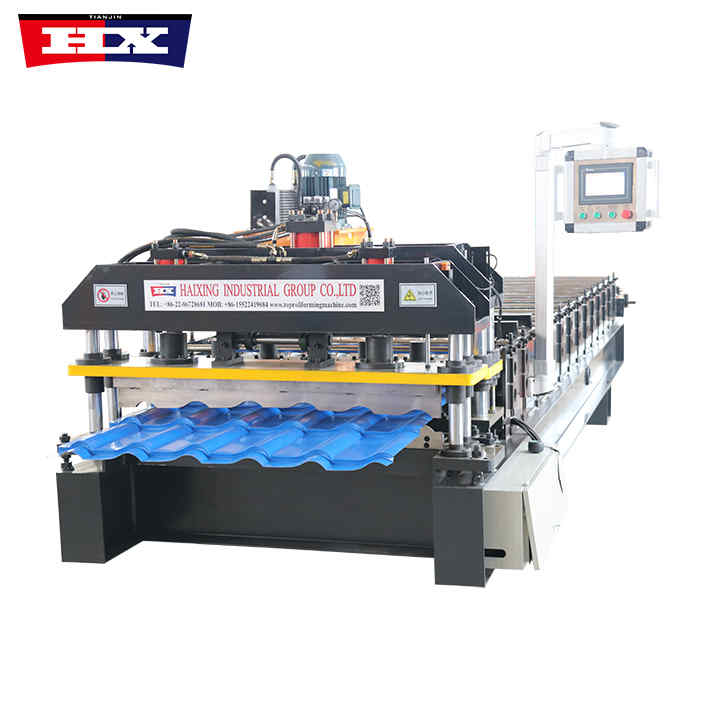

Glazed Tile Press Machine

Glazed Tile Press Machine

The working principle

Mainly to shape the metal sheet through the pressure between the upper and lower rollers. When the metal sheet passes between the upper and lower rollers, it is subject to pressure and bends and deforms, thereby obtaining the desired shape. During the molding process, the corrugated roll former machine adopts an advanced control system to ensure the improvement of molding accuracy and stability.

Glazed Tile Press Machine

Specification

Precautions For Use

1. Before use, check whether all parts of the equipment are normal, especially whether the gap adjustment between the upper and lower rollers is appropriate;

2. Operations should be carried out in strict accordance with the operating procedures to avoid safety accidents;

3. Perform regular maintenance on the equipment to ensure the normal operation of the equipment;

4. Pay attention to the working status of the equipment during the production process. If any abnormality is found, stop the machine for inspection in time.

Machine Composition

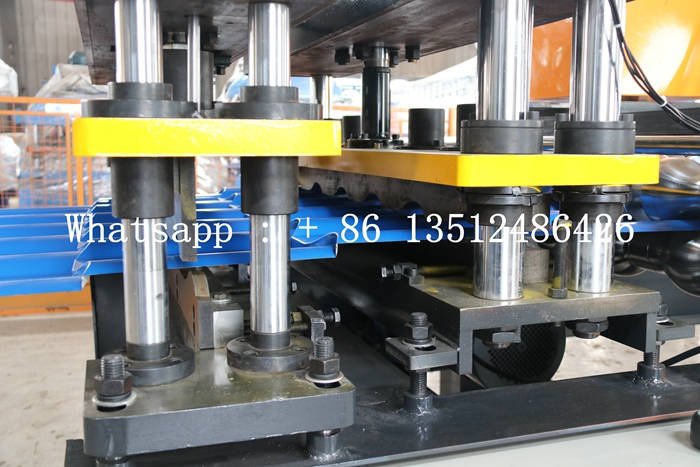

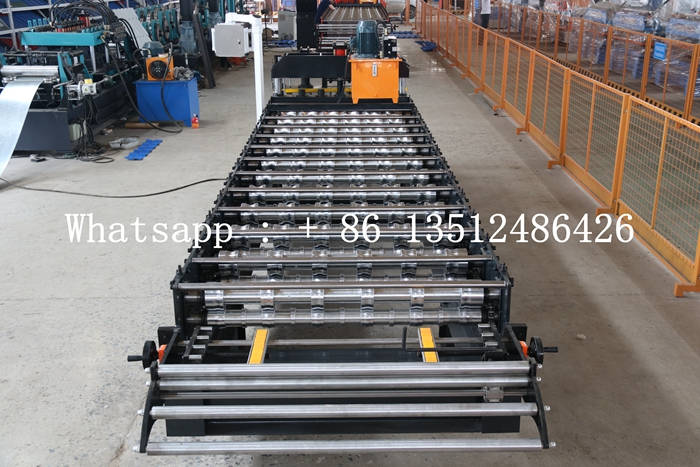

The glazed tile press machine is mainly composed of a frame, upper and lower rollers, transmission system, shearing system and other parts.

1. The frame is welded with high-strength steel plates and has sufficient strength and stability;

2. The upper and lower rollers are made of forged 45# steel with chrome plate, and the surface has been specially treated to have high hardness and wear resistance;

3. The transmission system is driven by a motor, which can achieve stepless speed regulation;

4. The shearing system is driven by a pump station, and the material of the shearing knife is Cr12, treatment off 58 ℃ -60 ℃.
