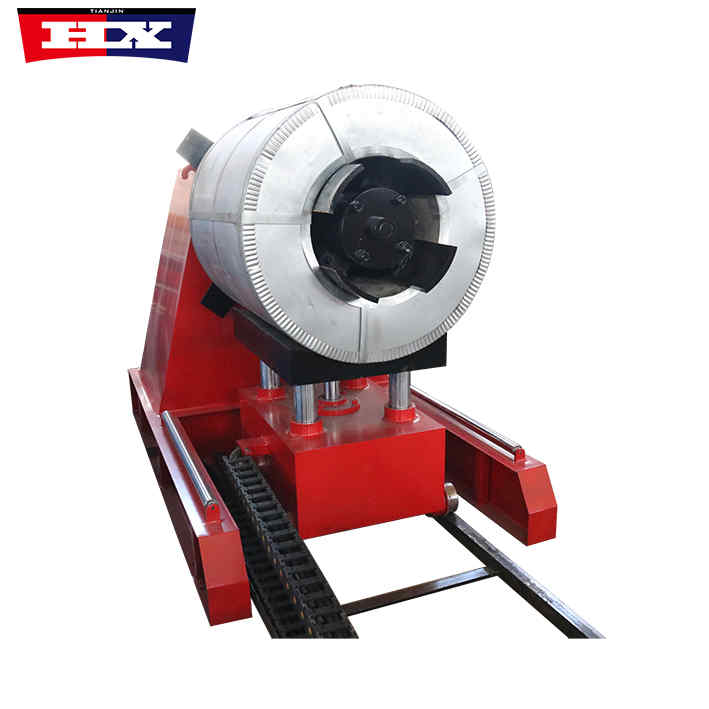

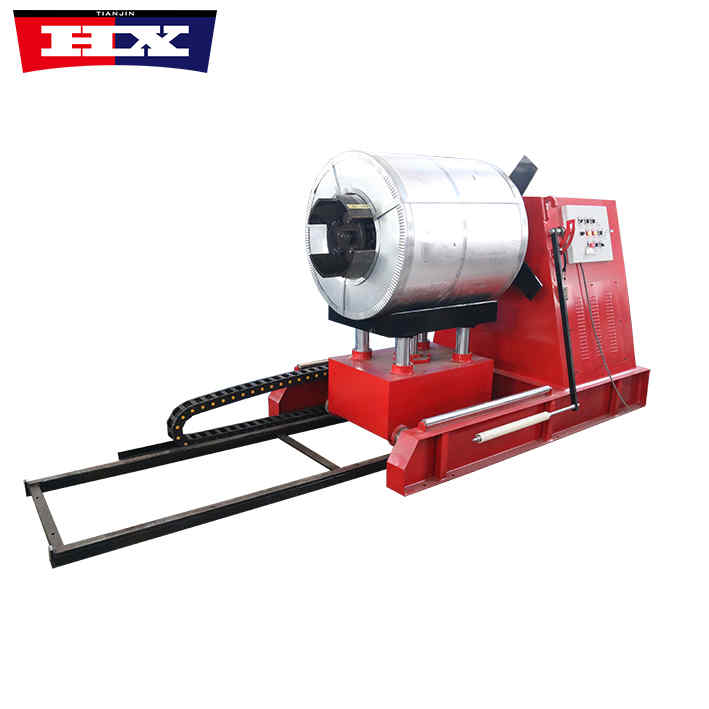

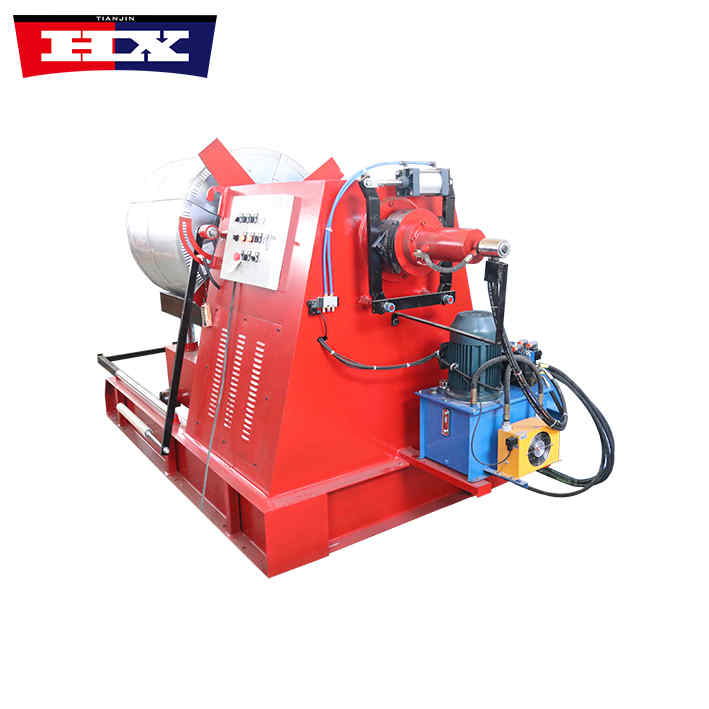

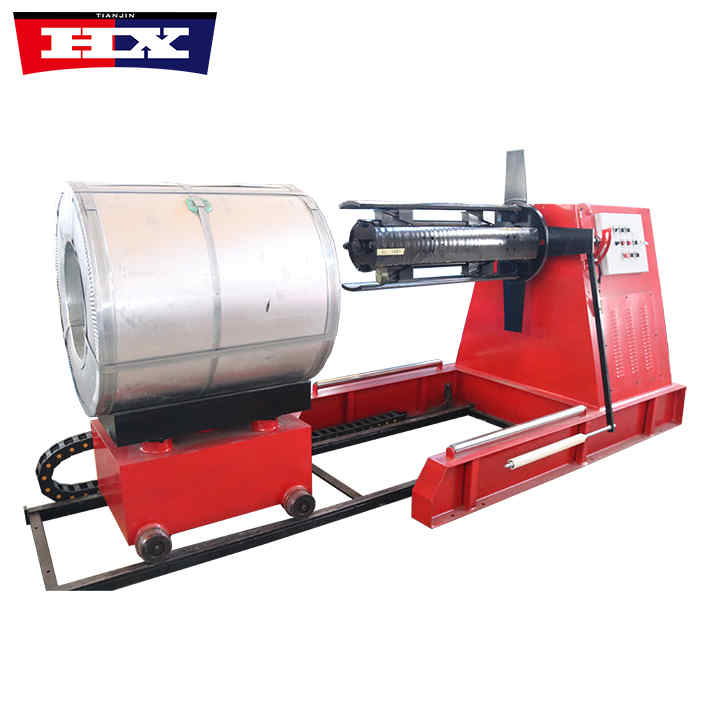

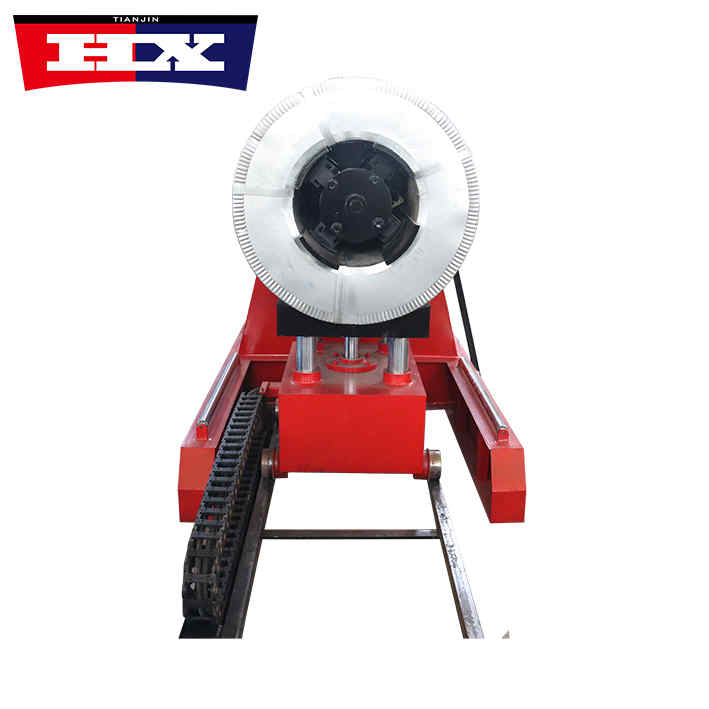

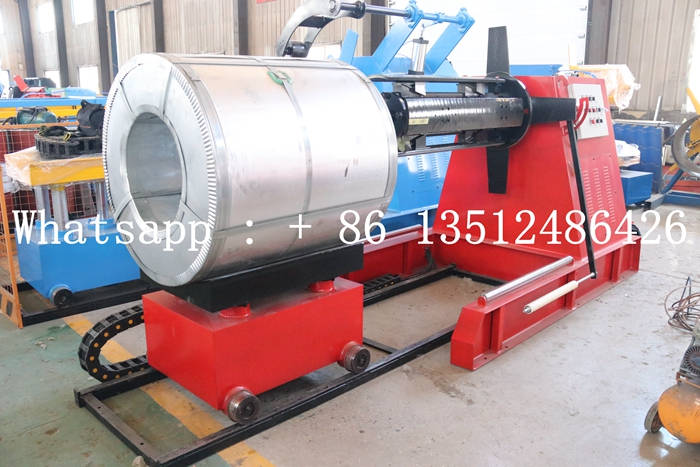

Hydraulic Uncoiler

Hydraulic Uncoiler

Operating procedures

1. During the loading operation, a dedicated person must cooperate with the forklift driver to ensure that the steel coil material is basically consistent with the center of the expansion and contraction drum shaft, and then the forklift driver slowly places the steel coil material on the trolley.

2. The operator needs to rise or fall (lifting trolley) to adjust the steel coil material to the center of the expansion and contraction drum shaft. At this time, adjust the movable bearing seat at the top of the uncoiler to keep it on the same level as the uncoiler.

3. Adjust the expansion nut to tighten the four arc plates and the steel coil material to avoid deformation and damage of the steel coil material during operation.

4. After the steel coil material is tightened, turn the uncoiler by hand to observe whether the material rotates freely to avoid various hidden dangers during work.

Specification

Advantages

1. Efficiency: The hydraulic uncoiler can quickly and accurately complete decoiling, leveling and other processes, greatly improving production efficiency. It can work continuously and stably, reducing downtime and thus reducing production costs.

2. Precise control: The hydraulic uncoiler usually use mature control systems, such as touch screen fully automatic control systems, which can achieve precise control of the uncoiling process and ensure the flatness and quality of the aluminum coil after uncoiling.

3. Light weight design: The coil itself has lightweight characteristics. The hydraulic uncoiler also fully considered this when designing, using lightweight materials and structures to make the entire equipment lighter and easier to operate.
