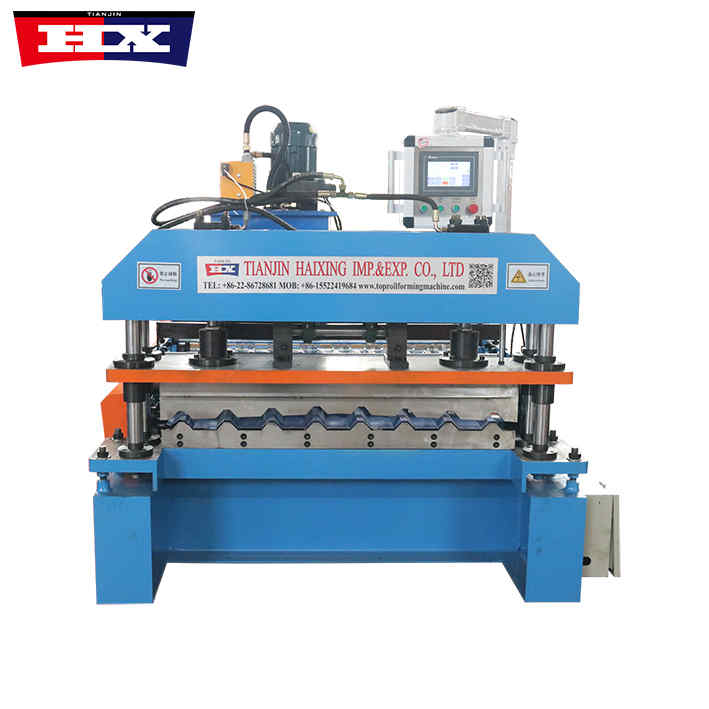

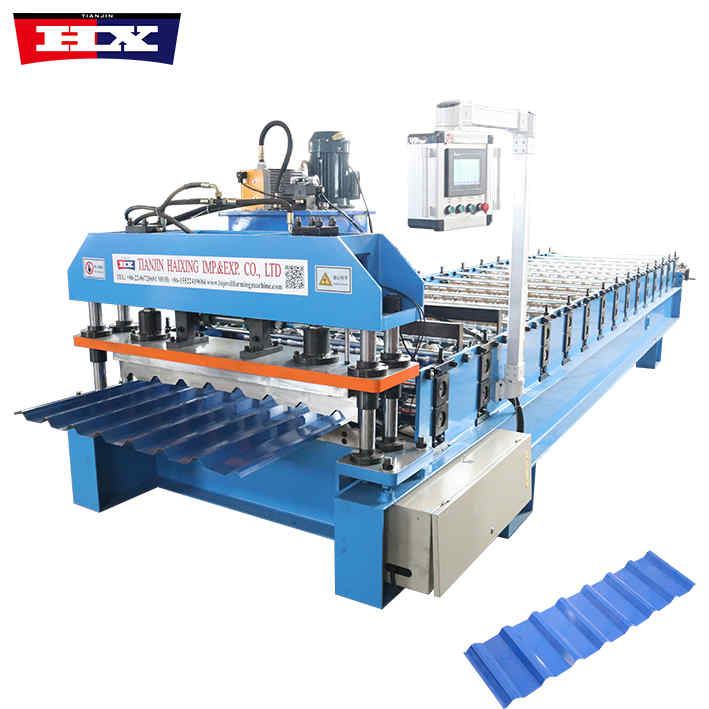

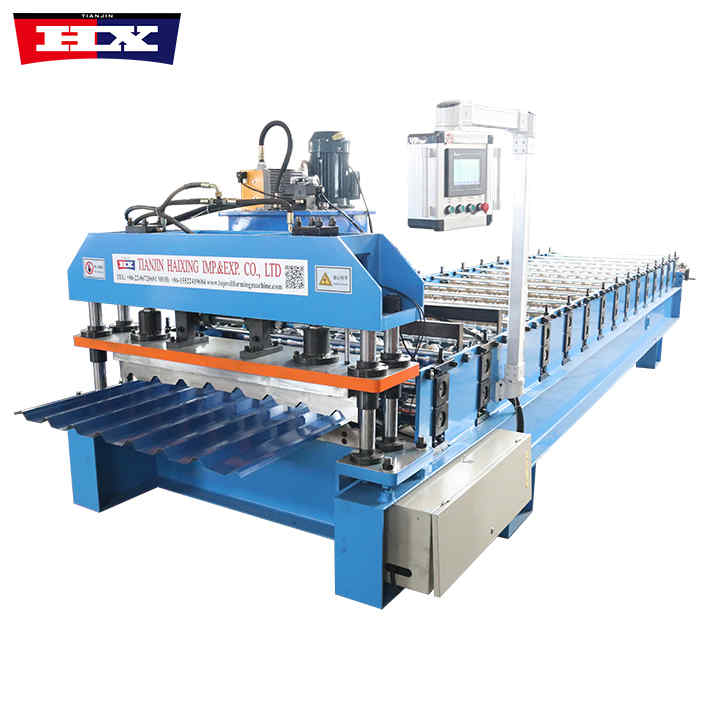

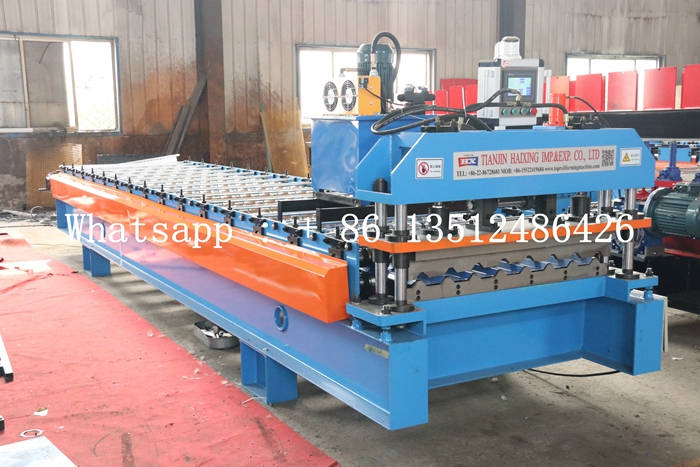

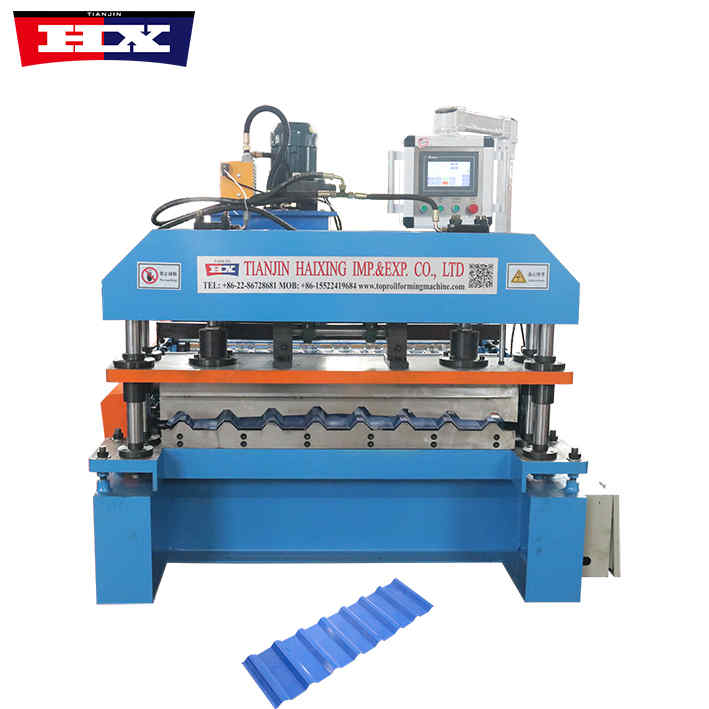

Iron Roof Sheet Making Machine
Iron Roof Sheet Making Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin

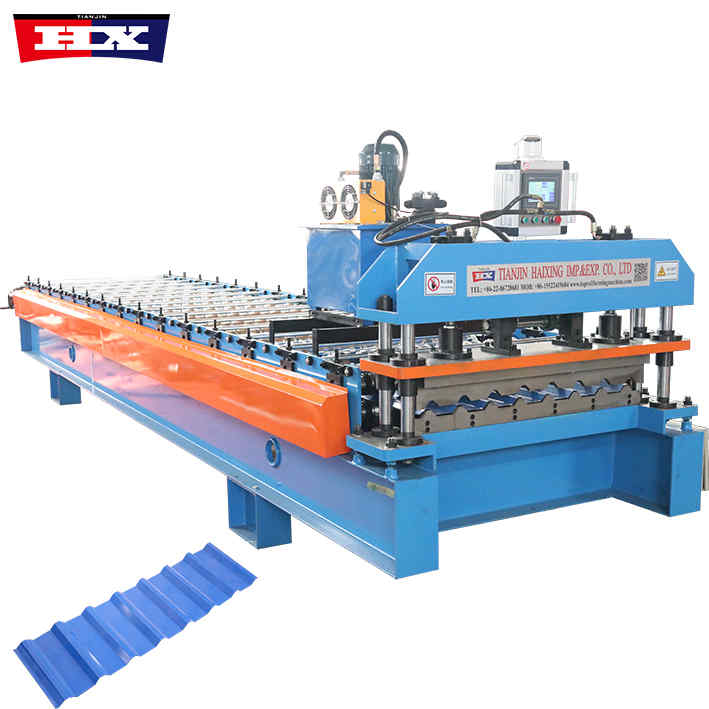

Iron Roof Sheet Making Machine
Iron Roof Sheet Making Machine
A iron roof sheet making machine is a mechanical device specifically used to make and install roof tiles. It secures the tiles to the roof of the building by applying pressure to ensure it is strong and flat.

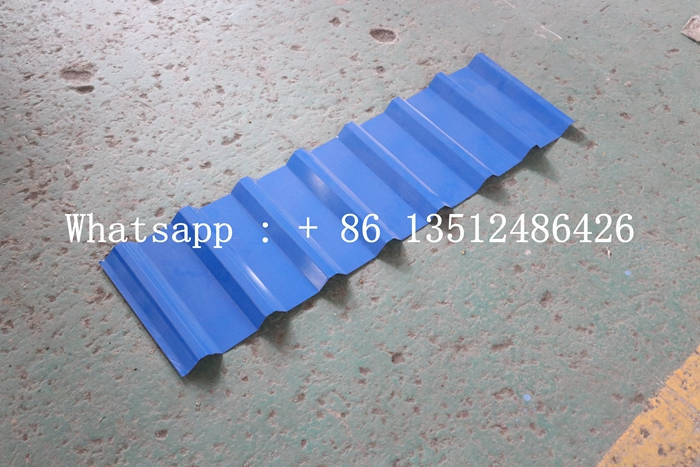

The main function of the iron roof sheet making machine is to press steel plates. The forming process of the pressed steel plates by the tile press consists of unloading, forming, and post-forming and cutting. The products produced after pressing have a smooth and beautiful appearance, uniform paint patterns, high strength, and durability. It is widely used in industrial and civil buildings, such as factories, warehouses, locomotive garages, aircraft hangars, gymnasiums, exhibition halls, theaters and other rooms and walls.
Iron Roof Sheet Making Machine
Specification
No. |
Number |
Iron Roof Sheet Making Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 18 |
| 19. | Size | 9000mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Precautions For Use
1. Before use, check whether all parts of the equipment are normal, especially whether the gap adjustment between the upper and lower rollers is appropriate;
2. Operations should be carried out in strict accordance with the operating procedures to avoid safety accidents;
3. Perform regular maintenance on the equipment to ensure the normal operation of the equipment;
4. Pay attention to the working status of the equipment during the production process. If any abnormality is found, stop the machine for inspection in time.
Machine Composition

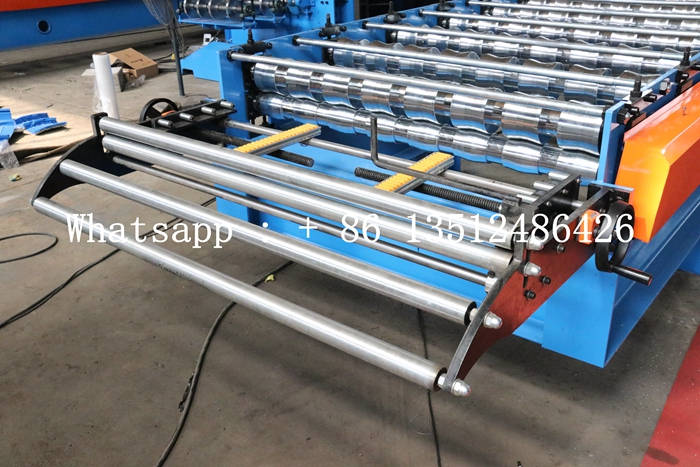

The corrugated roll former machine is mainly composed of a frame, upper and lower rollers, transmission system, shearing system and other parts.
1. The frame is welded with high-strength steel plates and has sufficient strength and stability;

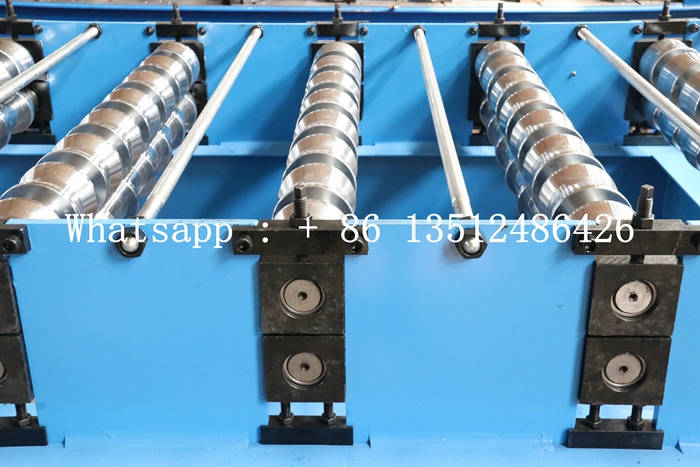

2. The upper and lower rollers are made of forged 45# steel with chrome plate, and the surface has been specially treated to have high hardness and wear resistance;
3. The transmission system is driven by a motor, which can achieve stepless speed regulation;

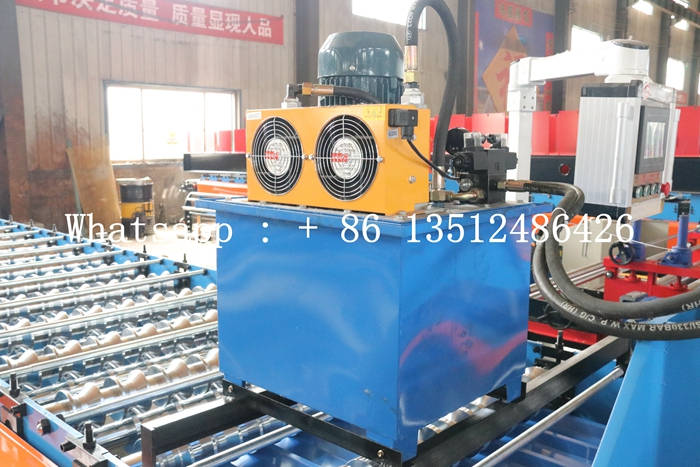

4. The shearing system is driven by a pump station, and the material of the shearing knife is Cr12, treatment off 58 ℃ -60 ℃.
