Metal Roof Forming Machine
Metal Roof Forming Machine Metal Roof Forming Machine Metal Roof Forming Machine Metal Roof Forming Machine Metal Roof Forming Machine

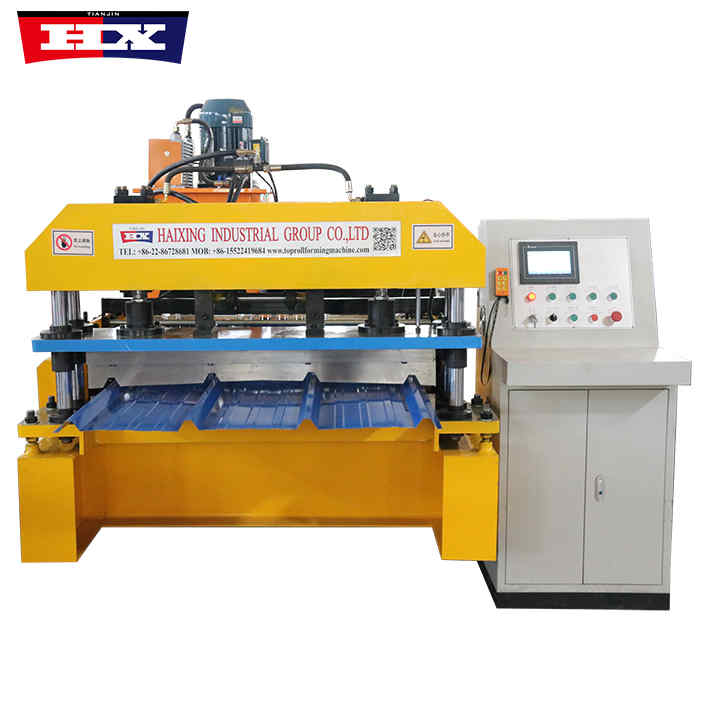

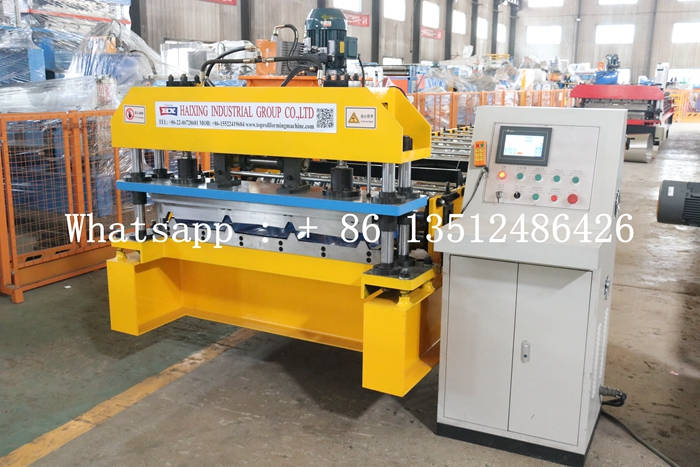

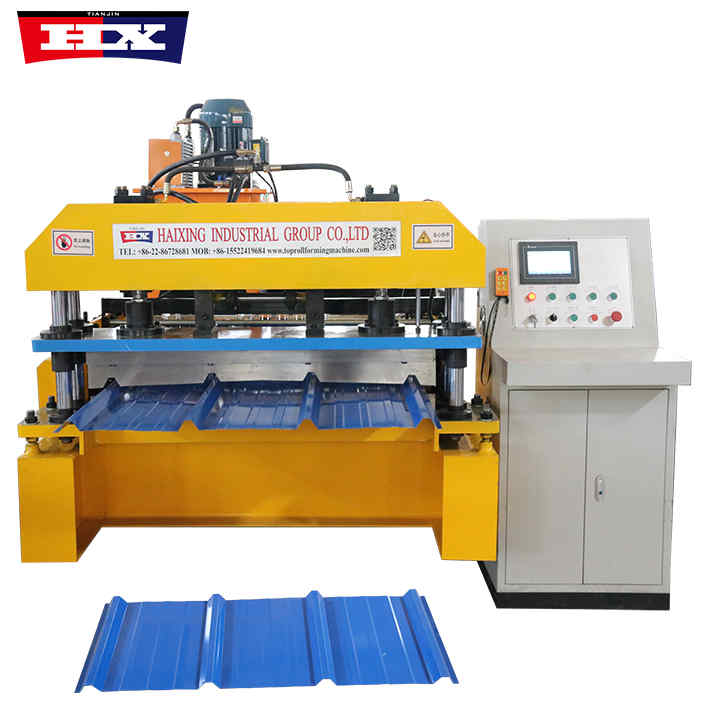

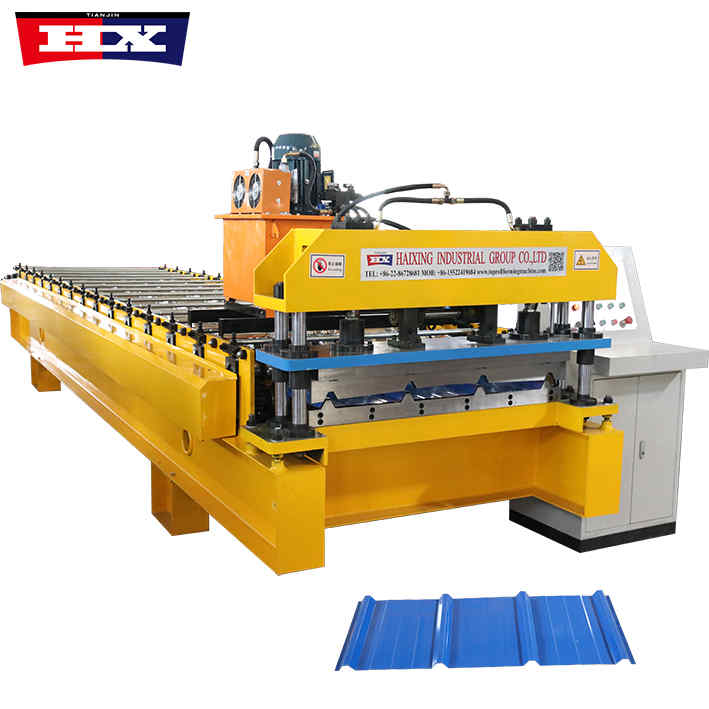

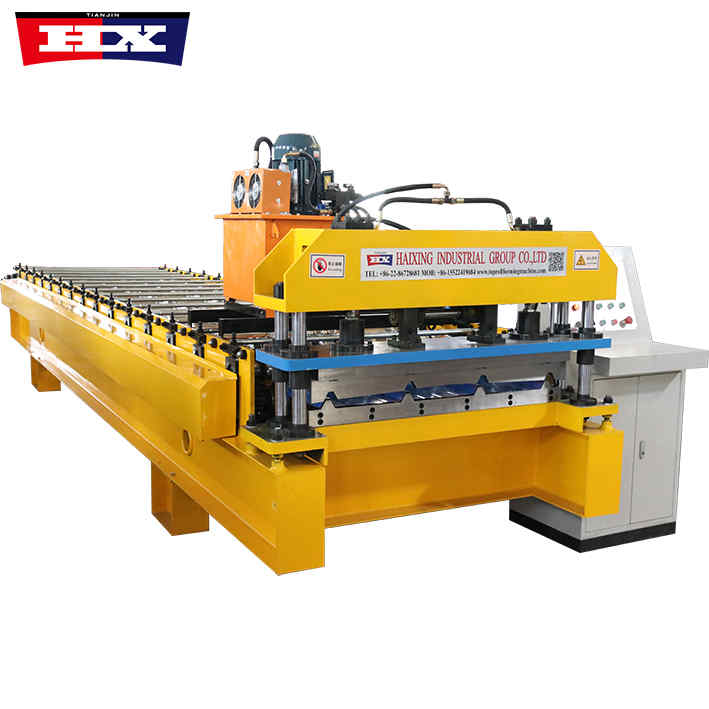

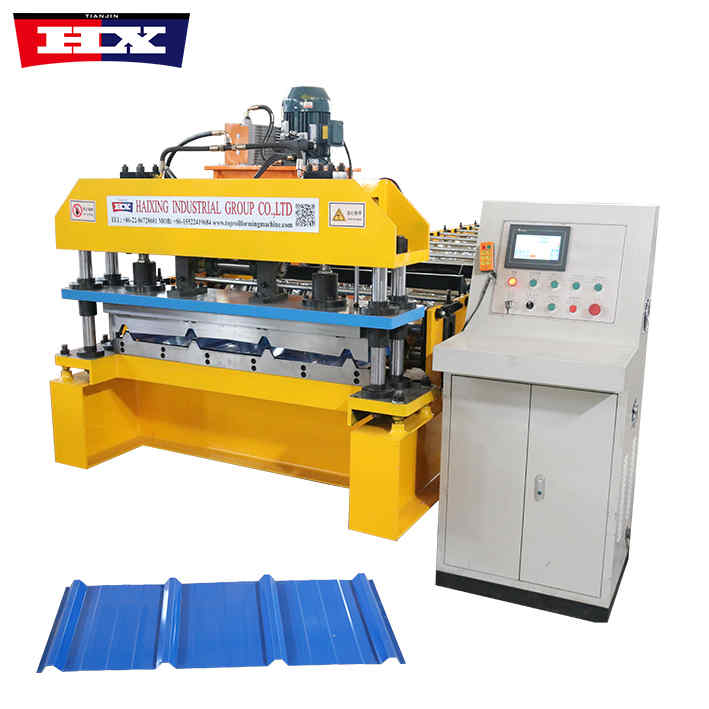

Metal Roof Forming Machine

Product ID : HX-1005
Product Attributes :

Metal Roof Forming Machine

Voltage: 380v/220v 50hz 3p can be customized according to customer requirements

Production Time: 30-35 working days

Shipping Time : 40 days

Thickness : 0.3-0.8mm

Produce Speed : 10-15m/min

Port : Tianjin

Whatsapp : + 86 13512486426

Website : https://deckingmachine.com/

Product Description

Metal Roof Forming Machine

Metal Roof Forming Machine

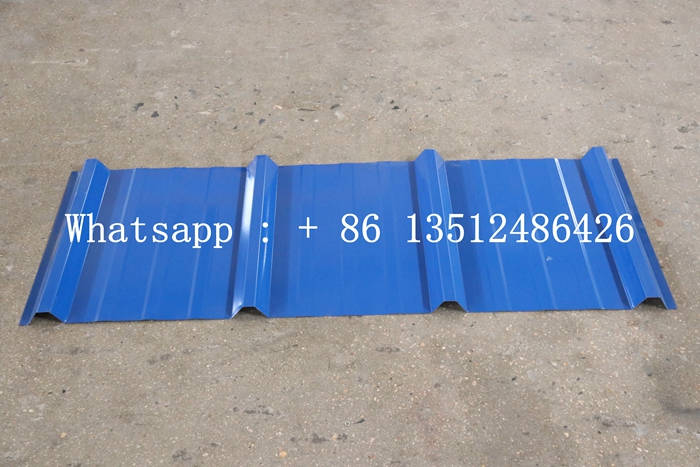

Metal roof forming machine is a common construction machinery used to produce various types of tiles. It has a wide range of uses and can be used not only on roofs of residential buildings, commercial buildings and industrial buildings, but also in agricultural buildings and landscaping projects.

Metal Roof Forming Machine

Specification

No.

Number

Metal Roof Forming Machine

1. Operation style Automatic
2. Raw materials PPGI
3. Structure 350H Beam
4 Middle side 16mm
5. Main motor 5.5kw

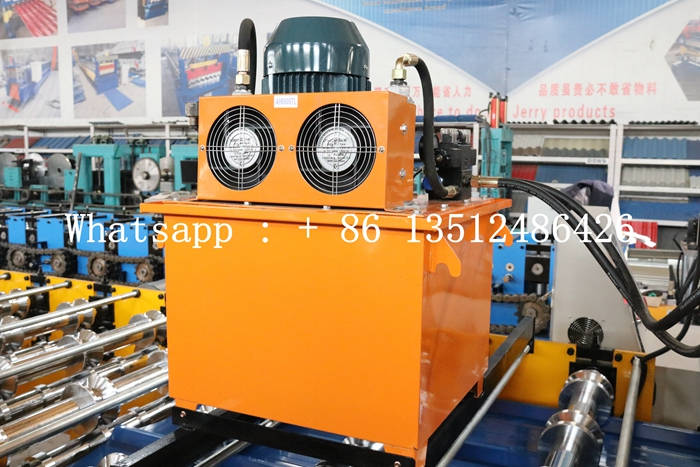

6. Pump station 4kw
7. Cutting type Hydraulic cutting
8. Produce speed 10-15m/min
9. Chain 1 inch
10. Shaft material Cr12MoV
11. Brand of electrical control cabinet Delta or customized according to customer requirements
12. Touch screen/inverter Delta or customized according to customer requirements

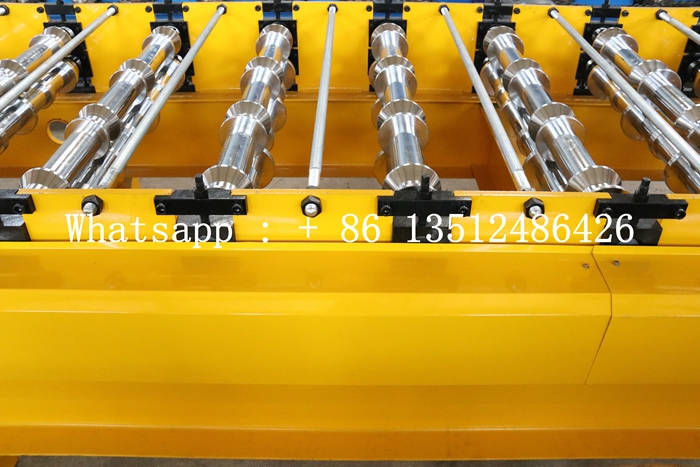

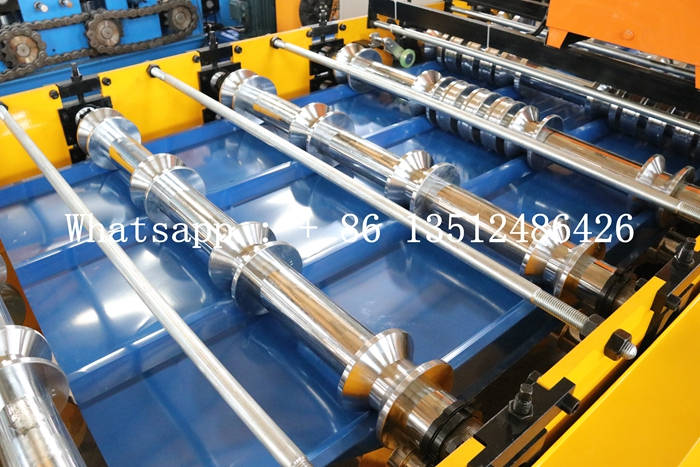

13. Rolling materials Forged 45# steel with chrome plate
14. Cutting blade material Cr12, treatment off 58 ℃ -60 ℃
15. Roller diameter Φ70mm
16. Voltage 380v 50hz 3p be customized
17. Thickness 0.3-0.8mm
18. Rows 15
19. Size 7500mm*1500mm*1600mm
20. Weight 5000kg

Features

1. Efficient production

1). Roofs of industrial buildings usually require large areas of tiles. The metal roof forming machine production line can achieve continuous production and improve production efficiency and capacity.

2). The metal roof forming machine can customize tiles of different sizes and specifications according to different needs to meet the needs of industrial buildings for large-area tiles.

2. Provide brand image

1).Commercial buildings usually require a unique appearance and image to attract more customers. The metal roof forming machine can customize tiles of different colors, shapes and patterns to meet various personalized needs of commercial buildings.

2).Through the creative design and high-quality production of tiles, commercial buildings can establish a brand image and increase brand recognition and appeal.

3. Application of tile press in agricultural construction

1). The metal roof forming machine can produce special tiles for agricultural buildings, such as greenhouse tiles, cold storage tiles, etc. These tiles have good thermal insulation properties and light transmission properties, providing good conditions for agricultural production.

2). Agricultural buildings need to withstand the test of storms and severe weather. The tiles produced by the metal roof forming machine can provide strong windproof and waterproof capabilities to ensure the safety and reliability of agricultural buildings.
