Metal Roofing Machine Manufacturers
Metal Roofing Machine Manufacturers
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Metal Roofing Machine Manufacturers
Metal Roofing Machine Manufacturers

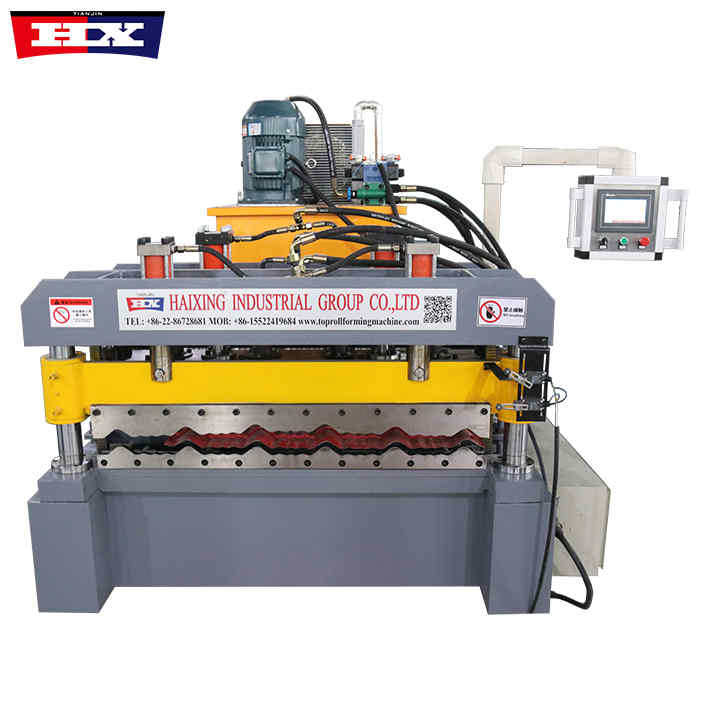

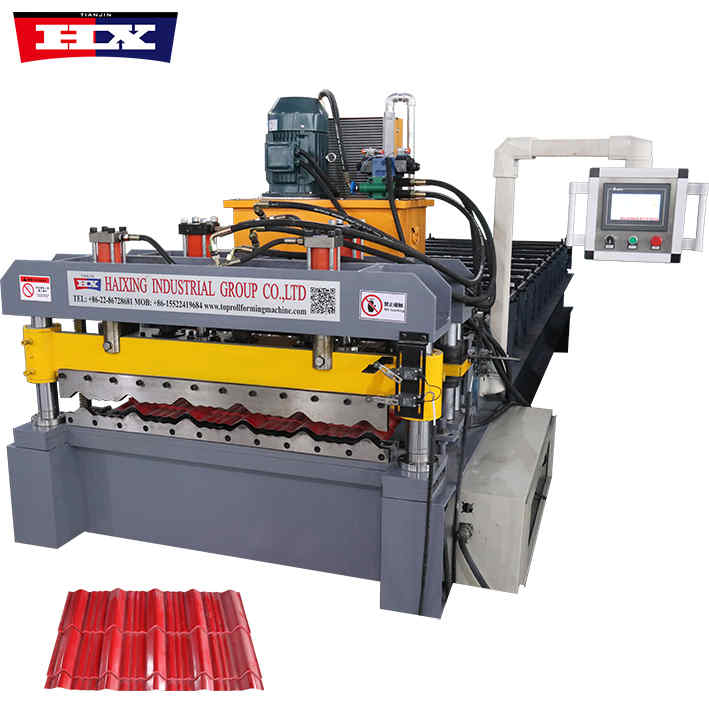

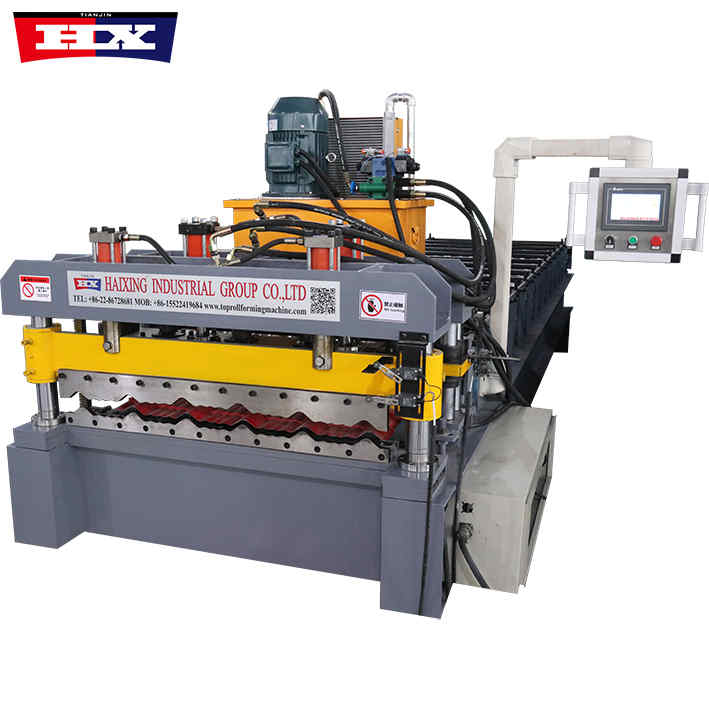

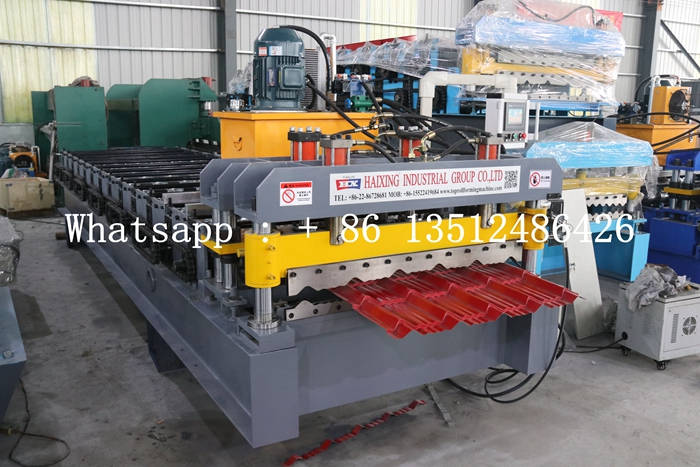

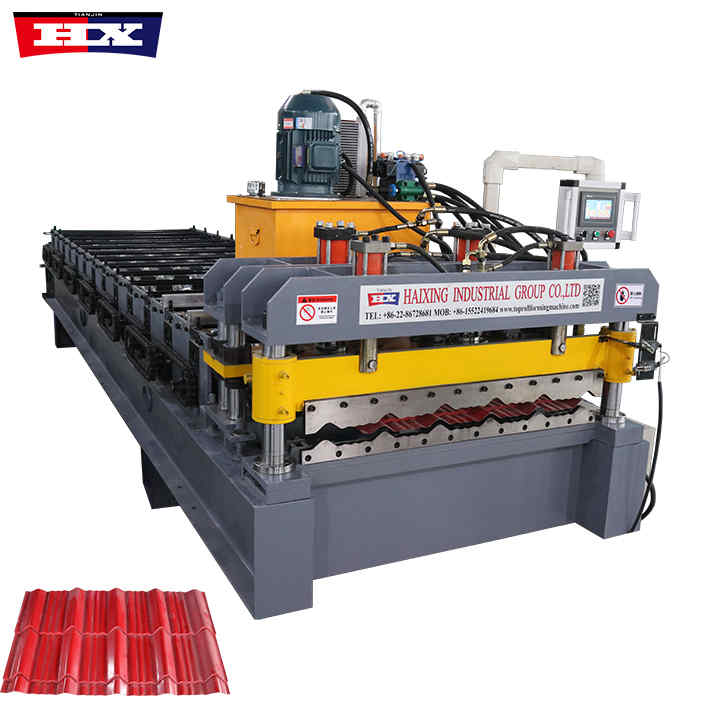

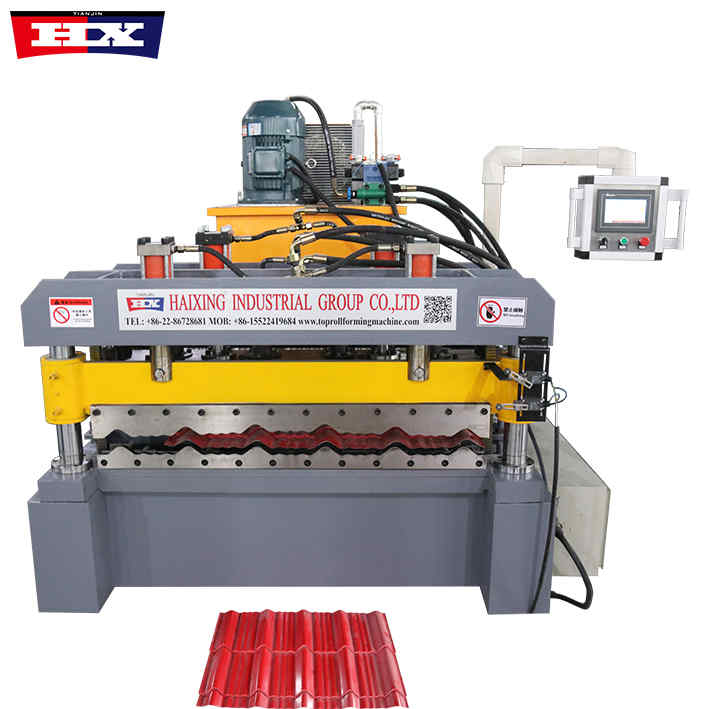

The metal roofing machine manufacturers is an efficient and practical metal sheet forming equipment, widely used in construction, decoration, metal products and other fields. This corrugated iron machine adopts advanced hydraulic technology and has the characteristics of high pressure, high precision, fast speed and long life. It can process metal plates of various specifications and shapes.
Metal Roofing Machine Manufacturers
Specification
No. |
Number |
Metal Roofing Machine Manufacturers |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |

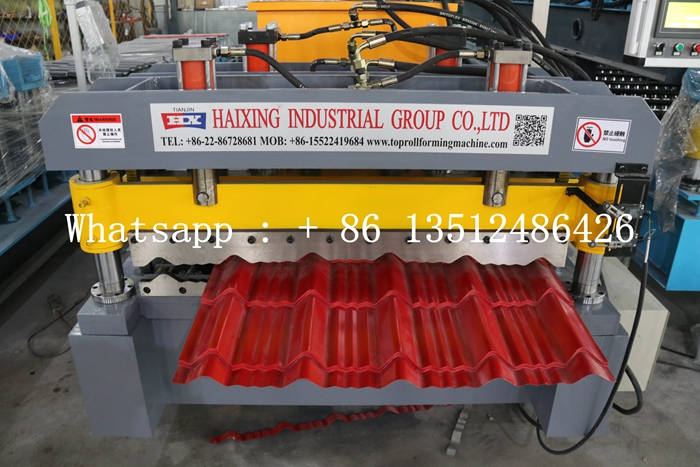

| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |

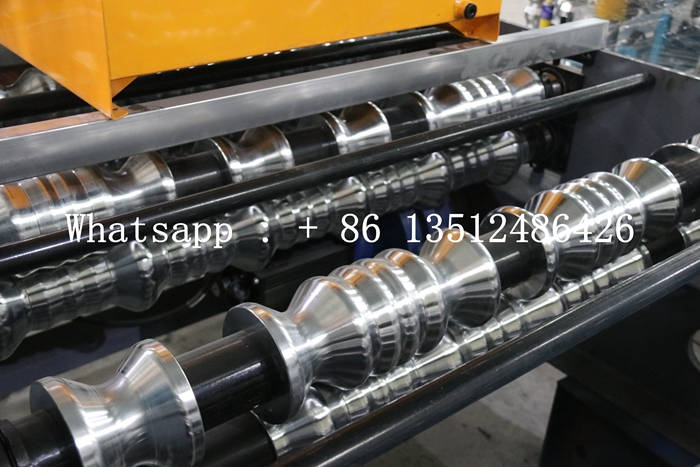

| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |

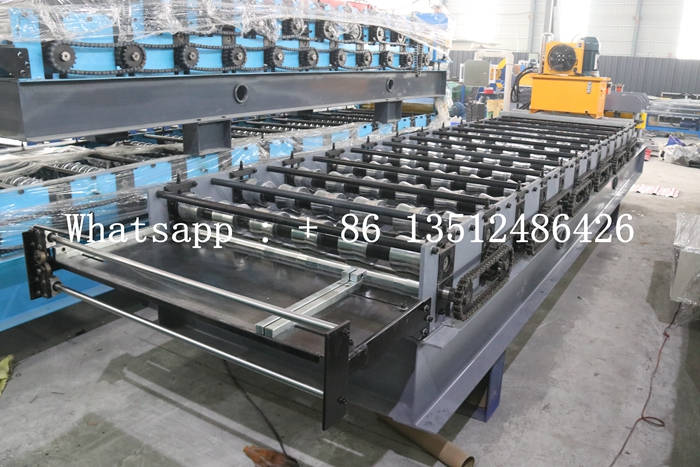

| 18. | Rows | 13 |
| 19. | Size | 6500mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Operation
1. Power-on operation
1). Before turning on the machine, you need to confirm that the power supply is turned off.
2). Operators need to check the equipment and work area again to ensure that safety requirements are met
3). Turn on the power switch according to the equipment requirements and start the working state. 4. Wait for the equipment's warm-up time to ensure the normal operation of the equipment.
2. Processing operations
1). Fix the metal material to be processed in the processing area of the tile press equipment.
2). Wear safety protective gear, and operators must choose the correct tools and materials for processing operations.
3). Operate according to the processing requirements, maintain a safe distance during the processing, adjust the position angle and take photos to ensure processing efficiency and quality.
4). During the processing, various screws need to be tightened to prevent safety accidents.
3. Shutdown operation
1). After the processing is completed, the air source needs to be turned off and the power supply must be turned off at the same time.
2). Operators need to perform necessary cleaning and maintenance on the equipment to keep the equipment clean and tidy.
