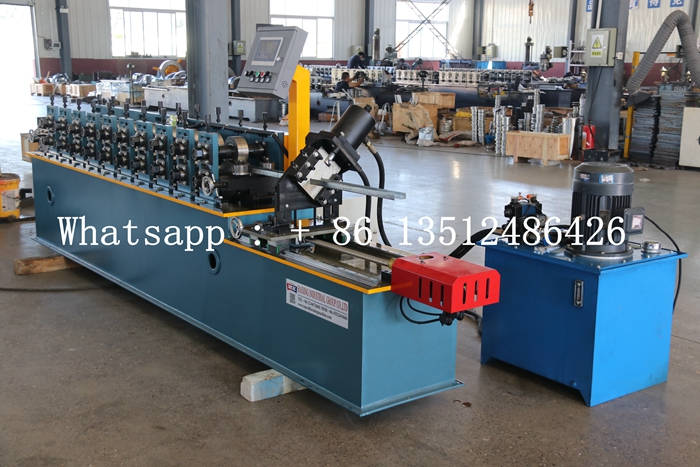

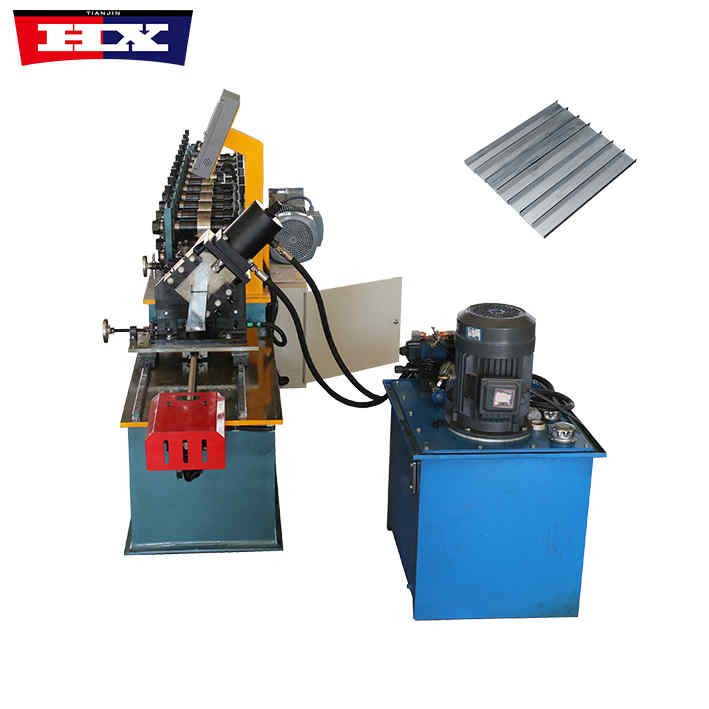

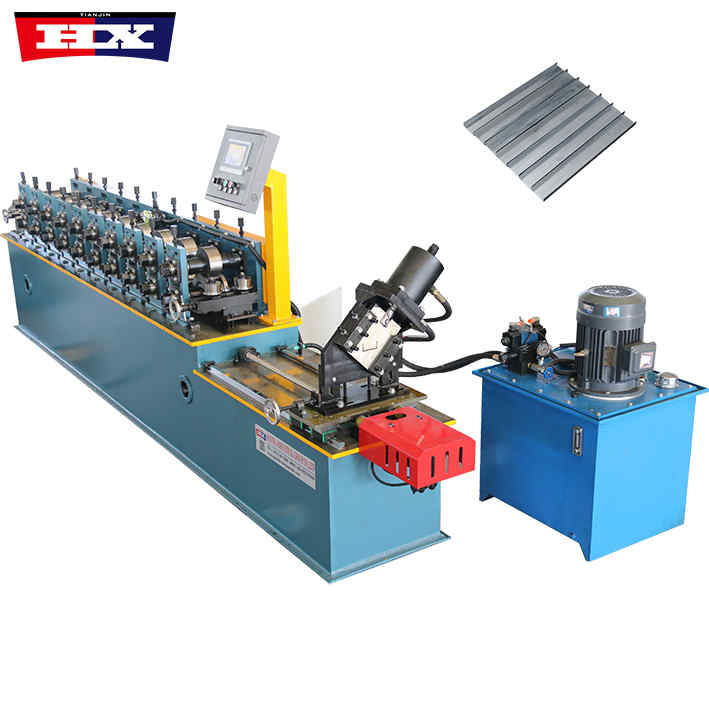

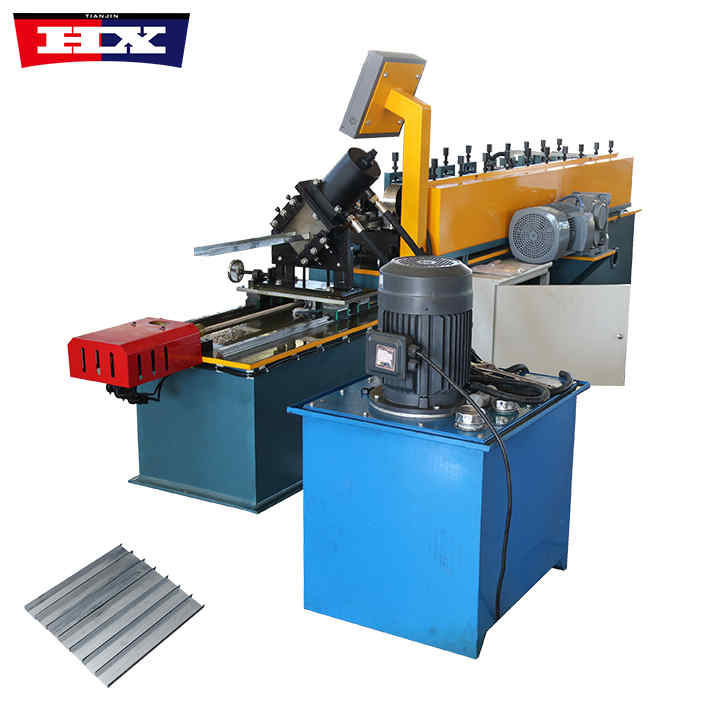

Metal Stud Machine
Metal Stud Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.4-1.2mm
Produce Speed : 45-60m/min
Port : Tianjin

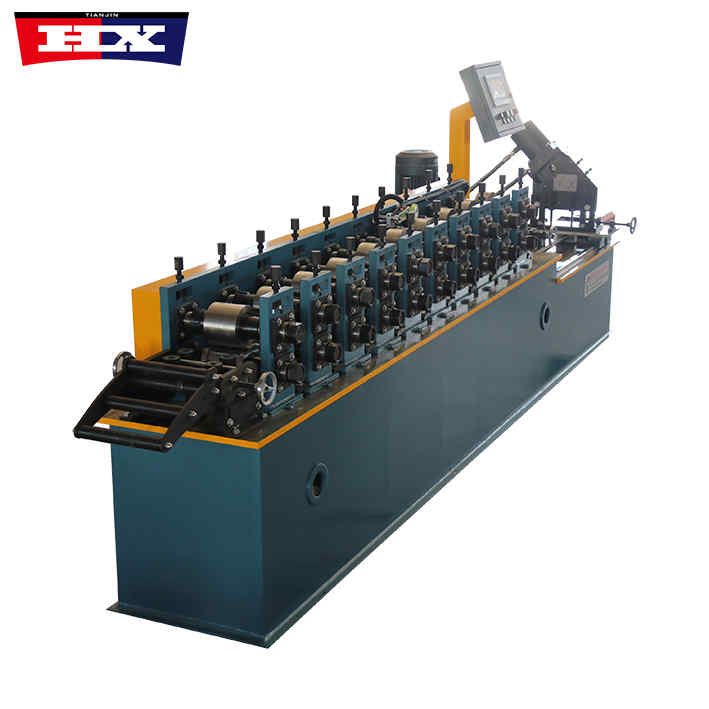

Metal Stud Machine

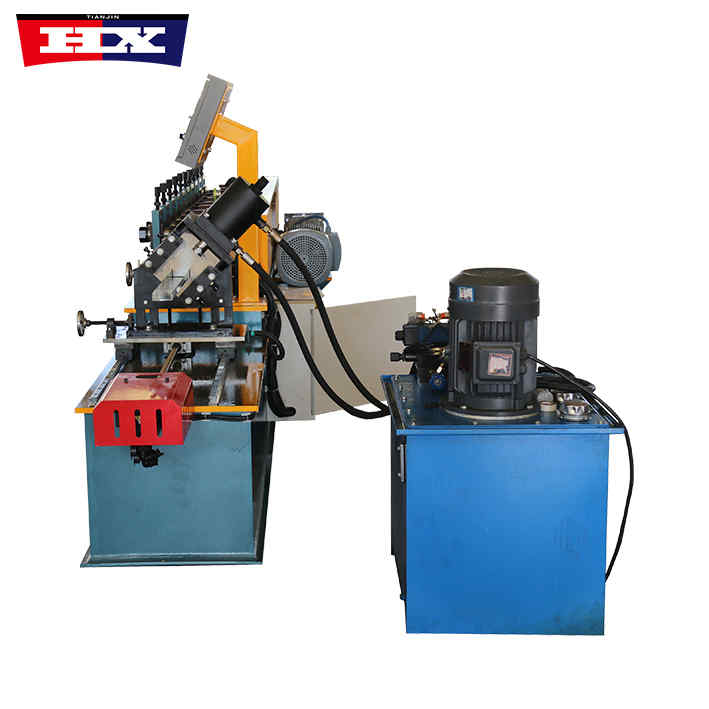

Metal Stud Machine
Metal Stud Machine
Specification
No. |
Number |
Metal Stud Machine |
| 1. | Suitable to process |
Color alu zinc steel coils |
| 2. | Transfer method | Gear transmission |
| 3. | Base frame | Type 300 Channel Steel Frame Welding Panel thickness 2mm, Q235 iron plate material (gantry milling plane processing) |
| 4 | Main frame | Square steel frame |
| 5. | Dimensions | 6*1.2*1.6m |
| 6. | Board size |
Memorial arch, thickness 35 mm (double bearings on front and rear arches) |
| 7. | Weight | About 3.5t |
| 8. | Produce speed | 45-60m/min |
| 9. | Engine power | 5.5Kw, the motor includes a type K reducer |
| 10. | Pump station engine | 5.5kw |
| 11. | Thickness of plate | 0.4-1.2mm |

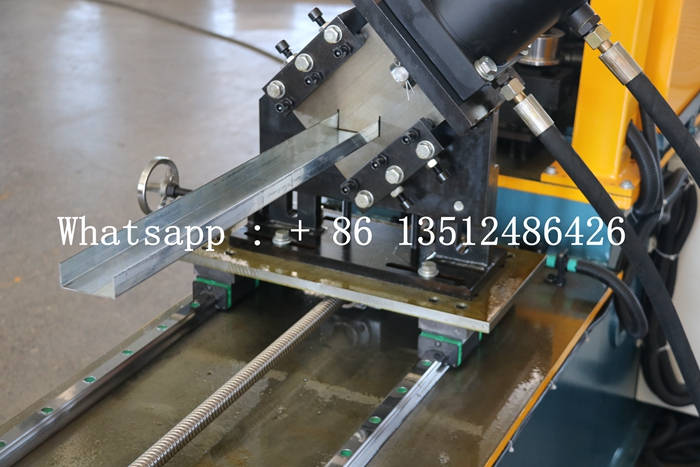

| 12. | Cutting shape | Servo track cutting system 2.3kw servo motor power Platform track cut 30×30, ball screw diameter 3mm |
| 13. | Roller diameter | Φ50mm |
| 14. | Spacer | Φ70mm |

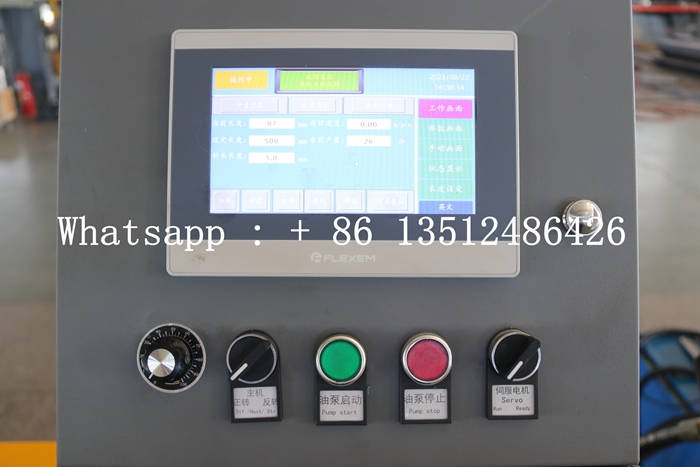

| 15. | Control system | PLC control ( Delta ) |
| 16. | Touch screen | Delta |
| 17. | Rolling stock | Cr12 steel bearing |
| 18. | Rows | 10 |
| 19. | Length tolerance | ±2mm |
| 20. | Voltage |
380v 50hz 3p or as customers ' requirement |
Advantages
1. Lightweight: Light steel keel is lighter. It is made of cold-rolled thin steel plates, so it has a smaller dead weight and can reduce the load on the building structure. This is especially important for large-scale construction projects, as it can reduce the overall weight of the building and reduce infrastructure investment and transportation costs.
2. High strength: The light steel keel has high strength after special processing technology. It can withstand large pressure and tension, ensuring the stability and load-bearing capacity of the building structure. Compared with traditional wooden structures, light steel keels have better seismic resistance and can provide safer and more reliable building structures.
3. Convenient and fast construction: The light steel keels are made with high precision, regular shape and easy to assemble. It can be cut and connected into various lengths and shapes to suit different design needs. At the same time, due to its light weight, it is easy to transport and install during the construction process, which can greatly improve construction efficiency.
4. Environmental protection and energy saving: less waste is generated during the manufacturing process of light steel keels, which can reduce environmental pollution. In addition, the light steel keel can be recycled to reduce resource waste. During the building use stage, light steel keels have good thermal conductivity, which helps save energy and improve the thermal efficiency of the building.
5. Design flexibility: Light steel keels can be customized according to design requirements, with regular shapes and good plasticity. It can adapt to various complex building structures and design requirements, providing architects with more design space and creativity.
