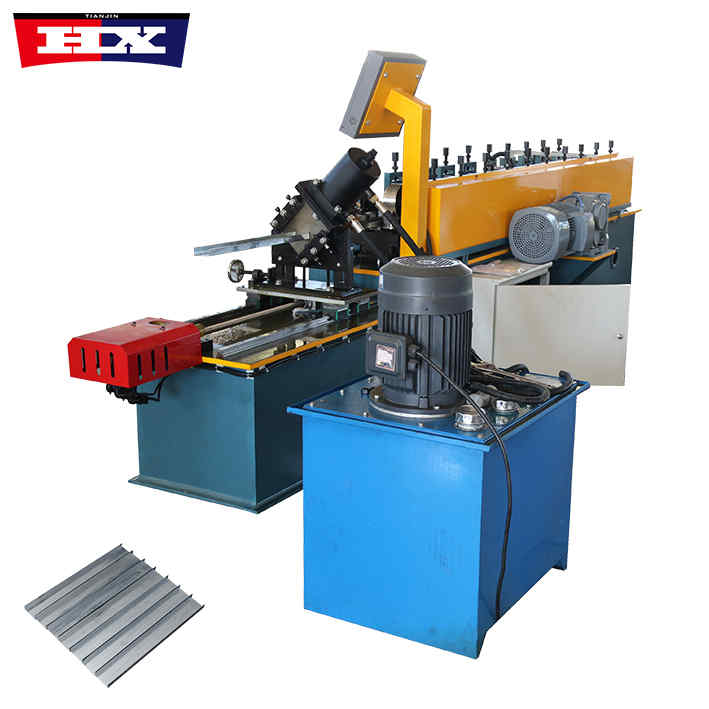

Metal Stud Maker Machine
Metal Stud Maker Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.4-1.2mm
Produce Speed : 45-60m/min
Port : Tianjin
Metal Stud Maker Machine
Metal Stud Maker Machine

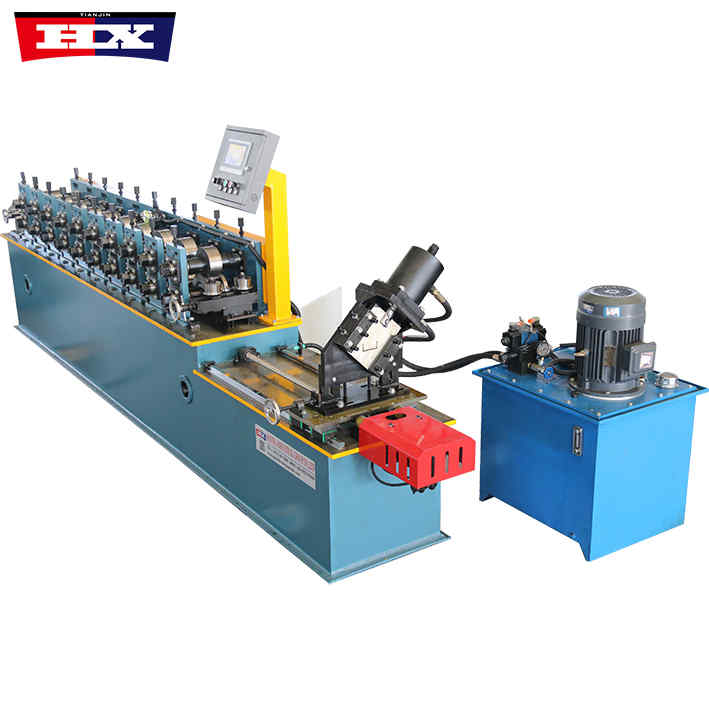

The light keel roll forming machine is a machine specially used for manufacturing light steel keels. Its functions mainly include the following aspects:
1. Cutting function: The metal stud maker machine can cut keel materials conveniently and quickly, without requiring a lot of time and labor costs required by traditional manual cutting, and improving production efficiency.
2. Pressing function: The metal stud maker machine can press the flat light steel material into the required model and angle, ensuring the accuracy and consistency of the material, making the keels more closely connected, and improving the overall structural strength.
3. Bending function: The metal stud maker machine can bend the flat light steel keel material according to the required angle and length, and the processed products can be used as needed.
Metal Stud Maker Machine
Specification
No. |
Number |
Metal Stud Maker Machine |
| 1. | Suitable to process |
Color alu zinc steel coils |
| 2. | Transfer method | Gear transmission |
| 3. | Base frame | Type 300 Channel Steel Frame Welding Panel thickness 2mm, Q235 iron plate material (gantry milling plane processing) |
| 4 | Main frame | Square steel frame |
| 5. | Dimensions | 6*1.2*1.6m |
| 6. | Board size |
Memorial arch, thickness 35 mm (double bearings on front and rear arches) |
| 7. | Weight | About 3.5t |
| 8. | Produce speed | 45-60m/min |
| 9. | Engine power | 5.5Kw, the motor includes a type K reducer |
| 10. | Pump station engine | 5.5kw |
| 11. | Thickness of plate | 0.4-1.2mm |

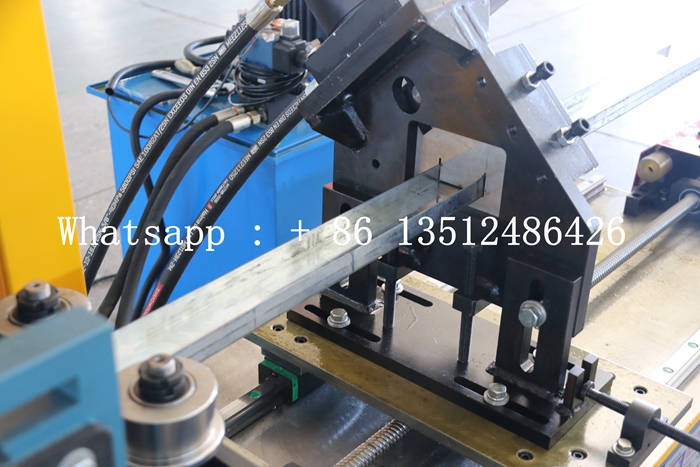

| 12. | Cutting shape | Servo track cutting system 2.3kw servo motor power Platform track cut 30×30, ball screw diameter 3mm |
| 13. | Roller diameter | Φ50mm |
| 14. | Spacer | Φ70mm |
| 15. | Control system | PLC control ( Delta ) |
| 16. | Touch screen | Delta |
| 17. | Rolling stock | Cr12 steel bearing |
| 18. | Rows | 10 |
| 19. | Length tolerance | ±2mm |
| 20. | Voltage |
380v 50hz 3p or as customers ' requirement |
Application
1. In the construction field, light steel frame machine can be used to manufacture light steel keels, such as ceiling keels, wall keels, etc., which improves the quality and life of the building.
2. In the manufacturing field, light steel frame machine can be used to manufacture various metal products, such as auto parts, kitchen supplies, etc., greatly improving production efficiency and quality.
Advantages
1. Efficient: It is driven by a hydraulic system, which greatly improves production efficiency and reduces labor costs.
2. Precision: Using molds for stamping can produce high-precision and high-quality keel products.
3. Energy saving: The hydraulic system can completely recycle hydraulic energy to achieve energy saving effects.
