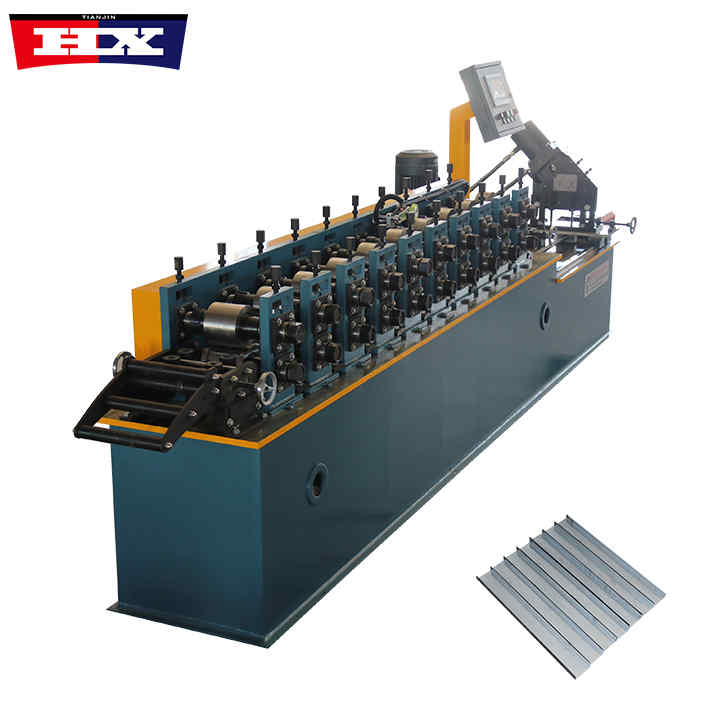

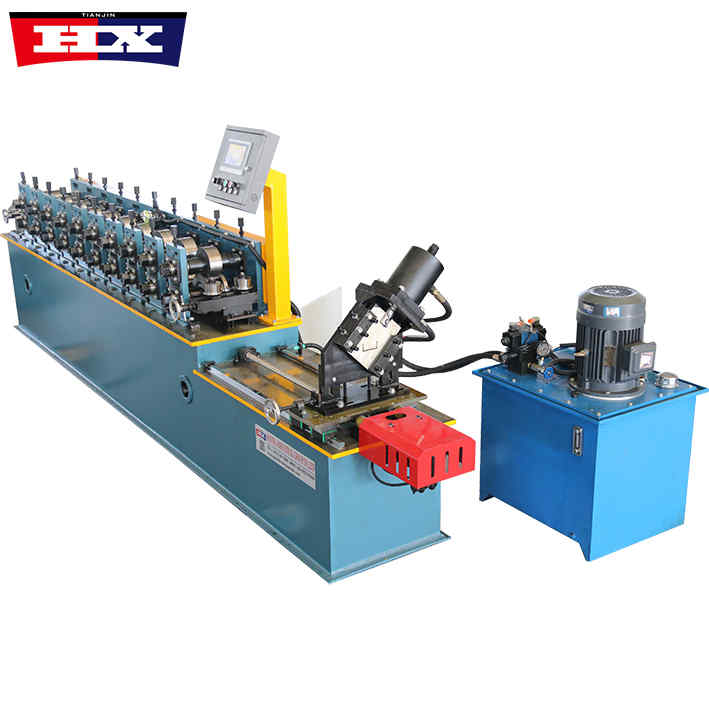

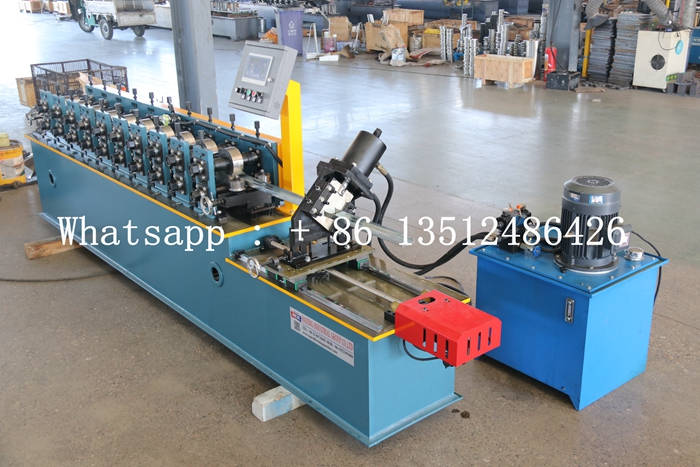

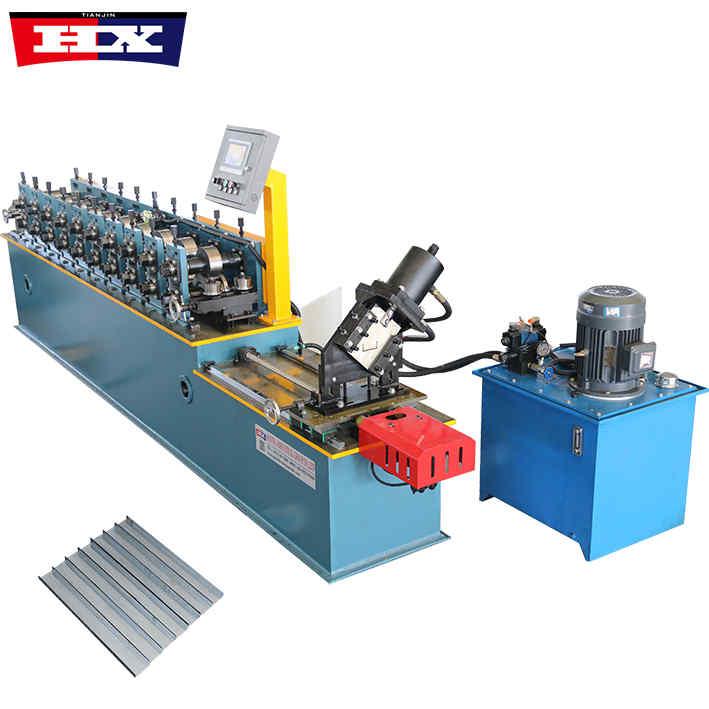

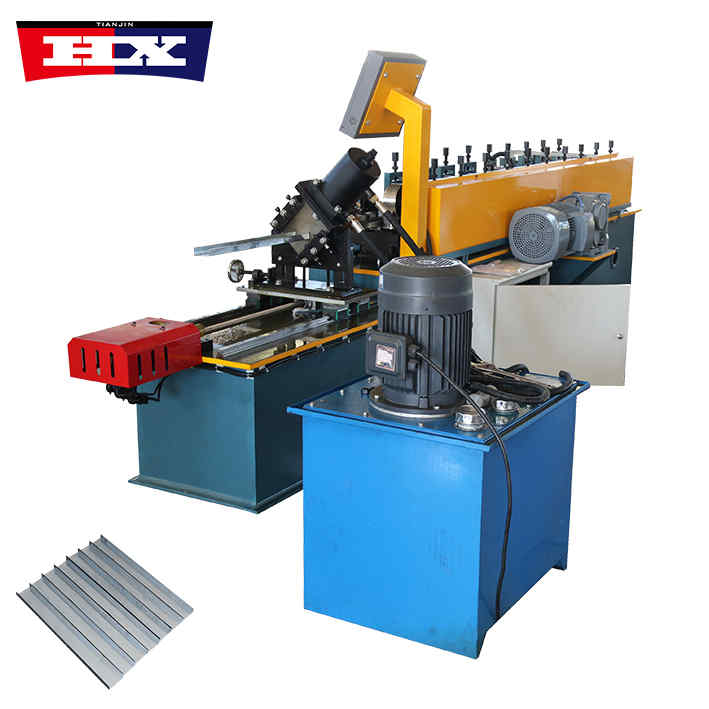

Metal Stud Making Machine
Metal Stud Making Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.4-1.2mm
Produce Speed : 45-60m/min
Port : Tianjin

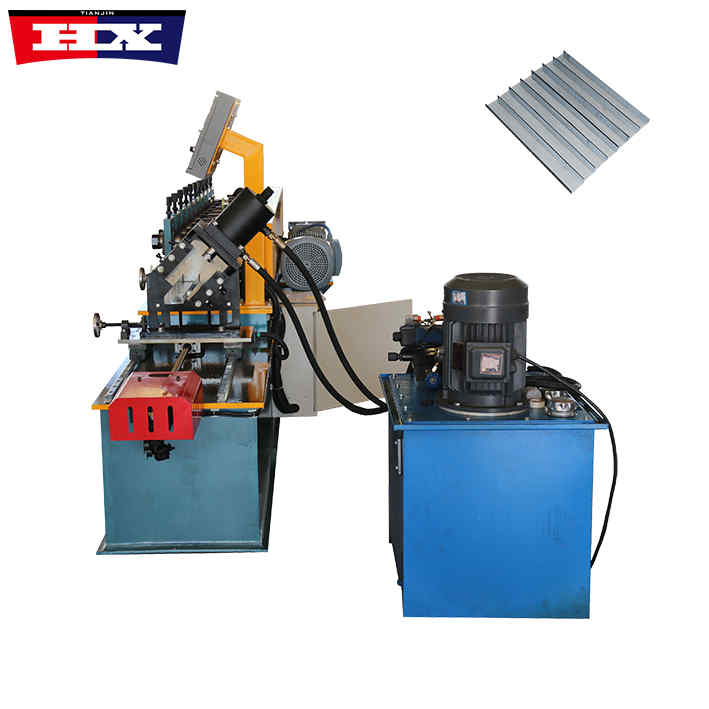

Metal Stud Making Machine
Metal Stud Making Machine
The metal stud making machine is a tool for manufacturing light steel keel structures. The metal stud making machine is mainly made of lightweight steel structure materials. After certain technical requirements, the steel structure is made into the consumer's ideal keel machine style. They can be used in major factories for cold bending operations. Have very good bending capabilities, and they flatten very well as well. Smart devices can automatically punch holes and automate. With cold bending machines for these materials, users can greatly reduce their labor force. Save time and improve work efficiency.

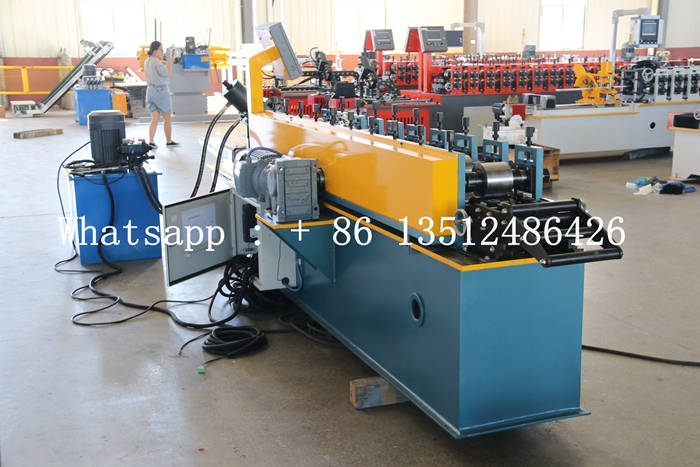

Metal Stud Making Machine
Specification
No. |
Number |
Metal Stud Making Machine |
| 1. | Suitable to process |
Color alu zinc steel coils |
| 2. | Transfer method | Gear transmission |
| 3. | Base frame | Type 300 Channel Steel Frame Welding Panel thickness 2mm, Q235 iron plate material (gantry milling plane processing) |
| 4 | Main frame | Square steel frame |
| 5. | Dimensions | 6*1.2*1.6m |
| 6. | Board size |
Memorial arch, thickness 35 mm (double bearings on front and rear arches) |
| 7. | Weight | About 3.5t |
| 8. | Produce speed | 45-60m/min |
| 9. | Engine power | 5.5Kw, the motor includes a type K reducer |
| 10. | Pump station engine | 5.5kw |
| 11. | Thickness of plate | 0.4-1.2mm |

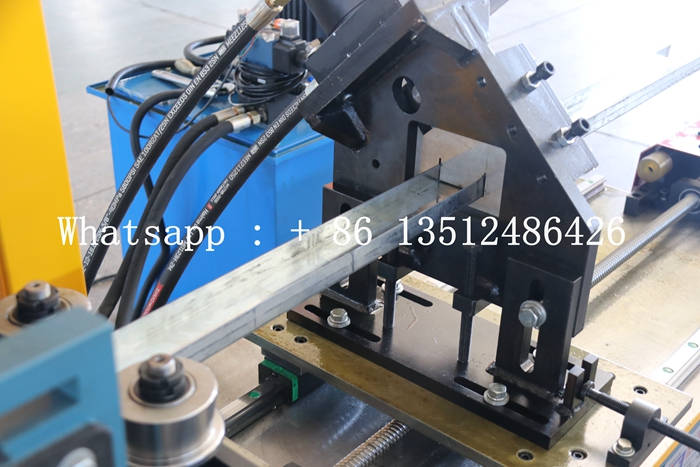

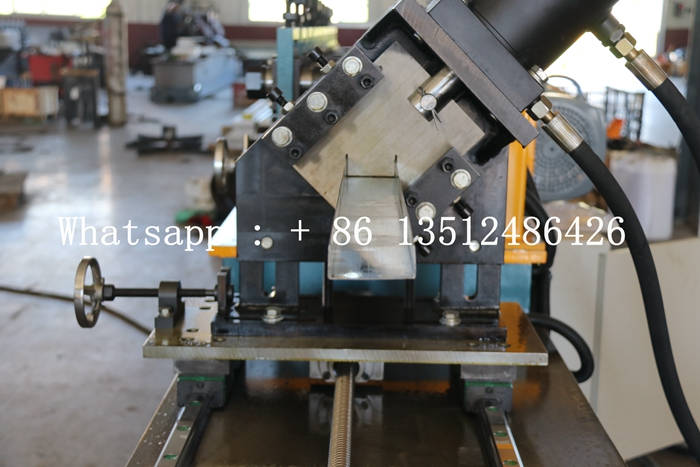

| 12. | Cutting shape | Servo track cutting system 2.3kw servo motor power Platform track cut 30×30, ball screw diameter 3mm |
| 13. | Roller diameter | Φ50mm |
| 14. | Spacer | Φ70mm |
| 15. | Control system | PLC control ( Delta ) |
| 16. | Touch screen | Delta |
| 17. | Rolling stock | Cr12 steel bearing |
| 18. | Rows | 10 |
| 19. | Length tolerance | ±2mm |
| 20. | Voltage |
380v 50hz 3p or as customers ' requirement |
Advantages
1. The metal stud making machine has high quality, high strength, light texture, long durability, and will not deform after long-term use, ensuring the smooth production process of the machine.
2. The metal stud making machine can provide customers with a set of professional machine production solutions, whether it is machine problems such as price, configuration, accuracy, production speed, or production problems such as online punching and online welding.
3. The processing efficiency of the metal stud making machine is 45-60m/min.
4. The processing error of the metal stud making machine is controlled within ±2mm.
5. The metal stud making machine will be debugged and tested by professional engineers before being shipped. Through these professional after-sales service teams, metal stud making machine stands out among many similar products, and its products are distributed all over the world.
