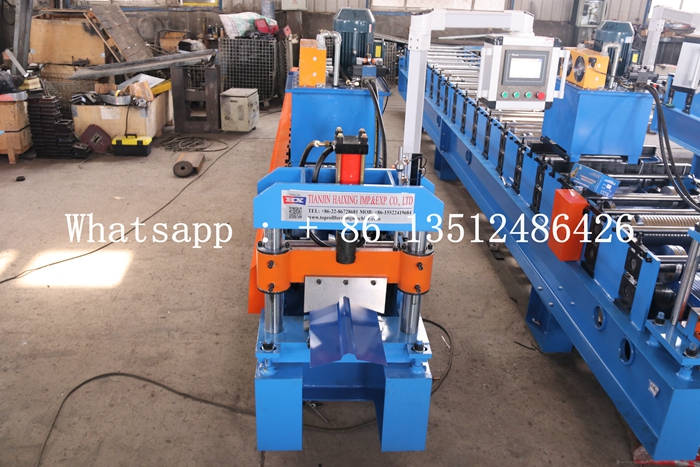

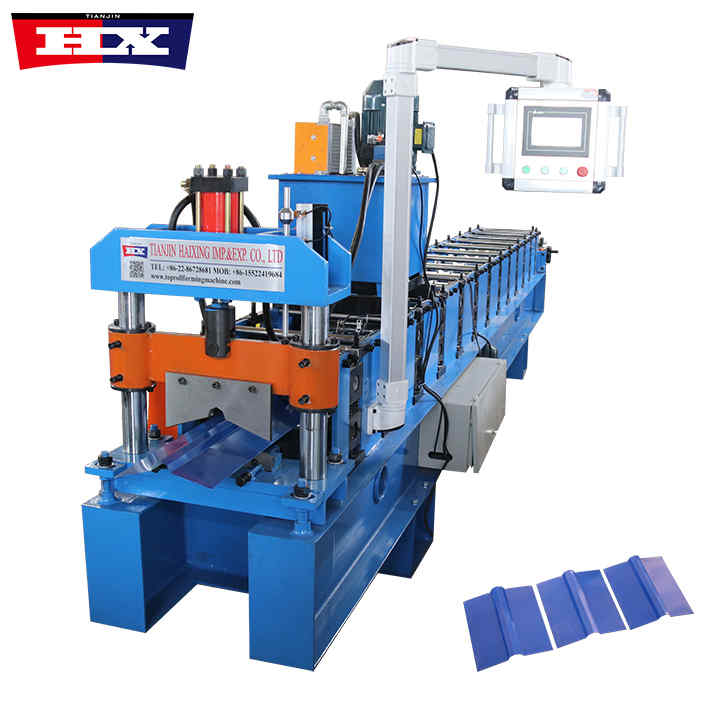

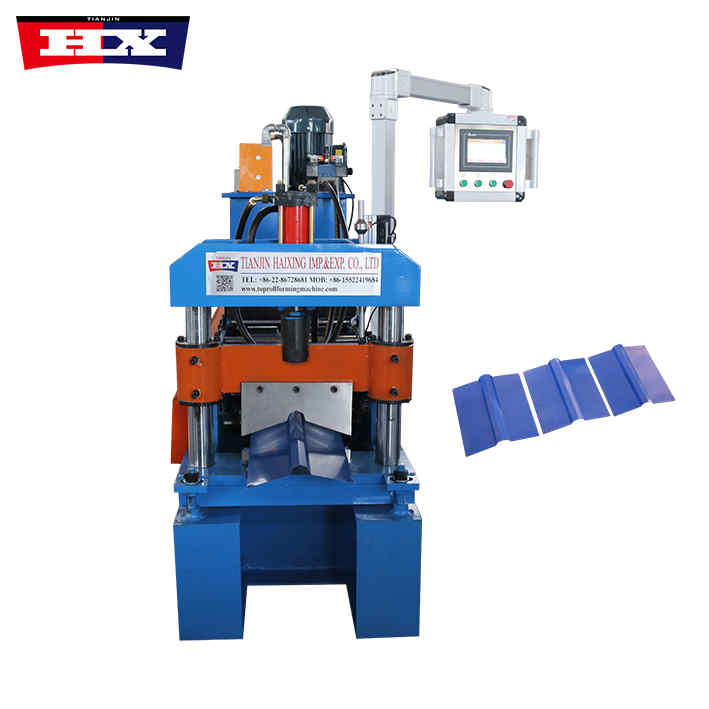

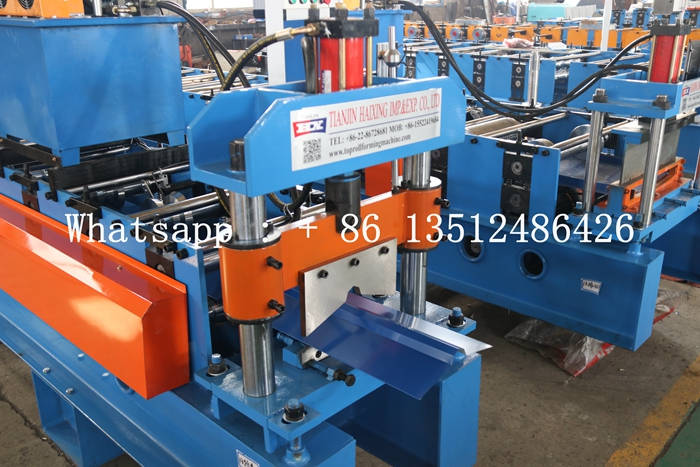

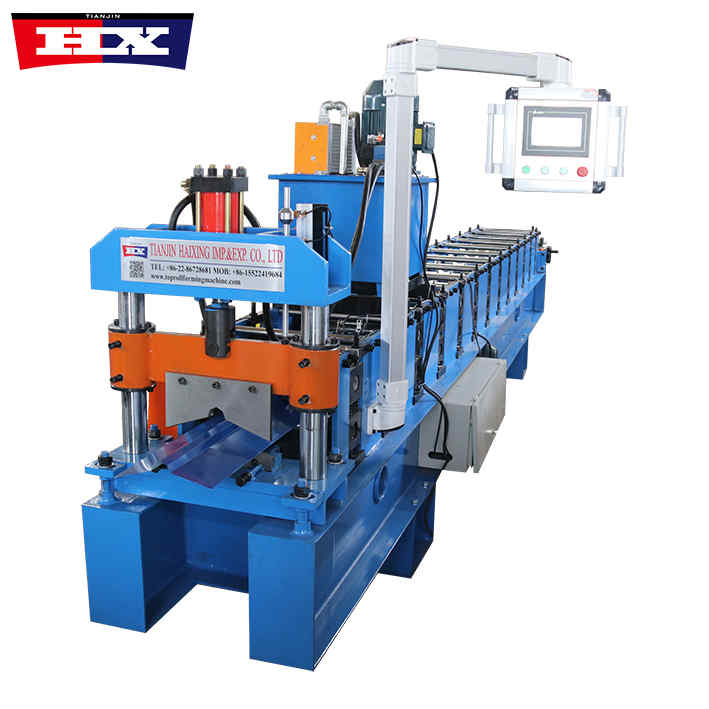

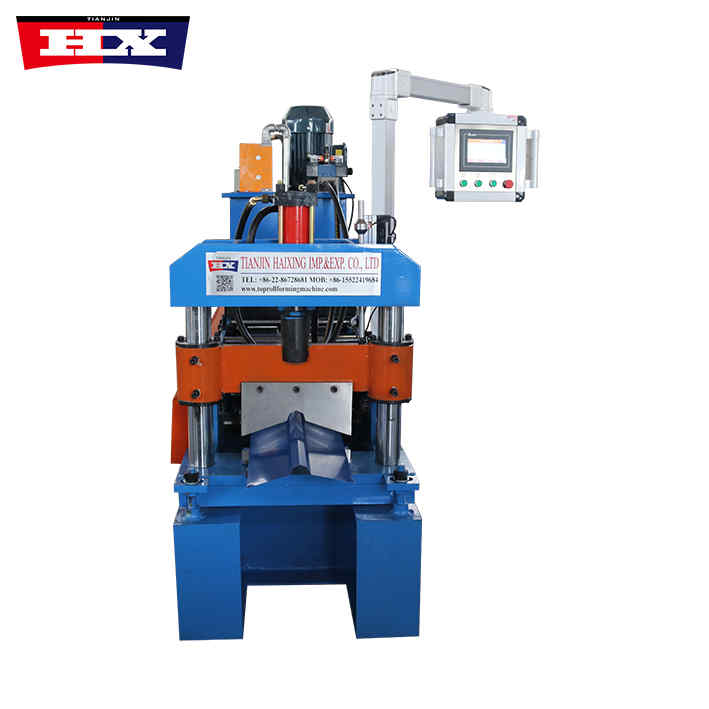

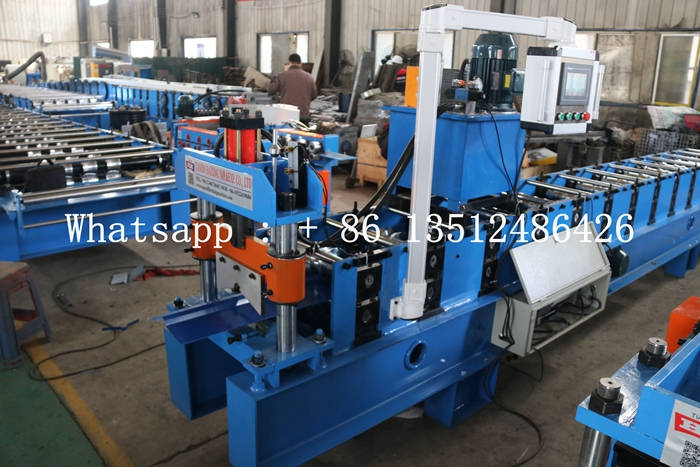

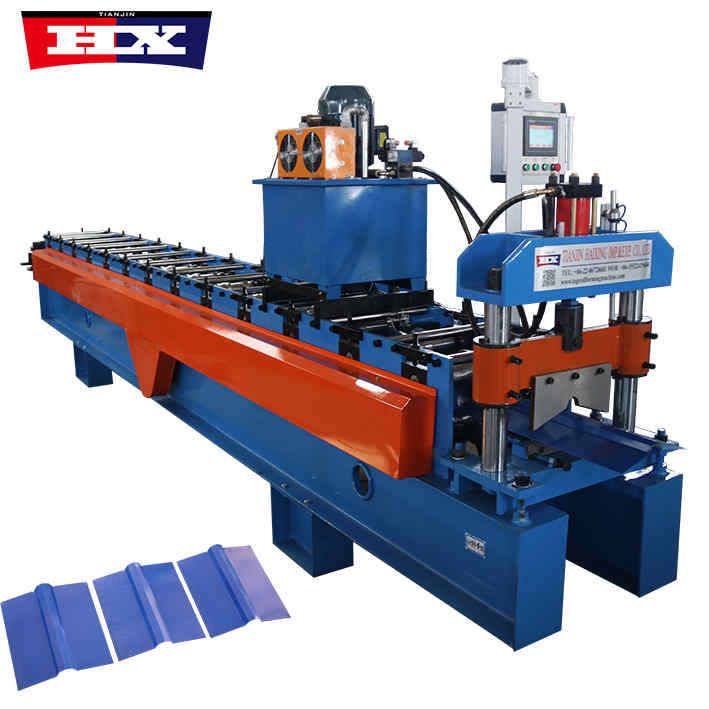

Ridge Cap Machine
Ridge Cap Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Ridge Cap Machine
Ridge Cap Machine

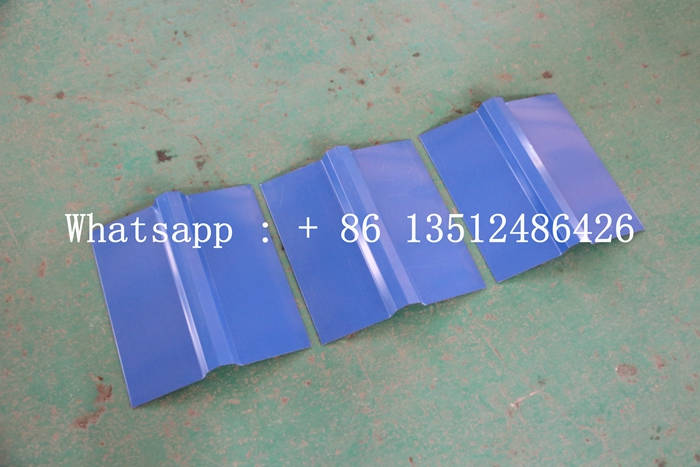

1. Wave ridge tiles
Corrugated ridge tile is a common type of ridge tile with a wavy surface. Its main feature is that it has good waterproofing effect and is suitable for houses with a large slope.
2. Flat ridge tiles
Flat ridge tile is a flat ridge tile with no unevenness on its surface. Its main feature is low wind resistance, so it is suitable for houses in areas with low wind force.
3. Tubular ridge tiles
Barrel ridge tile is a cylindrical ridge tile whose shape is similar to the top of a chimney. Its main feature is good drainage and is suitable for houses with large slopes.
4. Fish scale roof tiles
Fish-scale ridge tile is a fish-scale ridge tile. Its main features are beautiful appearance and excellent waterproof performance. It is suitable for villa-style buildings.
Ridge Cap Machine
Specification
No. |
Number |
Ridge Cap Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 13 |
| 19. | Size | 6500mm*1500mm*1600mm |
| 20. | Weight | 4000kg |
