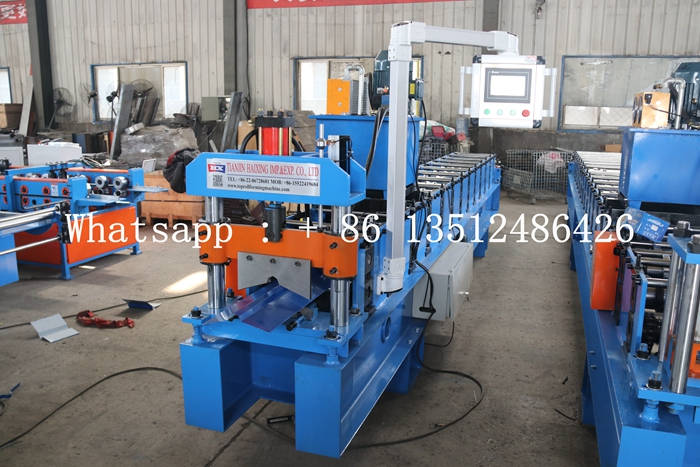

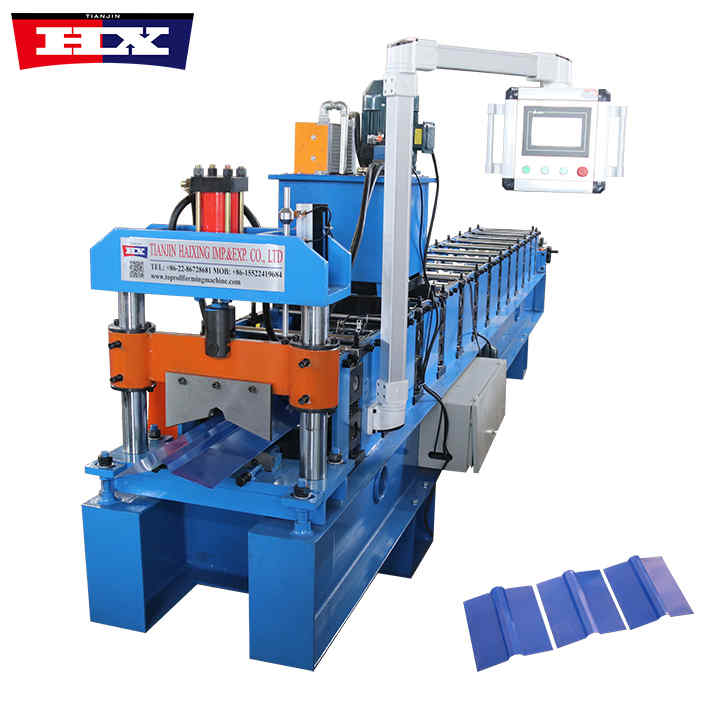

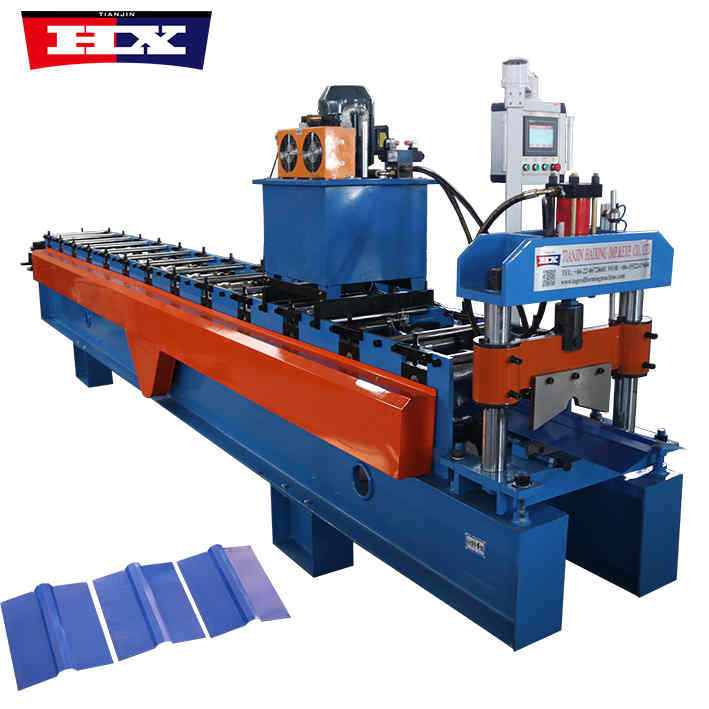

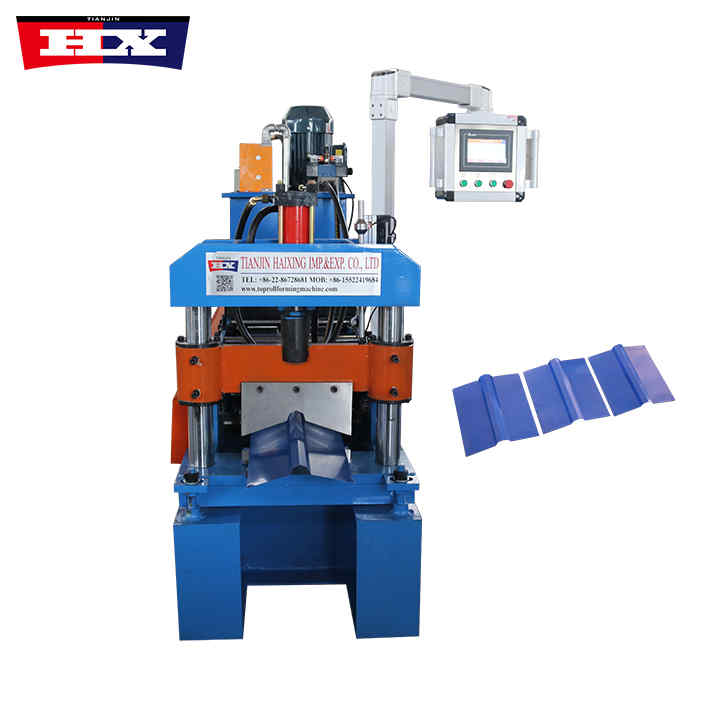

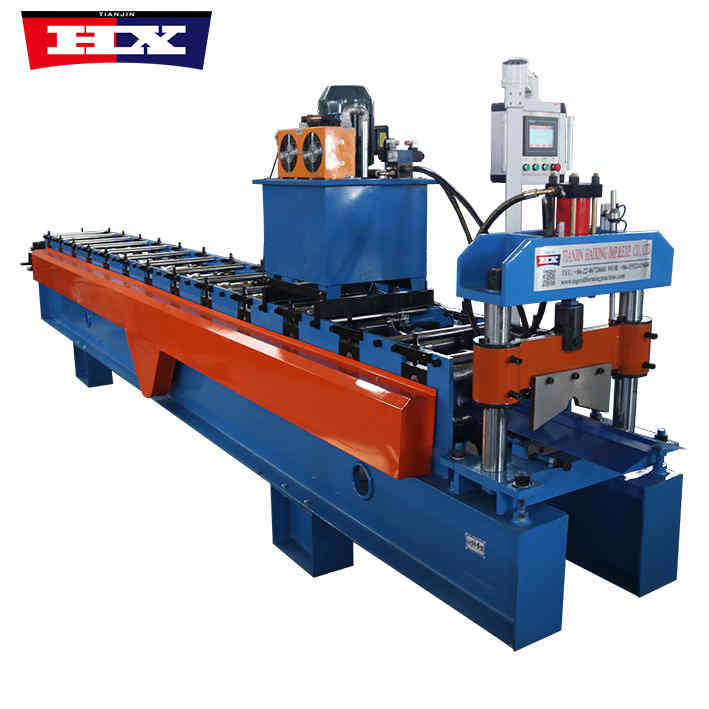

Ridge Cap Roll Forming Machine
Ridge Cap Roll Forming Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Ridge Cap Roll Forming Machine
Ridge Cap Roll Forming Machine

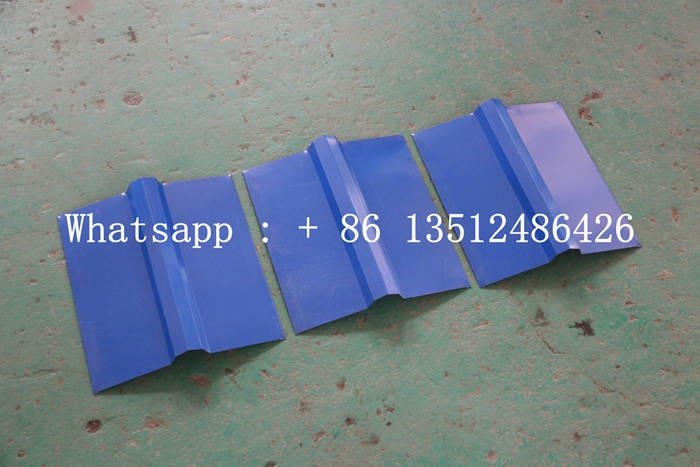

The ridge cap roll forming machine is a piece of equipment widely used in the construction field for making and processing ridge tiles.
The ridge cap roll forming machine mainly consists of a frame, a tile machine head, a reducer, an electric motor and a conveying device. Among them, the frame is the foundation of the entire machine, the tile head is the core component of making roof tiles, the reducer is used to reduce the speed of the motor, the motor is the power source of the entire machine, and the conveying device is responsible for transporting the finished roof tiles to the designated location.
Ridge Cap Roll Forming Machine
Specification
No. |
Number |
Ridge Cap Roll Forming Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |

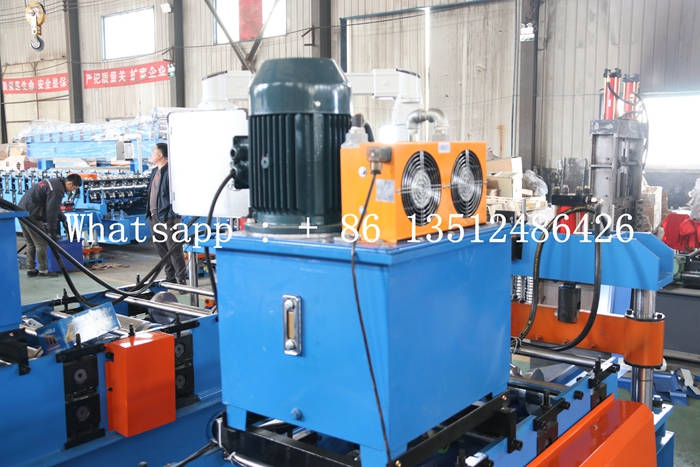

| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |

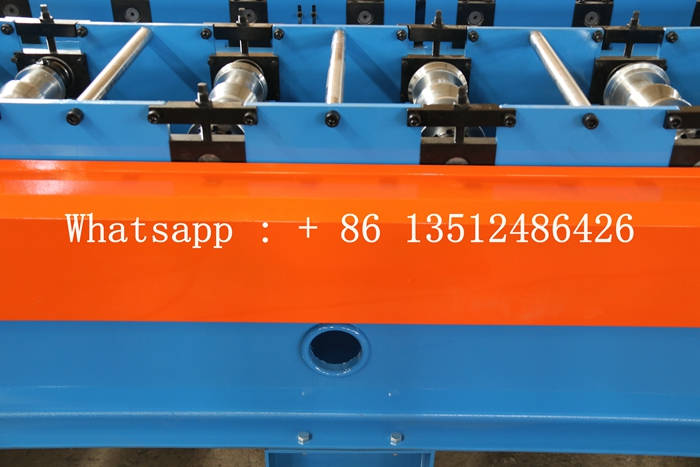

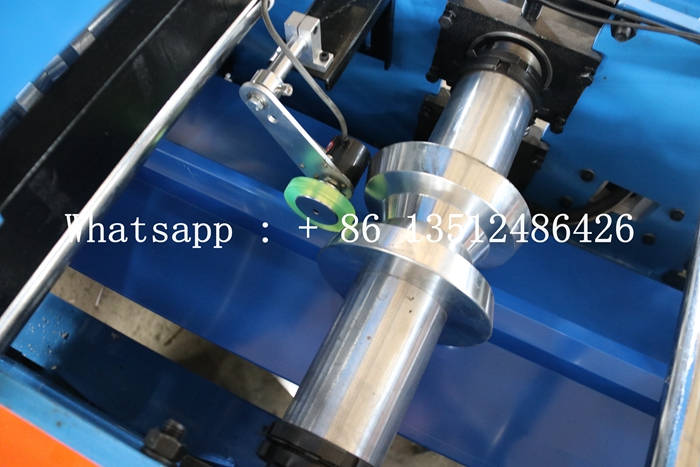

| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 13 |
| 19. | Size | 6500mm*1500mm*1600mm |
| 20. | Weight | 4000kg |
Features
1. Improve production efficiency: The ridge cap roll forming machine can quickly produce ridge tiles and improve production efficiency.
2. Improve product quality: The ridge tiles produced by the ridge cap roll forming machine have high flatness, which can improve product quality.
3. Reduce labor intensity: Using a ridge cap roll forming machine can reduce the labor intensity of workers and improve work efficiency.
4. Reduce costs: Using a ridge cap roll forming machine can reduce production costs and improve the profitability of the company.
