Roof Ridge Cap Machine
Roof Ridge Cap Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Roof Ridge Cap Machine
Roof Ridge Cap Machine

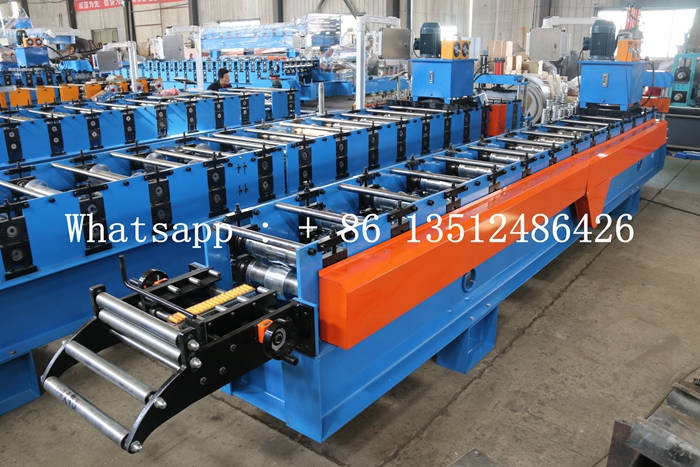

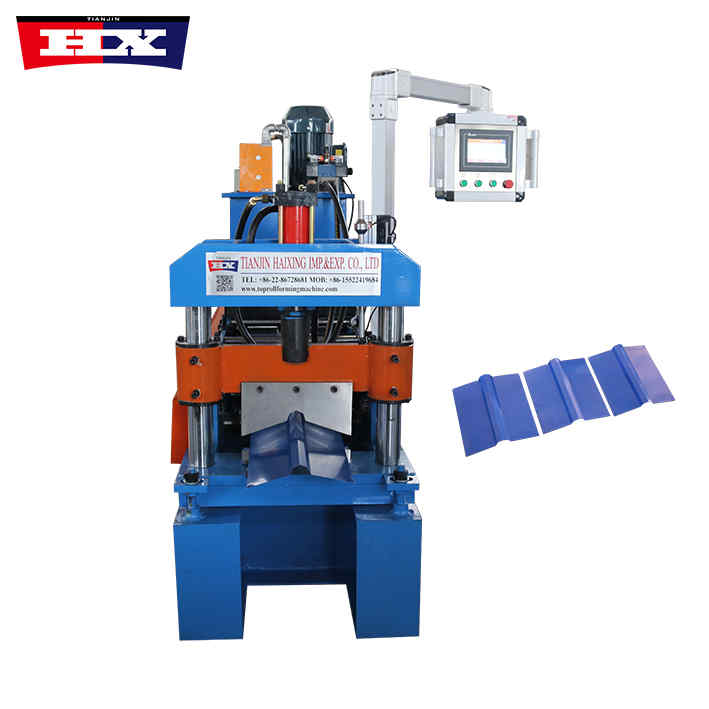

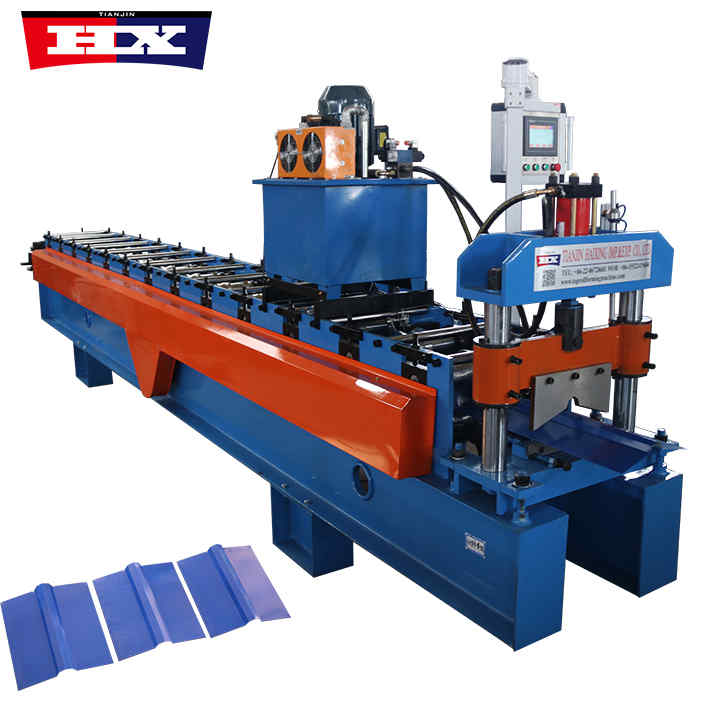

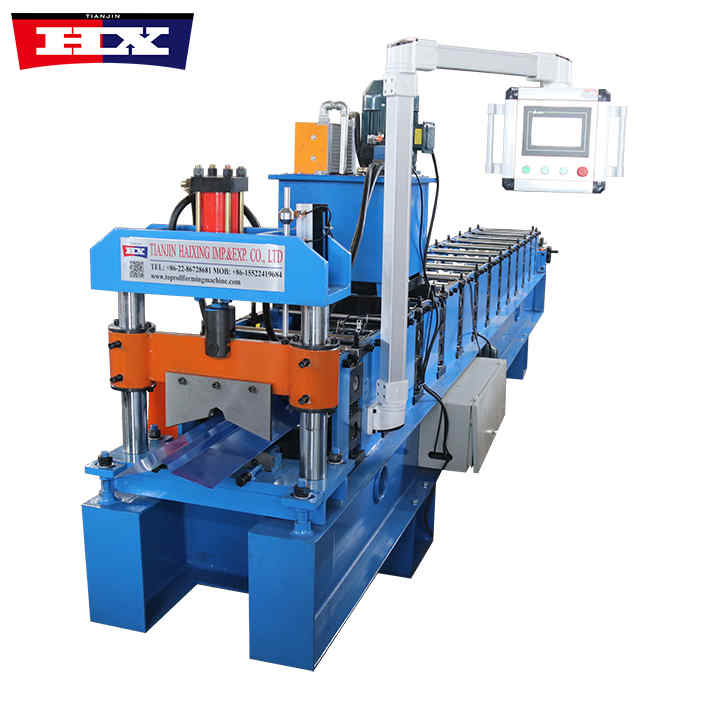

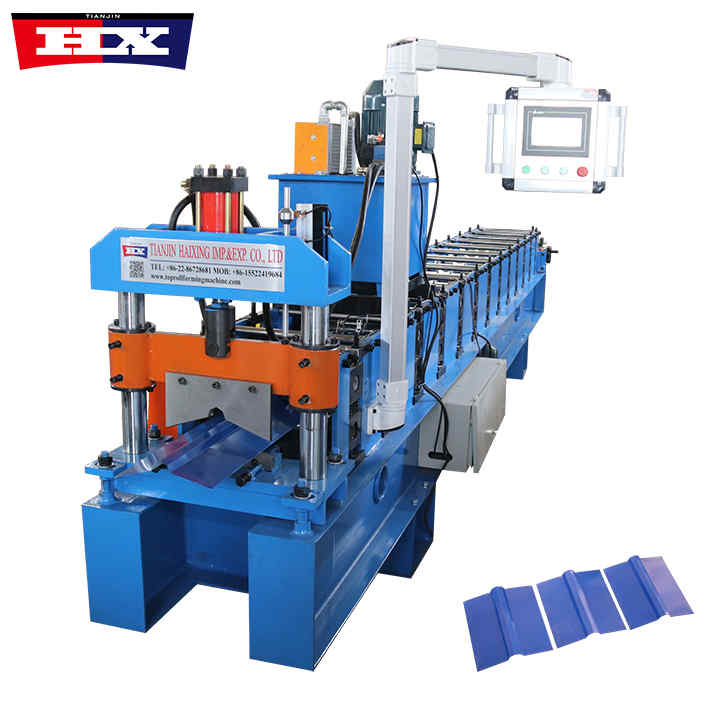

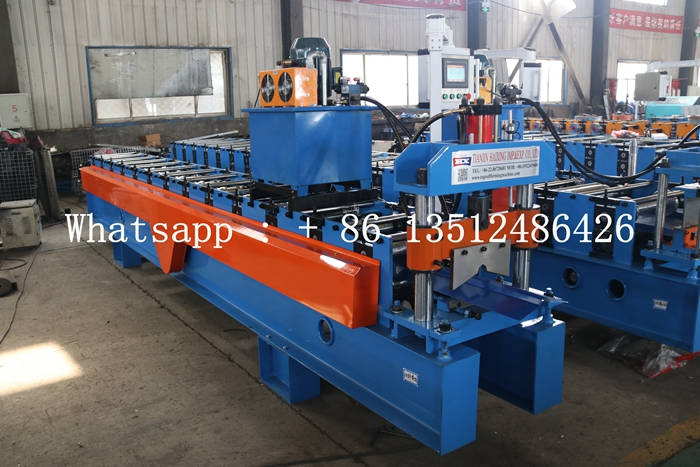

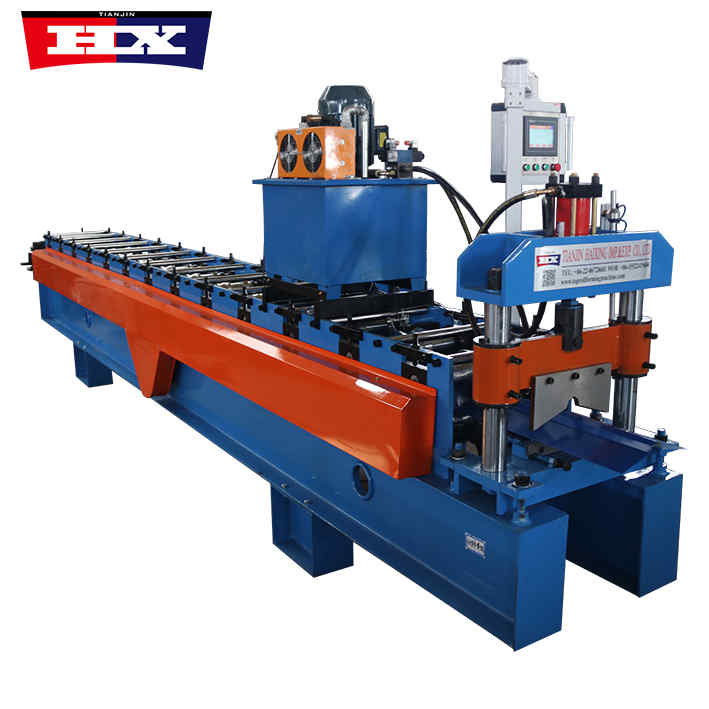

The ridge cap machine is a piece of equipment widely used in the construction field for making and processing ridge tiles.
The ridge cap machine mainly consists of a frame, a tile machine head, a reducer, an electric motor and a conveying device. Among them, the frame is the foundation of the entire machine, the tile head is the core component of making roof tiles, the reducer is used to reduce the speed of the motor, the motor is the power source of the entire machine, and the conveying device is responsible for transporting the finished roof tiles to the designated location.
Roof Ridge Cap Machine
Specification
No. |
Number |
Ridge Cap Roll Forming Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |

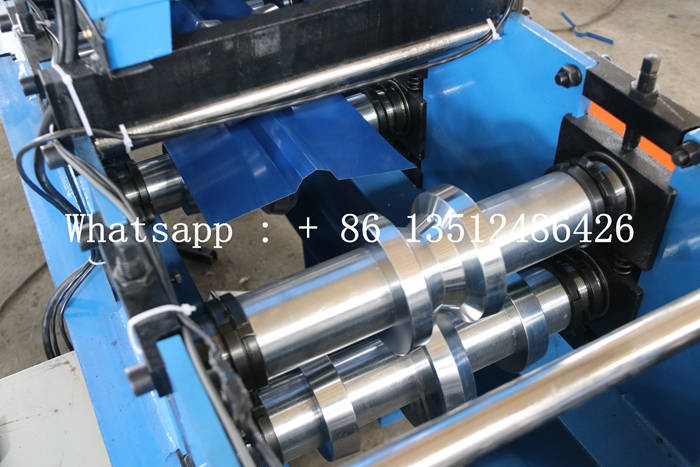

| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 13 |
| 19. | Size | 6500mm*1500mm*1600mm |
| 20. | Weight | 4000kg |

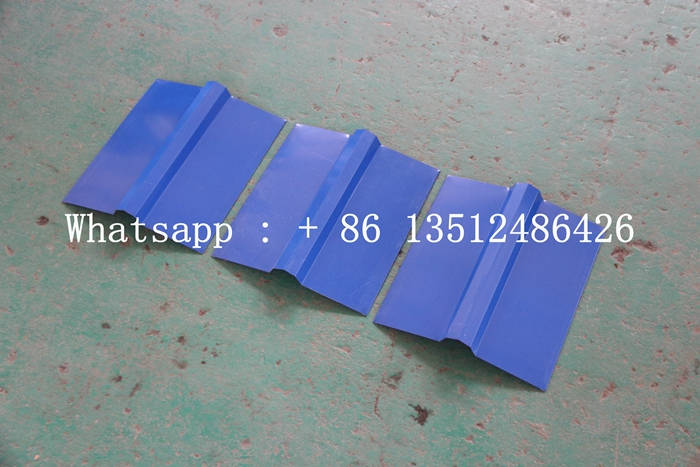

Advantages
(1) Good thermal insulation effect
The thermal conductivity of color steel ridge tiles is only 1/5 of that of ordinary clay tiles. Without an insulation layer, the thermal insulation performance of color steel ridge tiles can still be optimal.
(2) Large bearing capacity
Color steel ridge tiles are made of color-coated steel plates, so they have better bearing capacity. And in harsh environments, even if there is often snow on the roof, the tile surface will not be damaged or broken.
(3) Long-lasting color
Color steel ridge tiles are pressed from color-coated steel plates, so there is no need to paint the surface. In this way, the color steel ridge tiles have extraordinary durability in the natural environment and can maintain color stability even in harsh environments.
(4)Waterproof
The color steel ridge tile is made of metal, so it has low density and does not absorb water, so there is no problem of micropore water seepage. In addition, the color steel ridge tiles have a large single area, few roof joints, and tight overlap joints, so the waterproofing effect is enhanced.
