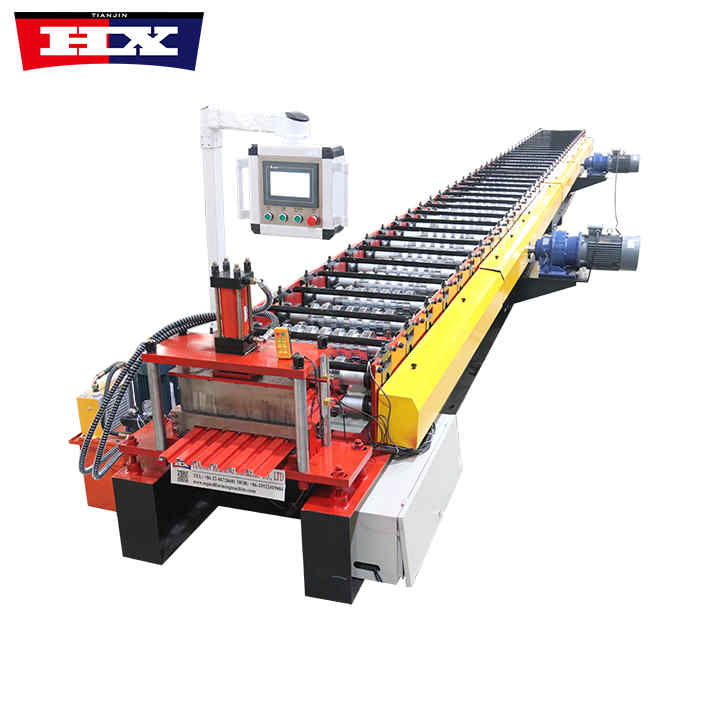

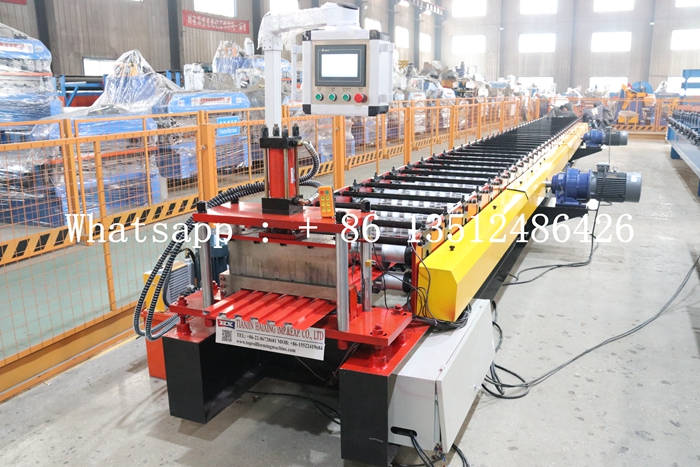

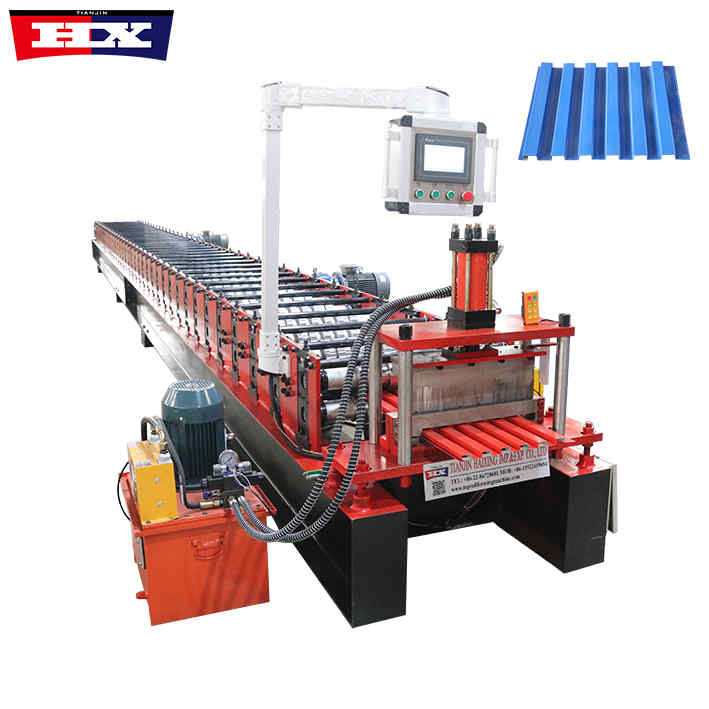

Trapezoidal Roof Sheet Roll Forming Machine
Trapezoidal Roof Sheet Roll Forming Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin

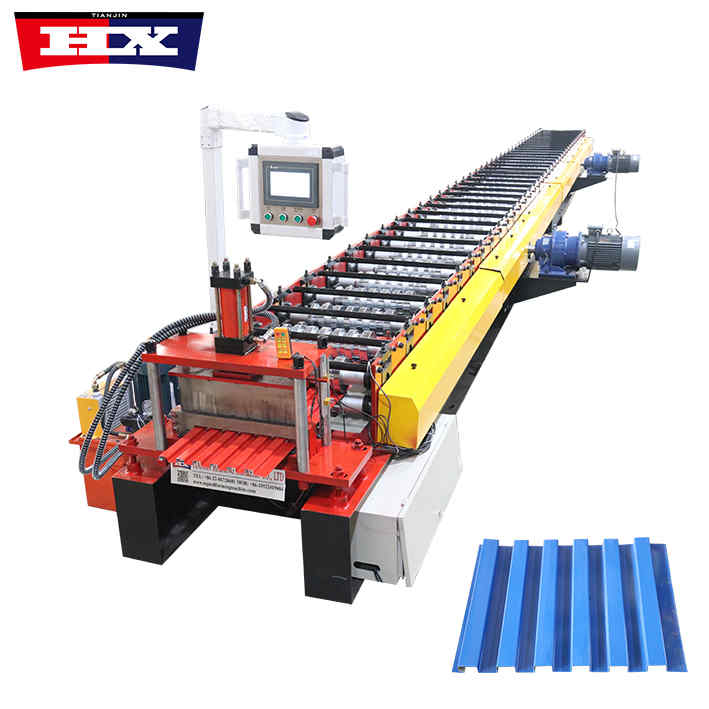

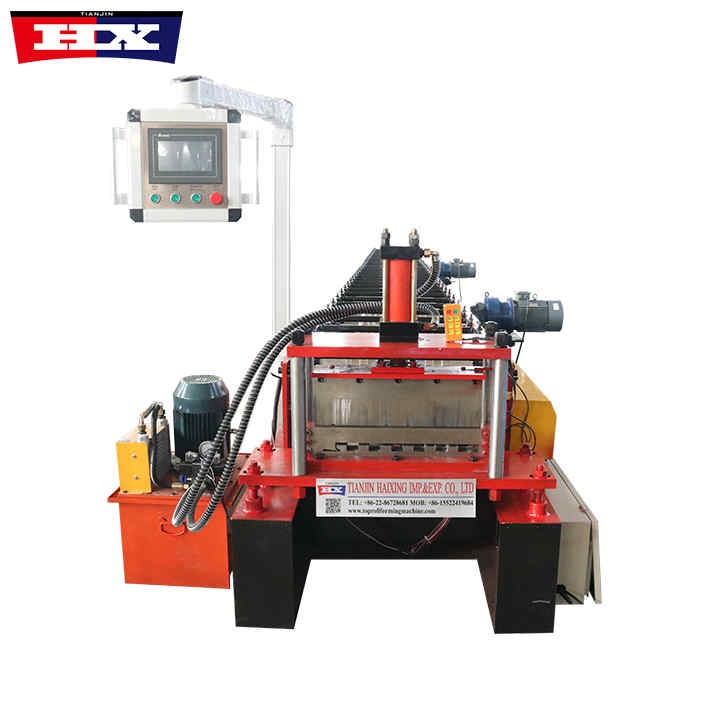

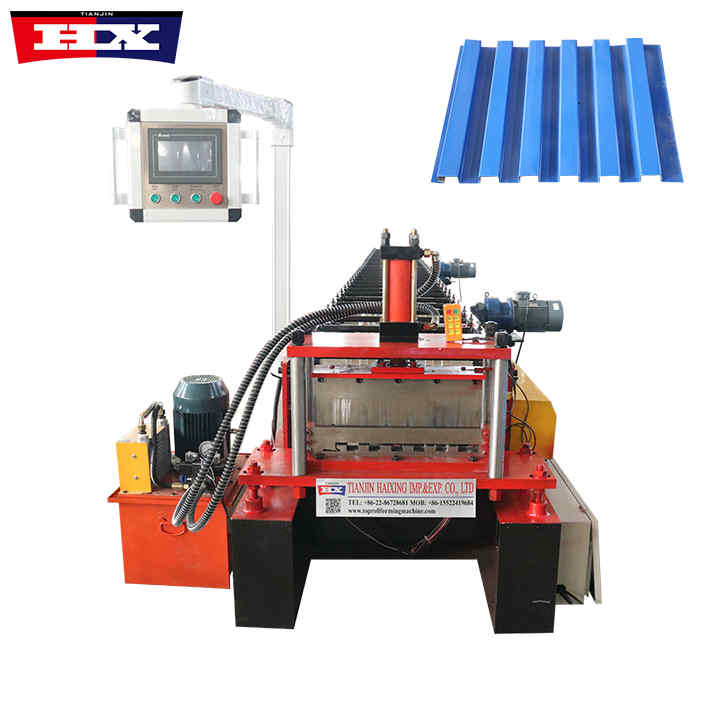

Trapezoidal Roof Sheet Roll Forming Machine
Trapezoidal Roof Sheet Roll Forming Machine
1. Application of trapezoidal roof sheet roll forming machine
Trapezoidal roof sheet roll forming machine designed to produce various types of tiles. It can be used to produce various types of building materials such as roof tiles, wall tiles, and floor tiles of different materials. The trapezoidal metal roofing machine can shape different tile materials. It has the advantages of beautiful appearance, durability and easy maintenance. It is an indispensable equipment in the construction industry.
2. Structure and working principle of trapezoidal roof sheet roll forming machine
Generally speaking, a tile press is mainly composed of a feeding system, a hydraulic system, a forming system, a cutting system, an electrical system, etc.
The working principle of the trapezoidal roof sheet roll forming machine is to press and punch metal or other materials through forming rollers, and finally shape them into the required tile shape. The entire molding process is regulated through a pressure control system to control the hydraulic pressure of each part to ensure the uniformity and coordination of the final molding.
Trapezoidal Roof Sheet Roll Forming Machine
Specification
No. |
Number |
Trapezoidal Roof Sheet Roll Forming Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |

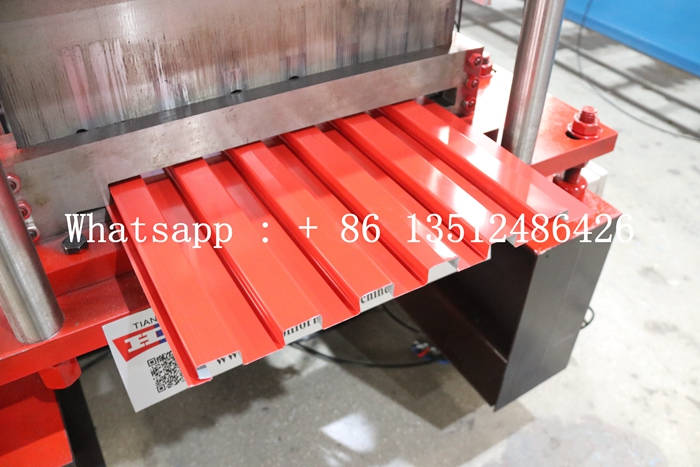

| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |

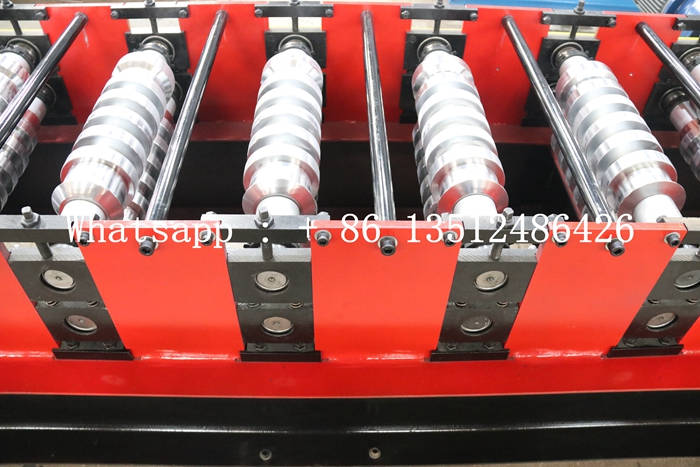

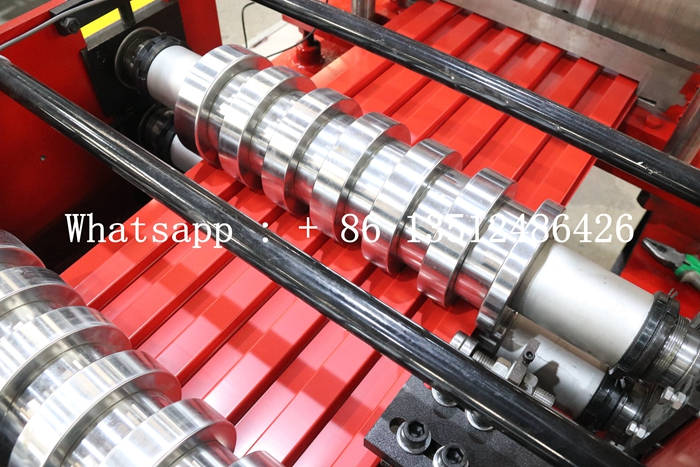

| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 35 |
| 19. | Size | 16000mm*1500mm*1600mm |
| 20. | Weight | 6000kg |
Application

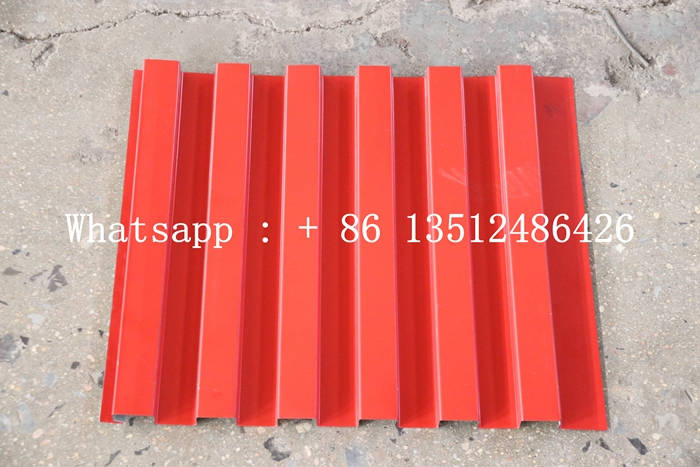

1. Construction industry: The trapezoidal sheet produced by the trapezoidal roof sheet roll forming machine are widely used in various types of building roofs, walls and other parts, such as flat roofs, pitched roofs, curved roofs, etc. Its diverse shapes and specifications can meet different building needs.
2. Decoration industry: The tiles produced by this trapezoidal roof sheet roll forming machine have exquisite appearance and texture and can be used for indoor and outdoor decoration, such as suspended ceilings, background walls, partitions, etc. In addition, the pressed metal products can also be used in the production of lamps, furniture and other products.
3. Household appliance industry: The metal panels produced by the trapezoidal roof sheet roll forming machine can be used for appearance parts of household appliances, such as refrigerators, washing machines, air conditioners, etc. Its high-quality appearance can effectively enhance the overall texture of the product.
4. Other fields: In addition to the above application fields, the trapezoidal roof sheet roll forming machine can also be used in automobile manufacturing, aerospace, electronic equipment manufacturing and other industries.
