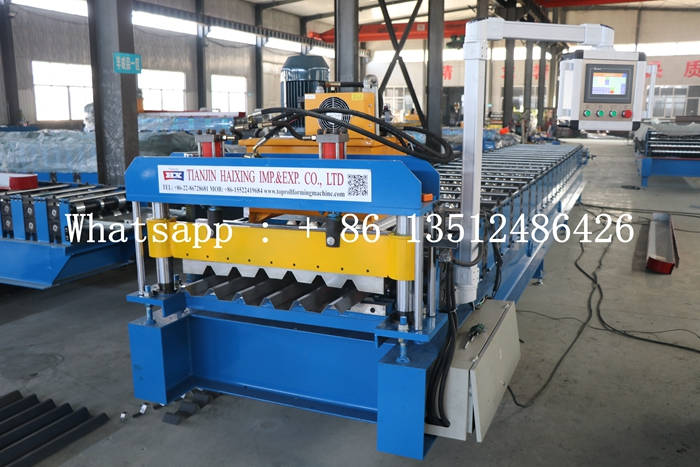

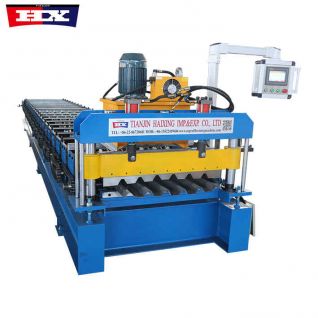

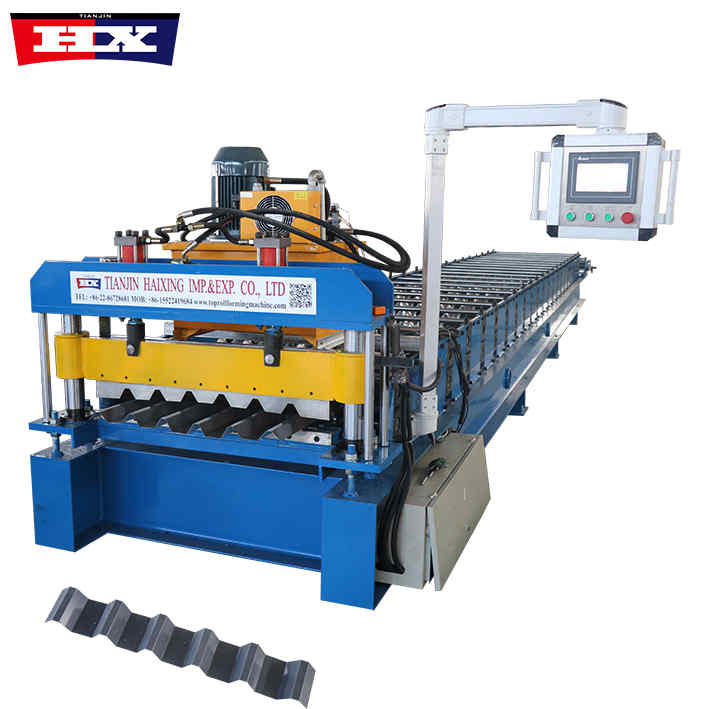

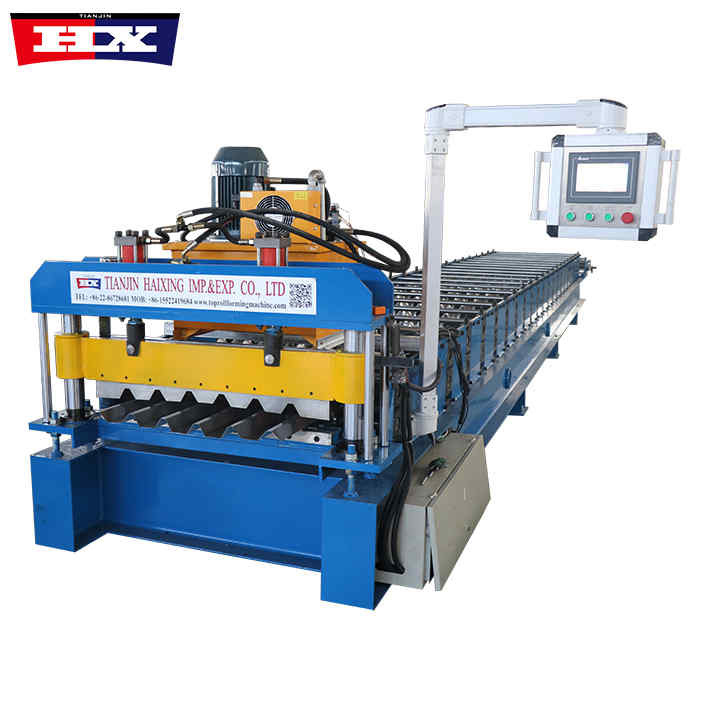

Trapezoidal Roof Tile Forming Machine
Trapezoidal Roof Tile Forming Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin

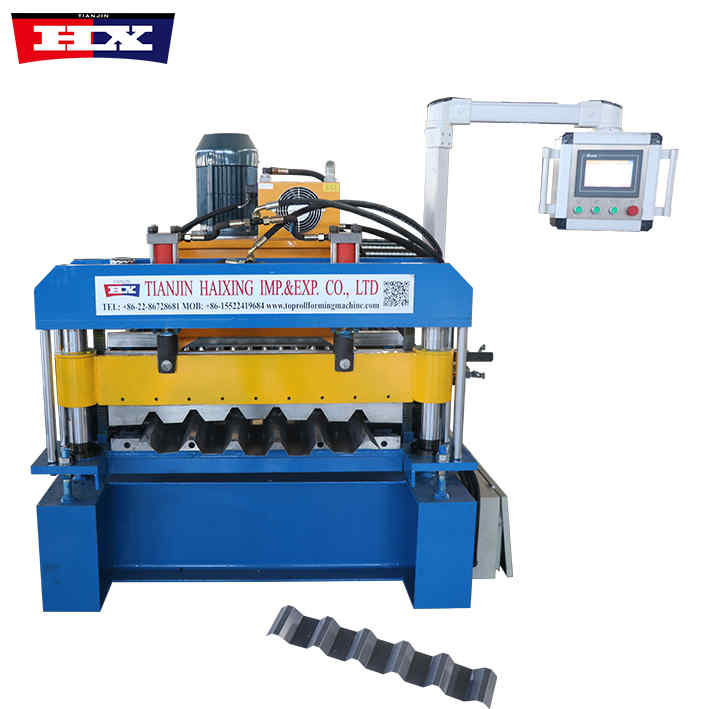

Trapezoidal Roof Tile Forming Machine

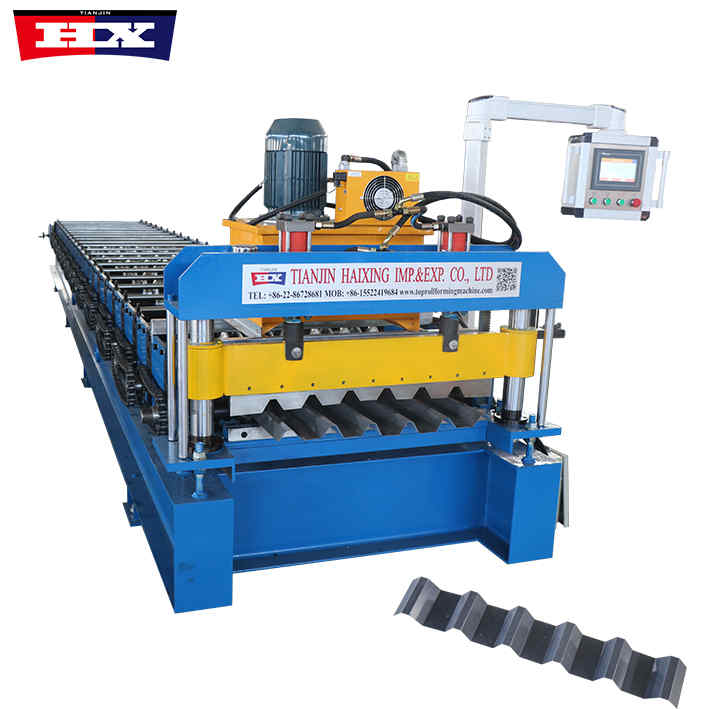

Trapezoidal Roof Tile Forming Machine
1. Efficient production: The roofing tile glazed machine adopts advanced pressing technology and can quickly and accurately complete the tile pressing work. The equipment is equipped with an efficient power system, which can achieve continuous and stable production, greatly improving production efficiency.
2. Diversified pressing: This roofing tile glazed machine has a variety of pressing molds, which can produce tiles of different specifications and shapes to meet different building needs. At the same time, users can also customize molds according to actual needs to achieve personalized production.
3. Easy to operate: The roofing tile glazed machine adopts a humanized operating interface and control system, making the operation easier and more intuitive. The equipment is also equipped with complete safety protection measures to ensure safety during operation.
4. Sturdy and durable: The roofing tile glazed machine adopts high-quality materials and advanced production technology, and has high wear resistance, corrosion resistance, impact resistance and other properties, ensuring the service life and stability of the equipment.
Trapezoidal Roof Tile Forming Machine
Specification
No. |
Number |
Trapezoidal Roof Tile Forming Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |

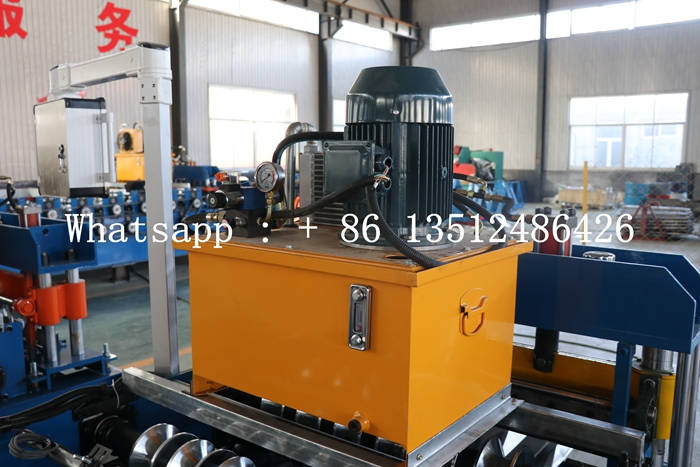

| 6. | Pump station | 4kw |

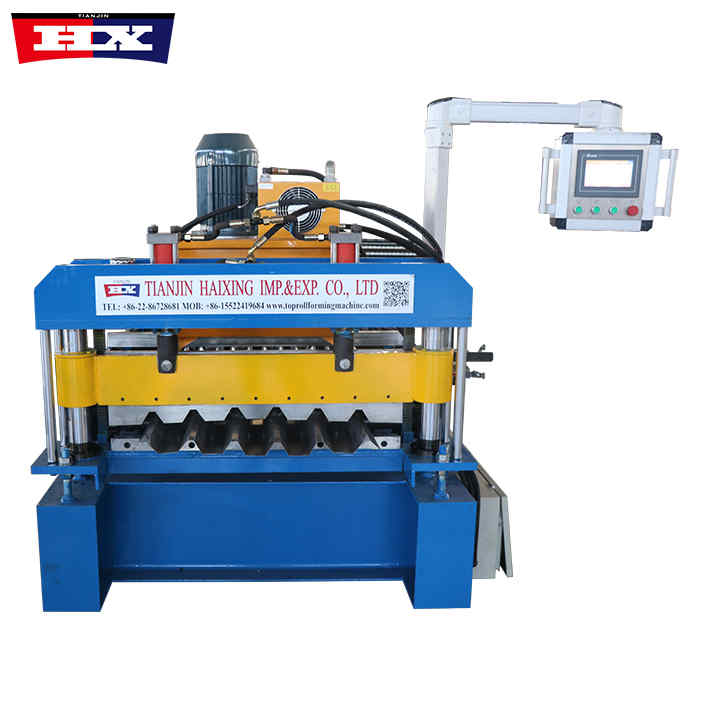

| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 22 |
| 19. | Size | 10500mm*1500mm*1600mm |
| 20. | Weight | 6000kg |
Advantages
1. Efficiency: The roofing tile glazed machine uses advanced mechanical principles to quickly process metal sheets, maximize work efficiency, significantly save manufacturing costs, and provide a faster and more labor-saving solution for the construction industry.
2. Stability: The roofing tile glazed machine is made of high-strength materials, which can maintain stability during the working process, effectively prevent irregular tiles and deformation of tiles caused by problems with the machine itself, and has long-term stability work performance.
3. Diversity: The mold of the roofing tile glazed machine is replaceable and can produce metal tiles of different shapes such as arcs, etc., providing the construction industry with more diversified and diversified choices, and satisfying different customers and different needs. Requirements for building needs.
4. Aesthetics: The metal tiles produced by the roofing tile glazed machine are rich in color, with a variety of colors to choose from, and have a beautiful and elegant appearance, providing the construction industry with more beautiful and high-quality building materials.
