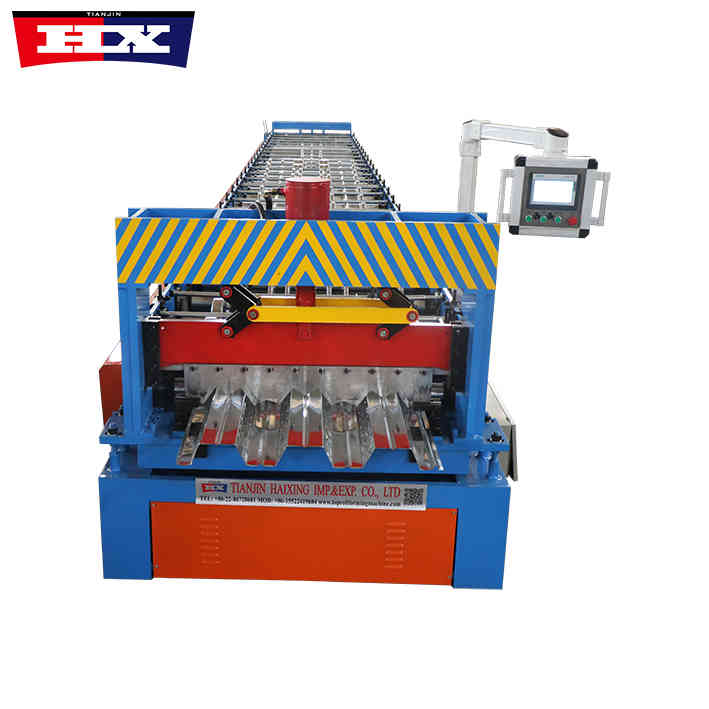

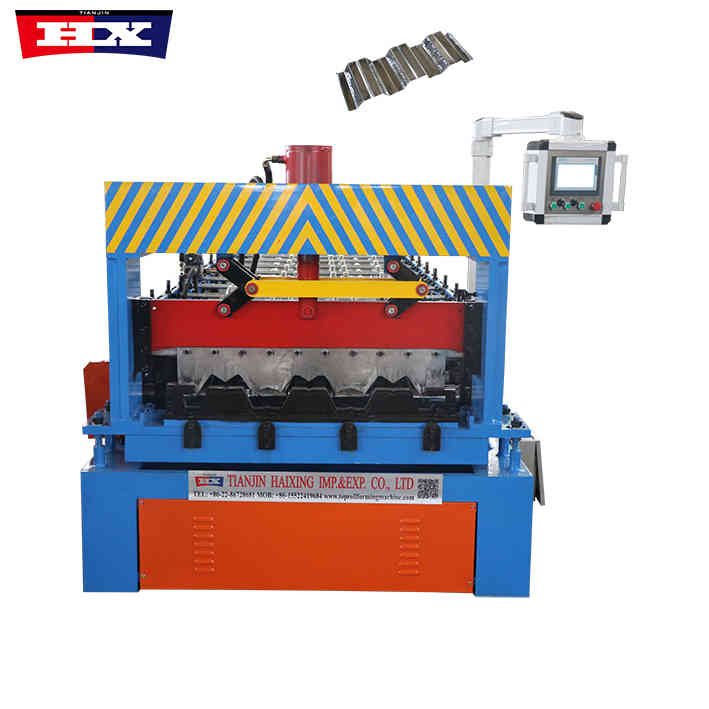

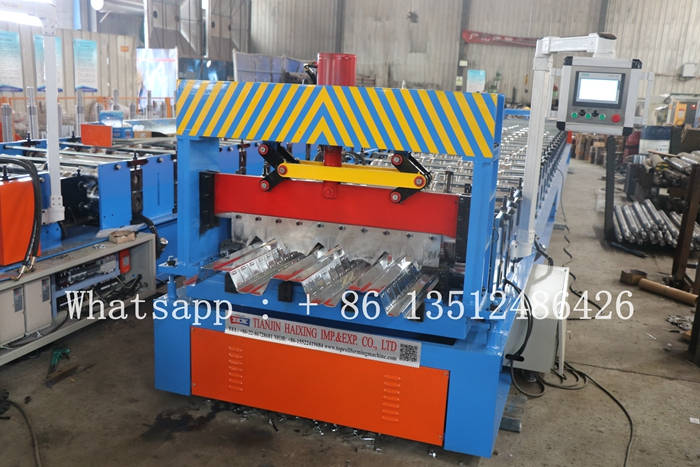

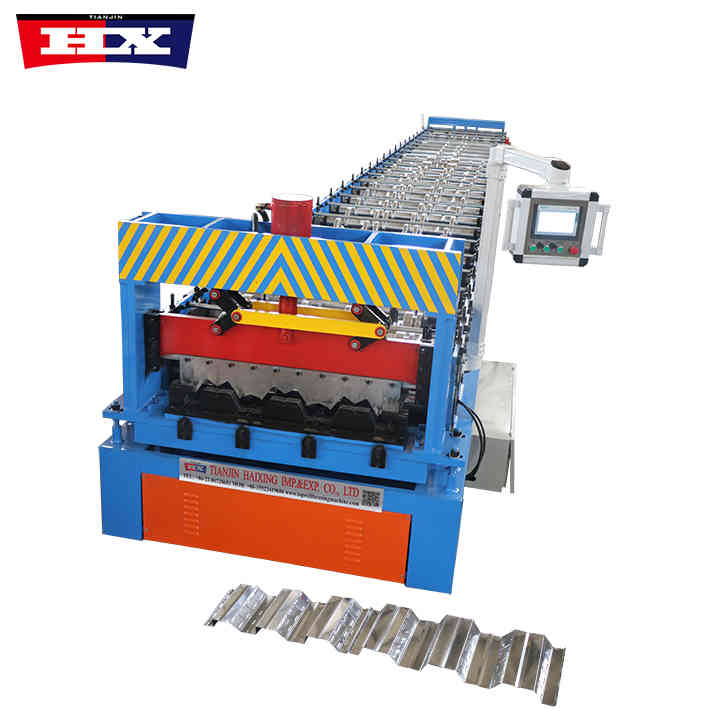

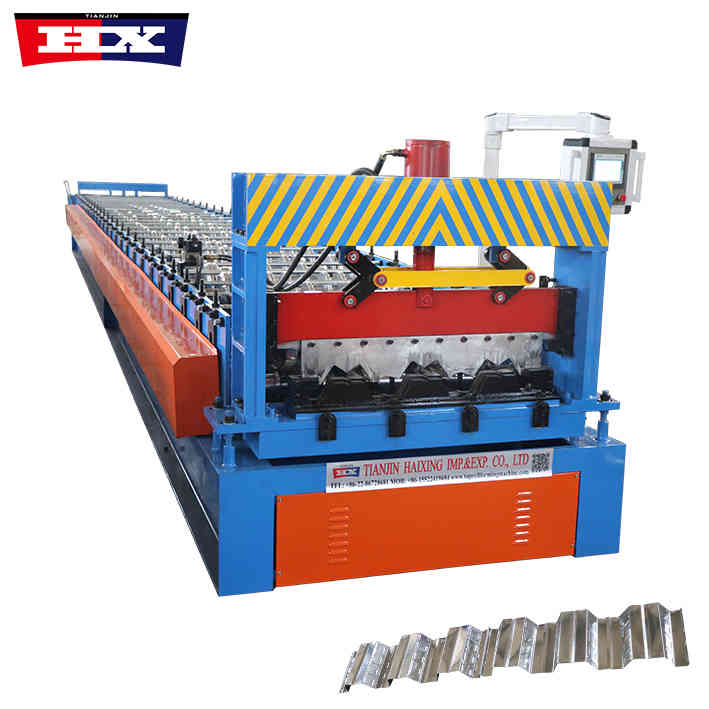

Floor Deck Roll Forming Machine
Floor Deck Roll Forming Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.8-1.5mm
Produce Speed : 10-15m/min
Port : Tianjin

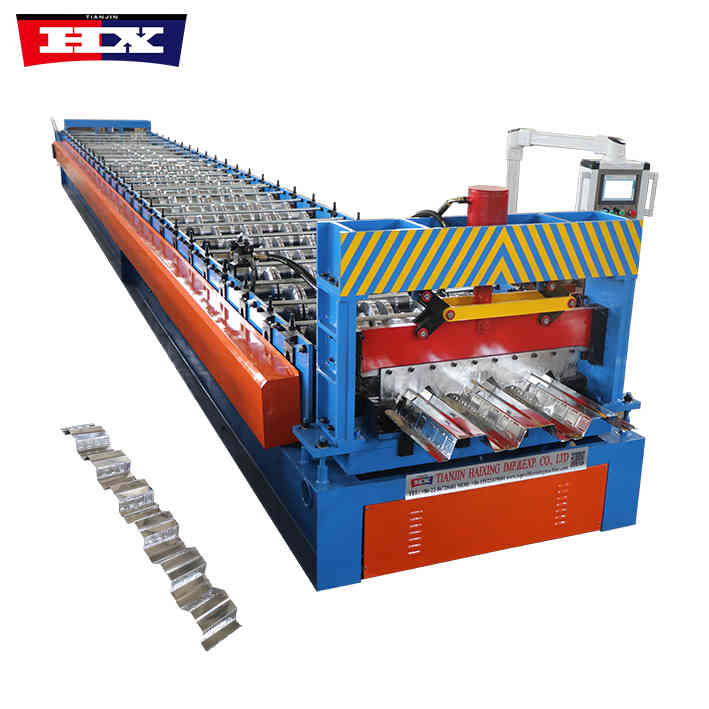

Floor Deck Roll Forming Machine
Floor Deck Roll Forming Machine

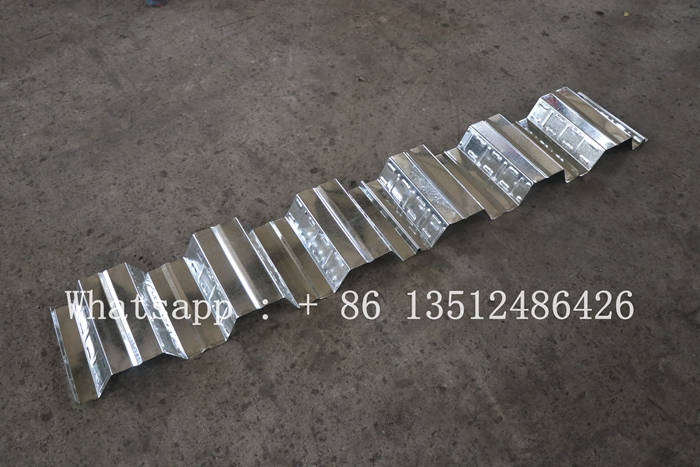

Floor deck is formed by cold-rolling steel plates (Cold Roll Forming is a multi-pass forming roller configured in sequence, which continuously rolls coils, strips and other metal plates). A plastic processing process that bends the ground laterally to make a specific cross-section profile), whose cross-section forms a V-shape, U-shape, trapezoid or similar shapes, mainly used for floors.

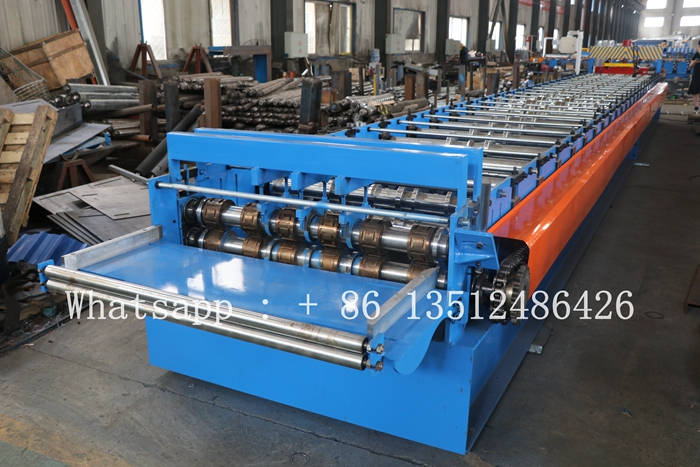

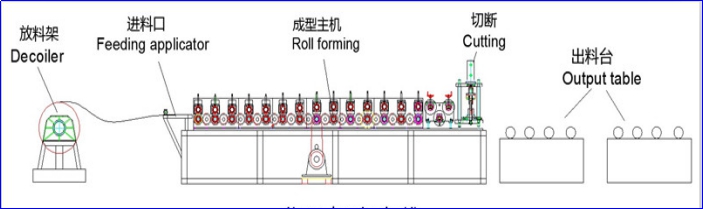

Floor Deck Roll Forming Machine: Decoiler→Feeding table→Roll Forming→Cutting→Receiving table
Specification
No. |
Number |
Floor Deck Roll Forming Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 450H Beam |
| 4 | Middel side | 18/20mm |
| 5. | Main motor | 15kw*2 |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1.5/2 inches |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |

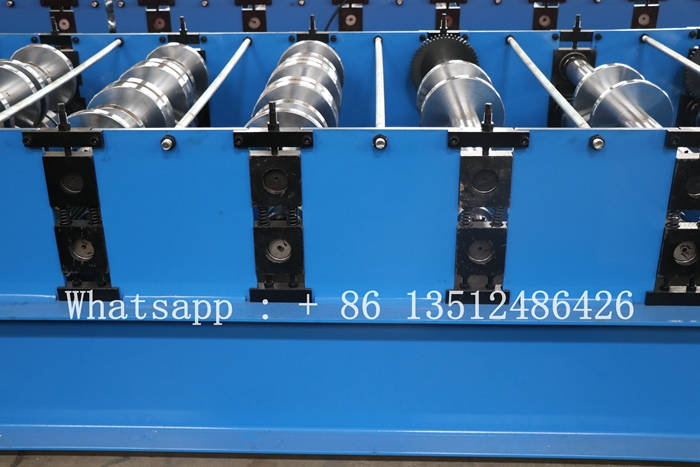

| 15. | Roller diameter | Φ85mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.8-1.5mm |
| 18. | Rows | 26 |
| 19. | Size | 12500mm*1800mm*2000mm |
| 20. | Weight | 13500kg |
Sales Terms
●Payment Method
30% as deposit ,70%balance payment after inspection while before delivery.
●Production Period
About 30 Working days after the 30% deposit.
●Packing Method
Nude packing in the 40 feet container ,fixed well with oil rope, control cabinet and all the accessories with waterproof.
●Warranty:
24 months limited warranty .Components and parts are free during warranty.
Packing
a.The main body of machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron.
b.Rollers and shafts are covered with anti-rust oil.
c.PLC control system and motor pump are packed with waterproof paper and plastic film.
d.Spare parts in a carton box.
e.Manual decoiler was nude packing.
f.The output-table put into a carton box.
g.If the machine is too long, we will divide it into two parts and pack them in one package with steel wire.
h.Fit for ocean shipping.
Certificate
Photos with customers
F&Q
1. Q: Are you manufacturer?
A:Yes,we are manufacturer for cold roll forming machine over 12 years.
2. Q: if you can accept OEM? Design and manufacture according our photo.
A: Yes, we can accept OEM,we owned expert engineer team, professional design CAD drawings and use famous brand components according your demands.
3. Q: What's the warranty for your machine?
A: we provide 2 years guarantee and provide lifetime technical support.
4. Q: How many workers is needed for the machine operation
A: One worker is enough, the machine use automatic PLC control system.
5. Q: Do you have after sales support?
A: Yes,Our engineer can supply remote-video technical support and online support teach your worker.
6. Q.Can you be responsible for transport?
A.Yes,we owned expert export team, we can arrangement for you to your destination port or address.
7. Q:What service can you provide before order?
A:About the pre-sale service, We provide professional solutions according your demands,such as design、technical parameter,
delivery flow etc. At the same time, we can supply invitation letter for your visit our factory and showing the machine operation for you .
