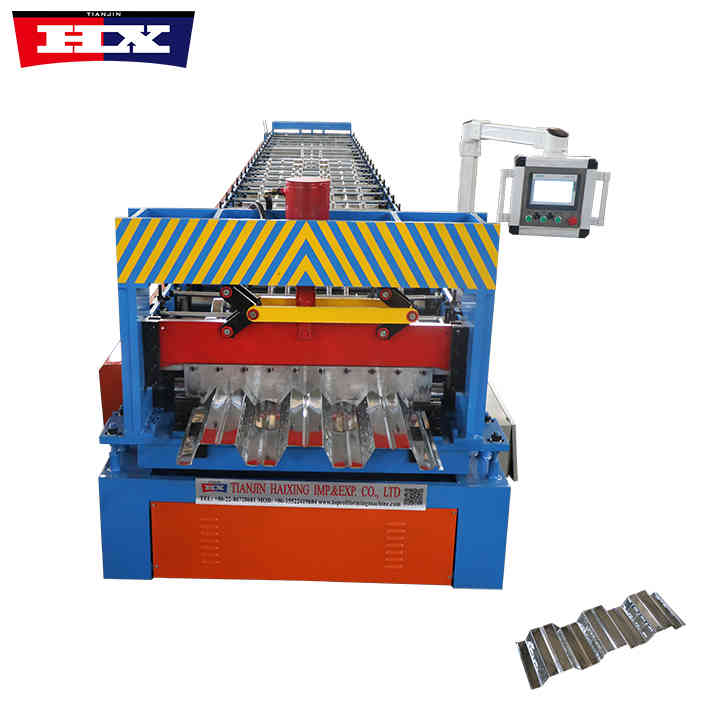

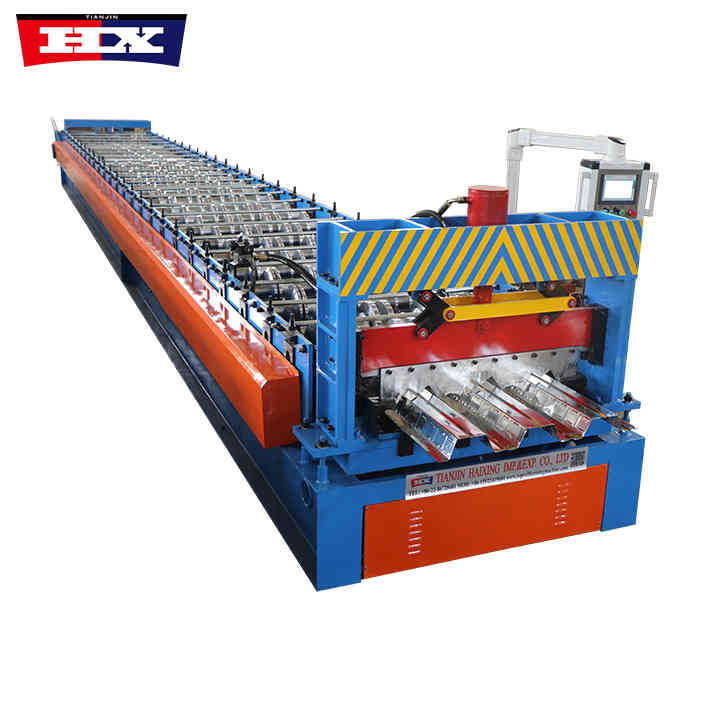

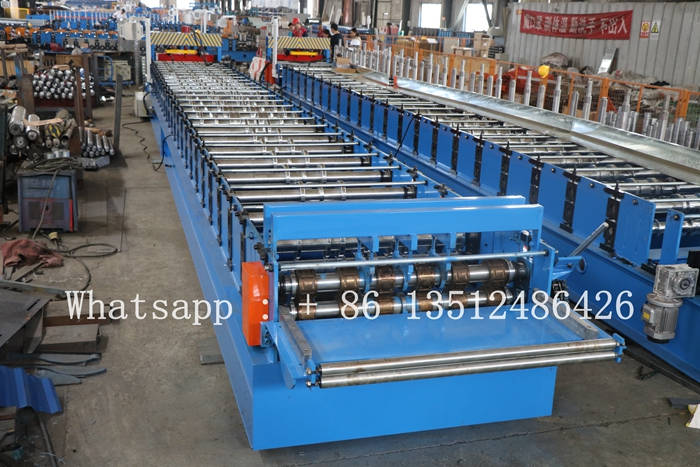

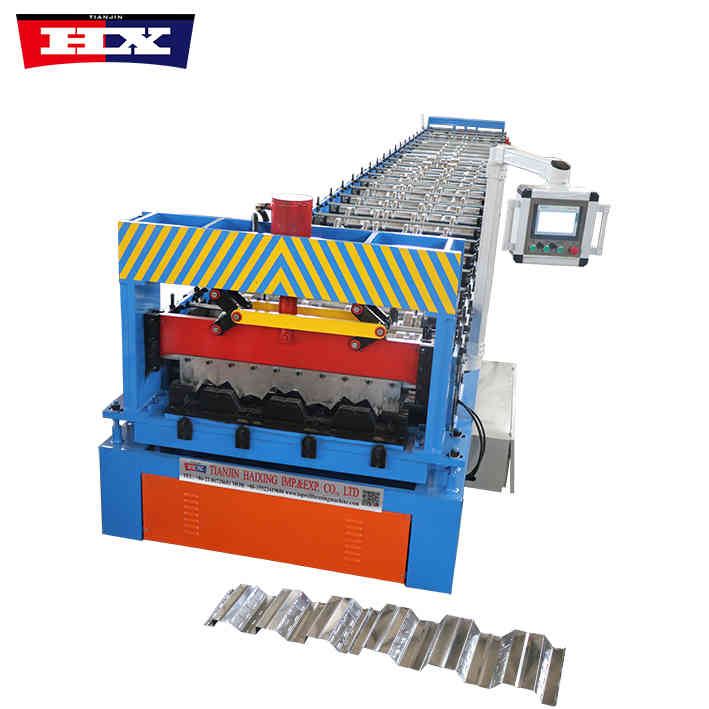

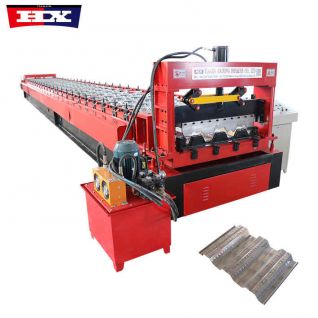

Deck Roll Forming Machine
Deck Roll Forming Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.8-1.5mm
Produce Speed : 10-15m/min
Port : Tianjin

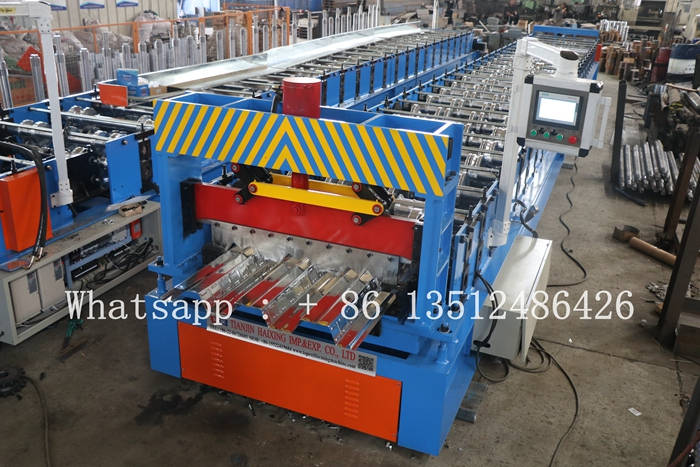

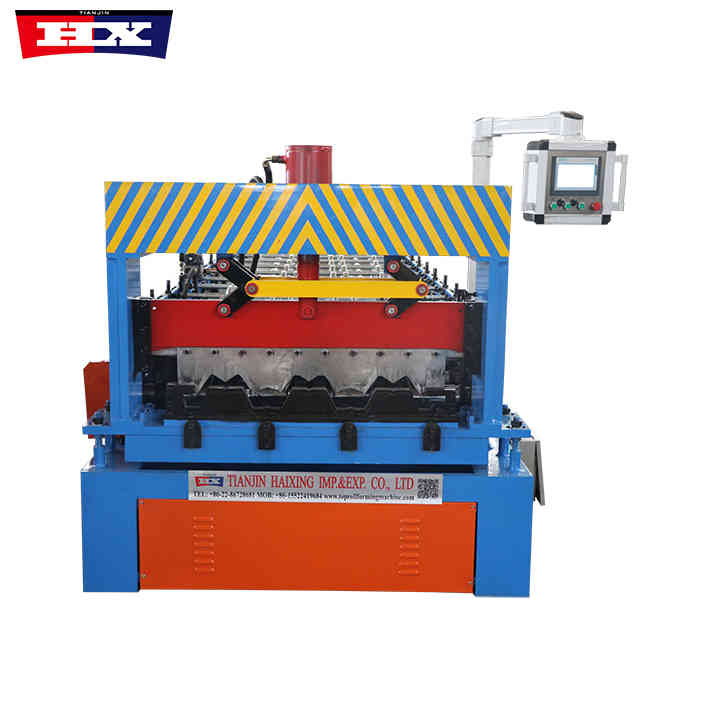

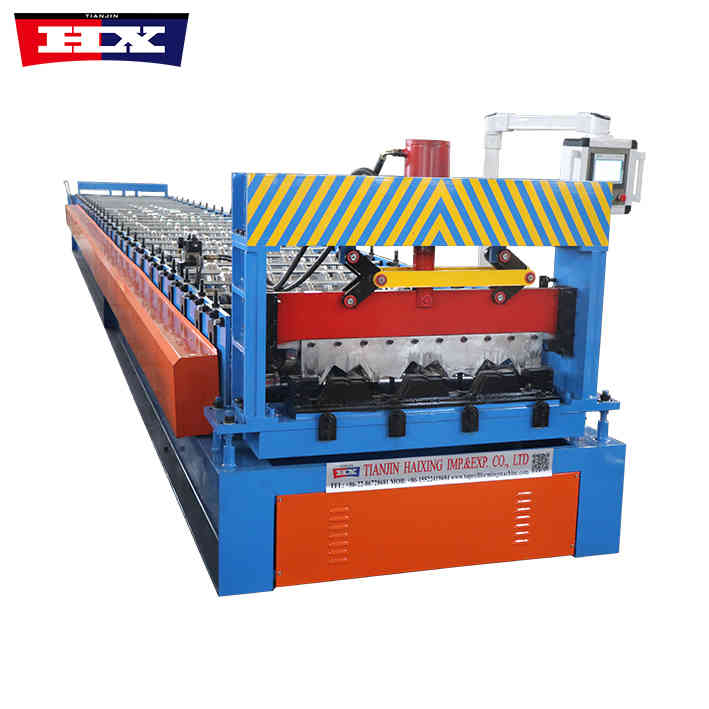

Deck Roll Forming Machine
Deck Roll Forming Machine

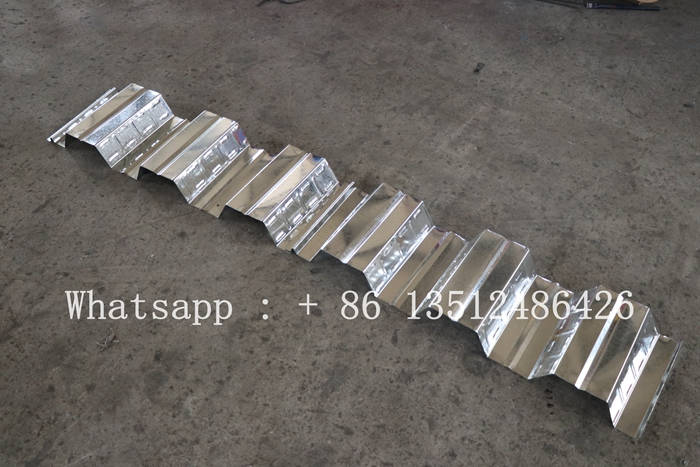

Advantages: light weight, high strength, high stiffness, convenient and quick construction, easy to update, and convenient for industrial production.

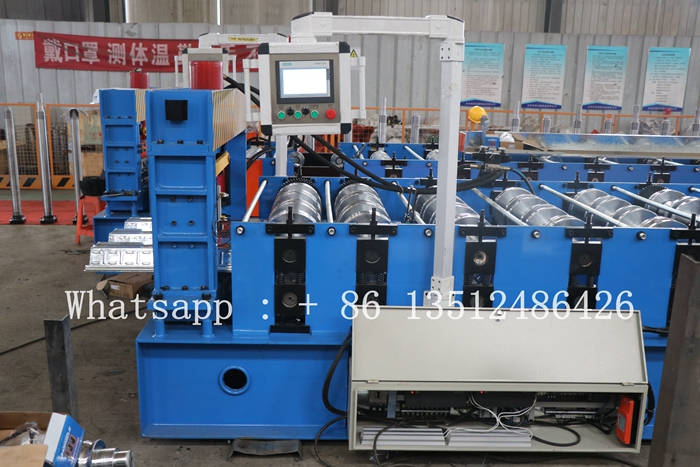

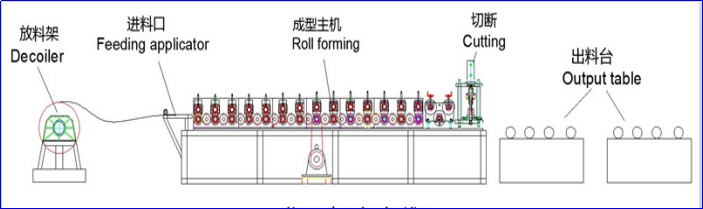

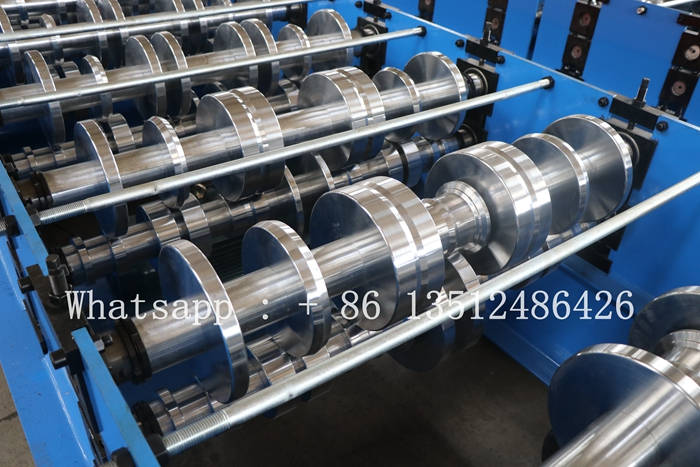

Components: It consists of passive internally supported unloading rack, feeding guide mechanism, forming roller table, ladder forming, forming cutting device, hydraulic station system, PLC computer control system, finished product supporting rack, etc.
Deck Roll Forming Machine
Specification
No. |
Number |
Deck Roll Forming Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 450H Beam |
| 4 | Middel side | 18/20mm |
| 5. | Main motor | 15kw*2 |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1.5/2 inches |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ85mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.8-1.5mm |
| 18. | Rows | 26 |
| 19. | Size | 12500mm*1800mm*2000mm |
| 20. | Weight | 13500kg |
Company Introdution
We, Tianjin Haixing is a professional cold roll forming machine manufacturer, We have been focusing on this field for 22 years. Our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoiler, shutter door roll forming machine, light keel roll forming machine, purlin machine, leveling and slitting machine, and other related construction equipment.
Haixing has employed a team of engineers for more than 20 years. At the same time, our machines use branded electrical components, raw materials from branded steel factories, strict process control, two-year warranty, installation and training services.
Our customers are all over the world, such as 65 countries in Germany, the United States, Mexico, Chile, Bolivia, Italy, Australia, Kuwait, Saudi Arabia, South Korea, Japan, South Africa, Kenya and other different regions.
We have extensive experience in the needs of different countries, such as profile, thickness range, use, installation, etc. Company tenet: technological innovation, customer center, win-win situation. Thank you for your trust and choice, we will provide you with the best service support and help you achieve greater success.
Looking forward to more cooperation with new and old friends from all over the world.
