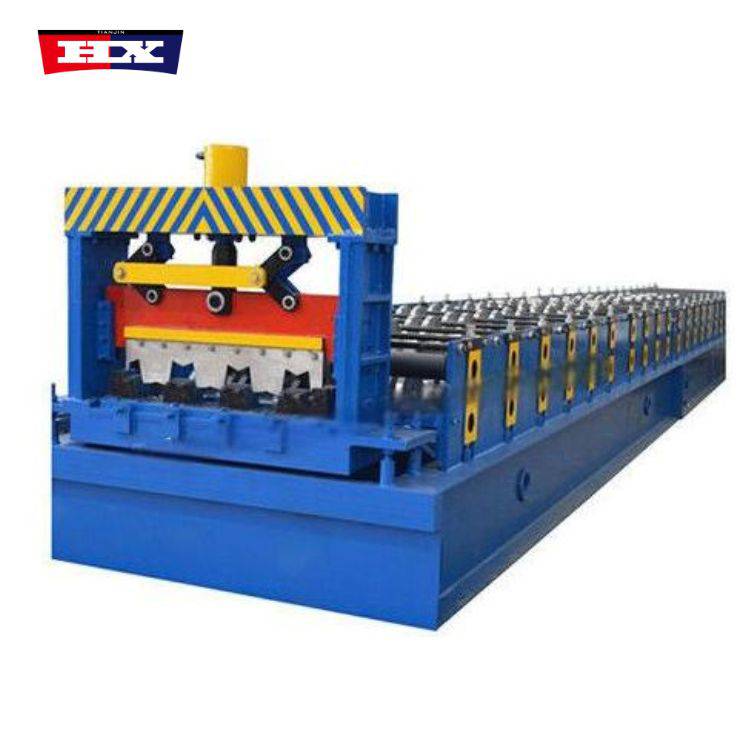

closed floor decking roll forming machine
closed floor decking roll forming machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.8-1.5mm
Produce Speed : 10-15m/min
Port : Tianjin
closed floor decking roll forming machine
closed floor decking roll forming machine

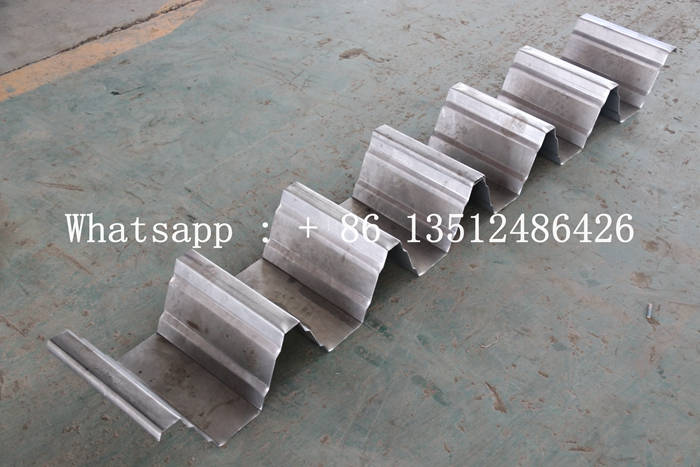

Floor decking is a building structural material, usually made of reinforced concrete or steel plates, used to support floors and roofs. The main function of the floor deck is to share the floor load and enhance the stability and load-bearing capacity of the floor structure.
1. Reinforced concrete floor decking: It is mainly composed of concrete surface layer, steel bars and reticulated shell. It can withstand large pressure and bending strength and is often used in high-rise buildings.
2. Prestressed concrete floor decking: It has high load-bearing capacity and earthquake resistance, and is often used in buildings with high earthquake resistance.
3. Steel plate floor decking: Mainly made of steel plates, it is light in weight and high in strength, and is suitable for large-span buildings.
Floor decking is mainly used on the floors and roofs of buildings to support the building structure and share floor loads. Floor decking can reduce the weight of the floor structure, making the building structure lighter, and plays an important role in the safety and stability of the floor structure.

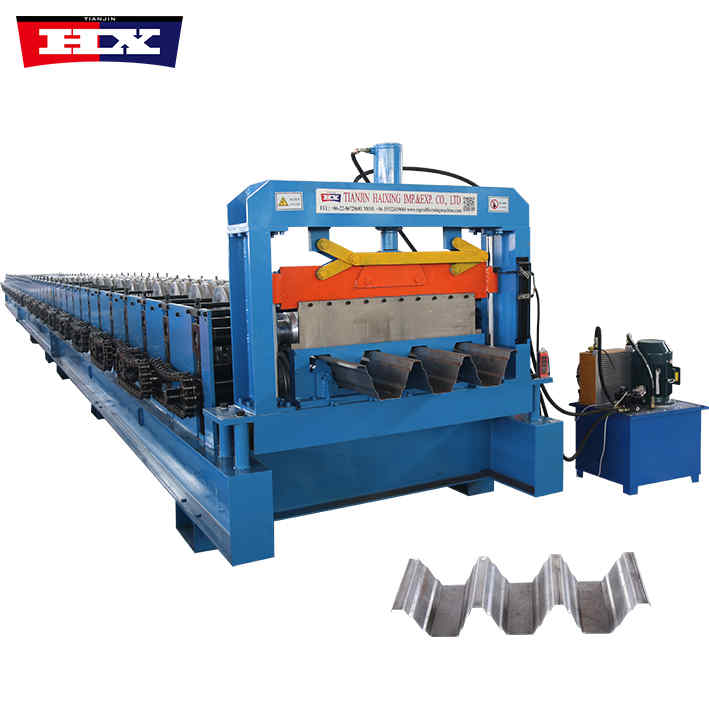

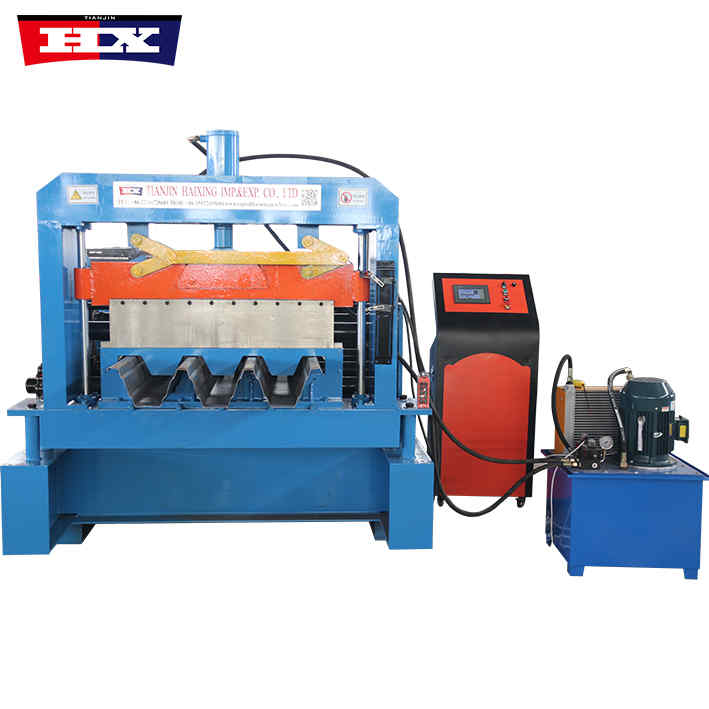

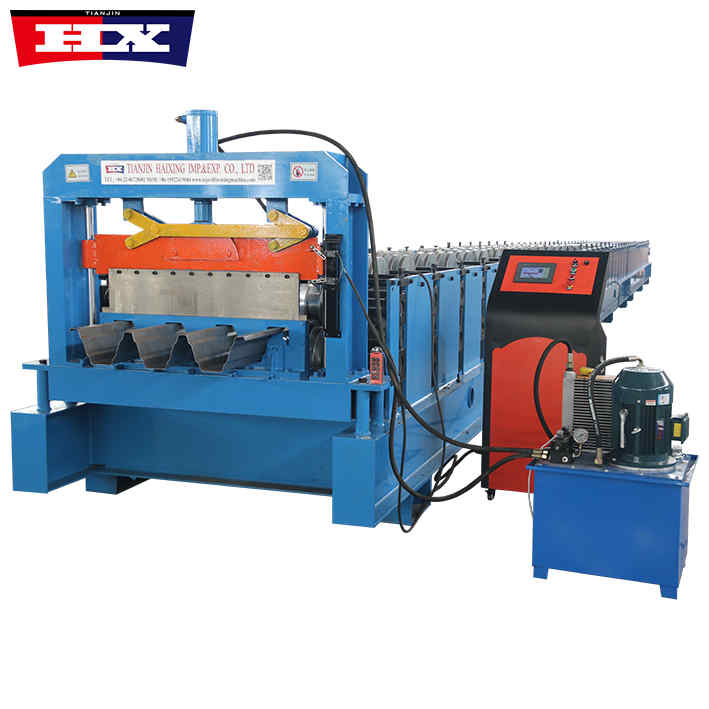

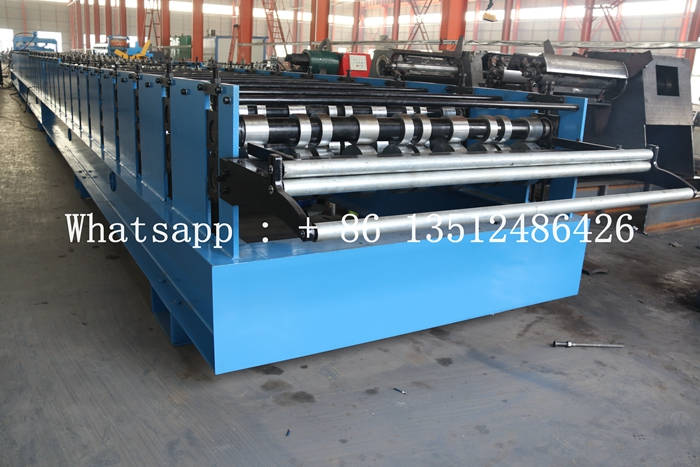

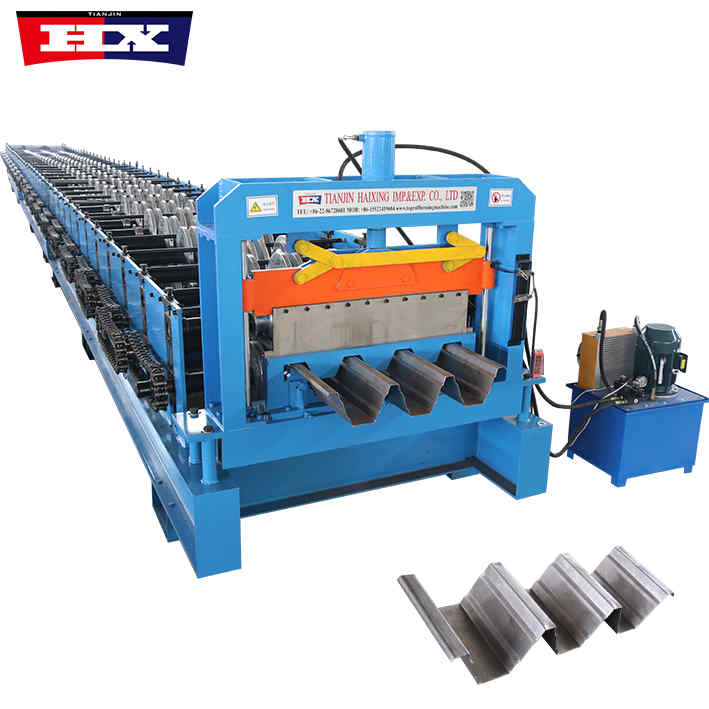

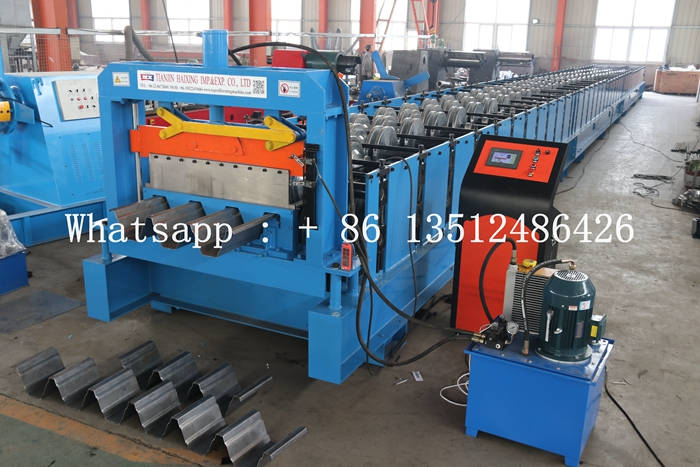

Floor Deck Forming Machine
Specification
No. |
Number |
Floor Deck Forming Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 450H Beam |
| 4 | Middel side | 18/20mm |
| 5. | Main motor | 15kw*2 |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1.5/2 inches |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |

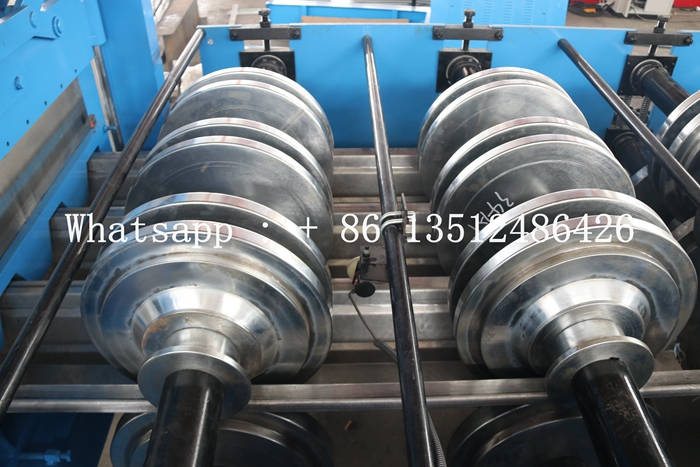

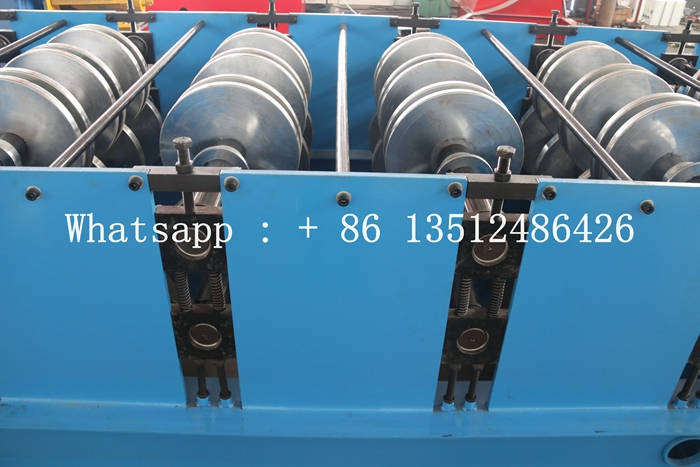

| 15. | Roller diameter | Φ85mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.8-1.5mm |
| 18. | Rows | 26 |
| 19. | Size | 12500mm*1800mm*2000mm |
| 20. | Weight | 13500kg |
Application
Floor deck sheets are widely used in power plants, electrical equipment companies, automobile showrooms, steel structure factories, cement warehouses, steel structure offices, airport terminals, train stations, sports venues, concert halls, grand theaters, large supermarkets, logistics centers, Olympic venues and sports Stadiums and other steel structures.
Advantages
1. Strong load-bearing capacity: As the main load-bearing component of the floor, the floor bearing plate has a high load-bearing capacity and can meet the weight requirements of various buildings.
2. Good seismic resistance: The floor deck is firmly connected to structural parts such as steel beams and concrete columns, and can effectively resist the effects of natural disasters such as earthquakes.
3. Convenient construction: The floor deck adopts prefabricated components, which can be installed quickly on site, greatly shortening the project cycle.
4. Energy saving and environmental protection: The floor decking uses renewable resources such as steel and concrete, which has good environmental performance.
5. Good economy: Floor decking has a long service life, low maintenance costs, and high cost performance.
