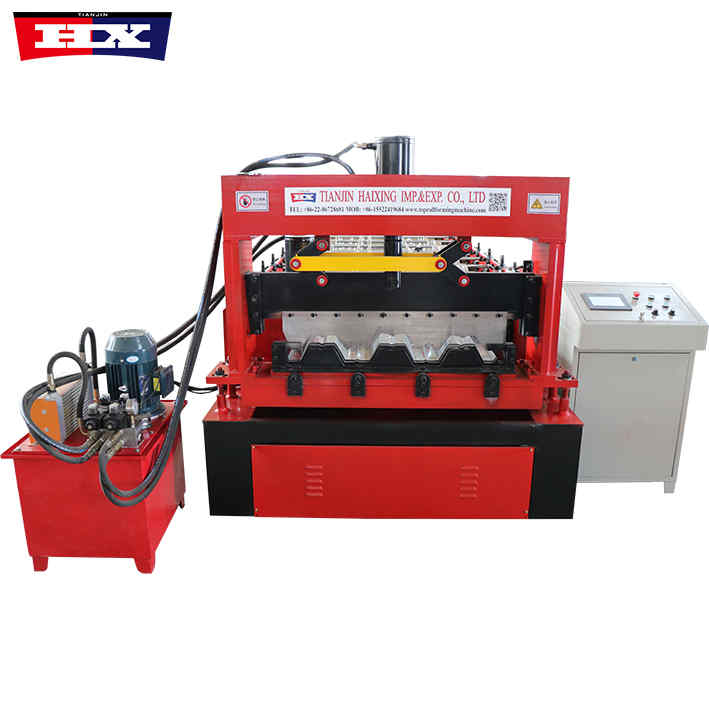

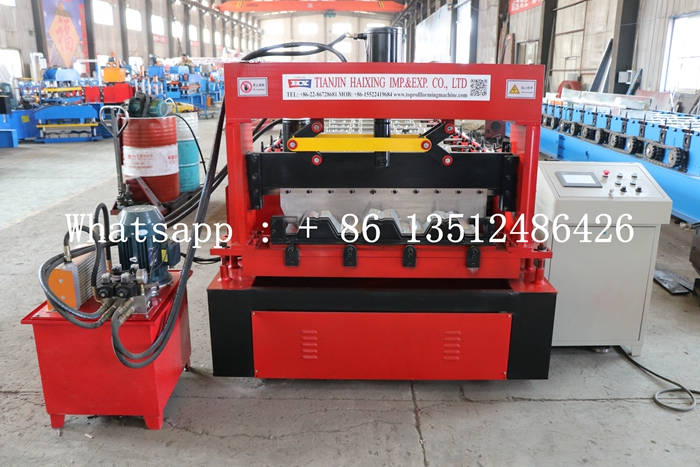

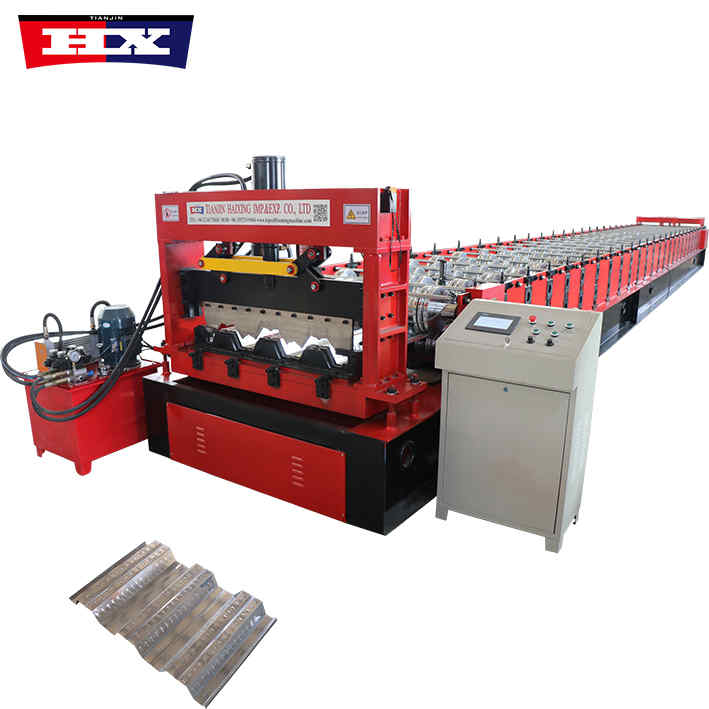

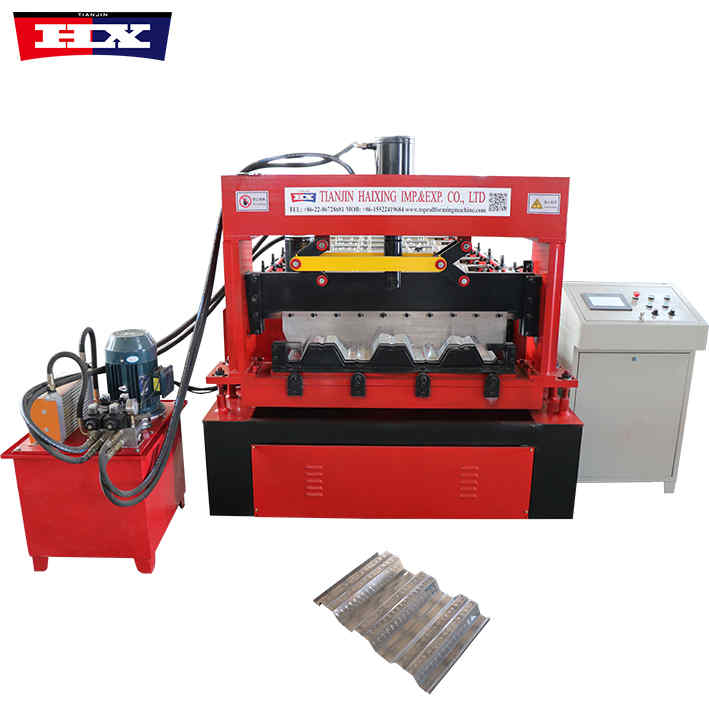

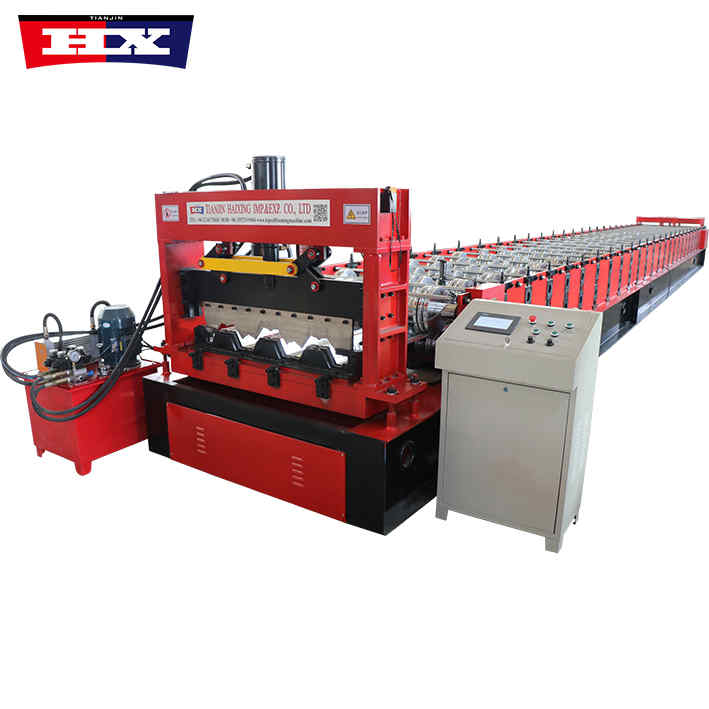

Floor Deck Machine
Floor Deck Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.8-1.5mm
Produce Speed : 10-15m/min
Port : Tianjin
Floor Deck Machine
Floor Deck Machine

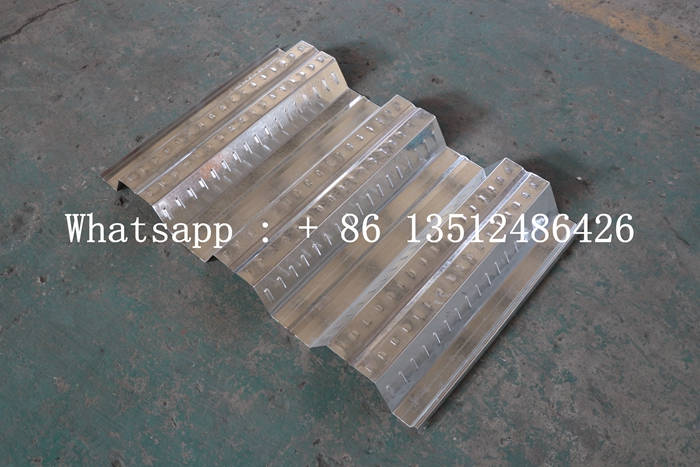

Floor decking is a floor slab used to carry and distribute building loads. It is mainly made of steel plates, steel bars, concrete and other materials. This type of floor slab offers significant advantages in building design and construction, particularly in providing structural strength, resisting seismic forces, and saving material.
The main function of floor decking is to provide structural support and distribute loads. In the floor structure of a building, the floor deck serves as the main load-bearing element, which can effectively distribute the weight of the building and other dynamic loads to the overall structure. This allows the building to maintain good structural stability and safety even under heavy loads.
In addition to providing structural support and dispersing loads, floor decking also has excellent seismic performance. Due to its own strength and stability, floor decking can effectively absorb and disperse earthquake forces, thereby reducing earthquake damage to buildings.
Floor Deck Machine
Specification
No. |
Number |
Floor Deck Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 450H Beam |
| 4 | Middel side | 18/20mm |

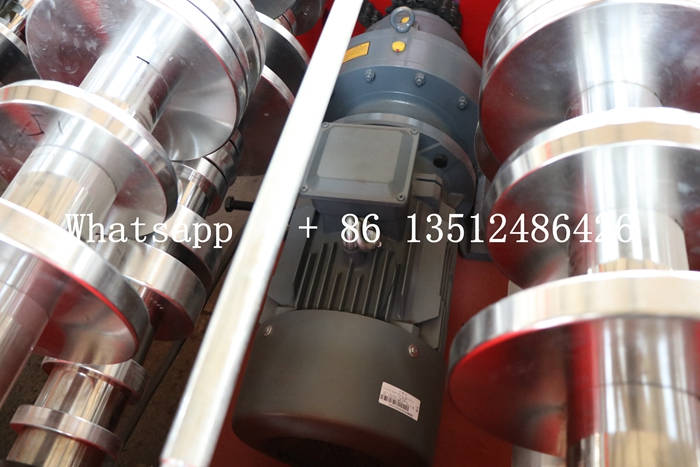

| 5. | Main motor | 15kw*2 |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1.5/2 inches |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ85mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.8-1.5mm |

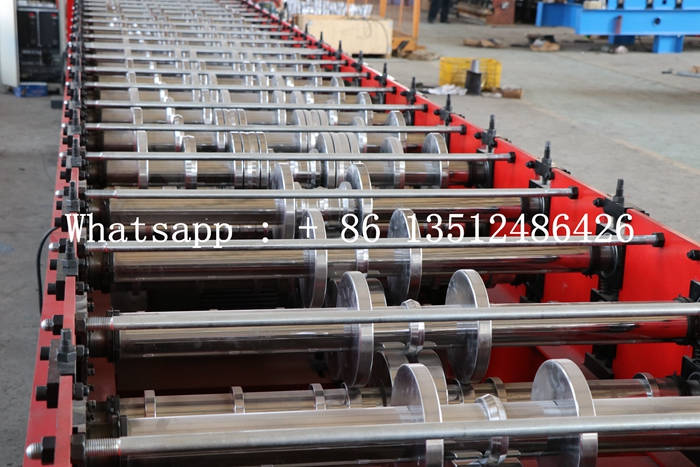

| 18. | Rows | 26 |
| 19. | Size | 12500mm*1800mm*2000mm |
| 20. | Weight | 13500kg |
Advantages
1. During the use stage, the floor deck serves as the tensile steel bar for the concrete floor slab, which also improves the stiffness of the floor slab and saves the amount of steel bars and concrete. 2. The embossing on the surface of the profiled steel plate creates a large bonding force between the floor slab and the concrete, making the two form a whole. Together with the stiffening ribs, the floor slab system has a high bearing capacity. Concrete will not crack after it sets.
3. In the case of overhang, the floor slab only serves as a long-term formwork. The length of the overhang can be determined according to the cross-sectional characteristics of the floor slab. In order to prevent the cantilever plate from cracking, it is necessary to add negative reinforcement to the bracket according to the design of the structural engineer.
4. As a raw material, galvanized steel plates are not afraid of fire and have good fire resistance. The combined floor decking does not need to be sprayed to prevent fire, thus reducing the project cost.
5. After laying the profiled steel plate, it is convenient to suspend the ceiling and arrange pipelines and ventilation ducts. Since the floor deck is connected to the main beam and secondary beam of the steel structure to form a whole, the anti-resistance effect is good.
