Hydraulic Decoiler Machine
Hydraulic Decoiler Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time:20 working days
Shipping Time : 40 days
Port : Tianjin

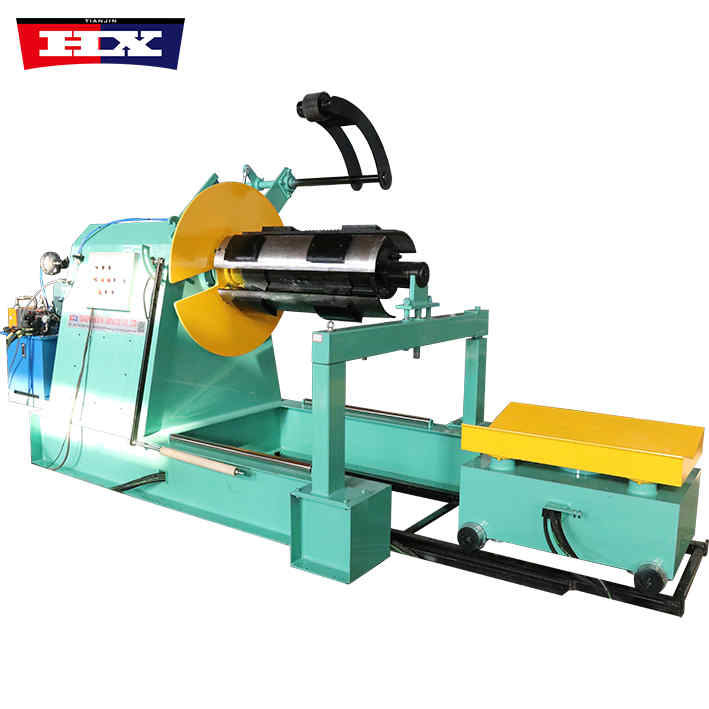

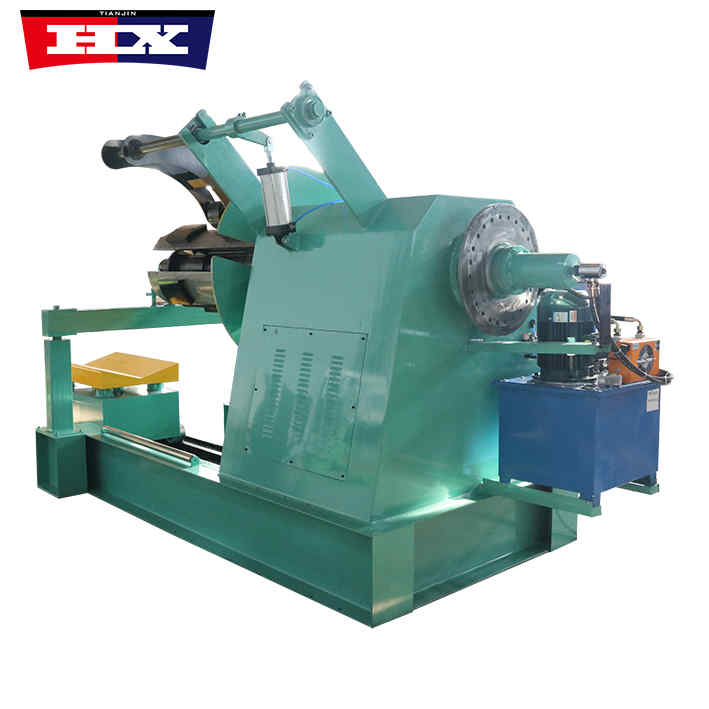

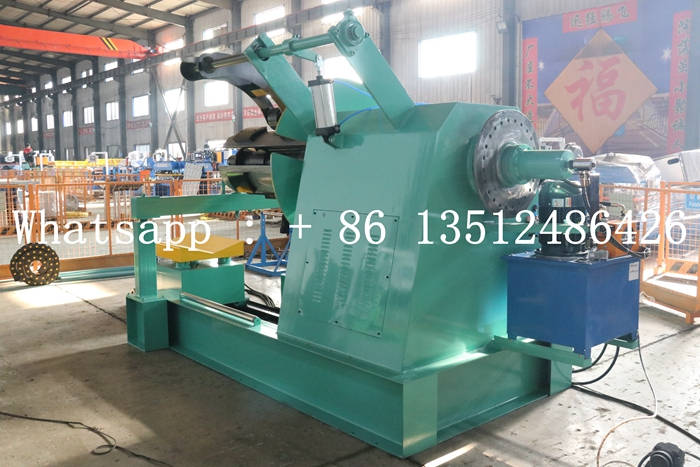

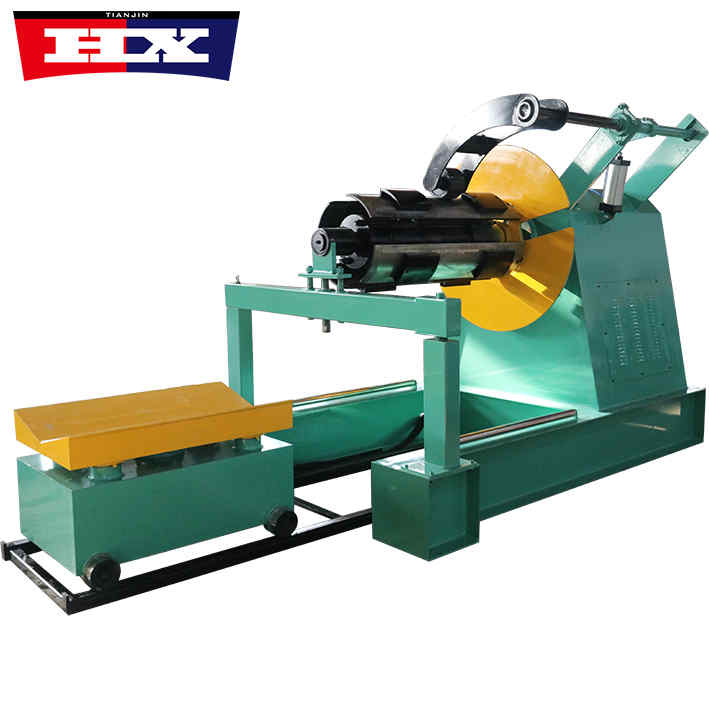

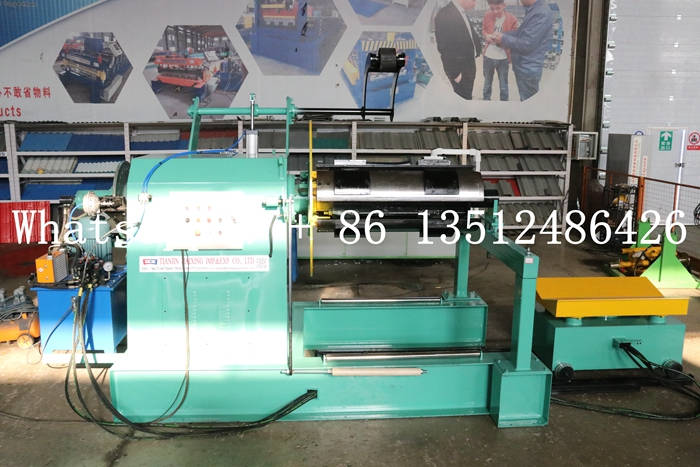

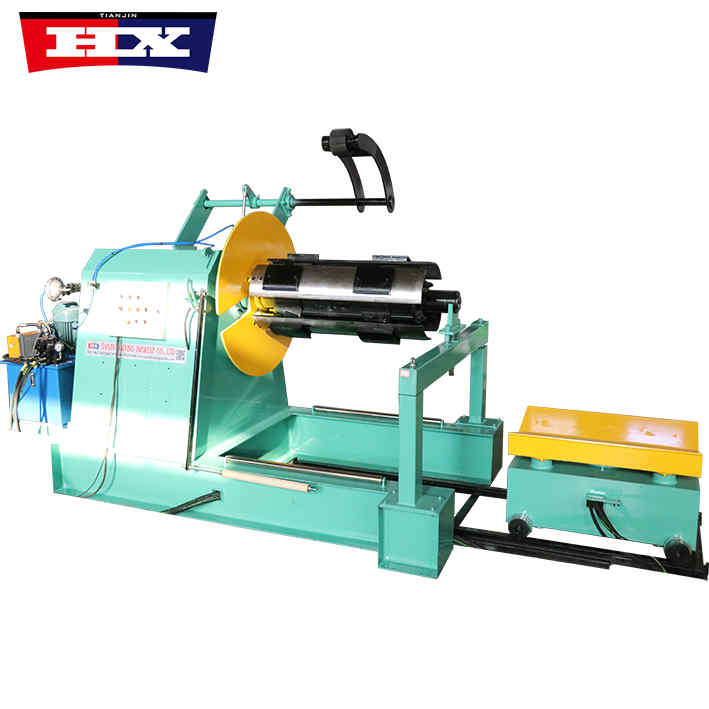

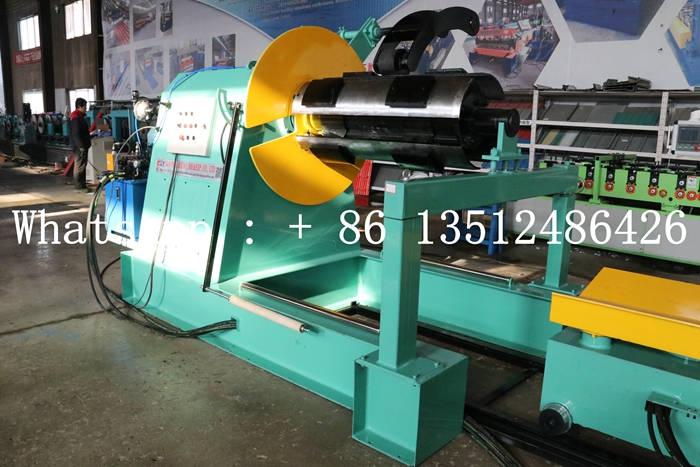

Hydraulic Decoiler Machine

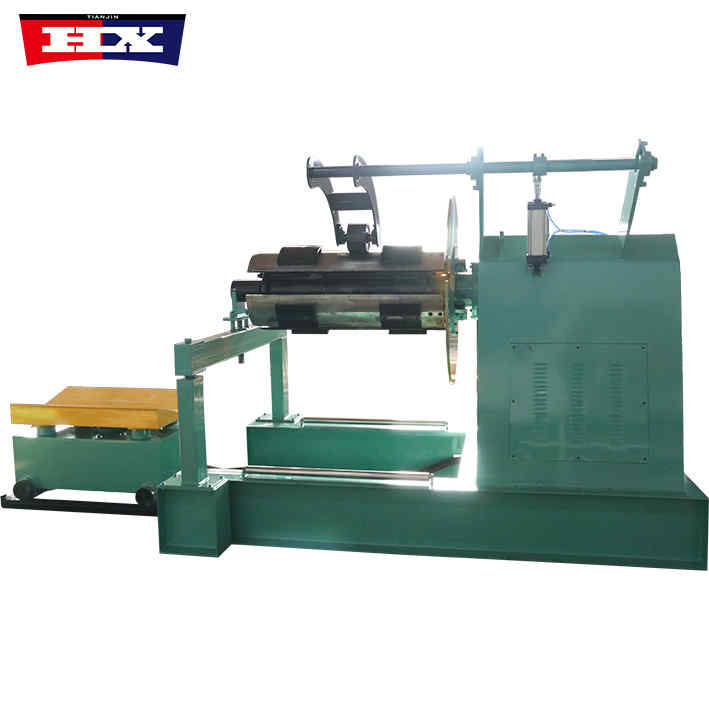

Hydraulic Decoiler Machine
decoiler, also known as material rack and loading rack, is a piece of equipment specially designed for uncoiling metal coils. It can be used for unwinding and rewinding metal coils. It is widely used in home appliances, automobiles, hardware, electronics and other fields. , greatly improving the company's production capacity and reducing labor costs.
The structure of the hydraulic decoiler machine is simple. The heavy-duty standard material rack is composed of a frame, a material rack, a tile, a motor, a reducer, an electrical box, etc. The overall structure is compact, and it occupies a small area. It can be passed through reasonable wiring and a reasonable number of equipment. Further improve production efficiency.
Specification
No. |
Number |
Hydraulic Decoiler |
| 1. |
Hydraulic pump station |
4kw (Electromagnetic valves) |
| 2. | Main motor | 5.5kw |
| 3. | Main frame | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Main shaft | 203*55 seamless pipe |
| 7. | Coil inner diameter | 470-530±20mm |
| 8. | Cylinder | 1 Diameter 125mm |
| 9. |
Electrical control system |
Delta Inverter(7.5kw) Domestic Electronic Control System |
| 10. | Feeding width | 0-1500mm |
| 11. | Weight capacity | 5 tons |
| 12. | Trolley |
Width : 1.1m Length : 0.9m |
| 13. | Trolley track |
Width : 1.15m Length : 2.5m |
| 14. | Trolley route |
High : 300mm Length : 2.5m |
| 15. | Trolley wight | 0.8 tons |
Advantages
1. High degree of automation: The hydraulic decoiler machine is a fully automated equipment that can be started and stopped through contact control of the induction frame, which greatly improves production efficiency.
2. High unwinding accuracy: The hydraulic decoiler machine adopts an electric control system, which can accurately control the tension and speed of the coil, ensuring the unwinding accuracy of the coil.
3. Easy to use: The hydraulic decoiler machine has a simple structure and is easy to operate. You only need to put the coil material into the coil rack and turn on the power to automatically uncoil. No professional skills are required.
4. Wide range of applications: The hydraulic decoiler machine can be used for unwinding many different types of coil materials, such as plastic film, paper, aluminum foil and other coil materials.
5. High safety: The hydraulic decoiler machine adopts a variety of safety protection measures, such as safety shields, emergency stop buttons, etc., to ensure the safety of operators.
