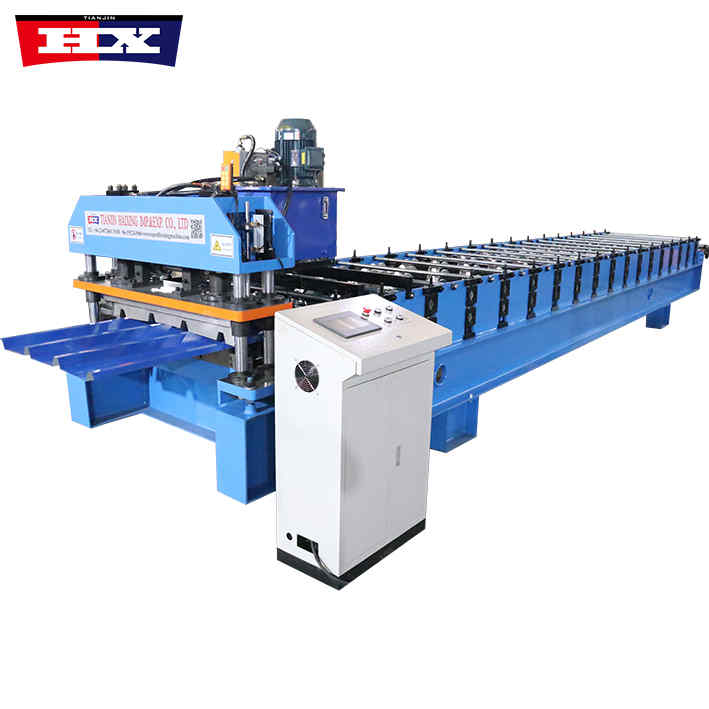

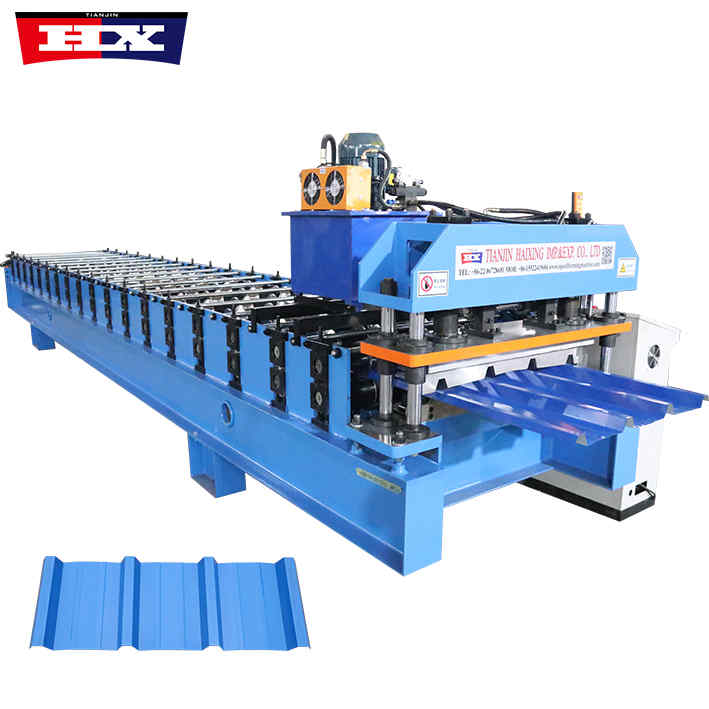

Metal Roof Machine
Metal Roof Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin

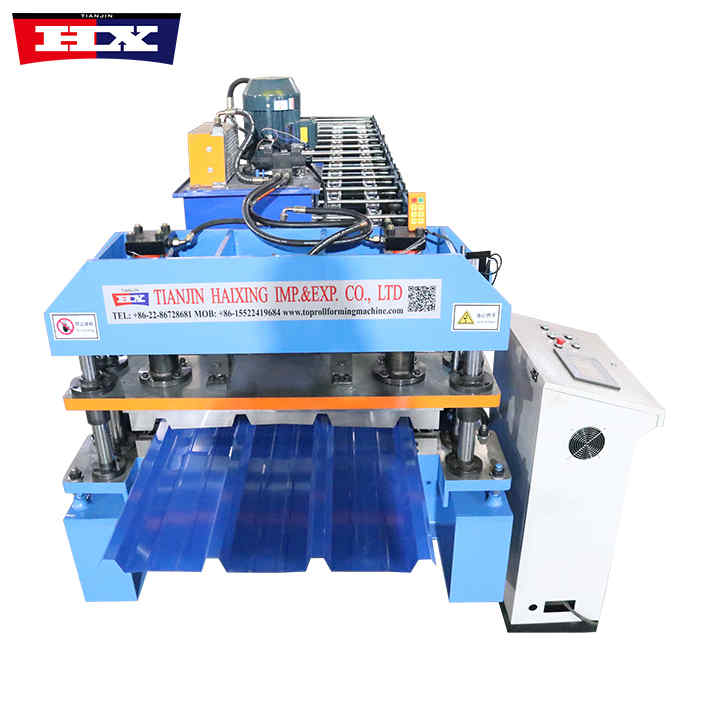

Metal Roof Machine
Metal Roof Machine

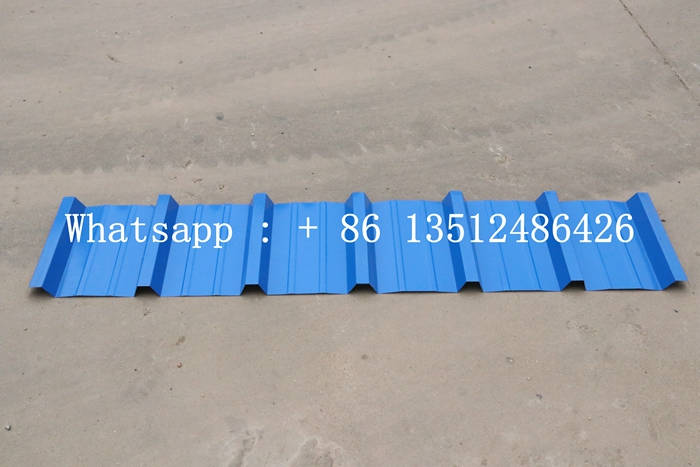

1. Construction field: The metal roof machine is mainly used to produce trapezoidal tiles for various constructions, such as flat to slope, roof waterproofing, etc.
2. Garden landscape: The metal roof machine can also be used to produce trapezoidal tiles for various garden landscapes, such as flower stands, walls, pavilions, etc.
3. Other fields: such as highways, railways, water conservancy and other infrastructure construction also need to use metal roof machine.
Metal Roof Machine
Specification
No. |
Number |
Metal Roof Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |

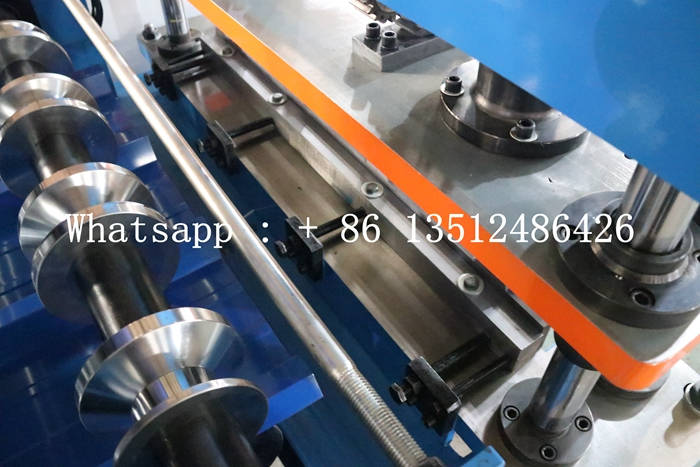

| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 18 |
| 19. | Size | 9000mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Machine Advantages
1. Efficiency: The metal roof machine adopts advanced production technology, has high production efficiency and can meet the needs of mass production.
2. Energy saving and environmental protection: The metal roof machine adopts advanced energy-saving technology, which can effectively reduce energy consumption. At the same time, the noise and dust generated during its production process are relatively small, which is beneficial to environmental protection.
3. Versatility: The metal roof machine can produce trapezoidal tiles of various shapes and specifications to meet the needs of different fields.
4. High precision: The metal roof machine uses high-precision molds and molding technology to produce trapezoidal tiles with high precision and good surface quality.
