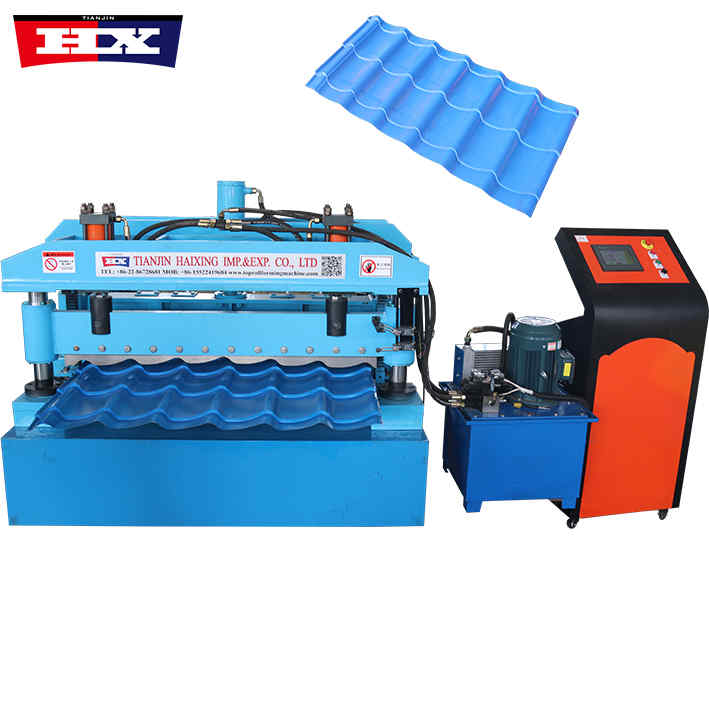

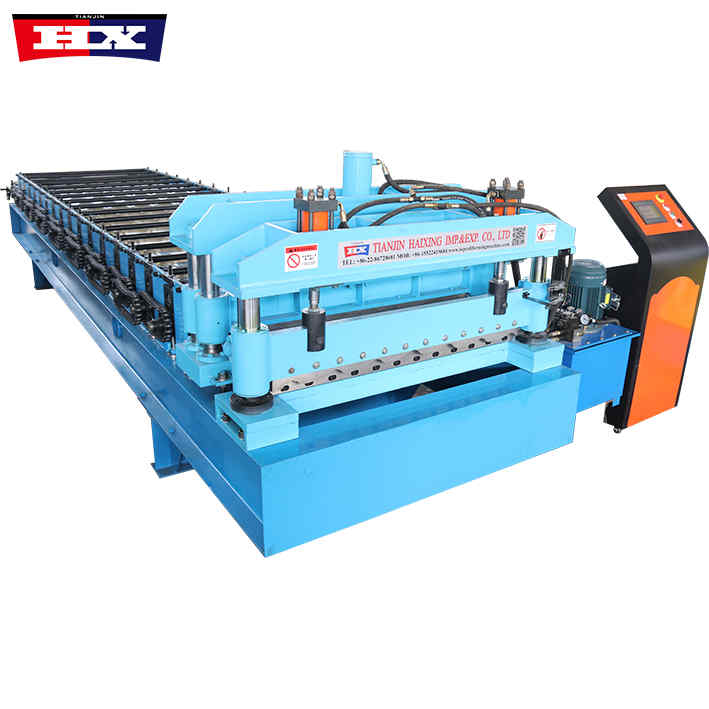

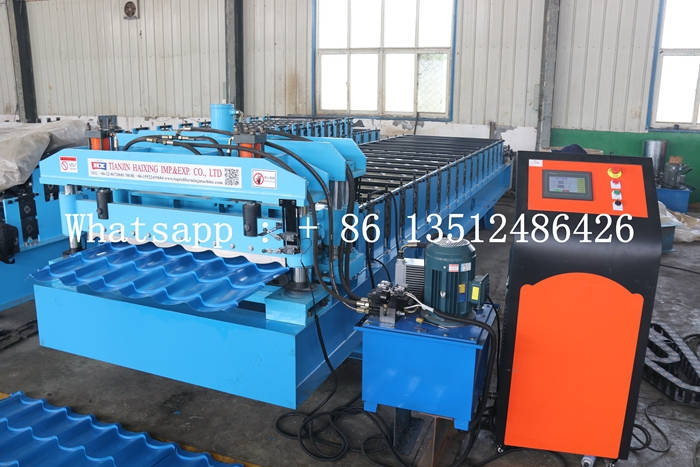

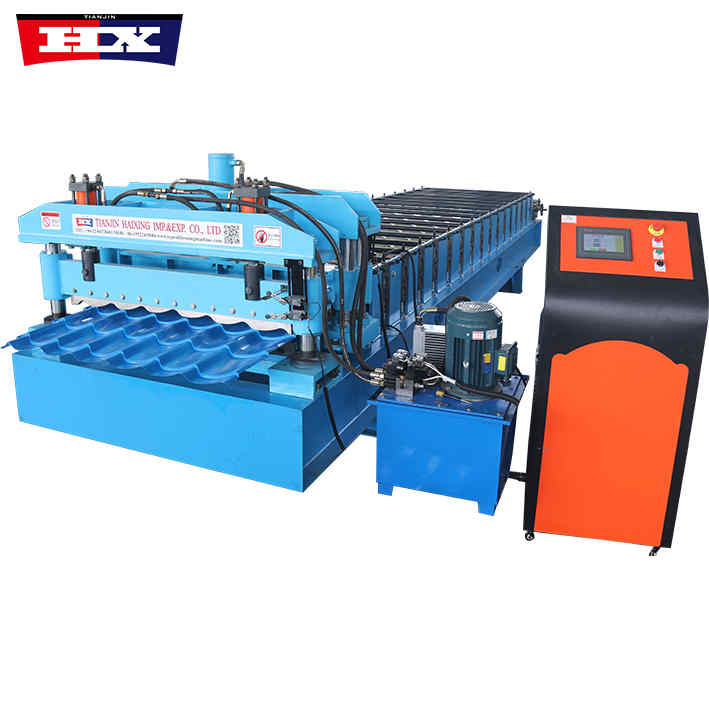

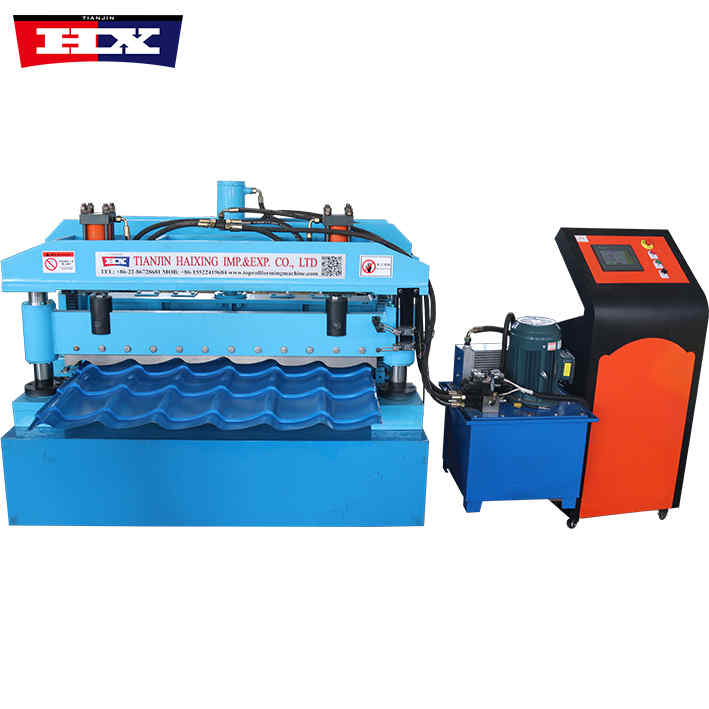

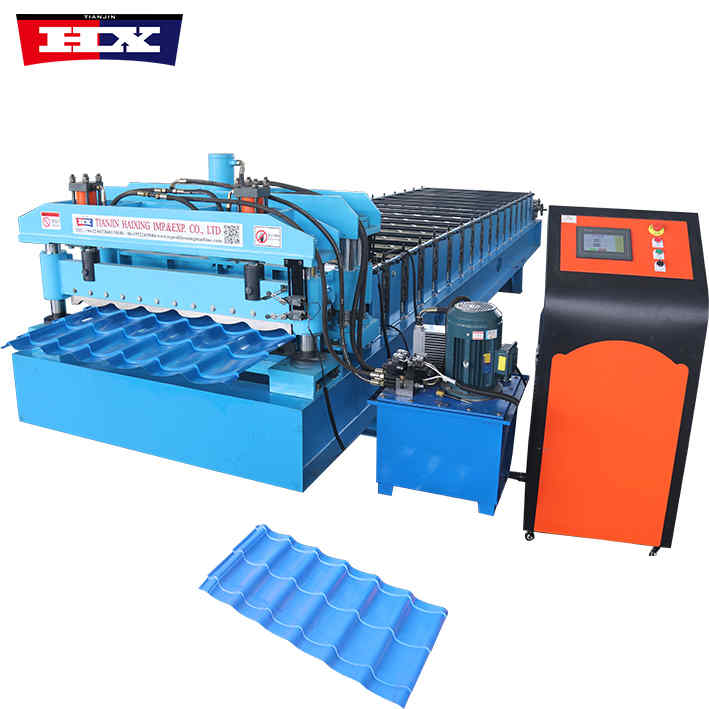

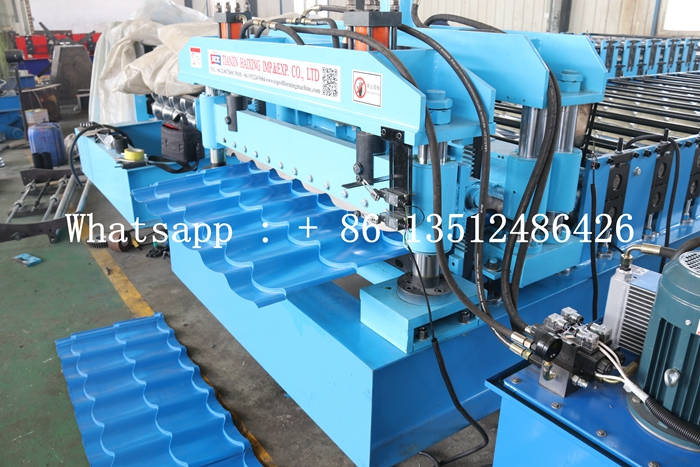

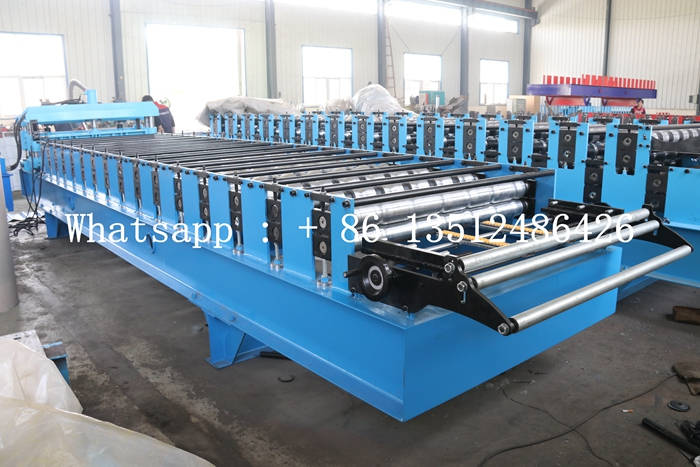

Metal Roofing Roll Forming Machines For Sale
Metal Roofing Roll Forming Machines For Sale
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Metal Roofing Roll Forming Machines For Sale
Metal Roofing Roll Forming Machines For Sale
1. Strictly control raw materials and customize according to customer requirements
2. Rich production experience, modern production equipment, and sound management system
3. Cooperate with major logistics companies to ensure that items reach customers on time
4. Provide one-stop pre-sales and after-sales services, think about what customers want, and solve problems in a timely manner
5. Factory production, direct delivery
Metal Roofing Roll Forming Machines For Sale
Specification
No. |
Number |
Metal Roofing Roll Forming Machines For Sale |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |

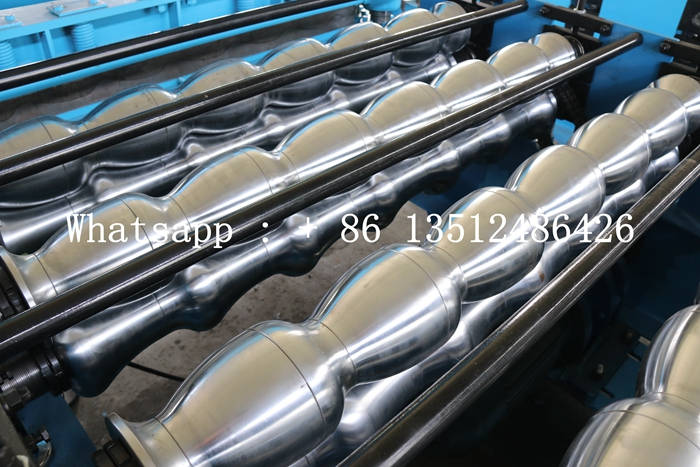

| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 16 |
| 19. | Size | 8000mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Advantages
1. Roofs of industrial buildings usually require large areas of tiles. Roofing sheets manufacturing machine price production line can achieve continuous production and improve production efficiency and capacity.
2. Roofing sheets manufacturing machine price can customize tiles of different sizes and specifications according to different needs to meet the needs of industrial buildings for large-area tiles.
3. Roofing sheets manufacturing machine price can produce special tiles for agricultural buildings, such as greenhouse tiles, cold storage tiles, etc. These tiles have good thermal insulation properties and light transmission properties, providing good conditions for agricultural production.
4. Agricultural buildings need to withstand the test of storms and severe weather. The tiles produced by Roofing sheets manufacturing machine price can provide strong windproof and waterproof capabilities, ensuring the safety and reliability of agricultural buildings.
