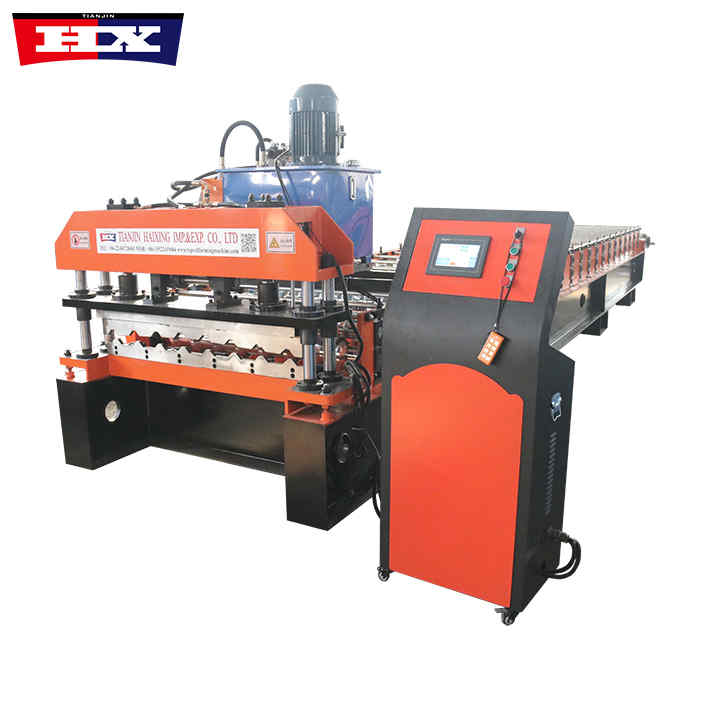

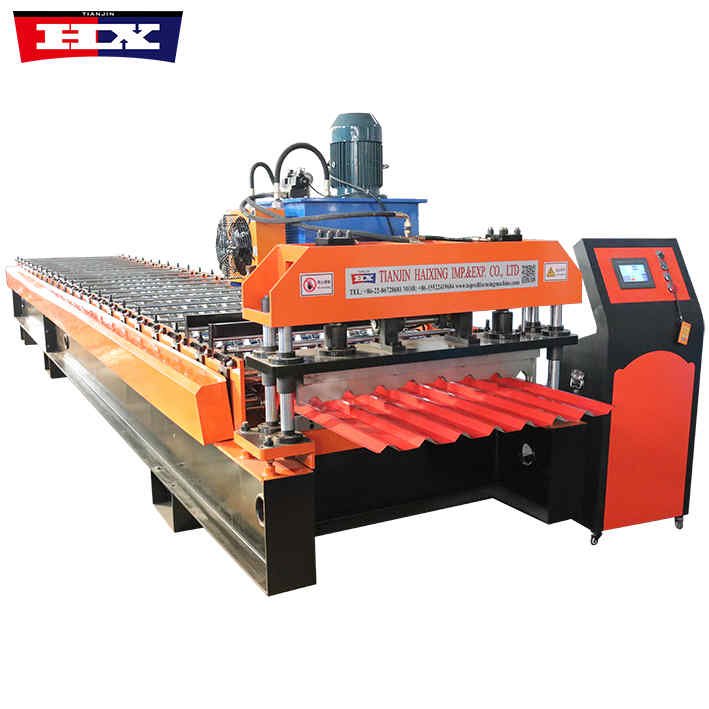

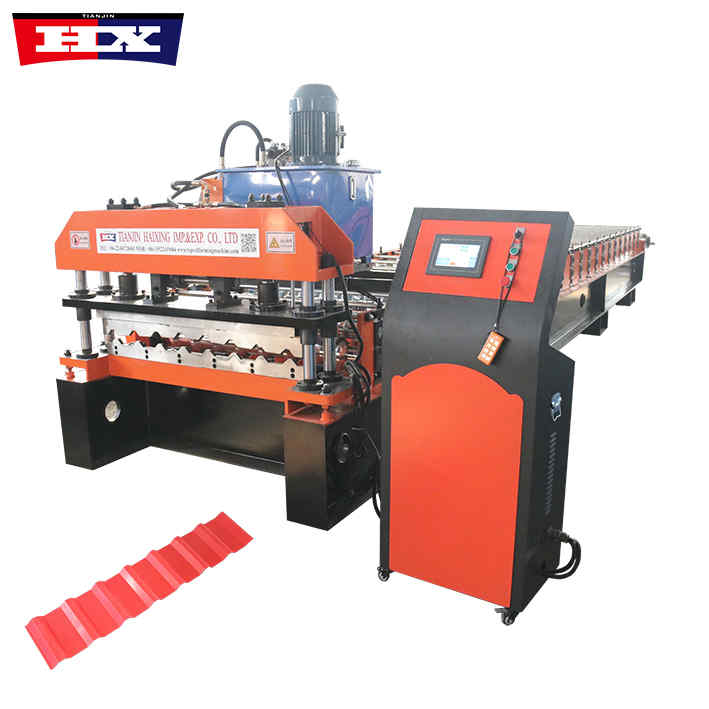

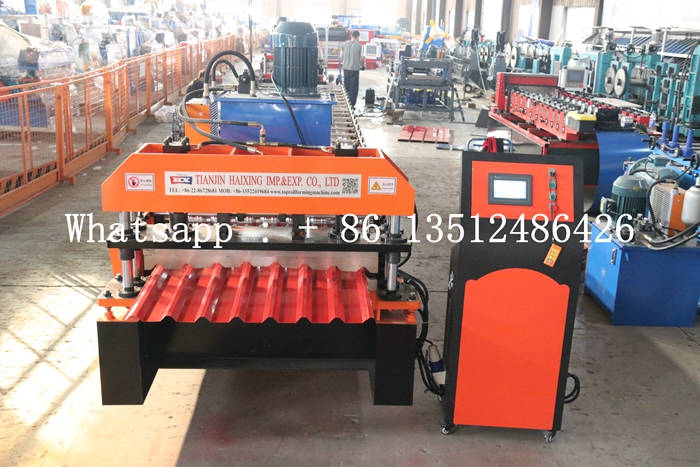

Zinc Sheet Making Machine
Zinc Sheet Making Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Zinc Sheet Making Machine
Zinc Sheet Making Machine

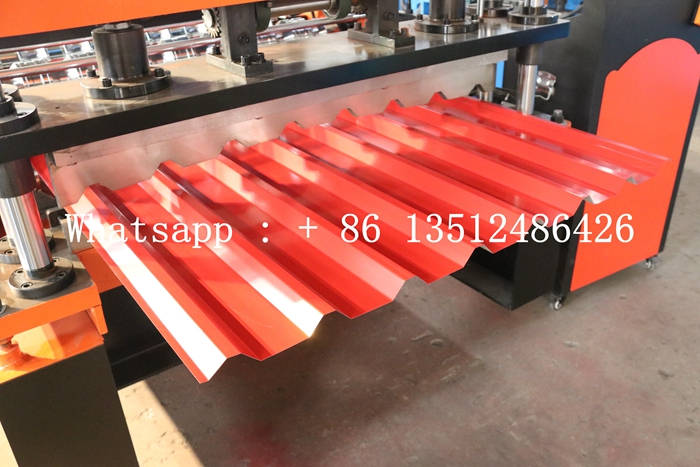

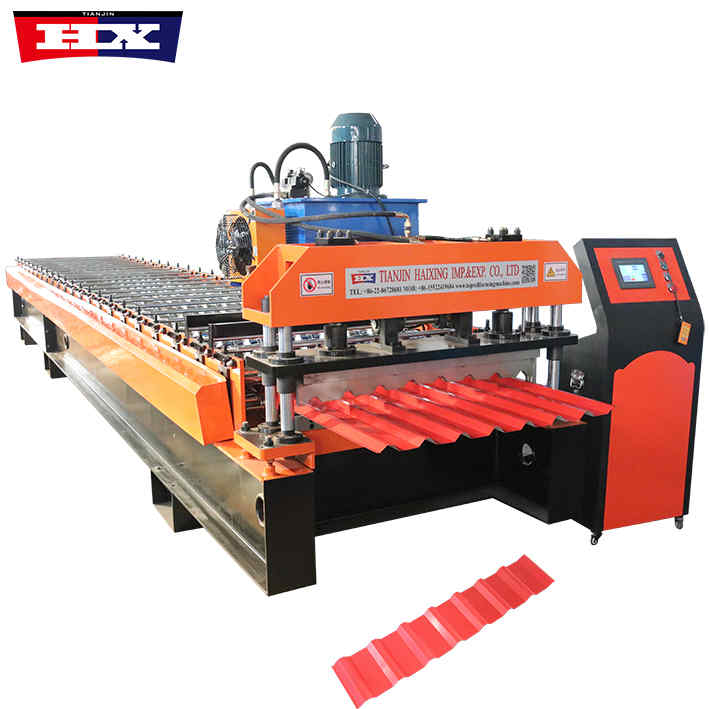

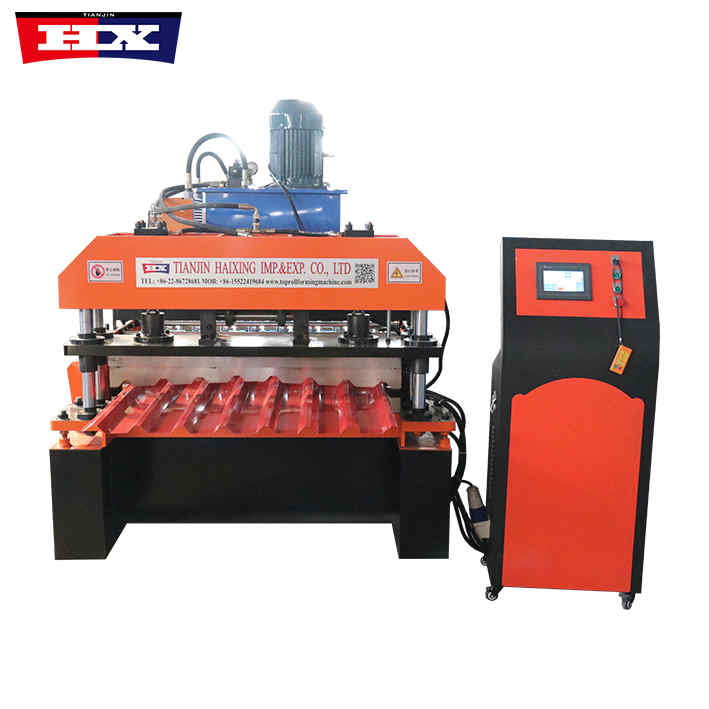

Zinc sheet making machine is mainly composed of fuselage, transmission system, hydraulic system, electrical control system and other parts. When working, the electric control system controls the transmission system to drive the hydraulic system, so that the upper and lower molds of the tile press are closed, and the metal plates placed between the molds are pressed and formed. After the pressing is completed, the mold is opened and the finished tiles automatically fall off, completing a pressing process.
Zinc Sheet Making Machine
Specification
No. |
Number |
Zinc Sheet Making Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |

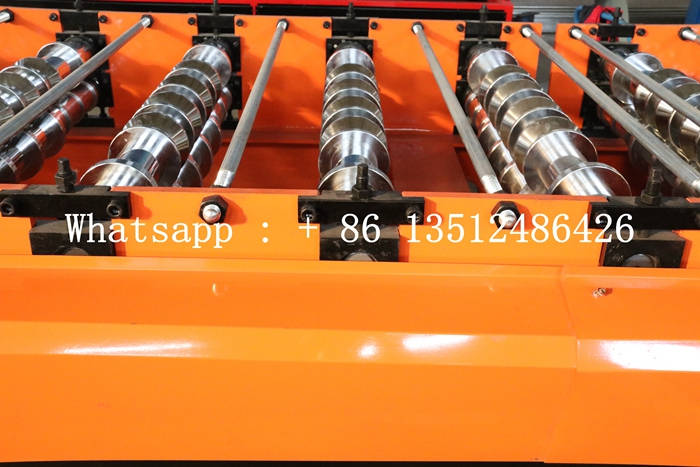

| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 22 |
| 19. | Size | 10500mm*1500mm*1600mm |
| 20. | Weight | 6000kg |
Notice
1. Before using the zinc sheet making machine, staff should be familiar with the structure, performance and operation methods of the equipment to ensure the safe operation of the equipment.
2. Before starting the equipment, check whether all components are intact and whether the oil level of the transmission system and hydraulic system is normal to ensure that the equipment is in good working condition.
3. During the production process, the operating status of the equipment should be checked regularly. If any abnormality is found, the machine should be shut down for inspection in time to avoid equipment damage or impact on product quality.
4. During the operation of the equipment, it is prohibited to adjust the spacing and angle of the pressing rollers at will to avoid damaging the equipment or affecting product quality.
5. After production, the residue inside the equipment should be cleaned in time to keep the equipment clean and dry to prevent the equipment from rusting or being damaged.
