Decking Roll Forming Machine
Decking Roll Forming Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.8-1.5mm
Produce Speed : 10-15m/min
Port : Tianjin
Decking Roll Forming Machine
Decking Roll Forming Machine

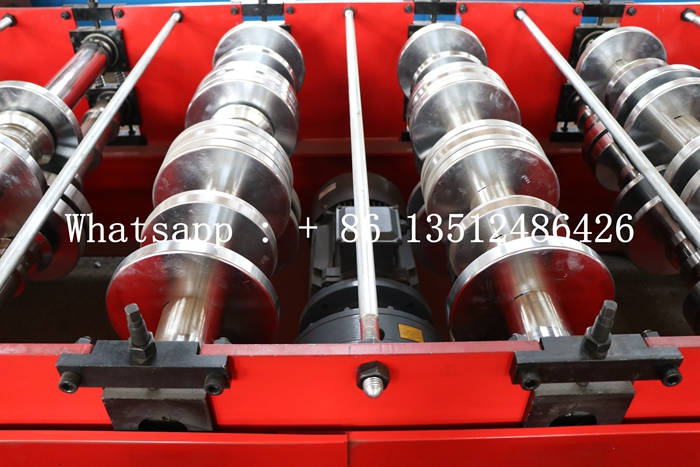

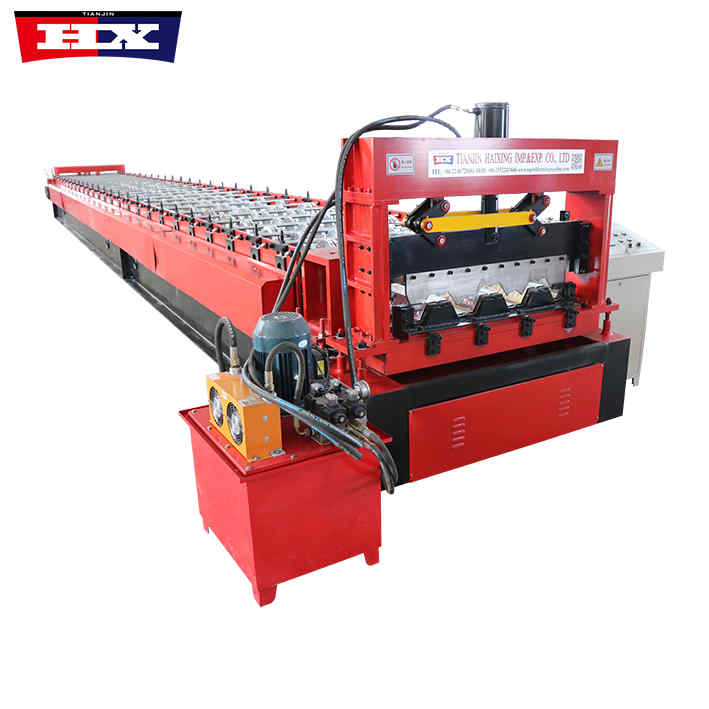

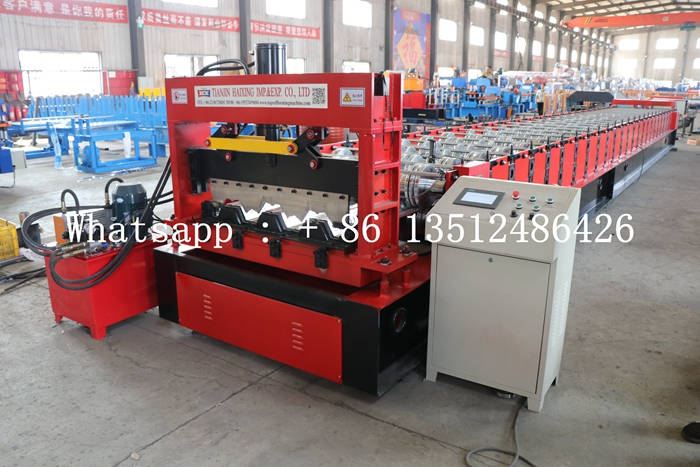

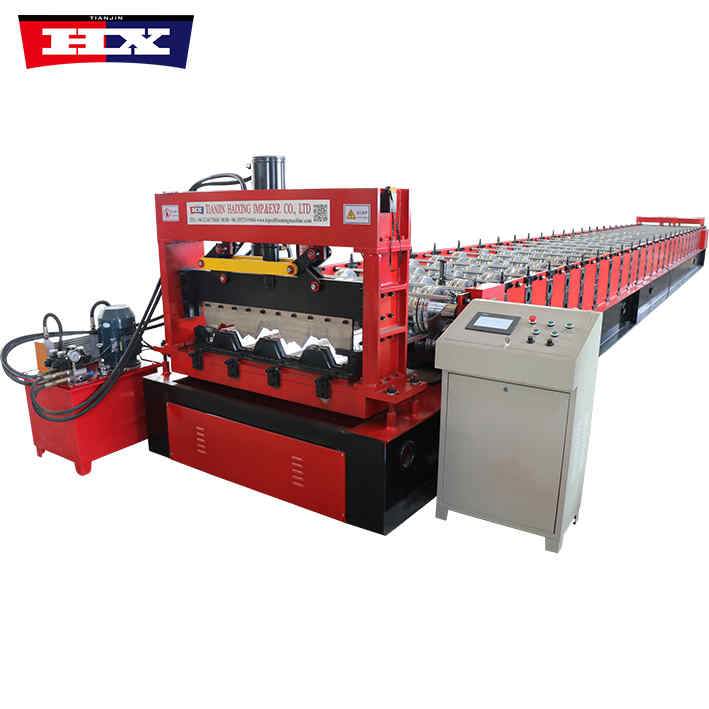

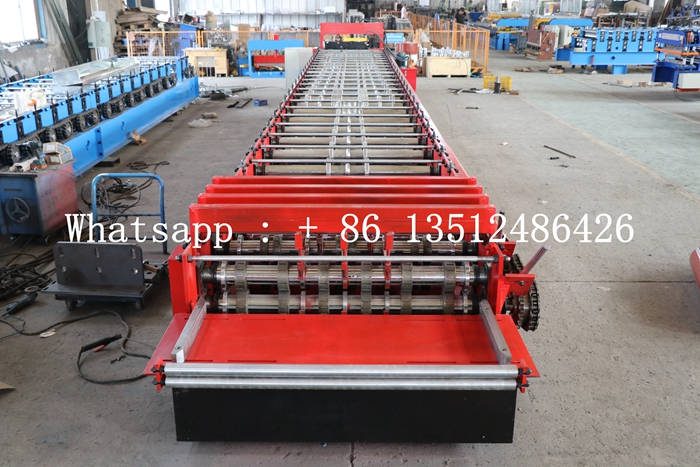

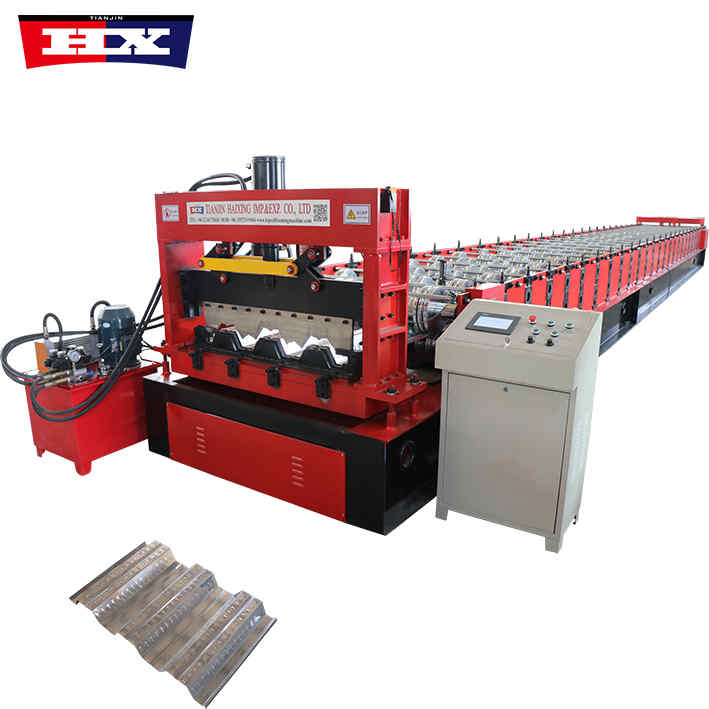

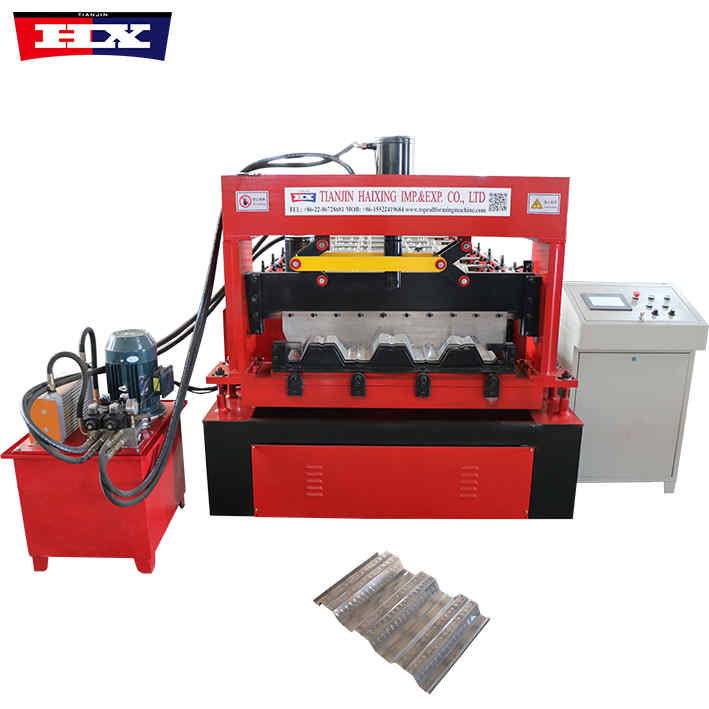

Decking roll forming machine is mainly composed of a discharge machine, a feed introduction platform, a forming host, a forming cutting device, a hydraulic station, and an electric control cabinet.
Decking roll forming machine adopts hydraulic drive and automatically cuts off after forming, without deformation or waste.

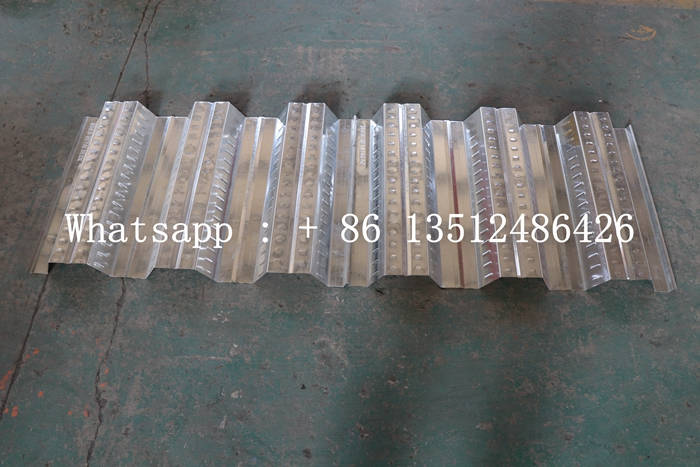

The products produced by decking roll forming machine equipment have the characteristics of light weight, high load-bearing capacity and good durability, and are widely used in multi-high-rise steel structure buildings.
Floor Deck Roll Forming Machine
Specification
No. |
Number |
Decking Roll Forming Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 450H Beam |
| 4 | Middel side | 18/20mm |
| 5. | Main motor | 15kw*2 |

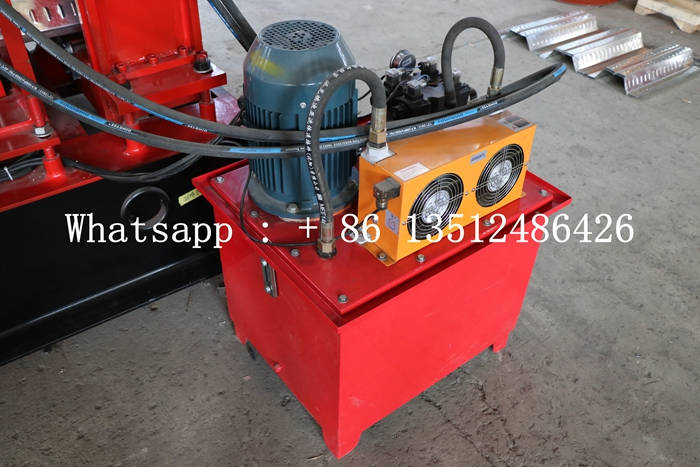

| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1.5/2 inches |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ85mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.8-1.5mm |
| 18. | Rows | 26 |
| 19. | Size | 12500mm*1800mm*2000mm |
| 20. | Weight | 13500kg |
Features
1. Decking roll forming machine. High efficiency and energy saving: The floor decking machine adopts advanced control system and transmission system, which has the advantages of high efficiency and energy saving, and can greatly improve production efficiency and reduce production costs.
2. Decking roll forming machine. High precision: The floor decking machine uses high-precision bearings and gears to ensure that the processed panels are accurate in size and standard in shape, effectively reducing the product defect rate.
3. Decking roll forming machine. Strong adaptability: Floor decking and metal plates are suitable for processing various thicknesses and materials. At the same time, the shape and size of the plates can be adjusted according to customer needs.
4. Decking roll forming machine. Easy to operate: The equipment adopts human-machine interface operation, which is simple and convenient to operate. It is also equipped with a variety of safety protection devices to effectively ensure the safety of operators.
